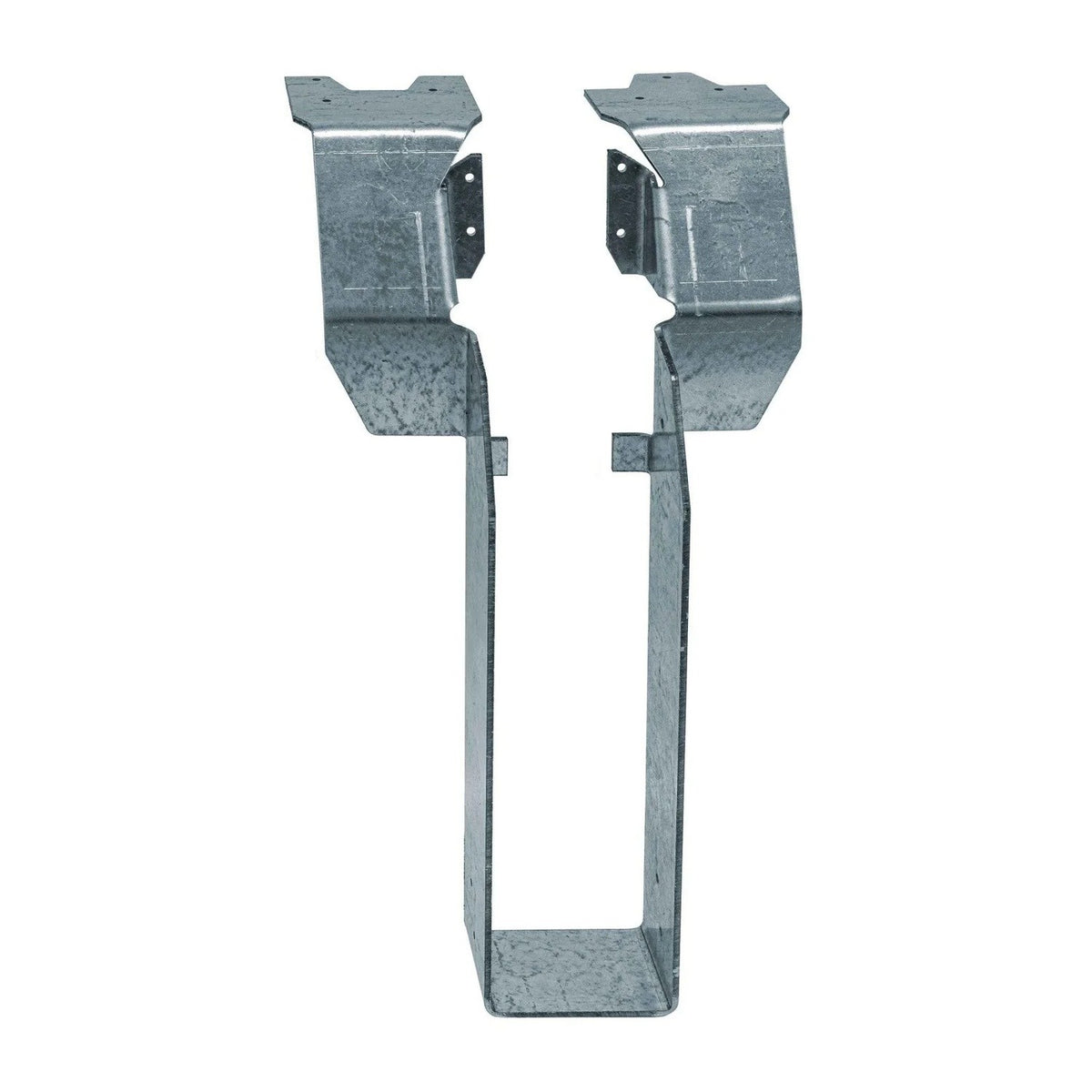

Simpson Strong-Tie DGT2.37/14 (2-5/16" x 14") Top-Flange Fire Wall Hanger for Engineered Wood
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DGT2.37/14 (2-5/16" x 14") Top-Flange ...
Key Specifications
Description
Description
Simpson Strong-Tie DGT2.37/14 Description
The Simpson DGT2.37/14 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in multifamily and multilevel constructions, ensuring structural integrity and compliance with fire-resistive standards.
Simpson Strong-Tie DGT2.37/14 Includes
- (1) Top-Flange Fire Wall Hanger
Simpson Strong-Tie DGT2.37/14 Features
- Two-hour fire rating for 2x4 or thicker walls

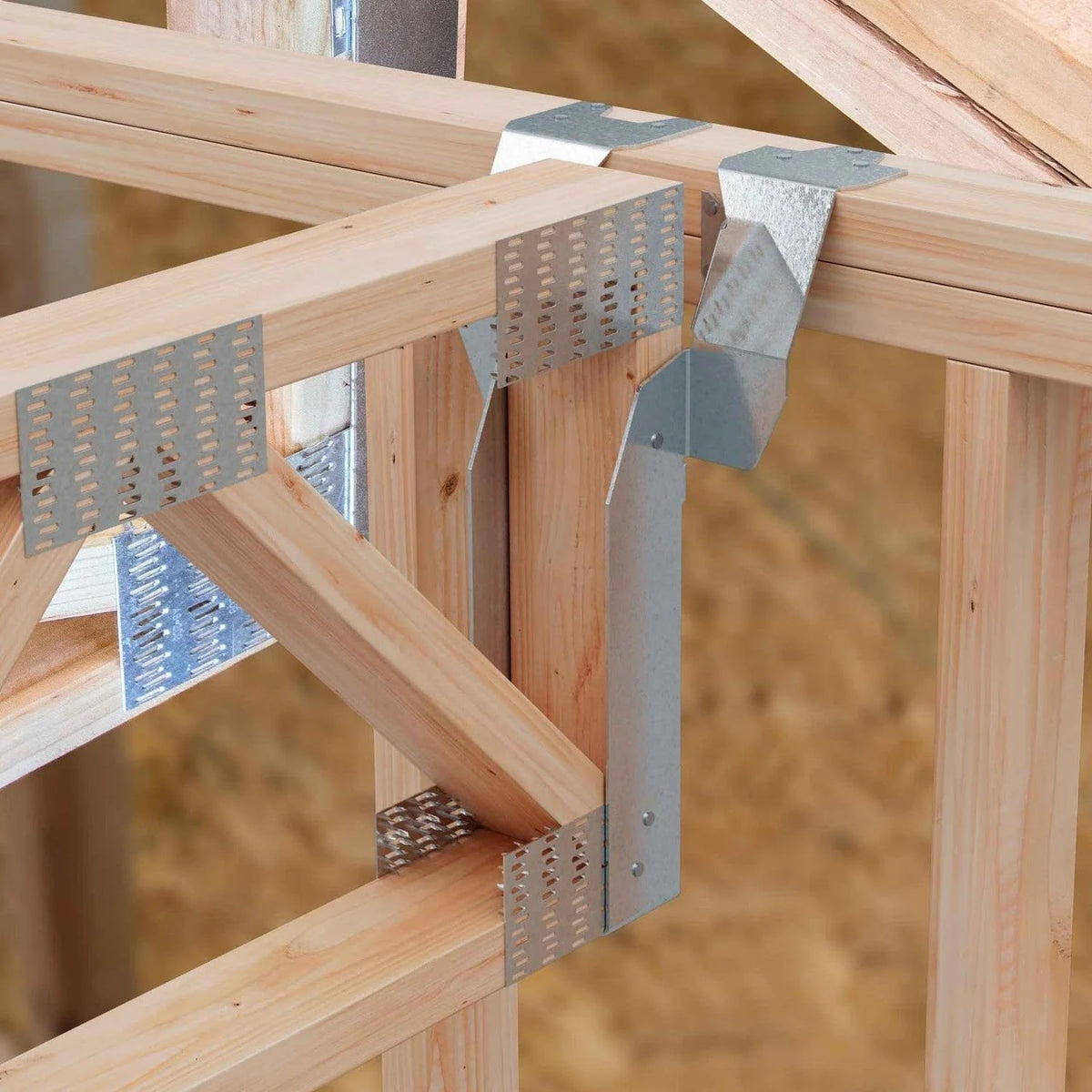

- Innovative top-flange design for back-to-back installation on 2x6 walls
- Space for two layers of 5/8" drywall after framing
- Compatible with power-driven or hand-installed nails
Simpson Strong-Tie DGT2.37/14 Applications
- Multifamily residential buildings requiring fire-rated connections
- Commercial structures adhering to fire safety standards
- Type III construction projects

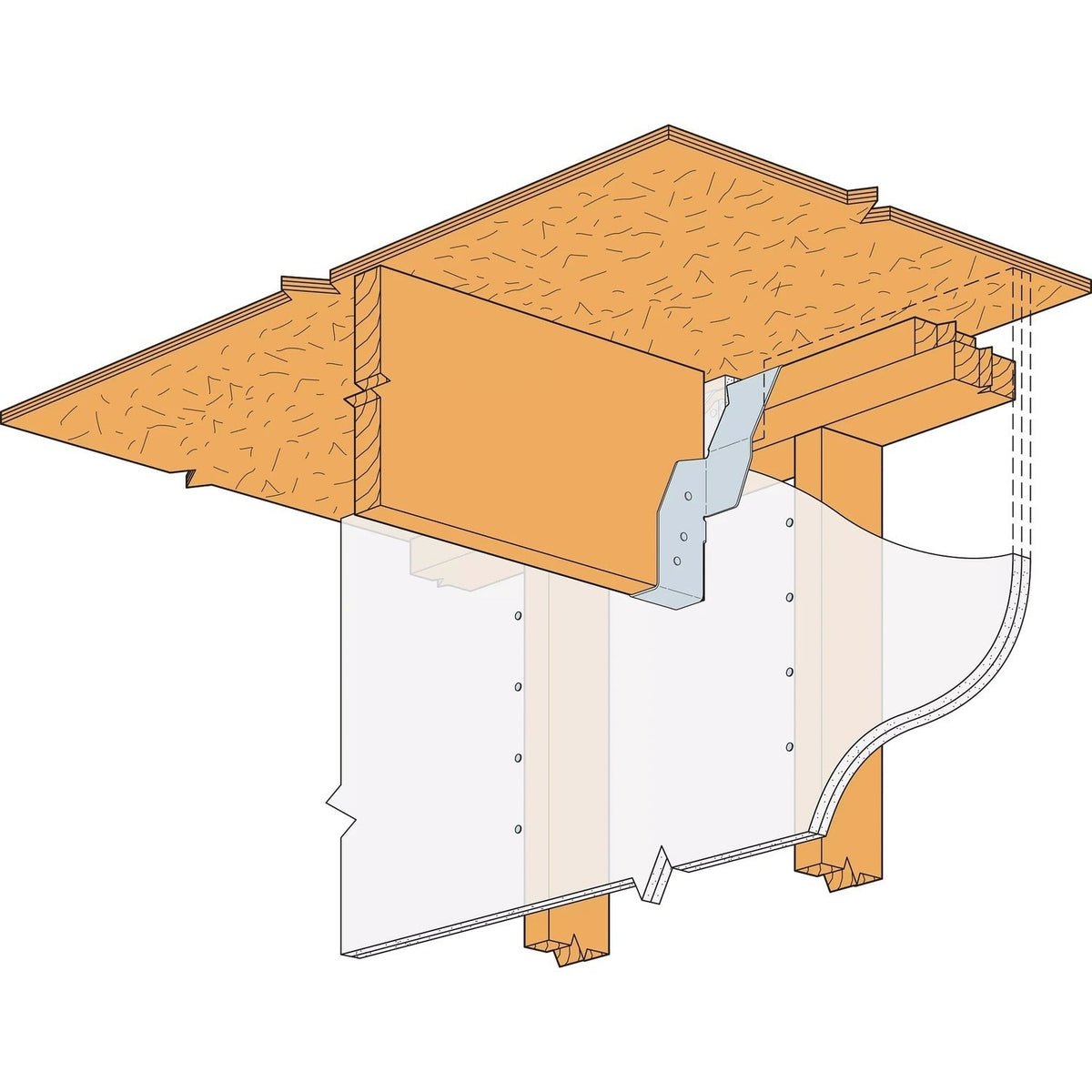

Simpson Strong-Tie DGT2.37/14 Installation Overview
- Use all specified fasteners as per guidelines
- Install similarly to standard top-flange hangers
- Ensure stud wall-plate splices occur at stud locations
- For I-joist applications, use web stiffeners
- When attaching to a steel header, weld and secure with specified nails

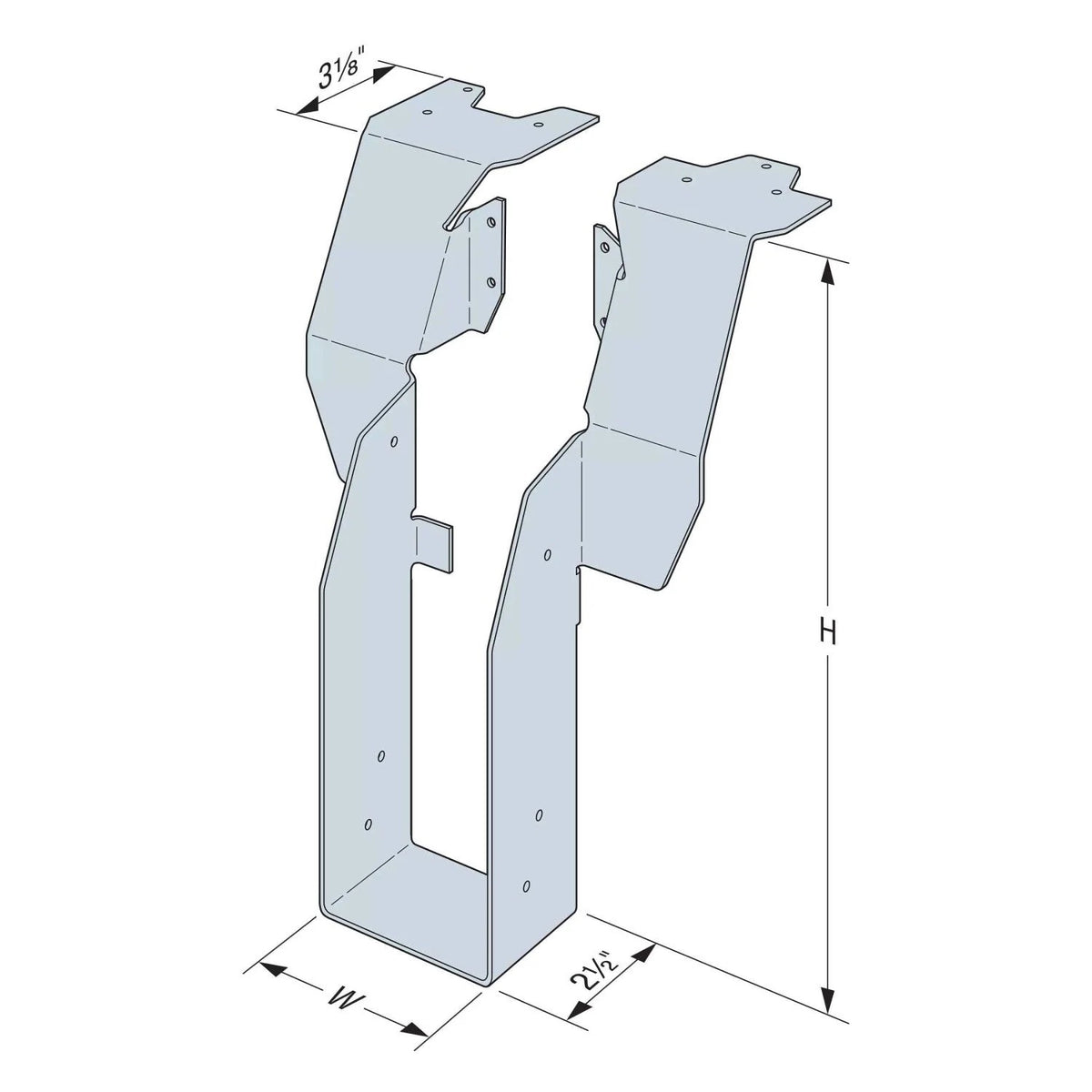

Simpson Strong-Tie DGT2.37/14 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails, FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails, POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 13-15/16" |
| Joist size | 2-5/16" X 14" |
| Thickness | 12 Gauge |
| Width | 2-3/8" |
NOTE: Ensure all specified fasteners are used in the correct positions to achieve the published load values.
