Simpson Strong-Tie DGT2.56/11.88 (2-1/2" x 11-7/8") Top-Flange Fire Wall Hanger for Engineered Wood
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DGT2.56/11.88 (2-1/2" x 11-7/8") Top-F...
Key Specifications
Description
Description
Simpson DGT2.56/11.88 Description

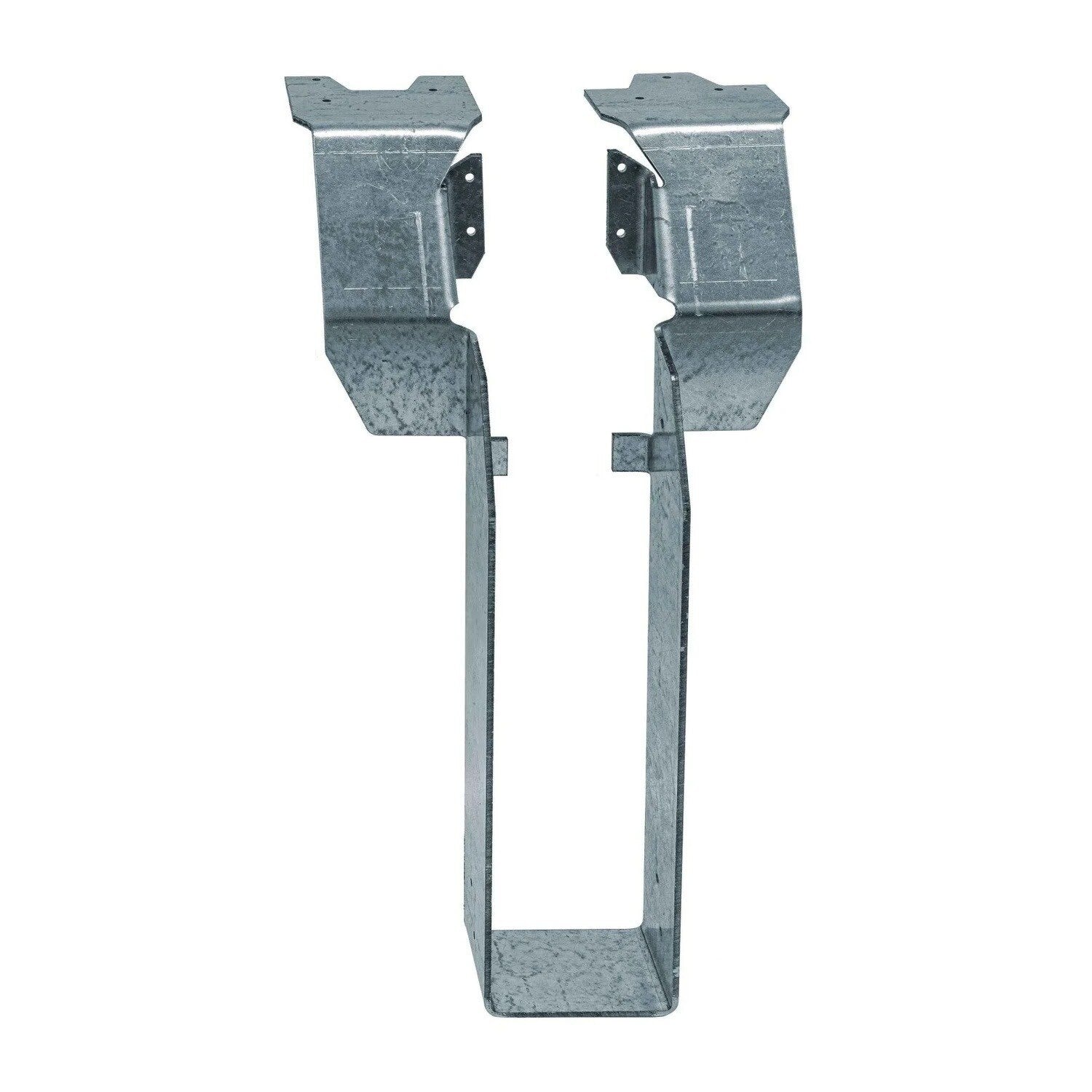

The Simpson DGT2.56/11.88 Top-Flange Fire Wall Hanger is designed for robust fire-rated connections in multifamily and multilevel Type III residential constructions.
Simpson DGT2.56/11.88 Includes
- (1) Top-Flange Fire Wall Hanger for Engineered Wood
Simpson DGT2.56/11.88 Features
- Two-hour fire rating for 2x4 or thicker walls
- Innovative top-flange design for back-to-back installation on 2x6 walls

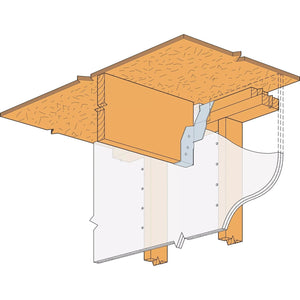

- Space for two layers of 5/8" drywall after framing
- Tested and code listed for power-driven or hand-installed nails
- Made from 12-gauge galvanized steel
Simpson DGT2.56/11.88 Applications
- Multifamily Residential Buildings: Provides fire-rated connections essential for apartment complexes and condominiums.
- Commercial Structures: Ensures compliance with fire safety standards in offices and retail spaces.
- Type III Construction: Ideal for multilevel residential buildings requiring fire-rated wall assemblies.

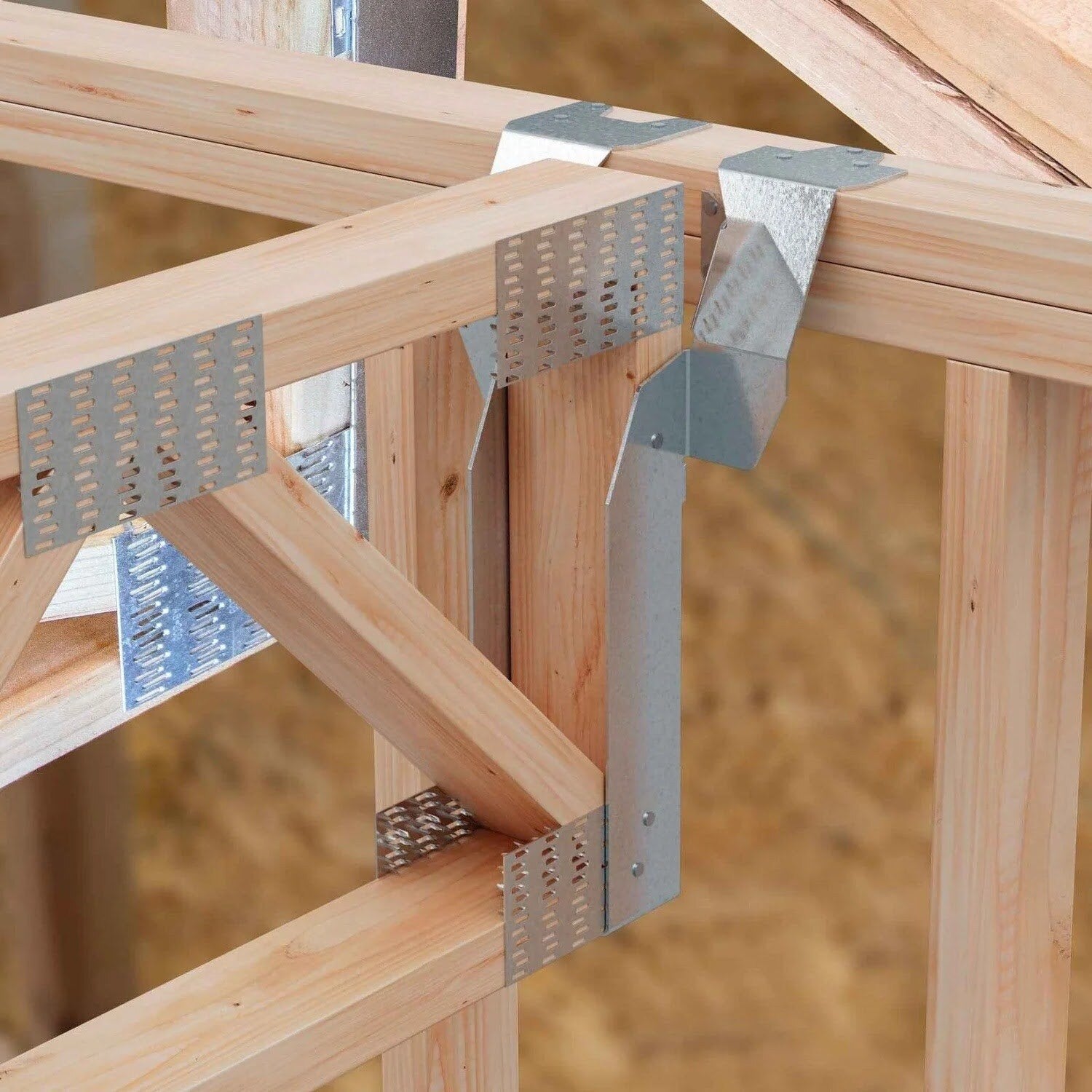

Simpson DGT2.56/11.88 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Install the DGT hanger similarly to standard top-flange hangers.
- Ensure stud wall-plate splices occur at stud locations.
- For I-joist applications, web stiffeners are required.
- When attaching to a steel header, weld the DGT hanger using four 1/8" x 1-1/2" fillet welds and secure with six joist nails to achieve a download capacity of 1,700 lbs.

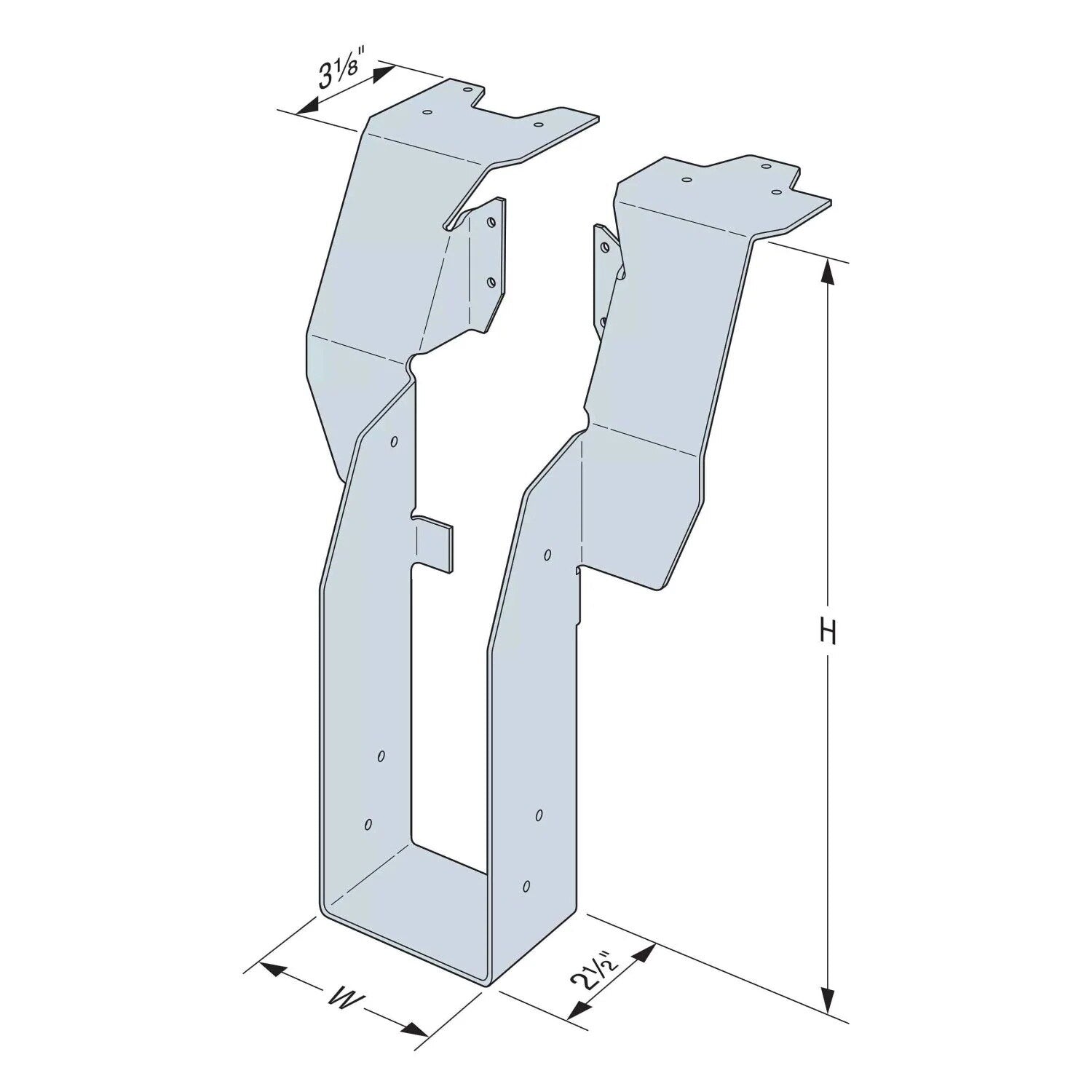

Simpson DGT2.56/11.88 Specifications
| Finish | G90 Galvanized |
| Material | Galvanized Steel |
| Fasteners required | TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails |
| For Treated Lumber | No |
| Height | 11-13/16" |
| Joist size | 2-1/2" X 11-7/8" |
| Thickness | 12 Gauge |
| Width | 2-9/16" |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
