Simpson Strong-Tie DHU210TF Top-Flange Drywall Hanger for 2x10 with SDS Screws - Fire-Rated Joist Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie DHU210TF Top-Flange Drywall Hanger for 2x10 with...
Key Specifications
Description
Description
Simpson Strong-Tie DHU210TF Description

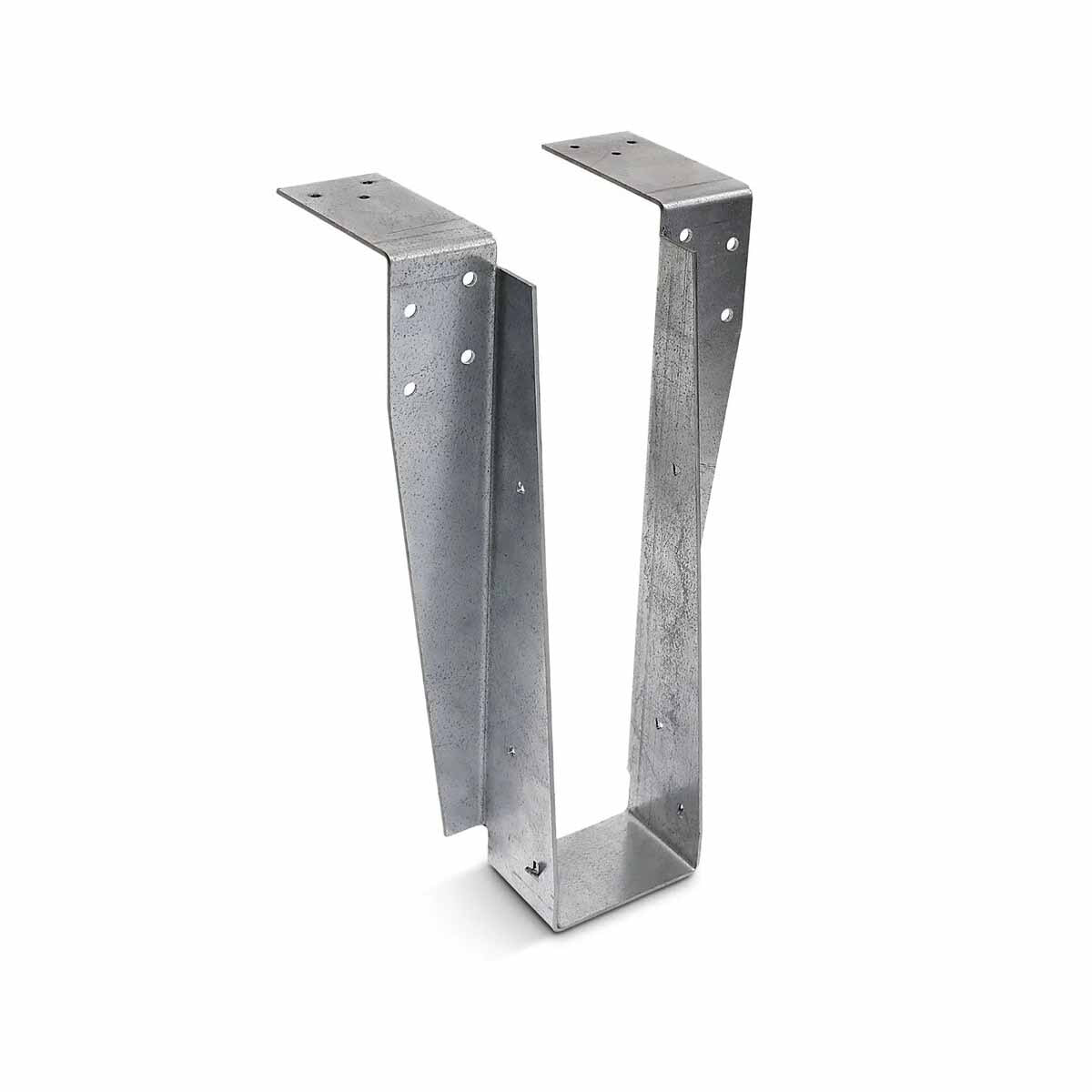

The Simpson Strong-Tie DHU210TF Top-Flange Drywall Hanger is designed for secure joist connections in fire-rated wall assemblies, offering durability and compliance with structural codes.
Simpson Strong-Tie DHU210TF Includes
- (8) 1/4 in. x 3-1/2 in. Strong Drive SDS Heavy-Duty Connector screws
- (1) Top-Flange Drywall Hanger for 2x10 with SDS Screws - Fire-Rated Joist Connection
Simpson Strong-Tie DHU210TF Features
- Top-flange design preserves fire-rating with 1" member-to-wall gap.
- Compatible with solid sawn lumber and engineered wood members.
- Code compliant with IAPMO ER-287 listing and ASTM D7147 testing.
- Galvanized coating for corrosion resistance.
- Heavy-duty steel construction for superior load capacity.
Simpson Strong-Tie DHU210TF Applications
- Multi-Family Construction: Supports floor framing while preserving fire-rated assemblies between units.
- Commercial Wood-Framed Buildings: Enables secure joist or truss connections in fire-separation wall applications.
- Engineered Wood Framing: Compatible with I-joists, LVL, and other engineered members.
- Solid Sawn Applications: Ideal for dimensional lumber in traditional framing systems.

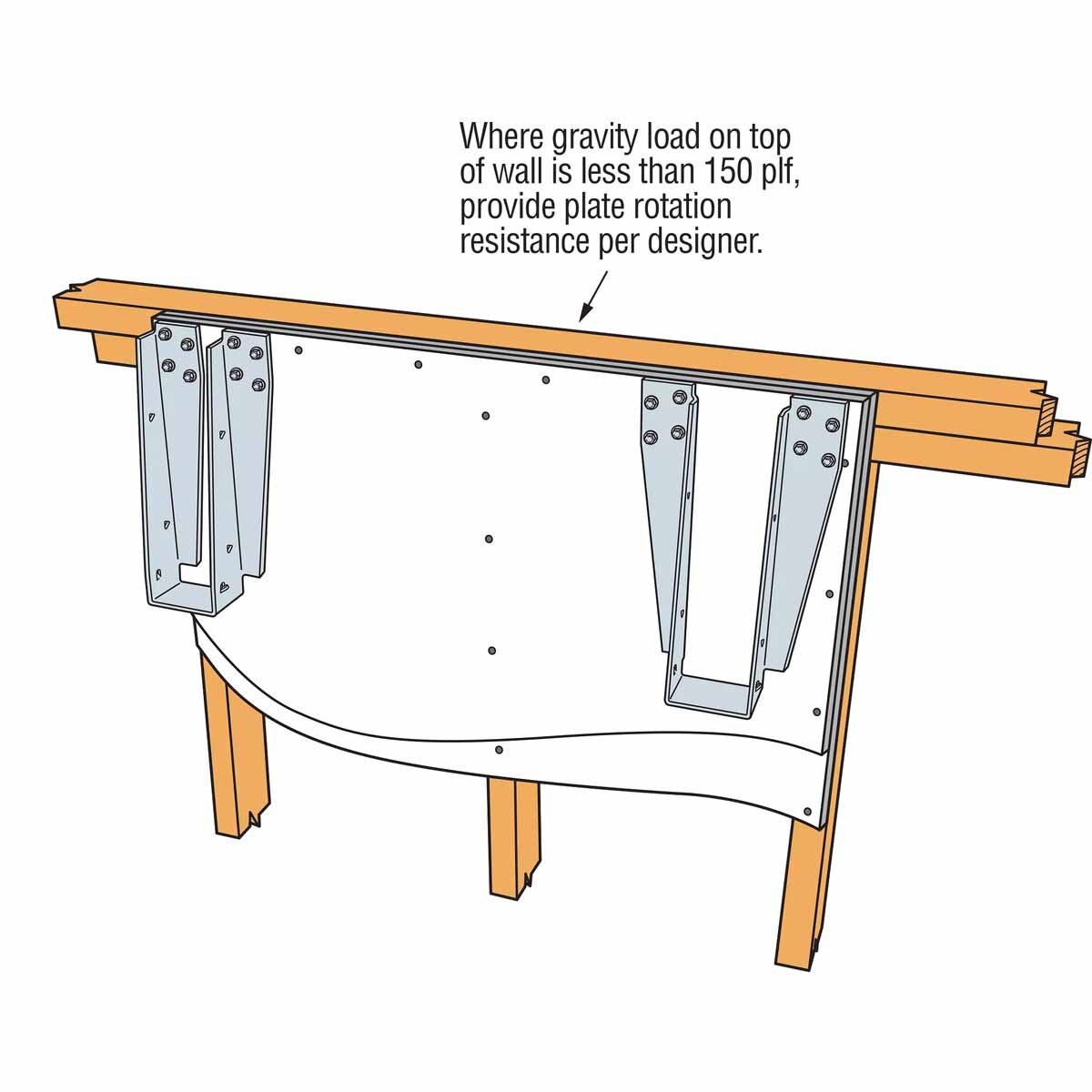

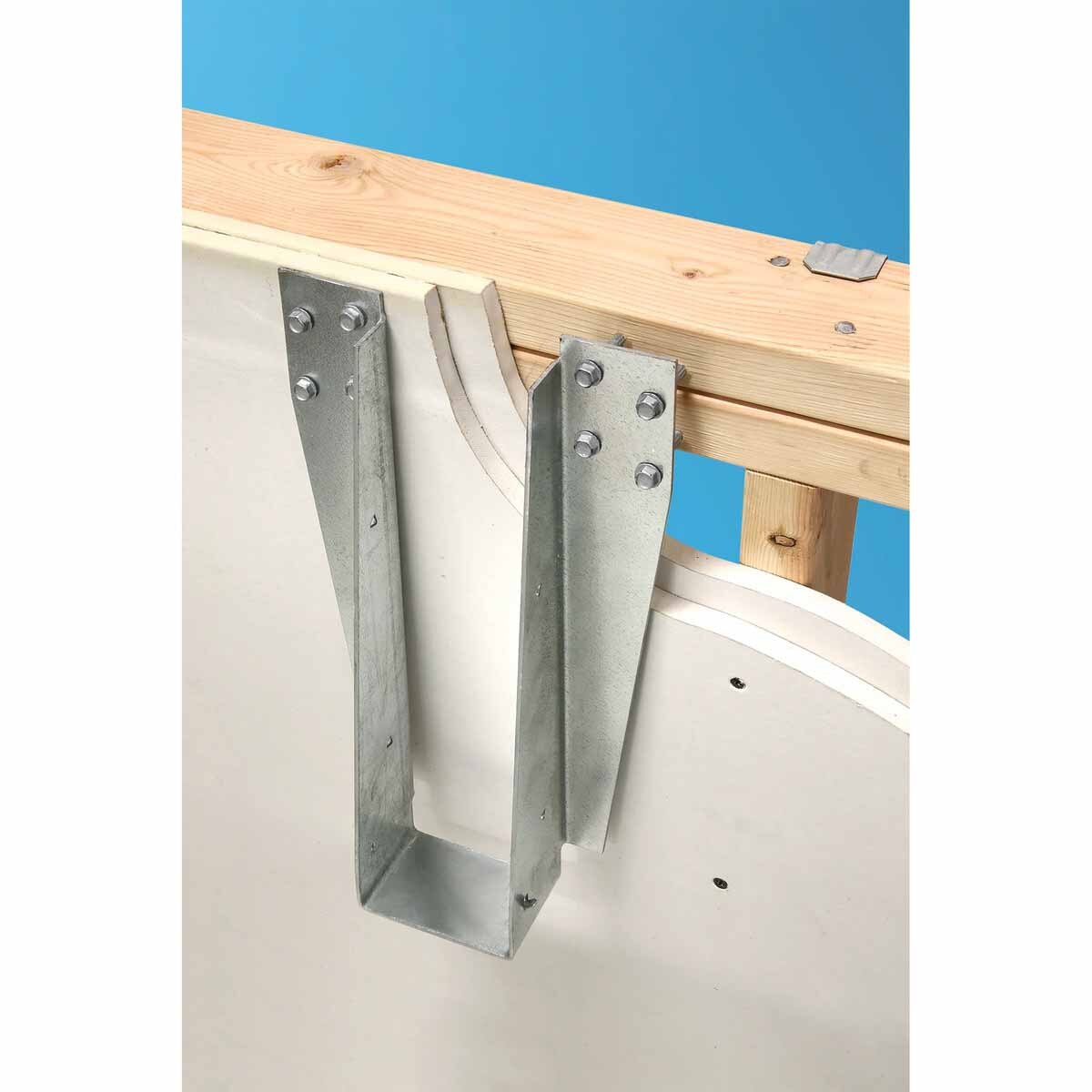

Simpson Strong-Tie DHU210TF Installation Overview
- Install with specified nails or screws into both the top flange and carried member.
- Ensure a minimum 1" air gap between the end of the carried member and wall.
- Hanger must be installed on the cold side of the wall assembly.
- Do not skew, modify, or install upside-down.
- For concrete or masonry applications, anchorage requirements must meet ICC standards.

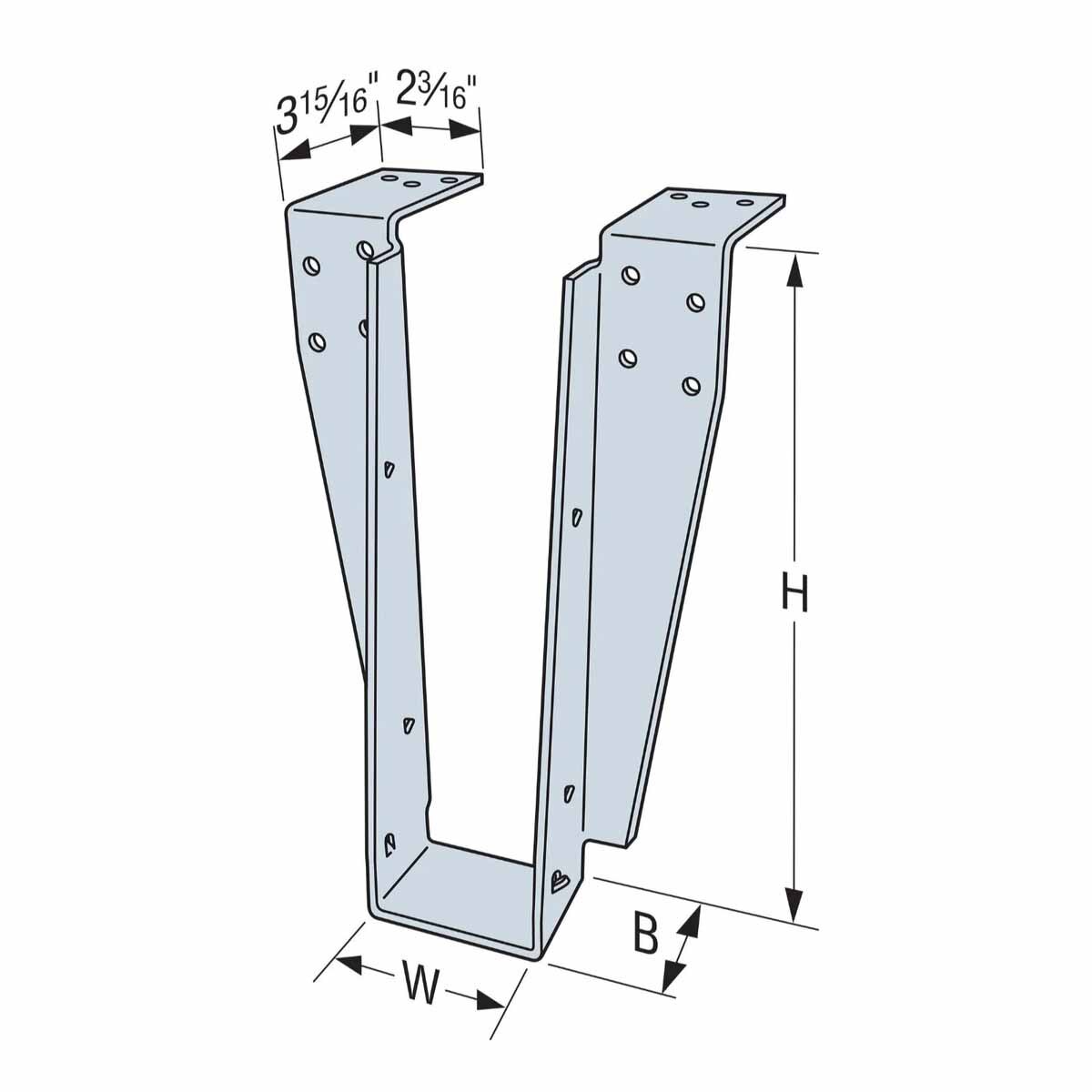

Simpson Strong-Tie DHU210TF Specifications
| Finish | G90 Galvanized |
| Height | 9-1/8" |
| Width | 1-9/16" |
| Thickness | 12 Gauge |
| Joist size | 2" X 10" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
