Simpson Strong-Tie FCB43.5-R25 (3-1/2 Inch) Fixed-Clip Connector for Cold-Formed Steel Framing (25 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie FCB43.5-R25 (3-1/2 Inch) Fixed-Clip Connector fo...
Key Specifications
Description
Description
Simpson FCB43.5-R25 Description

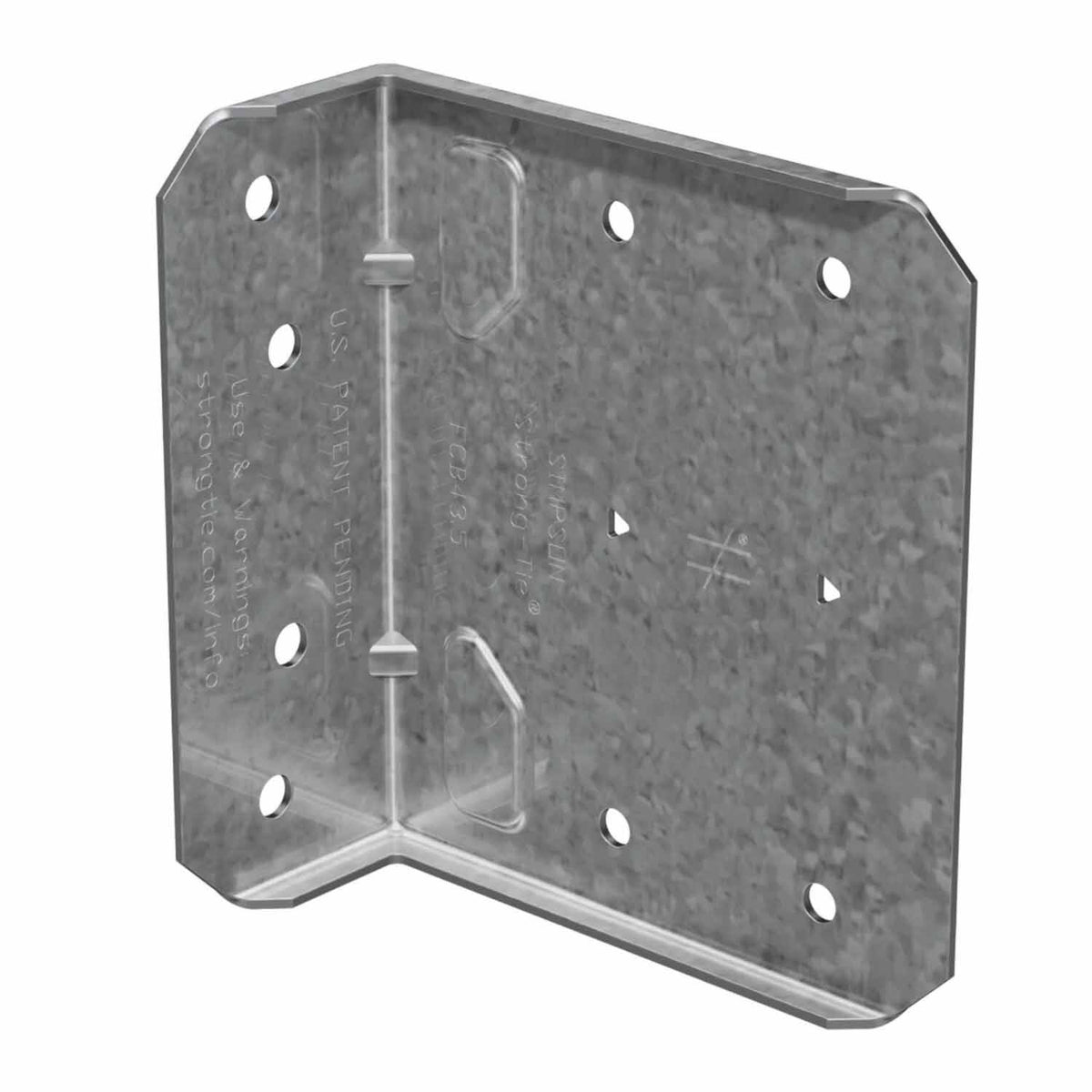

The FCB43.5-R25 is a high-performance fixed-clip connector designed for bypass framing applications, featuring a G90 Galvanized finish for corrosion resistance.
Simpson FCB43.5-R25 Includes
- (25) Bypass Framing Fixed-Clip Connector
Simpson FCB43.5-R25 Features
- Economical and high-performance fixed-clip connector
- Rated for tension, compression, and shear loads
- Flexibility in specifying screw and anchorage patterns
- G90 Galvanized finish for corrosion resistance
- Requires hot-dip galvanized fasteners meeting ASTM A153 specifications
Simpson FCB43.5-R25 Applications

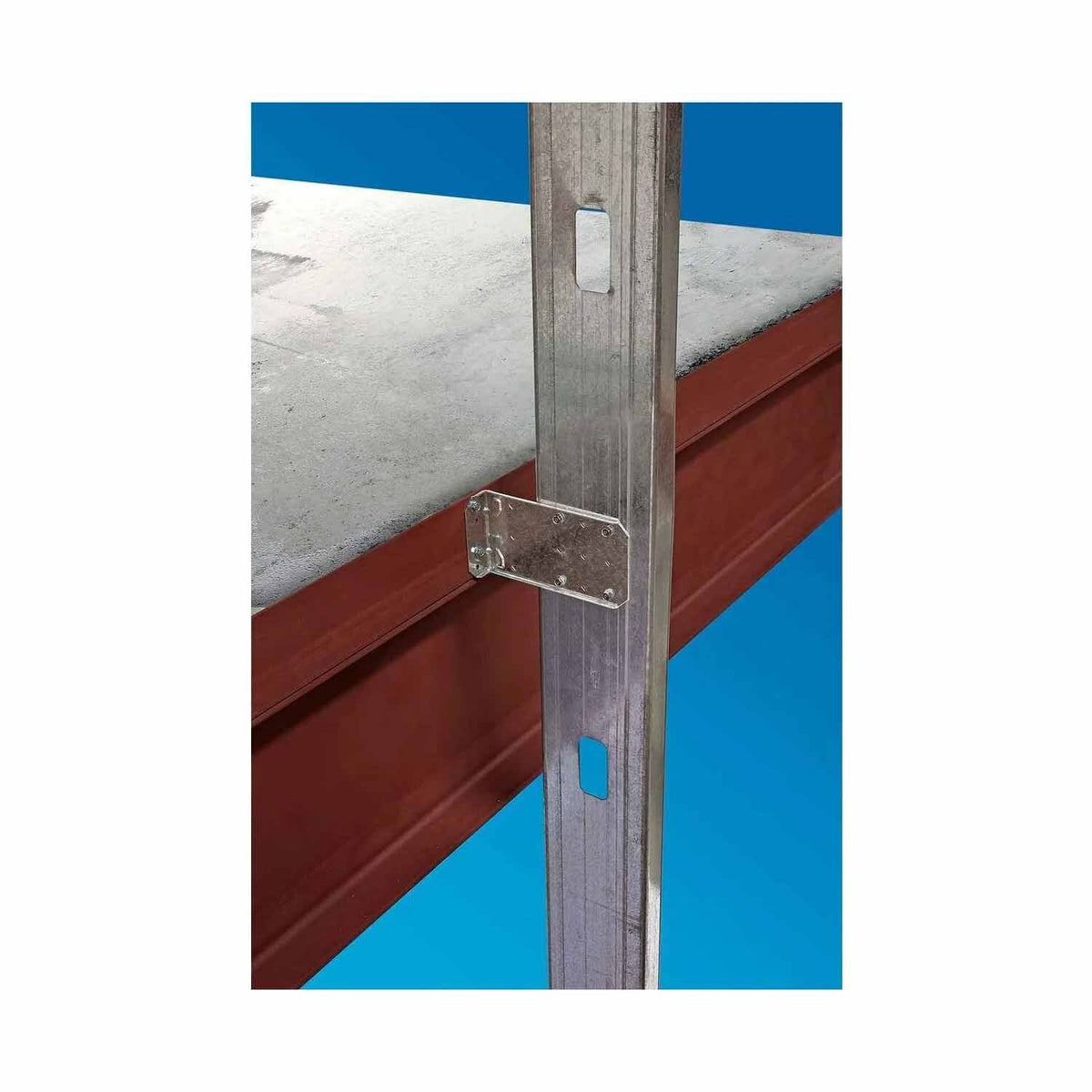

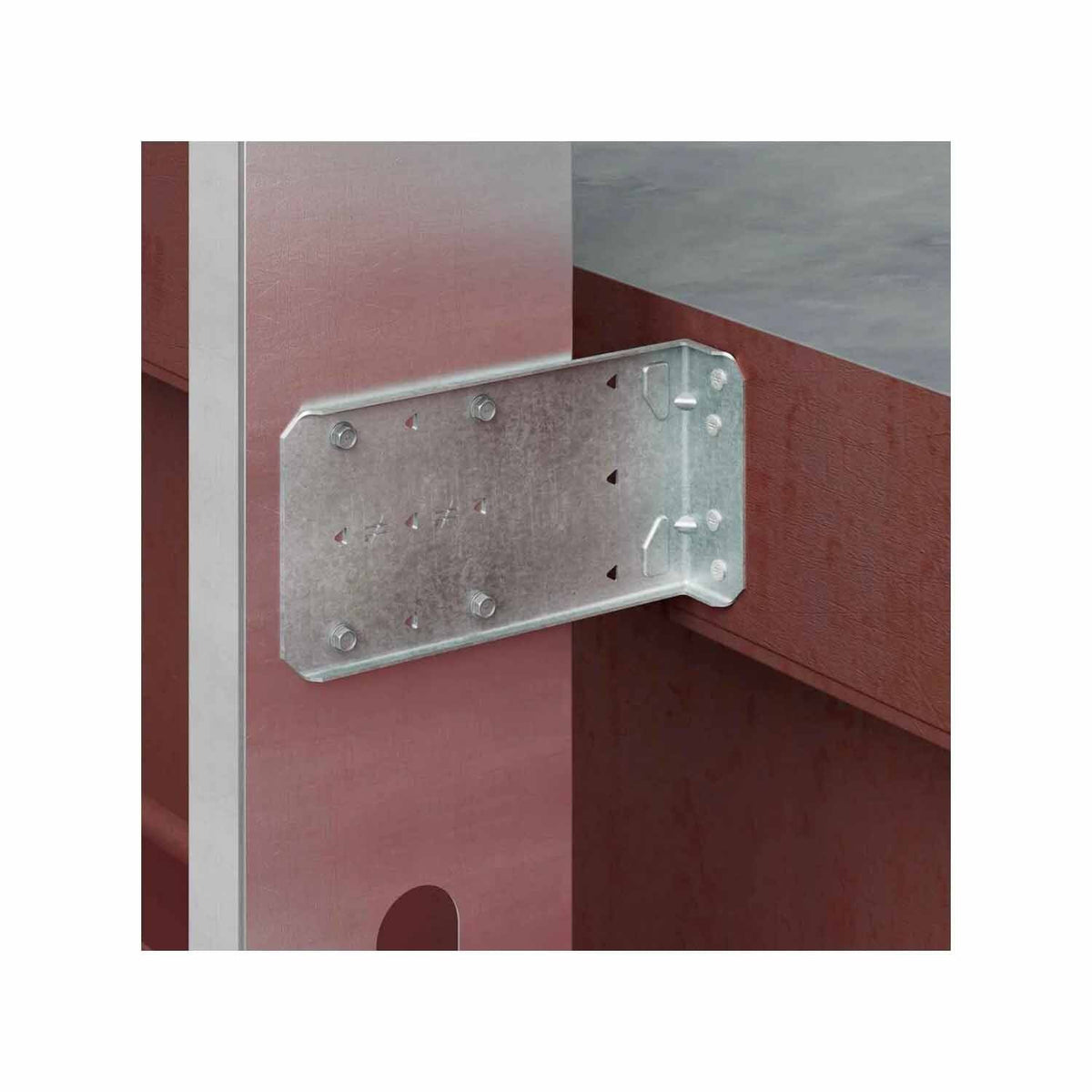

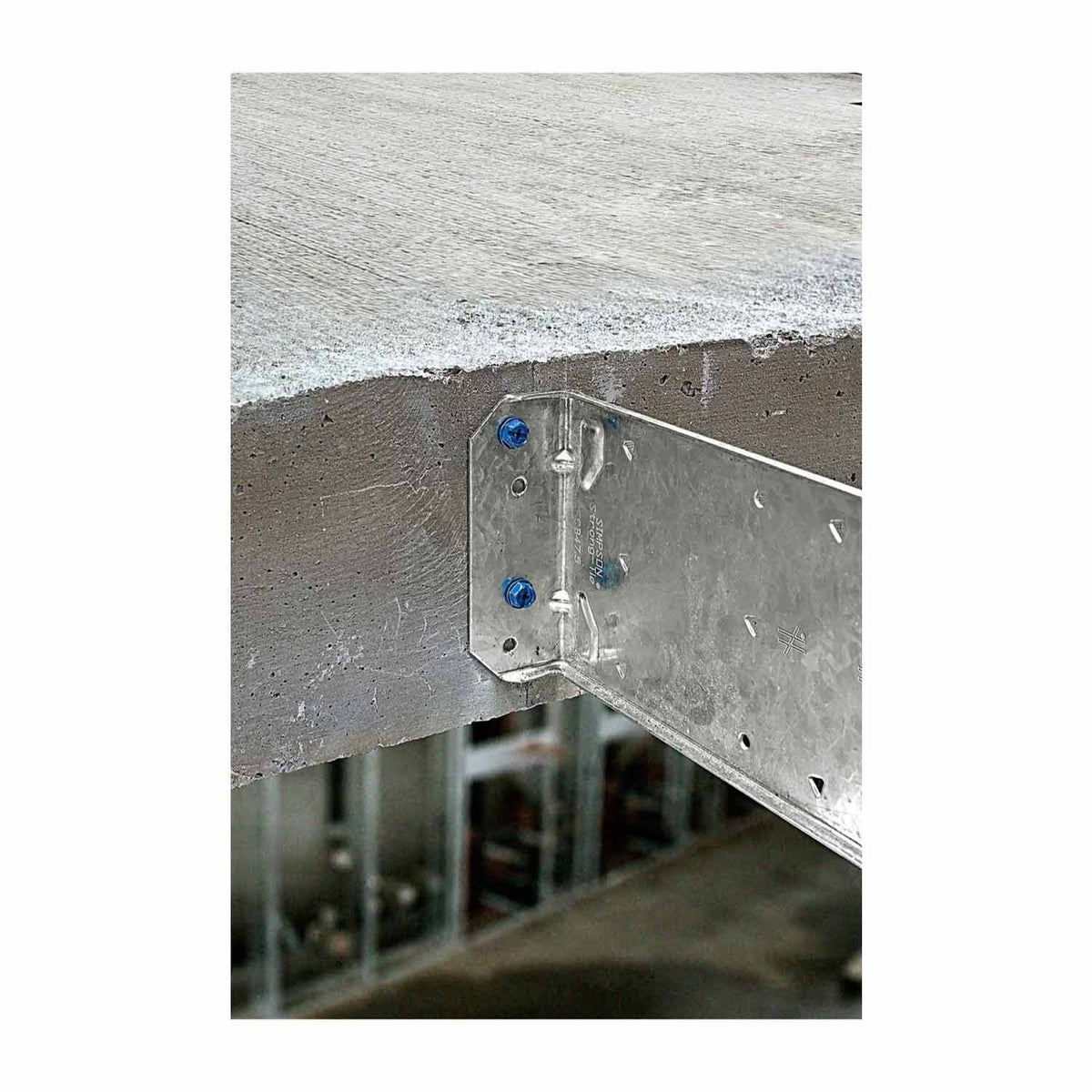

- Bypass framing applications
- Structural connections requiring tension, compression, and shear load support
- Framing designs needing flexible screw and anchorage patterns
Simpson FCB43.5-R25 Installation Overview
- Use the specified type and number of anchors
- Use the specified number of #12 self-drilling screws to CFS framing

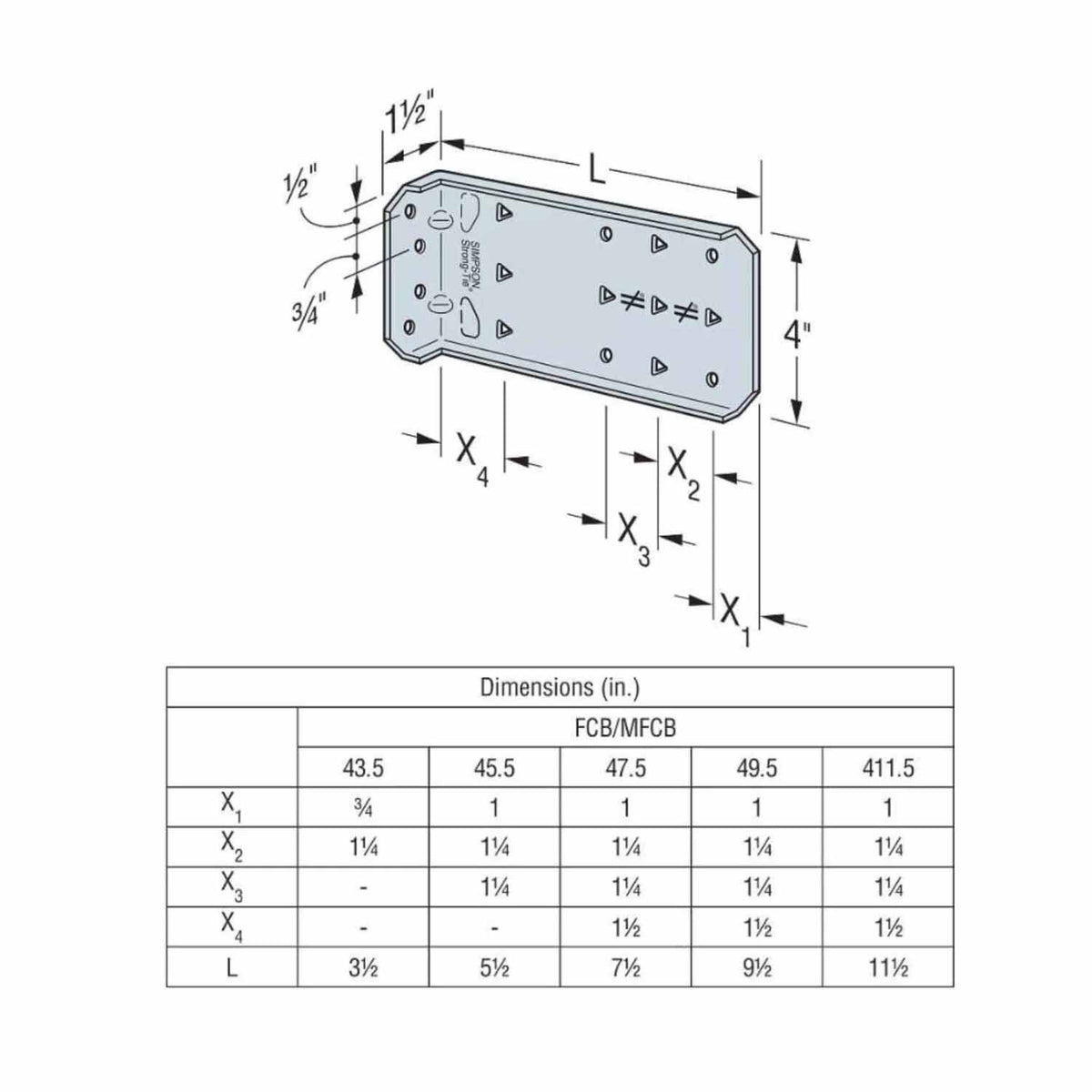

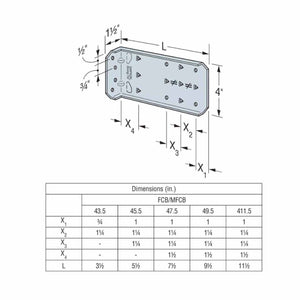

Simpson FCB43.5-R25 Specifications
| Finish | G90 Galvanized |
| Length | 3-1/2" |
| Height | 4" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
