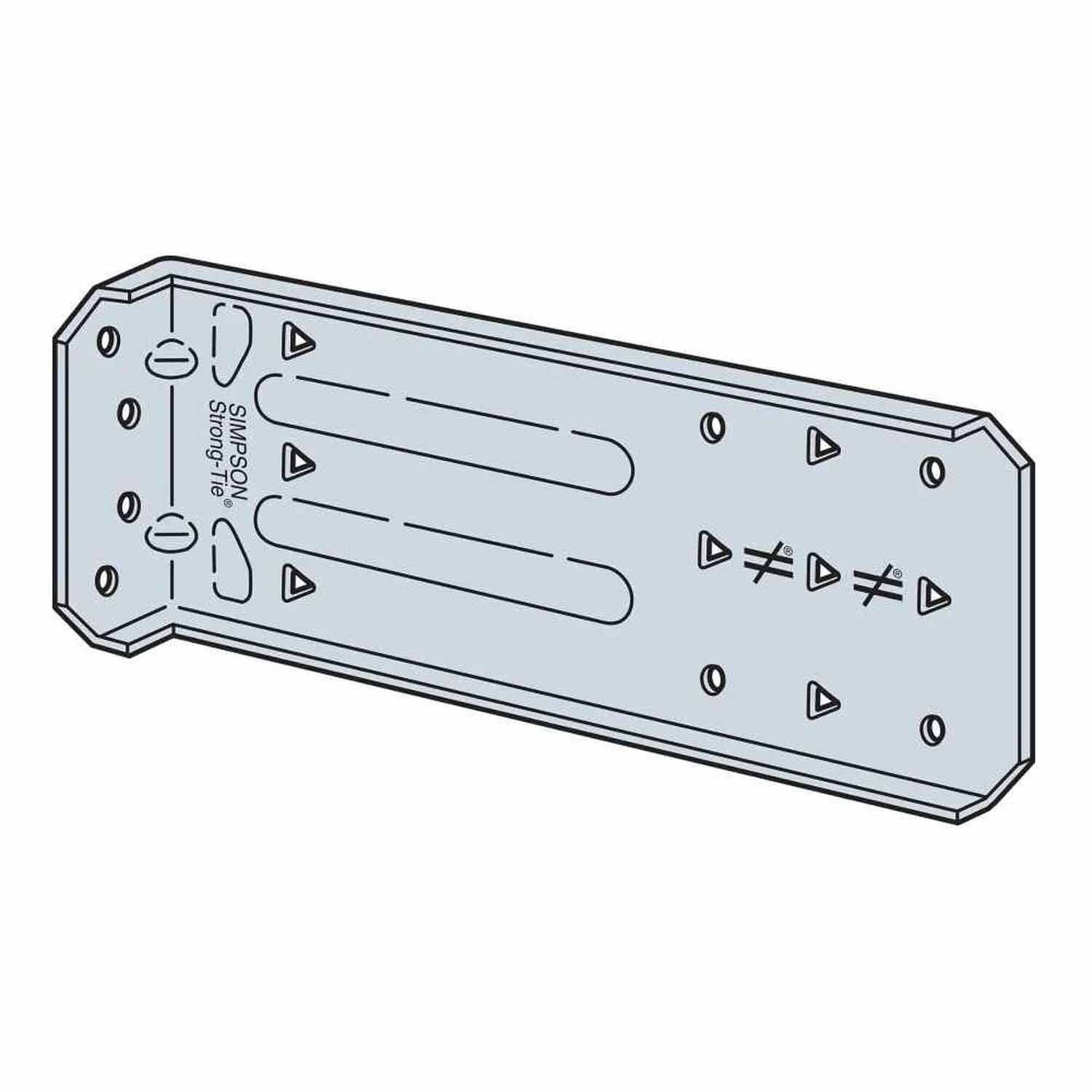

Simpson FCB49.5-R25 Strong-Tie Bypass Framing Fixed-Clip Connector for Cold-Formed Steel (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson FCB49.5-R25 Strong-Tie Bypass Framing Fixed-Clip Connector ...
Description
Description
Simpson FCB49.5-R25 Description
The FCB49.5-R25 is a high-performance fixed-clip connector designed for bypass framing applications, featuring a G90 galvanized finish for corrosion resistance.
Simpson FCB49.5-R25 Includes
- (25) Bypass Framing Fixed-Clip Connector
Simpson FCB49.5-R25 Features
- Rated for tension, compression, shear, and in-plane loads
- Provides design flexibility with varying screw and anchorage patterns
- Strategically placed stiffeners, embossments, and anchor holes maximize connector performance
Simpson FCB49.5-R25 Applications
- Bypass framing in cold-formed steel construction
- General framing applications requiring fixed-clip connectors
- Structural support in tension, compression, and shear load scenarios
Simpson FCB49.5-R25 Installation Overview
- Use the specified type and number of anchors
- Attach using the specified number of #12 self-drilling screws to CFS framing
- For installations to wood framing, refer to Simpson Strong-Tie engineering guidelines
Simpson FCB49.5-R25 Specifications
| Finish | G90 Galvanized |
| Length | 9-1/2" |
| Height | 4" |
| Thickness | 54 mil (16 ga.) |
| Material | Zinc Galvanized |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
