Simpson Strong-Tie HSULC46 Description

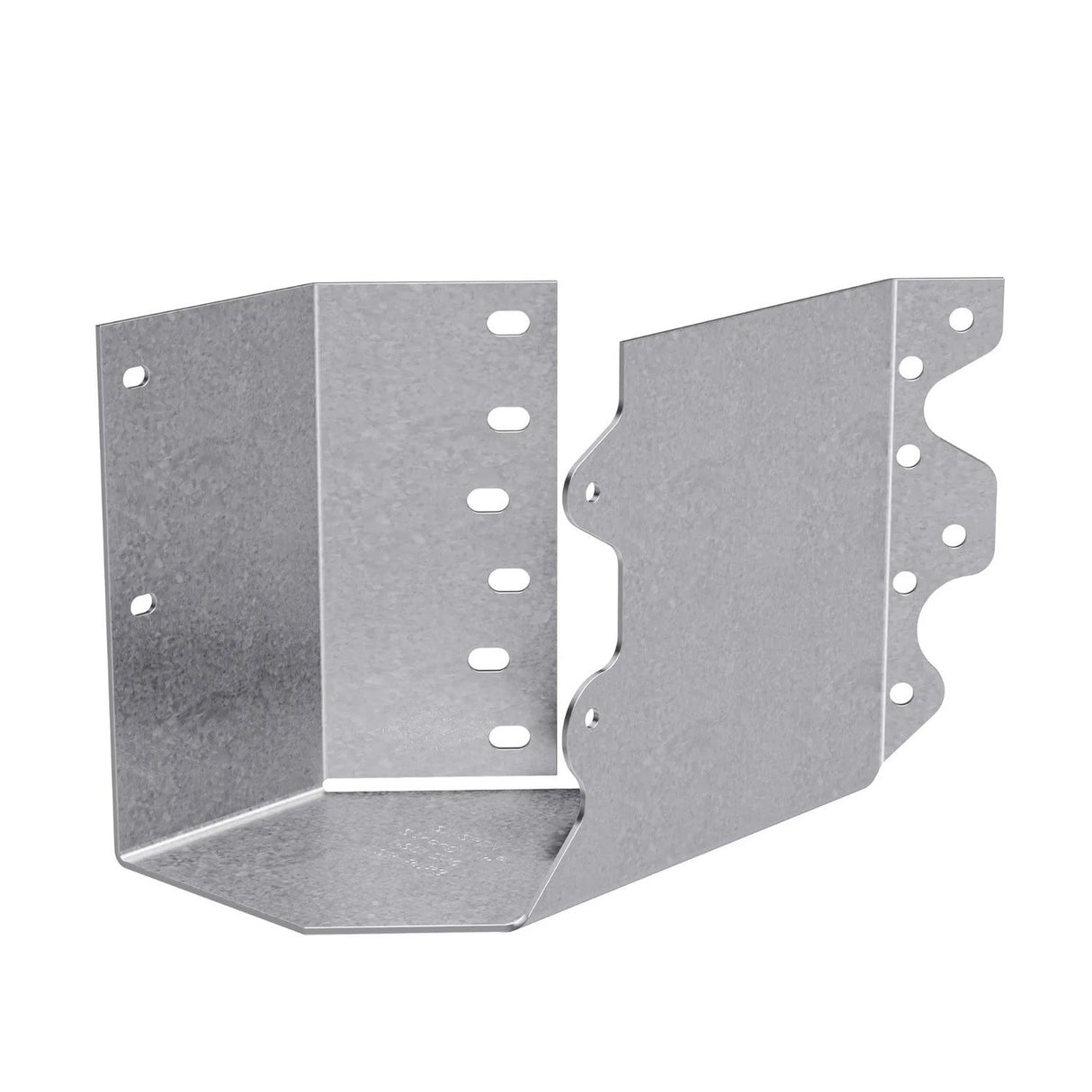

The Simpson HSULC46 is a heavy-duty, left-skewed joist hanger designed for angled wood-to-wood connections, offering superior stability and corrosion resistance.
Simpson Strong-Tie HSULC46 Includes
- (1) 4x6 Concealed Flange Joist Hanger Skewed Left
Simpson Strong-Tie HSULC46 Features
- ZMAX Galvanized Finish for corrosion resistance
- 45-Degree Left Skew for angled connections
- High Load Capacity for demanding applications
- Heavy-Gauge Steel Construction for durability
- Compatible with solid sawn lumber and engineered wood
Simpson Strong-Tie HSULC46 Applications
- Deck Construction: Provides a secure, angled joist connection in outdoor deck framing.
- Pergolas & Outdoor Structures: Supports skewed beam and joist attachments in gazebos, patios, and pergolas.
- Roof Framing: Ensures stability in angled roof joist connections.

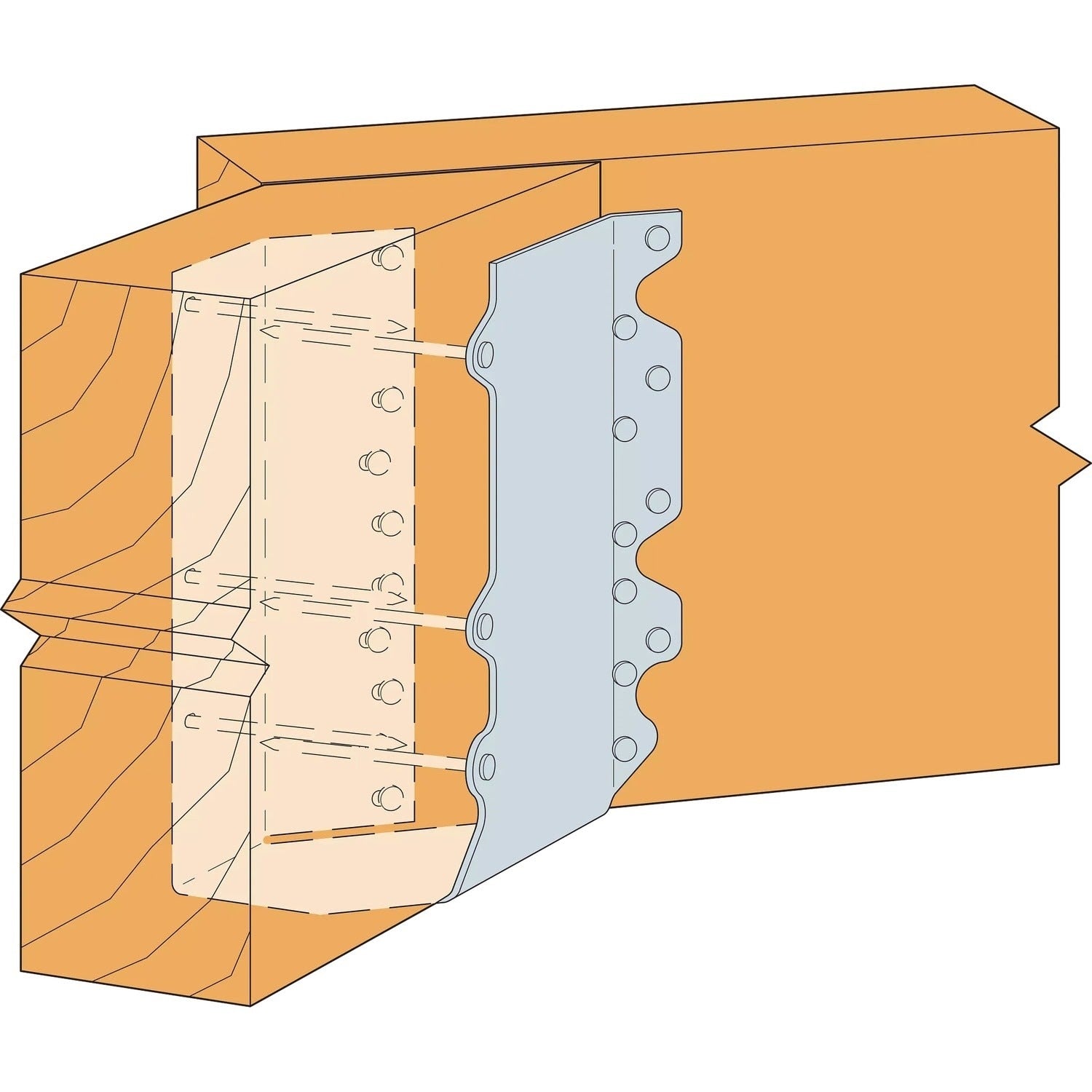

Simpson Strong-Tie HSULC46 Installation Overview
- Use Strong-Drive SDS Heavy-Duty Connector screws for securing the hanger.
- Secure the hanger to the beam using all pre-punched fastener holes.
- Ensure the joist is fully seated within the hanger before securing fasteners.
- Pre-drill if installing into engineered wood or dense lumber to prevent splitting.
- Verify the skewed angle and positioning before fastening.
Simpson Strong-Tie HSULC46 Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 4-3/4" |
| Joist size | 4" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 14 Gauge |
| Type | Left Skewed |
| Width | 3-9/16" |
NOTE: This item is made to order with varied lead times. Please contact the manufacturer for exact lead times.
