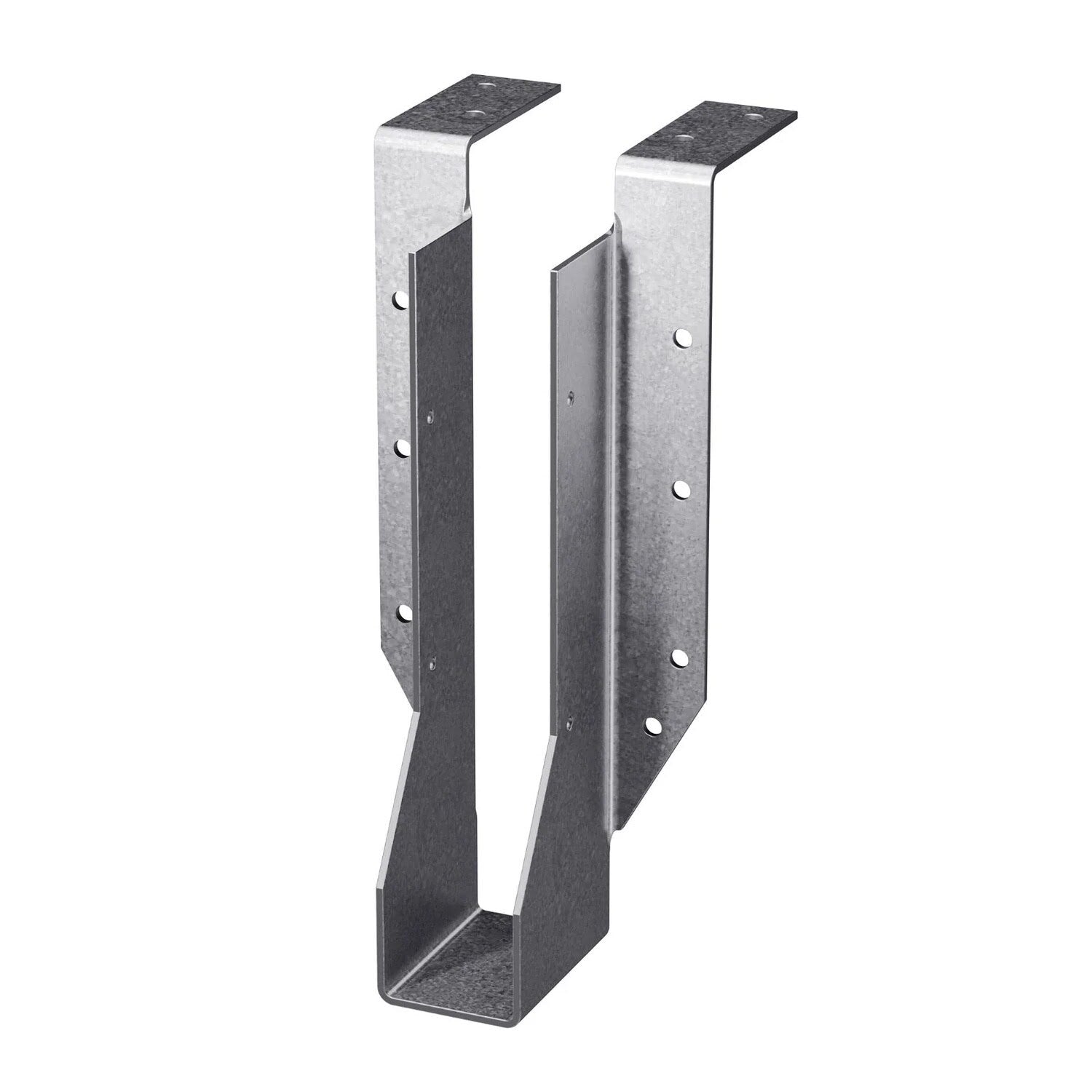

Simpson Strong-Tie HU210TF (2" x 10") 12 Gauge Galvanized Heavy Top-Flange Joist Hanger
$34.36
$47.03
Unit price
/
Unavailable
Shipping calculated at checkout.
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Key Specifications
Finish: G90 Galvanized
For treated lumber: No
Joist size: 2" X 10"
Material: Carbon Steel
Type: Joist Hanger
Description
Description
Simpson Strong-Tie HU210TF Description
The HU210TF Top-Flange Joist Hanger is designed for secure and durable connections in wood-framed structures, offering a hybrid design for enhanced versatility.
Simpson Strong-Tie HU210TF Includes
- (1) HU210TF Top-Flange Joist Hanger
Simpson Strong-Tie HU210TF Features
- Hybrid Design: Combines face-mount and top-mount hanger advantages for robust connections.
- Durable Construction: Made from 12-gauge galvanized steel for exceptional strength and corrosion resistance.
- Versatile Installation: Can be skewed or sloped up to 45° to accommodate various framing requirements.
Simpson Strong-Tie HU210TF Applications
- Residential and Commercial Floor Joists: Securely fastens joists to headers, ensuring stability and reducing movement in flooring systems.
- Roof Rafter Connections: Provides strong and lasting support for sloped rafters, helping maintain the structural integrity of pitched roofs.
- Deck Framing: Reinforces deck joists, creating a solid framework that withstands heavy loads and outdoor conditions.
- General Wood-to-Wood Structural Connections: Ideal for various framing needs, offering a reliable connection for beams, ledgers, and other timber structures.

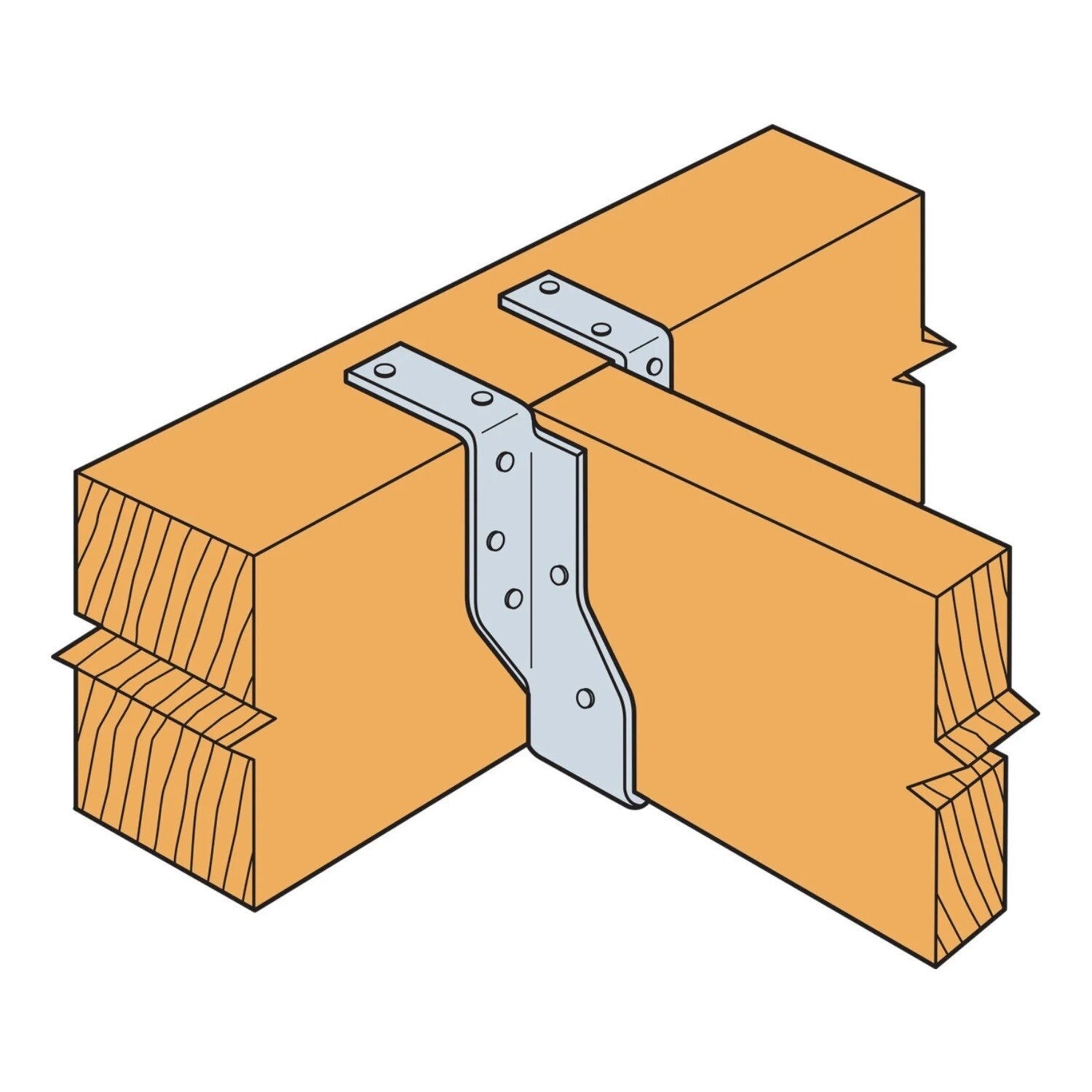

Simpson Strong-Tie HU210TF Installation Overview
- Fasteners: Use all specified fasteners as per the manufacturer's instructions to ensure maximum load capacity.
- Header Size: The minimum header or ledger size compatible with the HUTF hanger is 3 1/2 inches.
- Sloped and Skewed Installations: The HUTF hanger can be skewed up to 45° or sloped up to 45°. For combined sloped and skewed installations, allowable loads are adjusted to 70% of the table loads.
Simpson Strong-Tie HU210TF Specifications
Finish | G90 Galvanized |
Material | Carbon Steel |
Fasteners required | Face - (12) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
For Treated Lumber | No |
Height | 9-1/8" |
Joist size | 2" X 10" |
Manufacturer name | Simpson Strong-Tie |
Quantity | 1 |
Thickness | 12 Gauge |
Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
