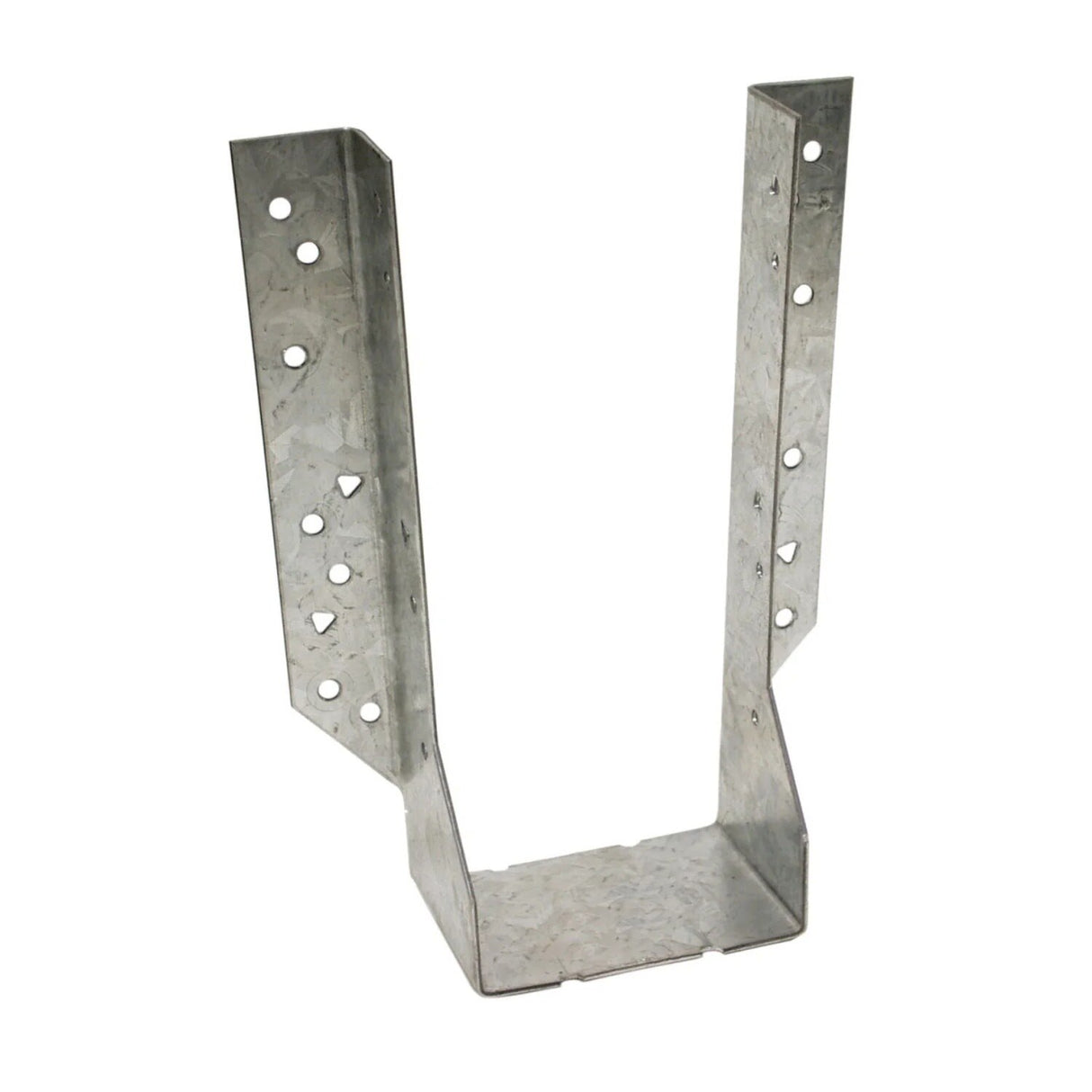

Simpson Strong-Tie HU410 (4" x 10") Heavy-Duty Galvanized Face-Mount Joist Hanger
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HU410 (4" x 10") Heavy-Duty Galvanized...
Key Specifications
Description
Description
Simpson HU410 Description
The Simpson HU410 is a heavy-duty galvanized face-mount joist hanger designed for 4x10 joists, offering robust support and durability for various construction applications.
Simpson HU410 Includes
- (1) Heavy-Duty Galvanized Face-Mount Joist Hanger for 4x10
Simpson HU410 Features
- G90 Galvanized Finish for corrosion resistance
- 14-gauge steel construction for durability
- Tested and code-compliant for structural applications
- Versatile design for solid sawn lumber and engineered wood
- Triangular holes for additional load capacity
Simpson HU410 Applications
- Deck Framing: Securely fastens joists to beams for added structural support.
- Floor Systems: Provides strong joist support in both residential and commercial flooring structures.
- Roof Framing: Used in truss and rafter connections for enhanced stability.
- Bridges & Boardwalks: Essential for supporting heavy timber construction projects.
- Post and Beam Construction: Ensures reliable load transfer in timber-framed structures.
- Masonry and Concrete Applications: Can be installed into CMU walls or concrete slabs with appropriate fasteners.
Simpson HU410 Installation Overview
- Use all specified fasteners as per guidelines.
- Install by filling round holes only or both round and triangular holes for maximum values.
- Joists sloped up to 1/4:12 achieve table loads.

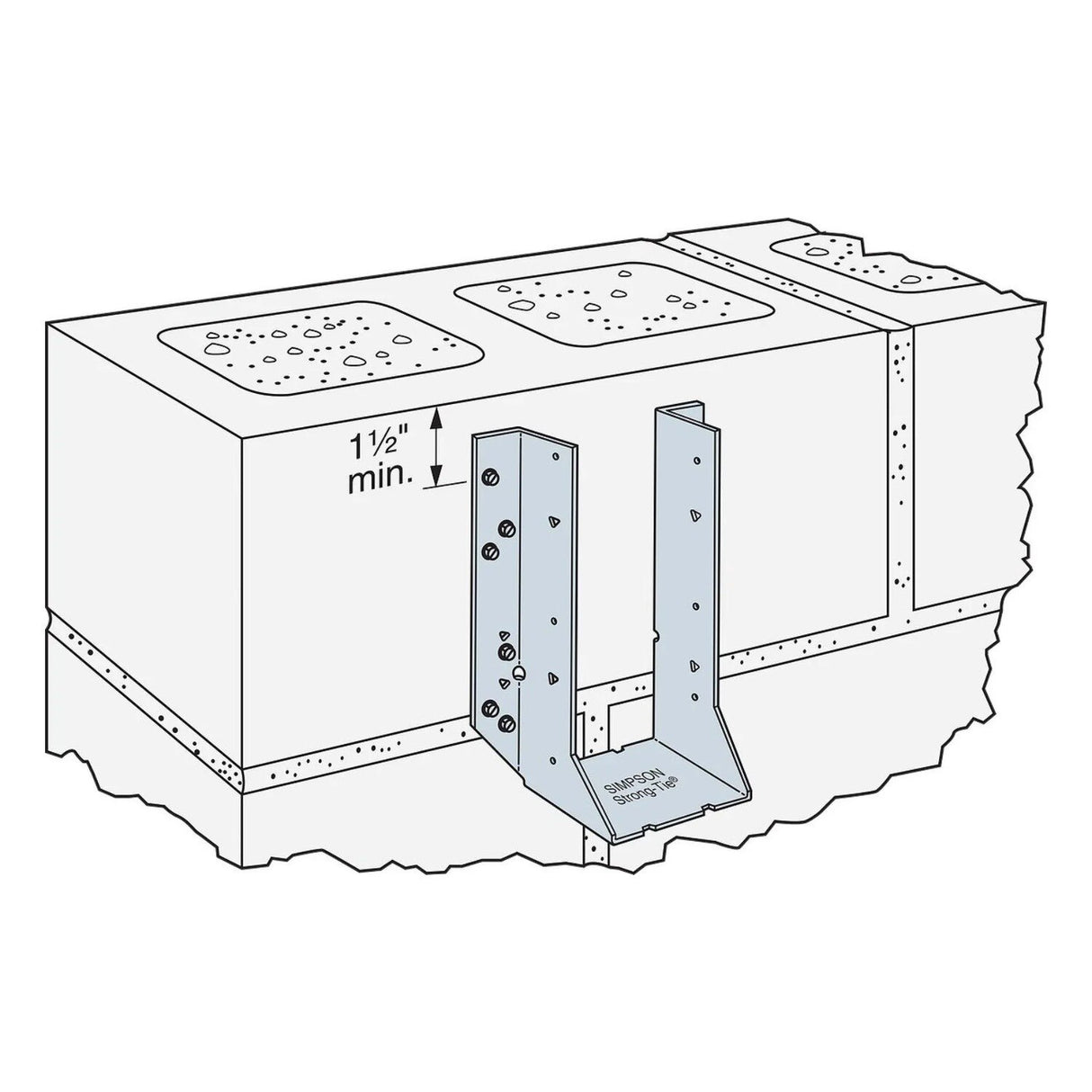

- For masonry or concrete installations, refer to specific guidelines.
- Can be welded to steel members with load considerations.
- Adjust allowable load when nailing into solid sawn carrying member's end grain.
- Web stiffeners required for I-joist applications.
Simpson HU410 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (10) 0.148" x 3" Nails |
| For Treated Lumber | No |
| Height | 8-5/8" |
| Joist size | 4" X 10" |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
