Simpson Strong-Tie HUCQ410Z-SDSG (4x10) Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws - ZMAX
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUCQ410Z-SDSG (4x10) Heavy Concealed Flange Face...
Key Specifications
Description
Description
Simpson Strong-Tie HUCQ410Z-SDSG Description

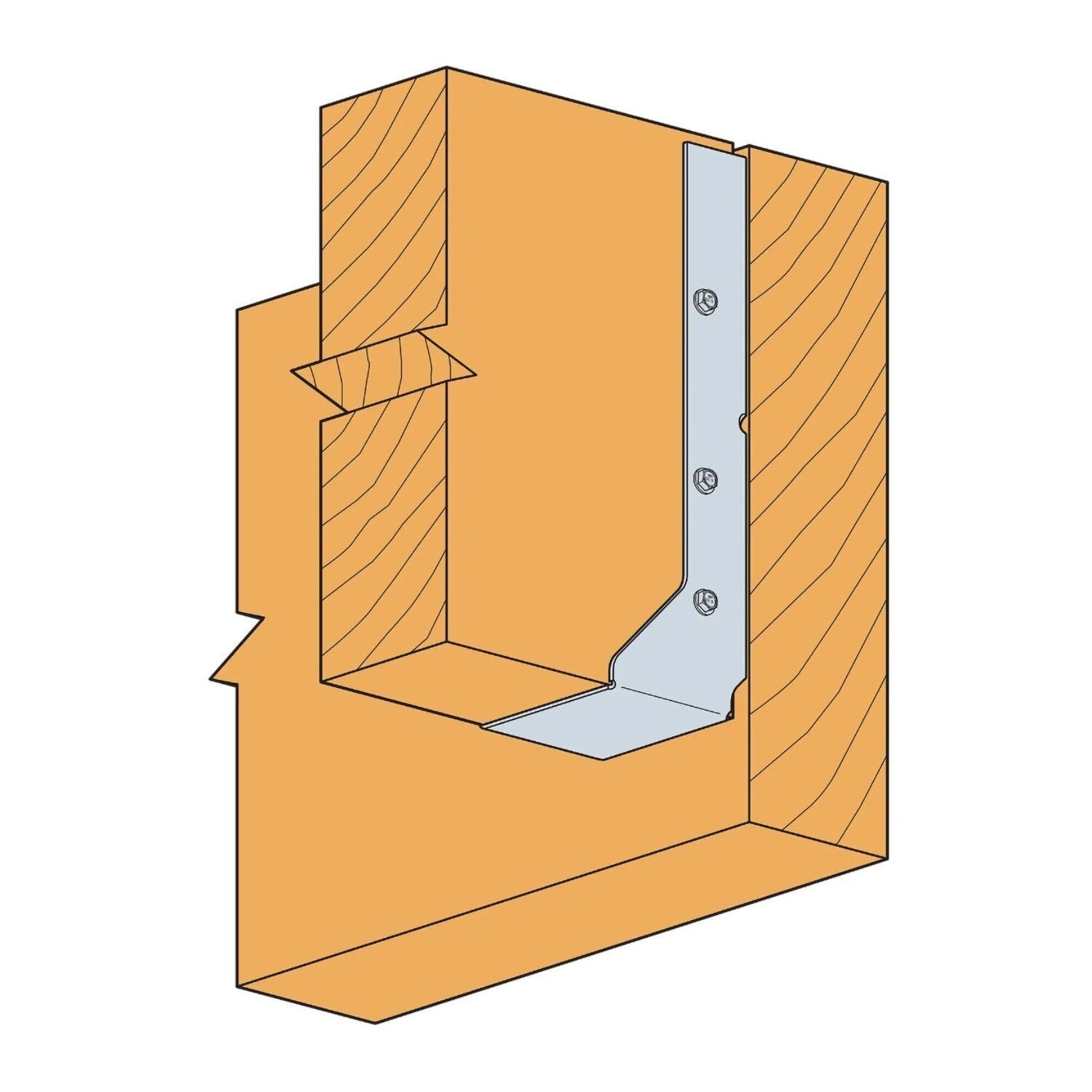

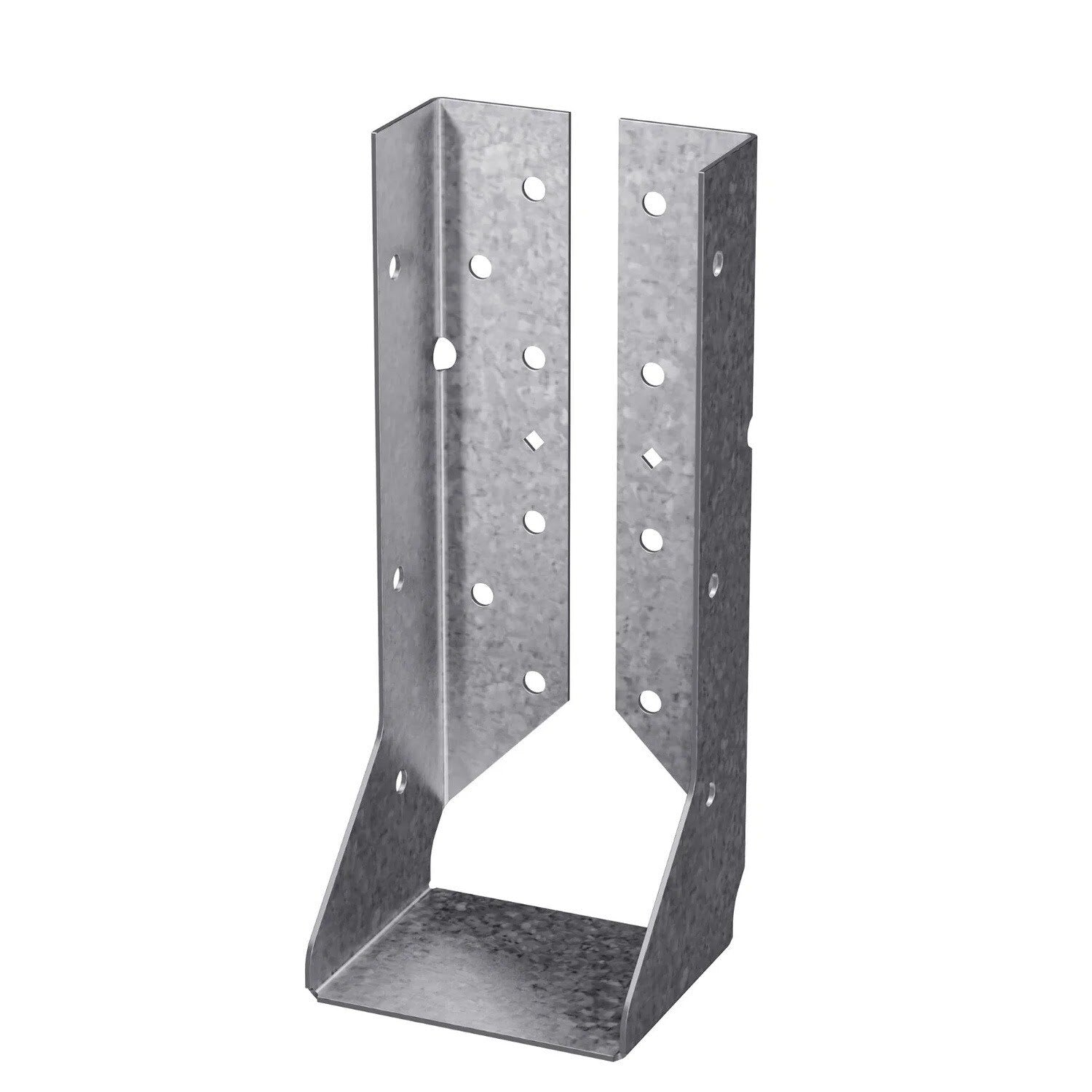

The Simpson Strong-Tie HUCQ410Z-SDSG is a heavy-duty concealed-flange face-mount joist hanger designed for 4x10 wood joists, featuring a ZMAX galvanized coating for enhanced corrosion resistance.
Simpson Strong-Tie HUCQ410Z-SDSG Includes
- (1) Heavy Face-Mount Concealed-Flange Joist Hanger
- (8) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie HUCQ410Z-SDSG Features
- Concealed flanges for clean appearance and close installation to beam ends
- ZMAX galvanized coating for superior corrosion resistance
- Includes Strong-Drive SDS Heavy-Duty Connector screws for quick installation
- Designed for 4x10 wood joists
- Heavy-duty construction for structural support

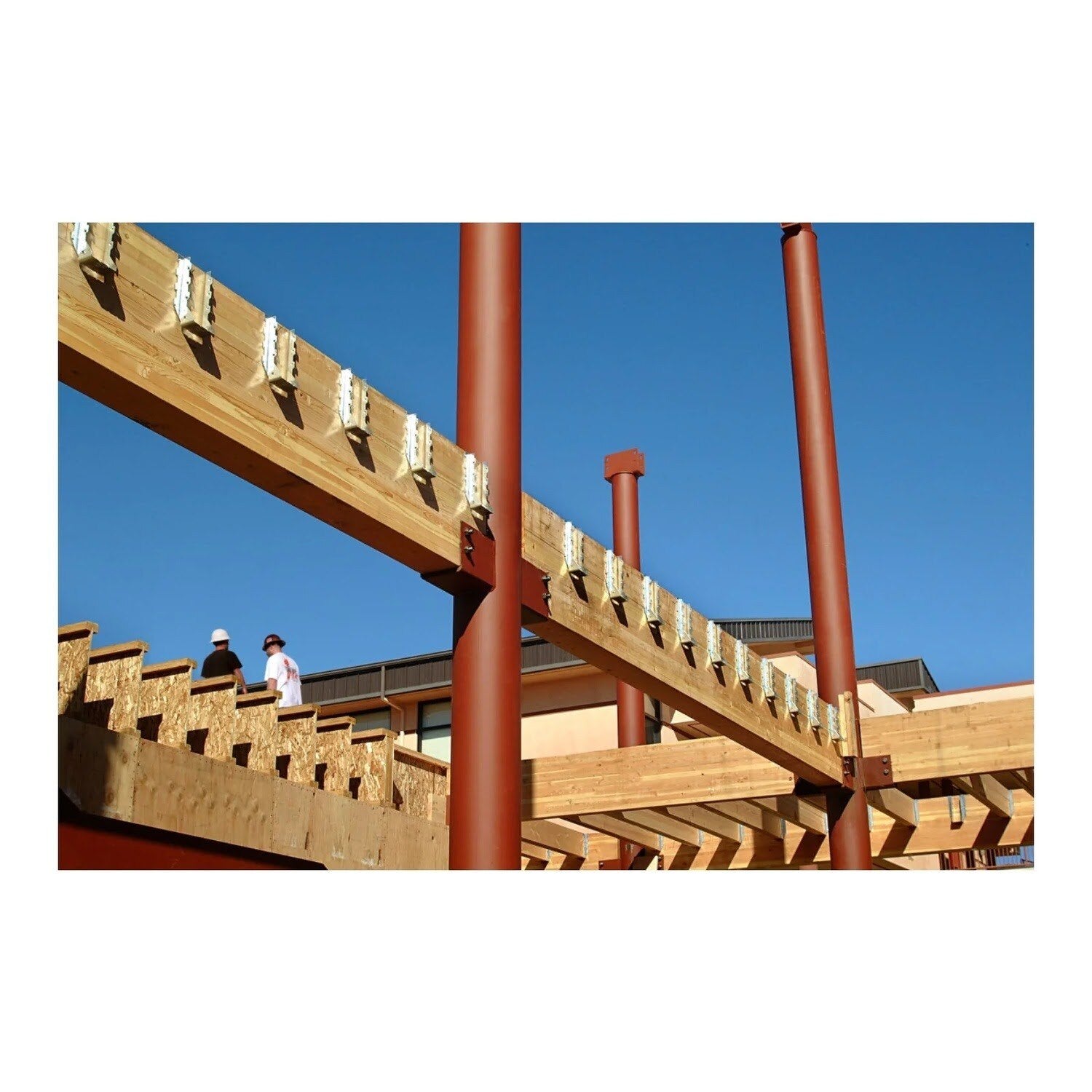

Simpson Strong-Tie HUCQ410Z-SDSG Applications
- Decks and outdoor structures such as pergolas and gazebos
- Residential and commercial framing for beams and joists
- Treated lumber applications in moisture-prone environments
- Exposed timber and architectural framing for clean connections
- Masonry and concrete connections for wood-to-masonry or wood-to-concrete installations

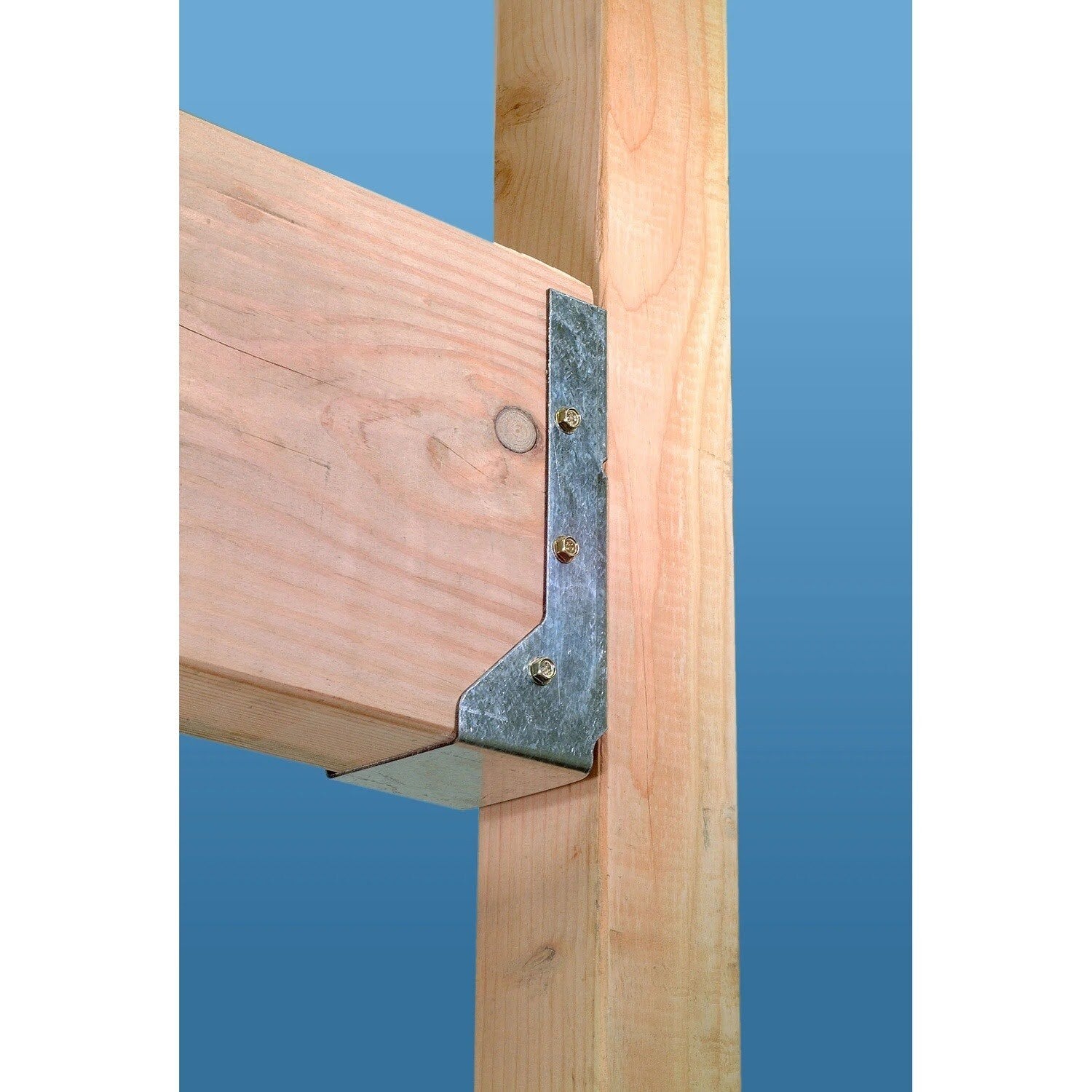

Simpson Strong-Tie HUCQ410Z-SDSG Installation Overview
- Verify dimensions and alignment of joists and beams
- Position the hanger on the supporting beam
- Fasten using the provided SDS screws
- Insert the joist into the hanger pocket
- Ensure all fasteners are securely installed

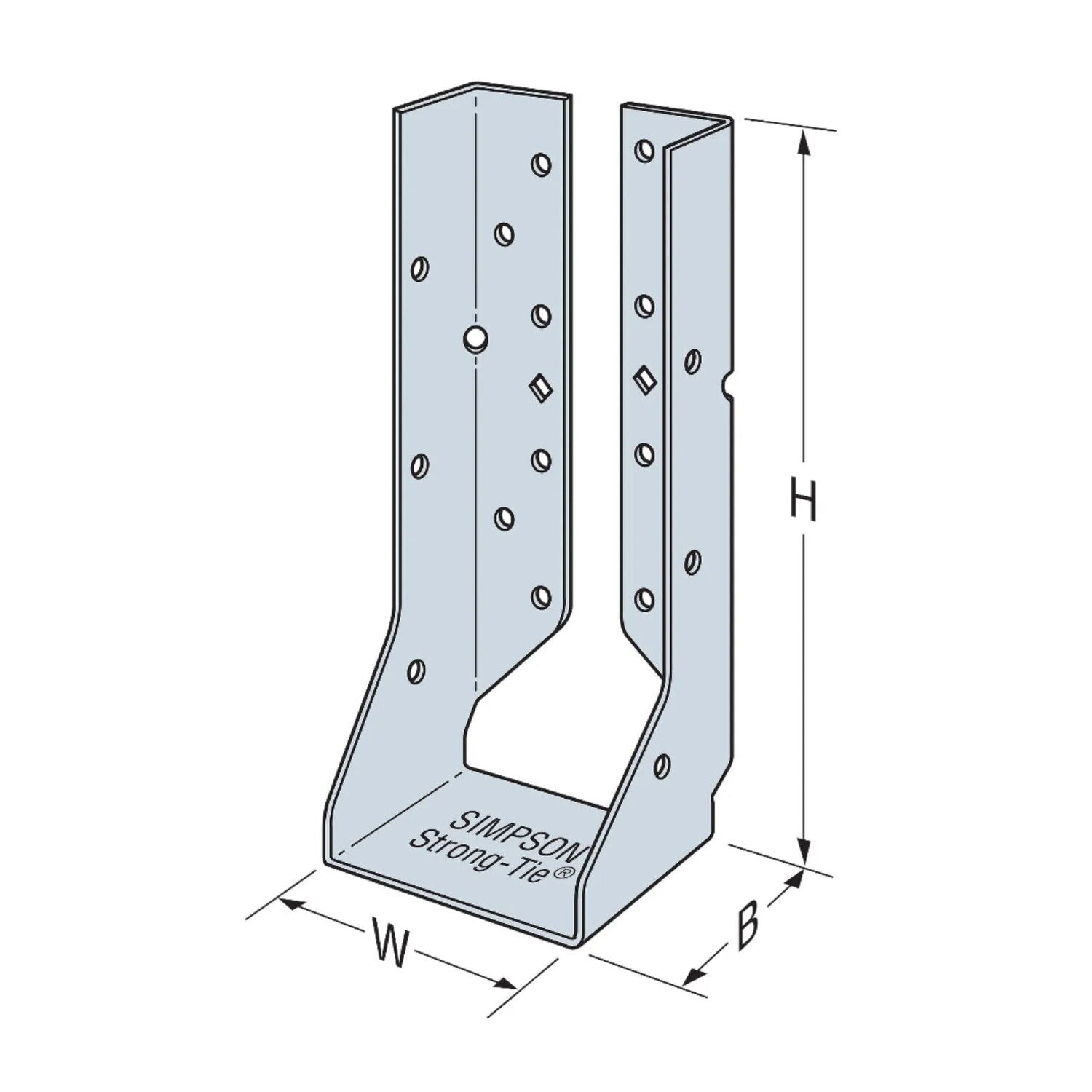

Simpson Strong-Tie HUCQ410Z-SDSG Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | 4" X 10" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
