Simpson Strong-Tie HUCQ610Z-SDSG (6x10) Heavy Concealed Flange Face-Mount Joist Hanger with SDS Screws - ZMAX
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUCQ610Z-SDSG (6x10) Heavy Concealed Flange Face...
Key Specifications
Description
Description
Simpson Strong-Tie HUCQ610Z-SDSG Description

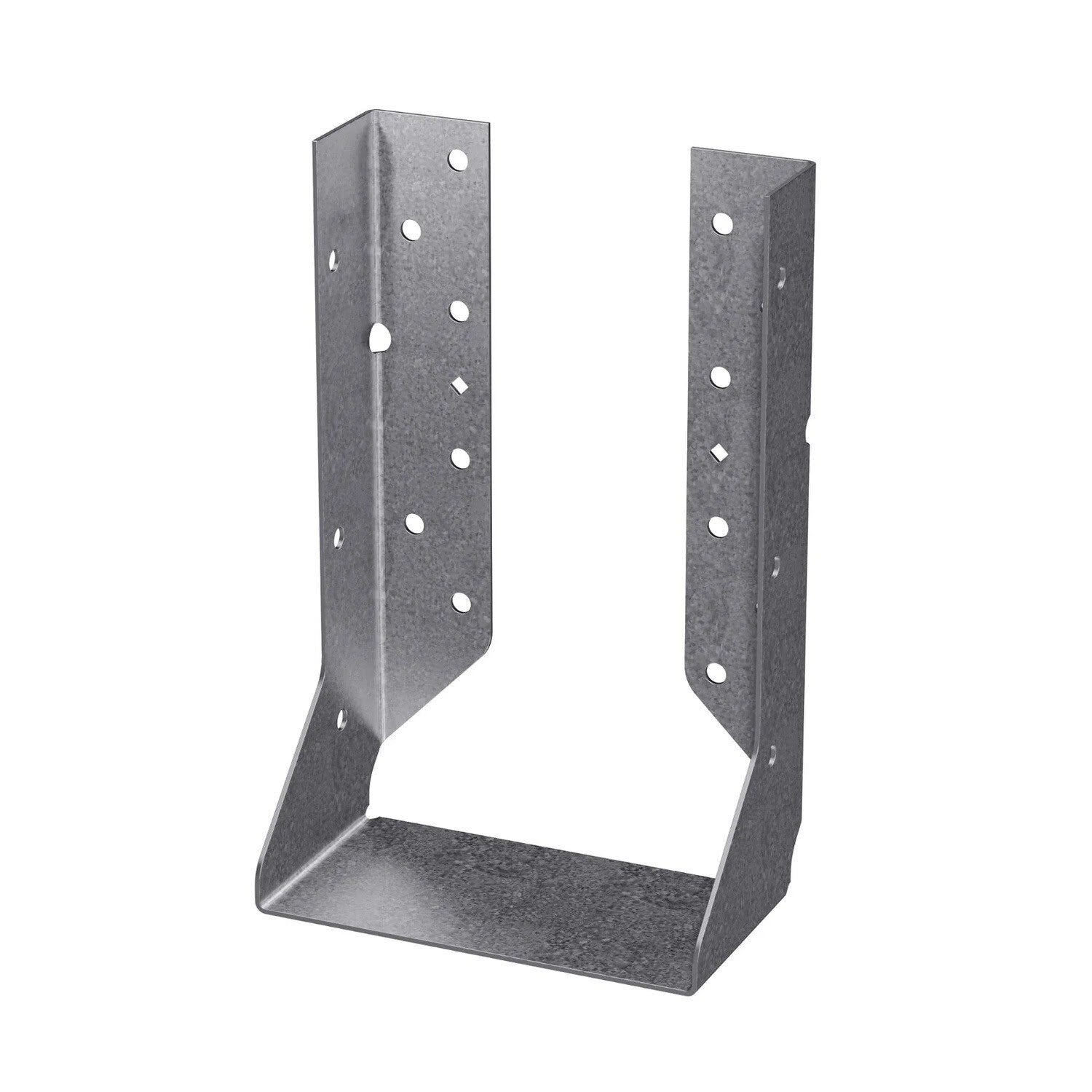

The Simpson Strong-Tie HUCQ610Z-SDSG is a heavy-duty concealed-flange joist hanger designed for 6x10 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HUCQ610Z-SDSG Includes
- (1) Heavy-Duty Concealed-Flange Joist Hanger
- (1) Set of Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie HUCQ610Z-SDSG Features
- Concealed flanges for a clean appearance and close-to-end beam installation
- ZMAX galvanized coating for superior corrosion resistance
- Includes Strong-Drive SDS Heavy-Duty Connector Screws for quick and secure installation
Simpson Strong-Tie HUCQ610Z-SDSG Applications
- Decks and outdoor structures such as pergolas and gazebos
- Residential and commercial framing for beams and joists
- Treated lumber applications in moisture-prone environments
- Exposed timber and architectural framing for a clean look
- Wood-to-masonry or wood-to-concrete structural connections
Simpson Strong-Tie HUCQ610Z-SDSG Installation Overview
- Use the provided Strong-Drive SDS screws for optimal performance
- No predrilling required for the SDS screws, simplifying installation
- Ensure correct fasteners are installed in the correct positions
Simpson Strong-Tie HUCQ610Z-SDSG Specifications
| Finish | ZMAX Finish |
| Material | Carbon Steel |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Height | 9" |
| Joist size | 6" X 10" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
