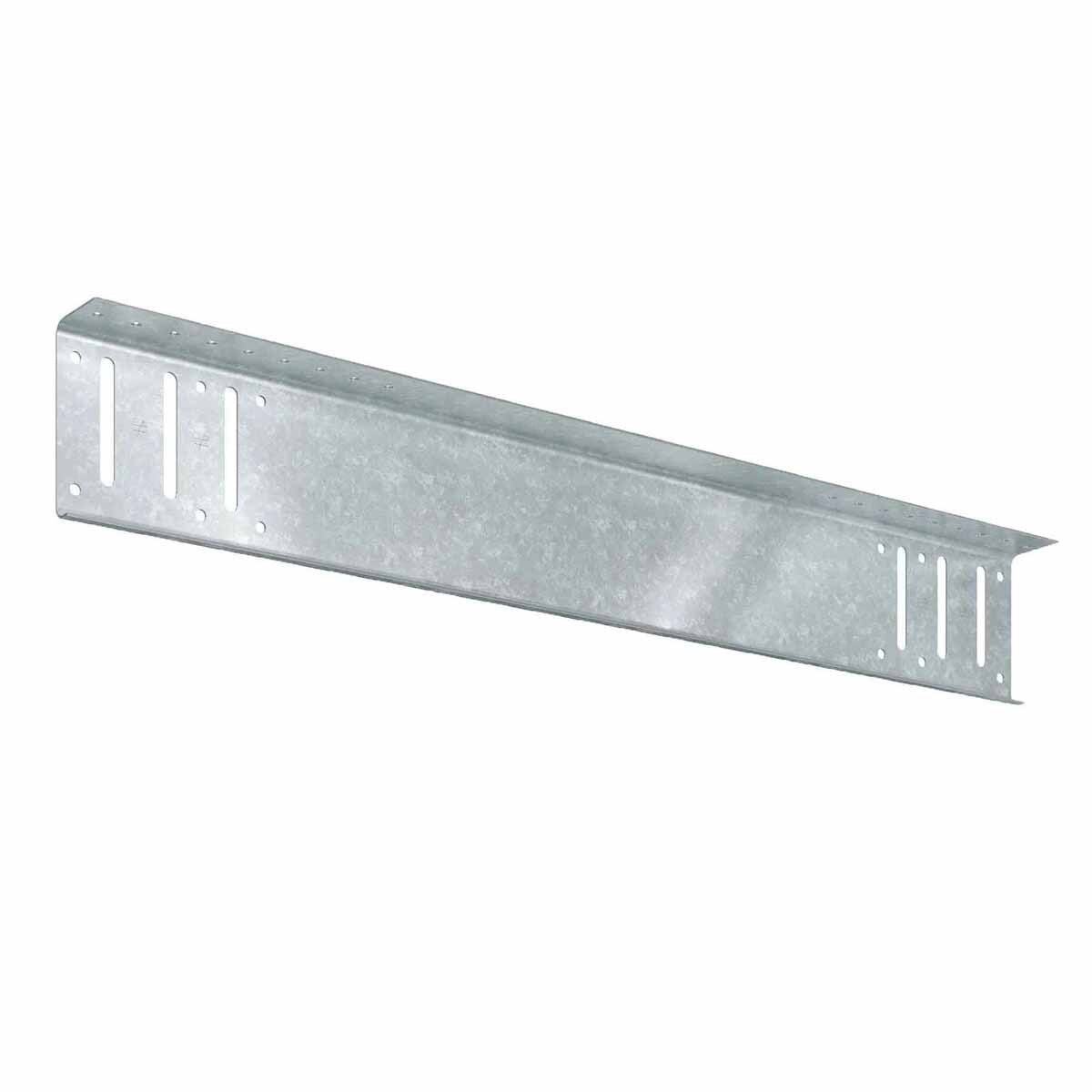

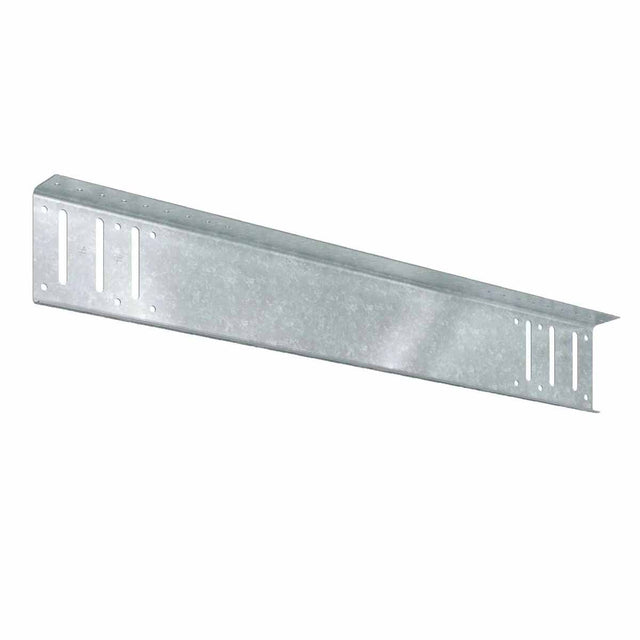

Simpson Strong-Tie HYS24/68-KT15 (24" 14-Gauge) Bypass Hybrid Strut Kit with Screws for Cold-Formed Steel Framing (15 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HYS24/68-KT15 (24" 14-Gauge) Bypass Hybrid ...
Key Specifications
Description
Description
Simpson Strong-Tie HYS24/68-KT15 Description
The Simpson Strong-Tie HYS hybrid strut is a versatile connector designed for use as either a slide or rigid clip, accommodating large standoff conditions in steel framing.
Simpson Strong-Tie HYS24/68-KT15 Includes
- (15) HYS24/68 connectors
- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HYS24/68-KT15 Features
- Available in lengths of 12", 15", 24", and 30"
- Slots positioned to minimize eccentric load and maximize capacity
- Allows up to 1" of vertical movement in each direction in slide applications
- No-Equal stamps ensure correct placement of shouldered screws
- Supports gravity and lateral loads with #10 screws through predrilled holes
Simpson Strong-Tie HYS24/68-KT15 Applications
- Cold-formed steel framing
- Slide and rigid clip applications
- Large standoff conditions at the bottom of steel beams
Simpson Strong-Tie HYS24/68-KT15 Installation Overview
- Attach the HYS using shouldered screws through the slotted holes for slide connections.
- For rigid connections, use the small predrilled holes with #10 screws.
- Ensure proper alignment and secure fastening for optimal performance.

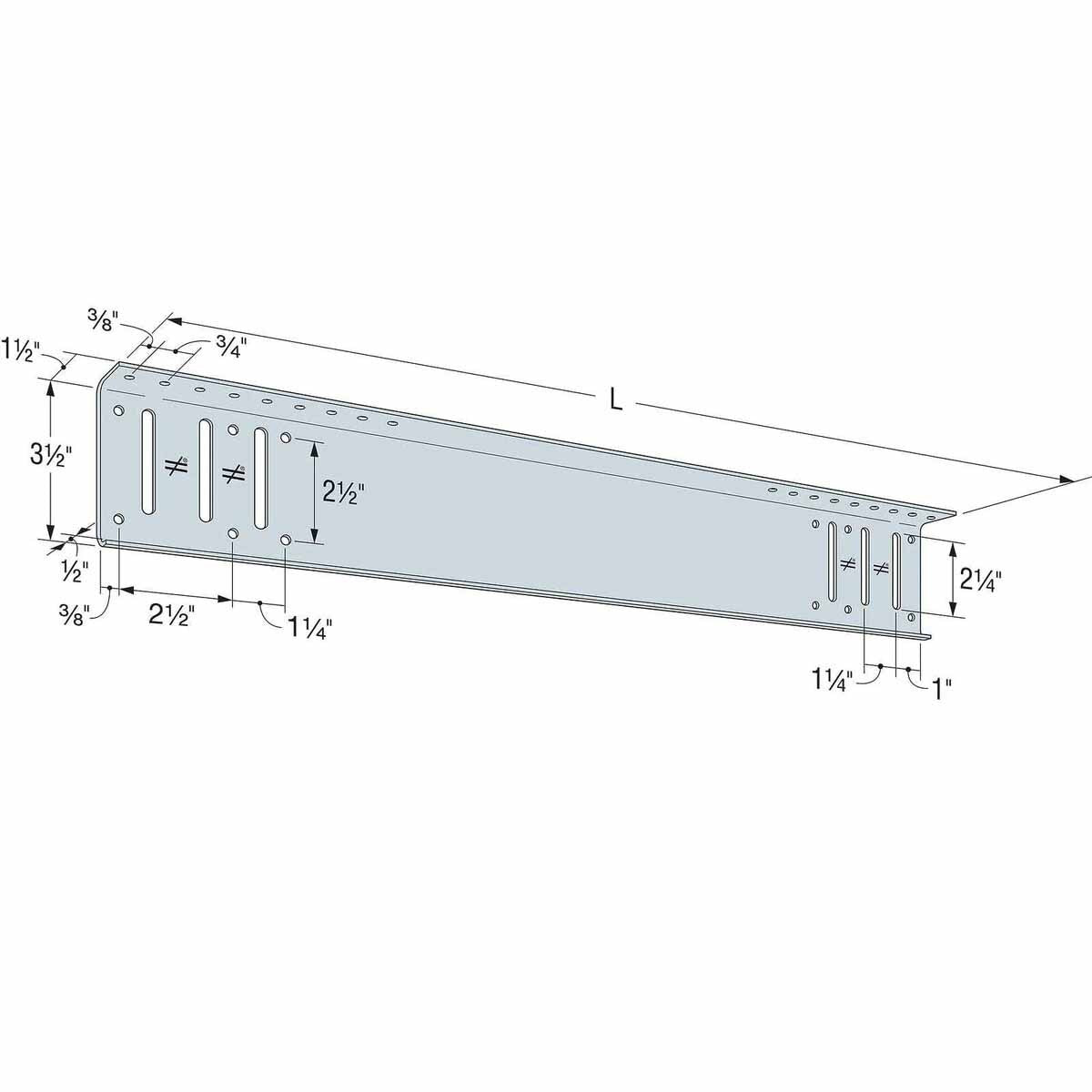

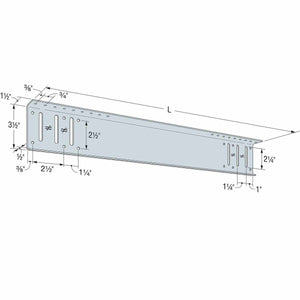

Simpson Strong-Tie HYS24/68-KT15 Specifications
| Finish | G90 Galvanized |
| Length | 24" |
| Thickness | 14 Gauge |
| Quantity | 15 |
| Fasteners included | (55) XLSH78B1414 #14 shouldered screws |
