Simpson Strong-Tie HYS30/97-KT10 (30") 12-Gauge Bypass Hybrid Strut Kit with Screws - Cold-Formed Steel Connector
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HYS30/97-KT10 (30") 12-Gauge Bypass Hybrid ...
Key Specifications
Description
Description
Simpson Strong-Tie HYS30/97-KT10 Description

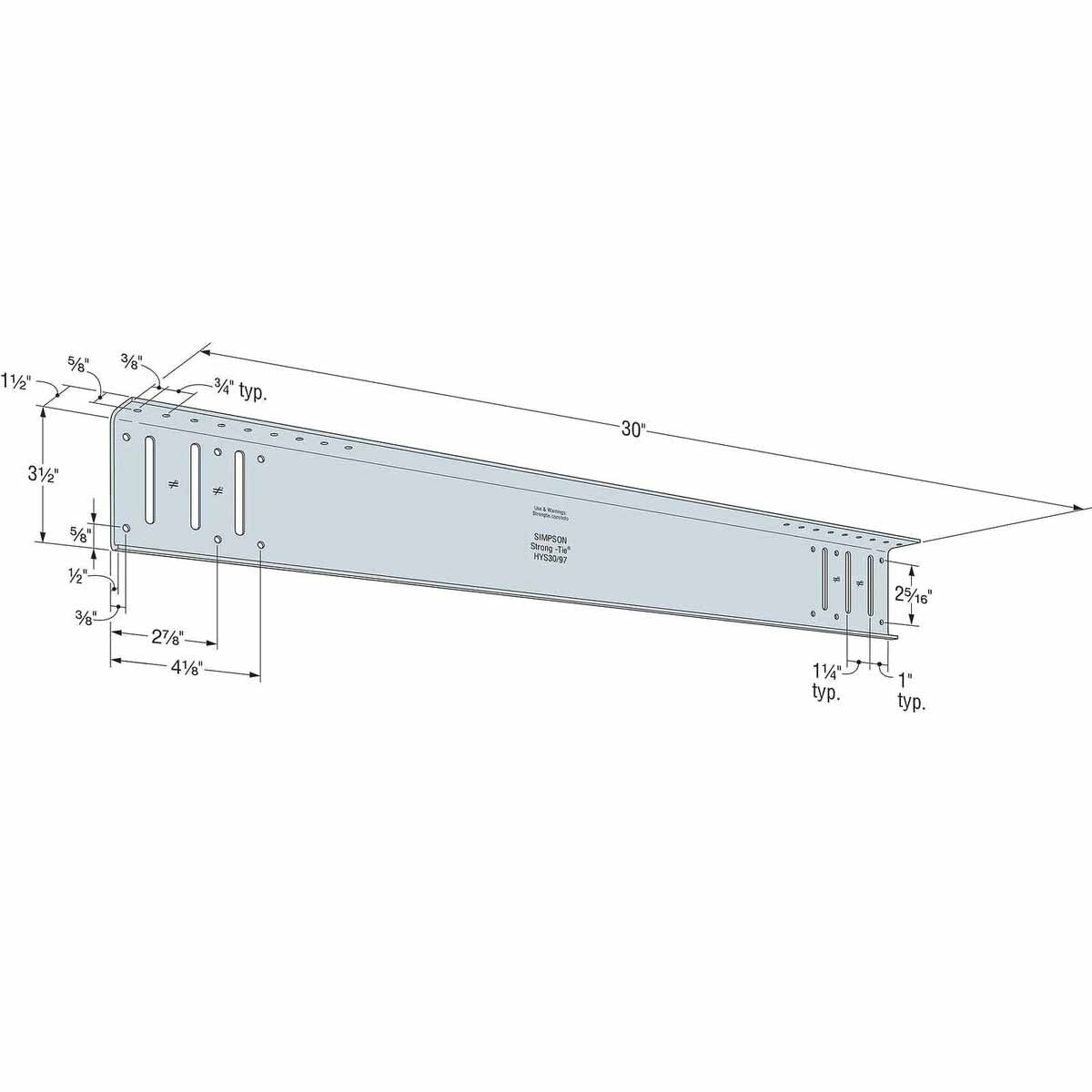

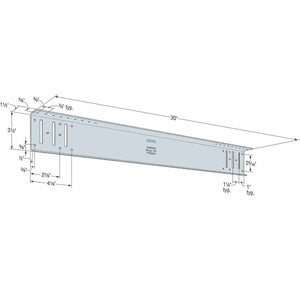

The Simpson Strong-Tie HYS hybrid strut is a versatile connector designed for use as either a slide or rigid clip, accommodating large standoff conditions.
Simpson Strong-Tie HYS30/97-KT10 Includes
- (10) HYS30/97 connectors
- (55) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie HYS30/97-KT10 Features
- Available in lengths of 12", 15", 24" and 30"
- Slots positioned to minimize eccentric load and maximize capacity
- Allows up to 1" of vertical movement in each direction
- No-Equal stamps mark the center of the slots for correct screw placement
- Supports gravity and lateral loads with #10 screws
Simpson Strong-Tie HYS30/97-KT10 Applications
- Cold-formed steel construction requiring bypass hybrid struts
- Structural support for large standoff conditions
- Slide-clip and rigid-clip applications
Simpson Strong-Tie HYS30/97-KT10 Installation Overview
- Attach the HYS using shouldered screws through the slotted holes for slide connection.
- Use small predrilled holes with #10 screws for rigid connection.
- Ensure proper alignment and placement of screws for optimal performance.
Simpson Strong-Tie HYS30/97-KT10 Specifications
| Finish | G90 Galvanized |
| Length | 30" |
| Thickness | 12 Gauge |
| Quantity | 10 |
| Fasteners required | (55) XLSH78B1414 #14 shouldered screws for slide-clip applications (included) |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
