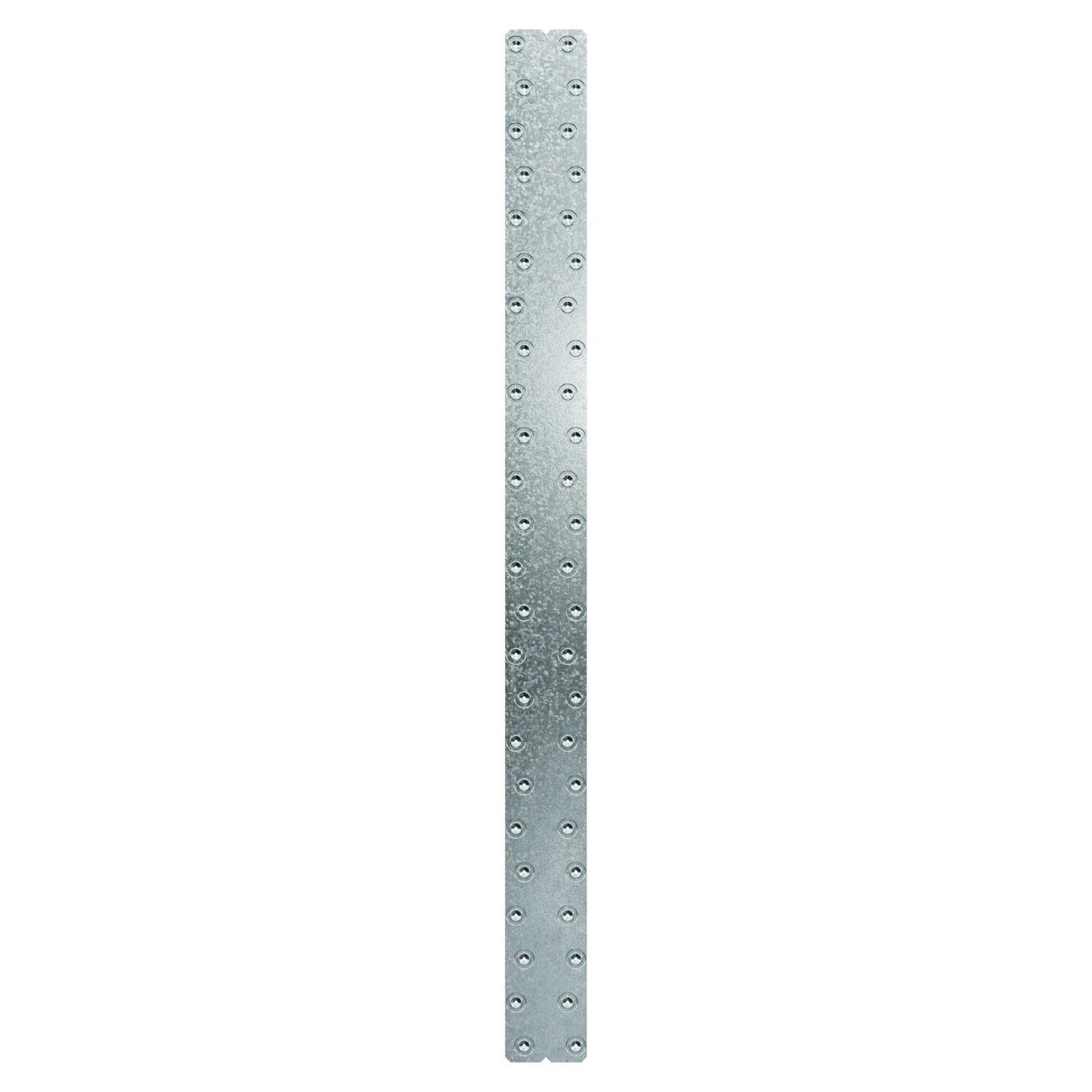

Simpson Strong-Tie LDSS48 (3-3/4" x 47-1/2") Light Diaphragm Spline Strap G90 Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LDSS48 (3-3/4" x 47-1/2") Light Diaphr...
Key Specifications
Description
Description
Simpson Strong-Tie LDSS48 Description
The LDSS48 Light Diaphragm Spline Strap is designed for connecting CLT and mass timber panels, offering a no-routing-required solution with enhanced moisture resistance and fastener capacity.
Simpson Strong-Tie LDSS48 Includes
- (1) Light Diaphragm Spline Strap
Simpson Strong-Tie LDSS48 Features
- No routing required; the strap can be placed directly on top of mass timber panels, reducing manufacturing time and cost
- Less susceptible to moisture damage than plywood splines, reducing need for expensive repairs
- Embossed hole helps guide the installation tool into the hold and increases capacity per fastener
- Tested for in-plane shear values
- Can be used as part of a complete spline solution throughout a project for faster installation and to save on the total cost of spline connections
Simpson Strong-Tie LDSS48 Applications
- Connecting CLT and mass timber panels
- Projects requiring in-plane shear values
- Moisture-resistant spline connections

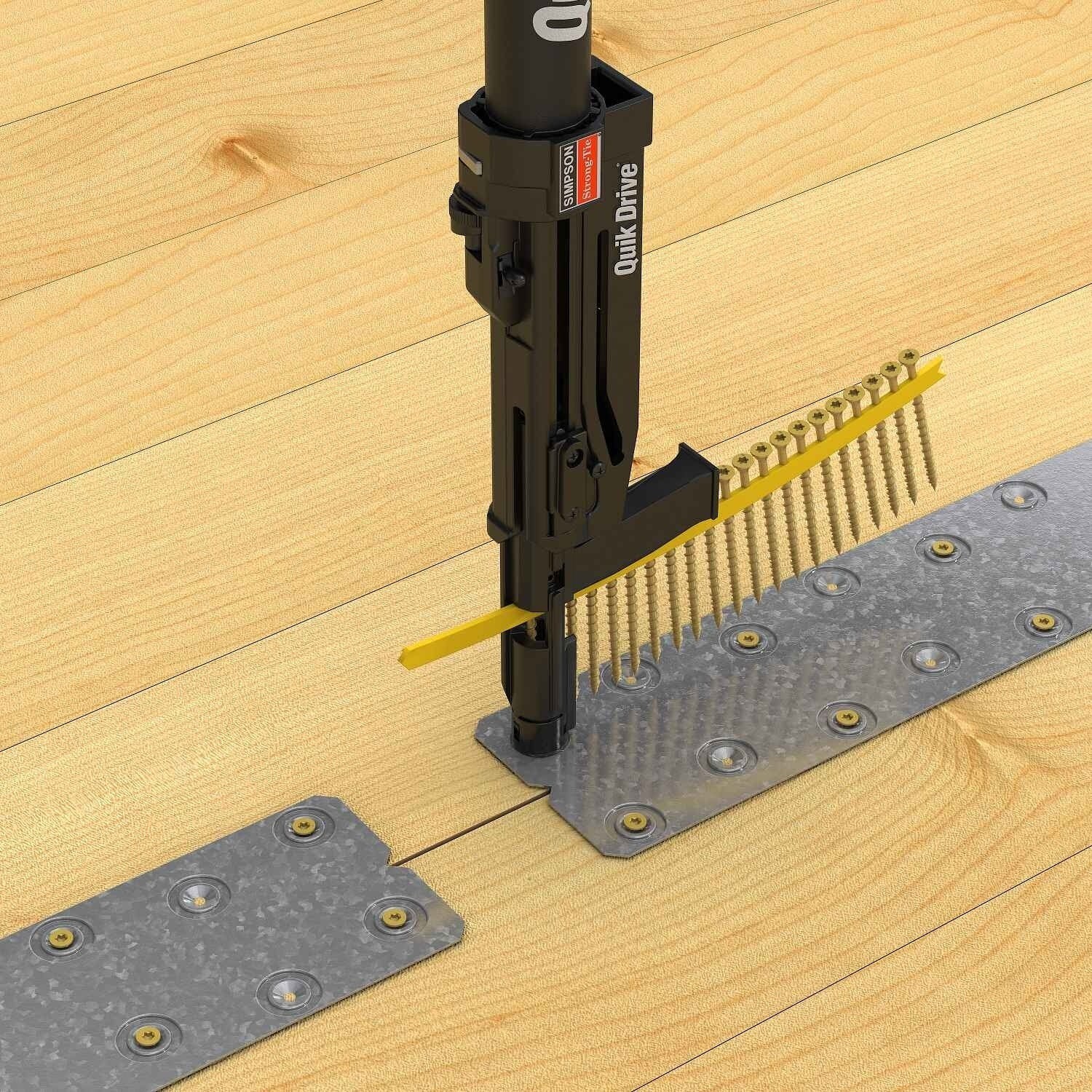

Simpson Strong-Tie LDSS48 Installation Overview
- Place the strap directly on top of the mass timber panels.
- Use the specified fasteners for installation.
- Ensure proper alignment and secure fastening.

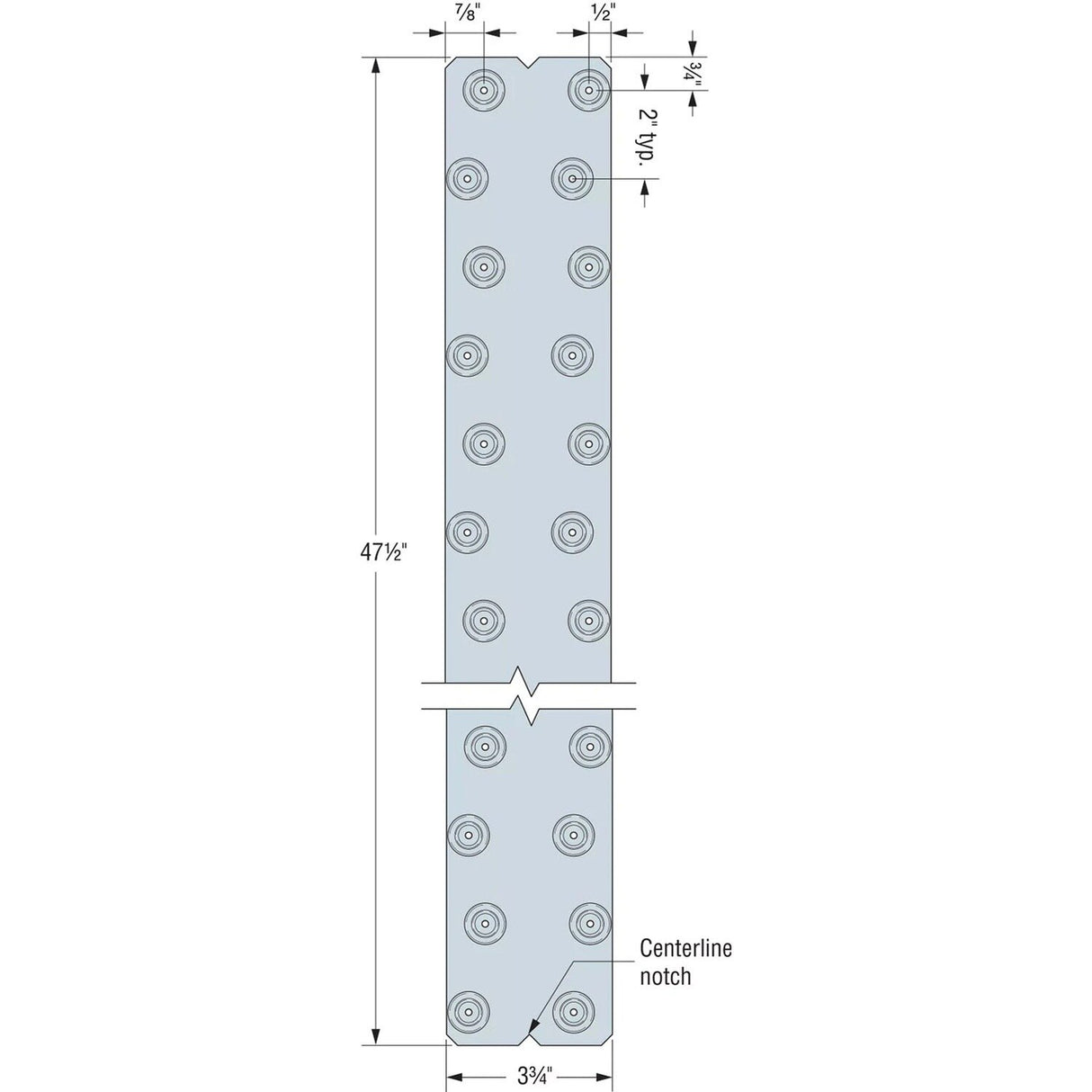

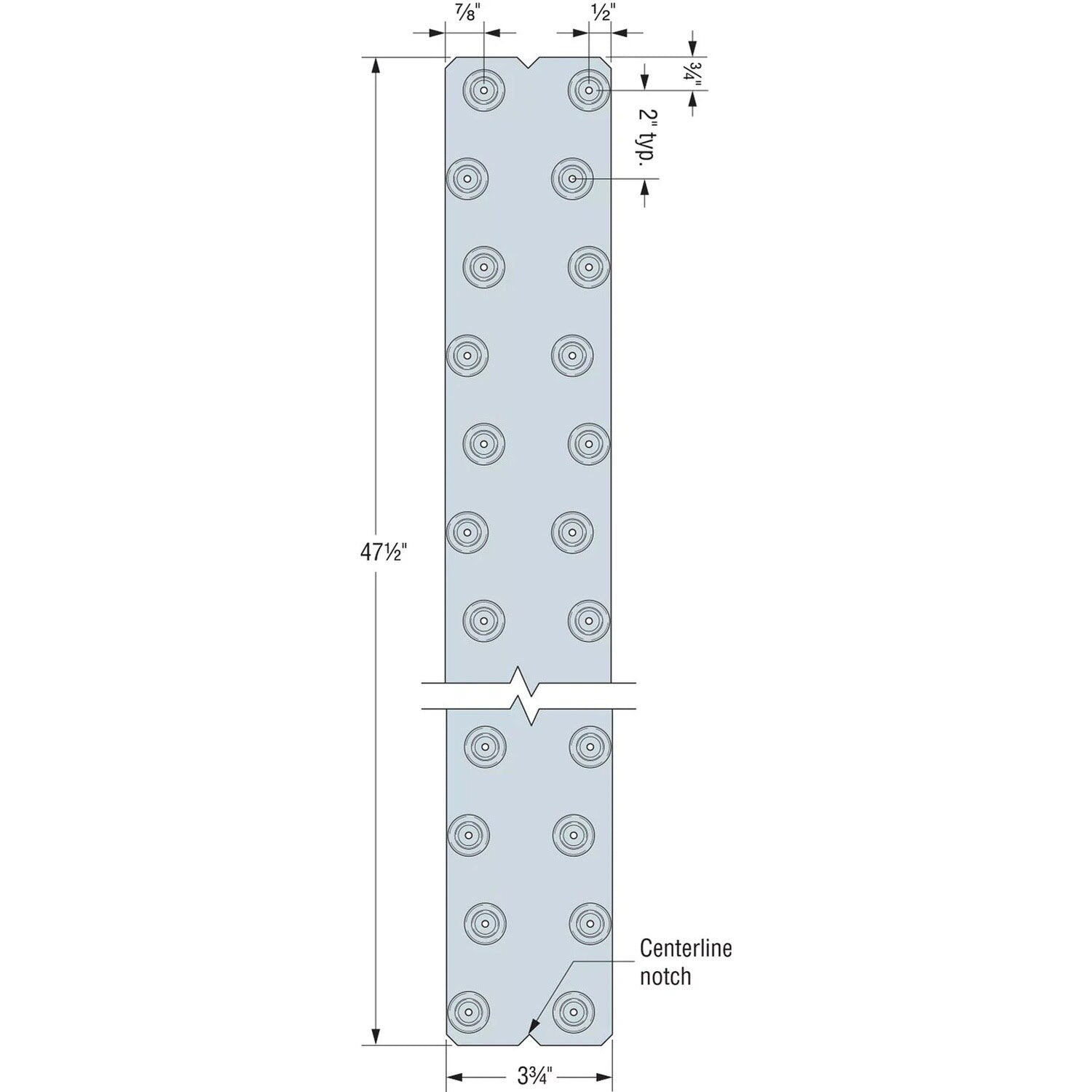

Simpson Strong-Tie LDSS48 Specifications
| Finish | G90 Galvanized |
| Length | 47-1/2" |
| Width | 3-3/4" |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
