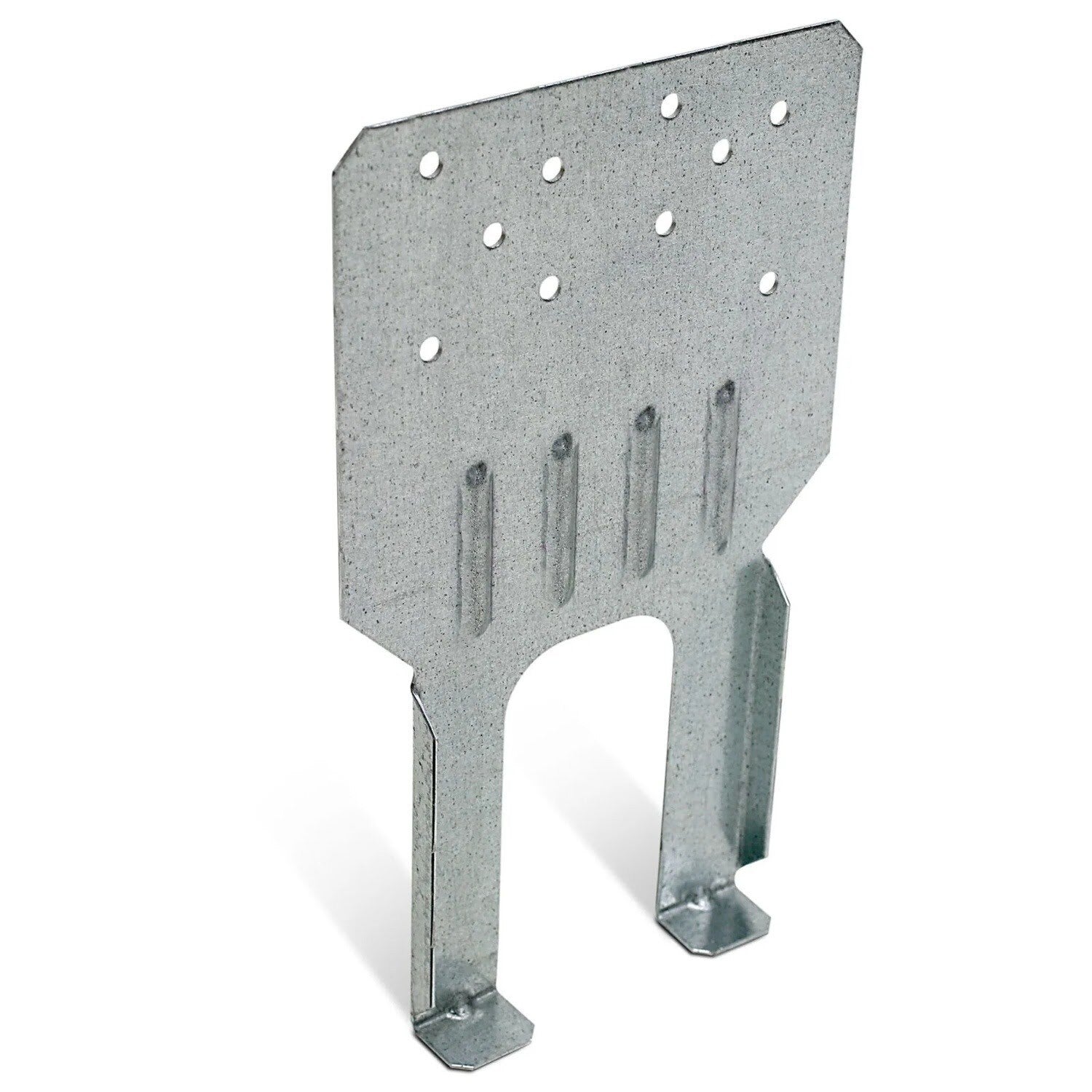

Simpson Strong-Tie LTA2 Lateral Truss Anchor for 2x4
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LTA2 Lateral Truss Anchor for 2x4
Key Specifications
Description
Description
Simpson Strong-Tie LTA2 Description
The Simpson LTA2 Lateral Truss Anchor is designed for grout-filled CMU and concrete walls, providing high load resistance with shallow embedment. Suitable for 2x4 minimum truss chords, it resists uplift and lateral loads parallel and perpendicular to the wall.
Simpson Strong-Tie LTA2 Includes
- (10) 0.148 x 1 1/2 Fasteners
Simpson Strong-Tie LTA2 Features
- Embedded truss anchor for grout-filled CMU and concrete walls
- Resists uplift and lateral loads parallel and perpendicular to the wall
- Designed for 2x4 minimum truss chords
- Simplified design for easy positioning close to rebar
- Embedment line stamped on part simplifies installation
Simpson Strong-Tie LTA2 Applications

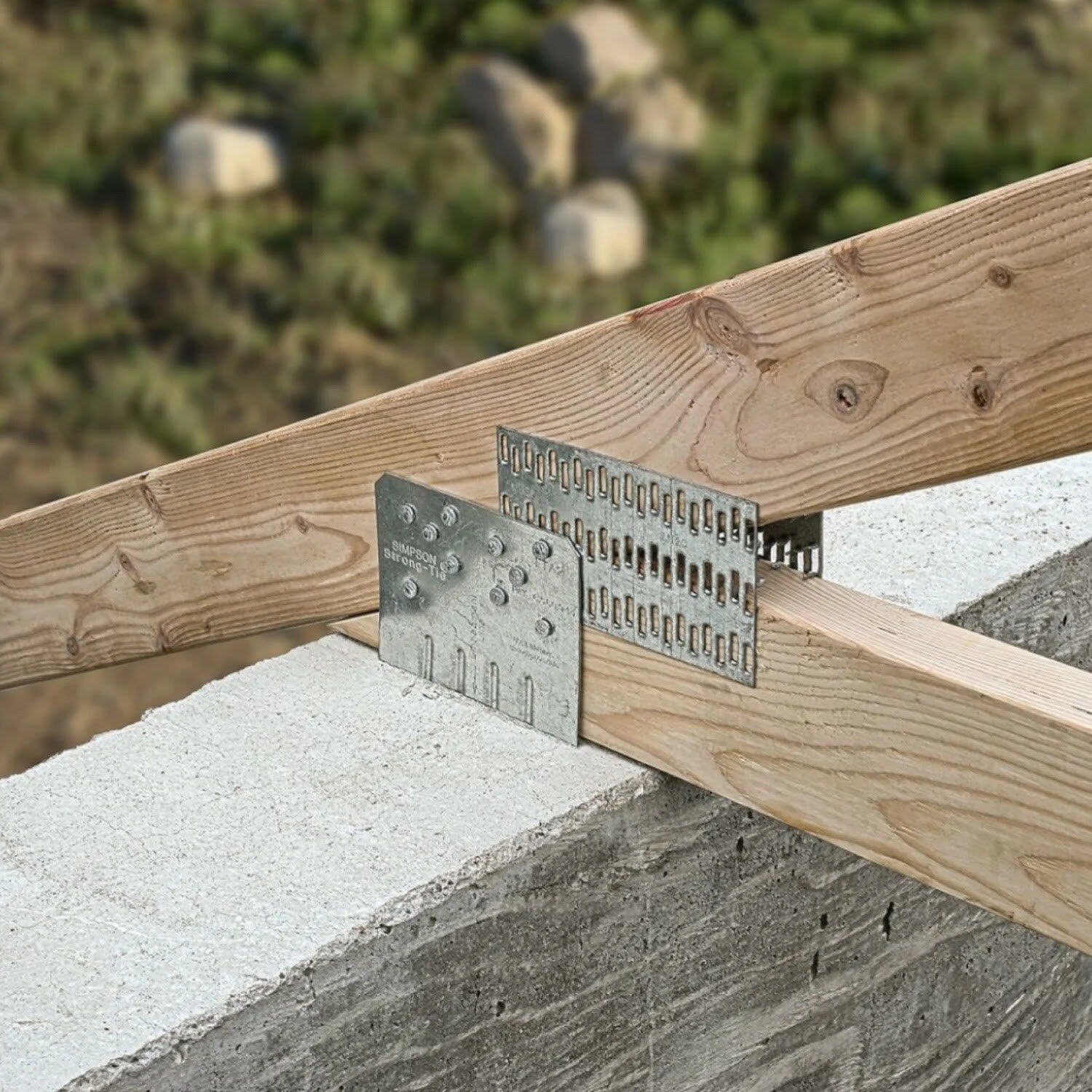

- Anchoring trusses running perpendicular or parallel to the wall
- Securing trusses in grout-filled CMU and concrete walls
- Providing resistance to uplift and lateral loads in construction
Simpson Strong-Tie LTA2 Installation Overview
- Position the anchor close to rebar as per design requirements
- Ensure the embedment line is aligned correctly
- Use all specified fasteners for secure installation

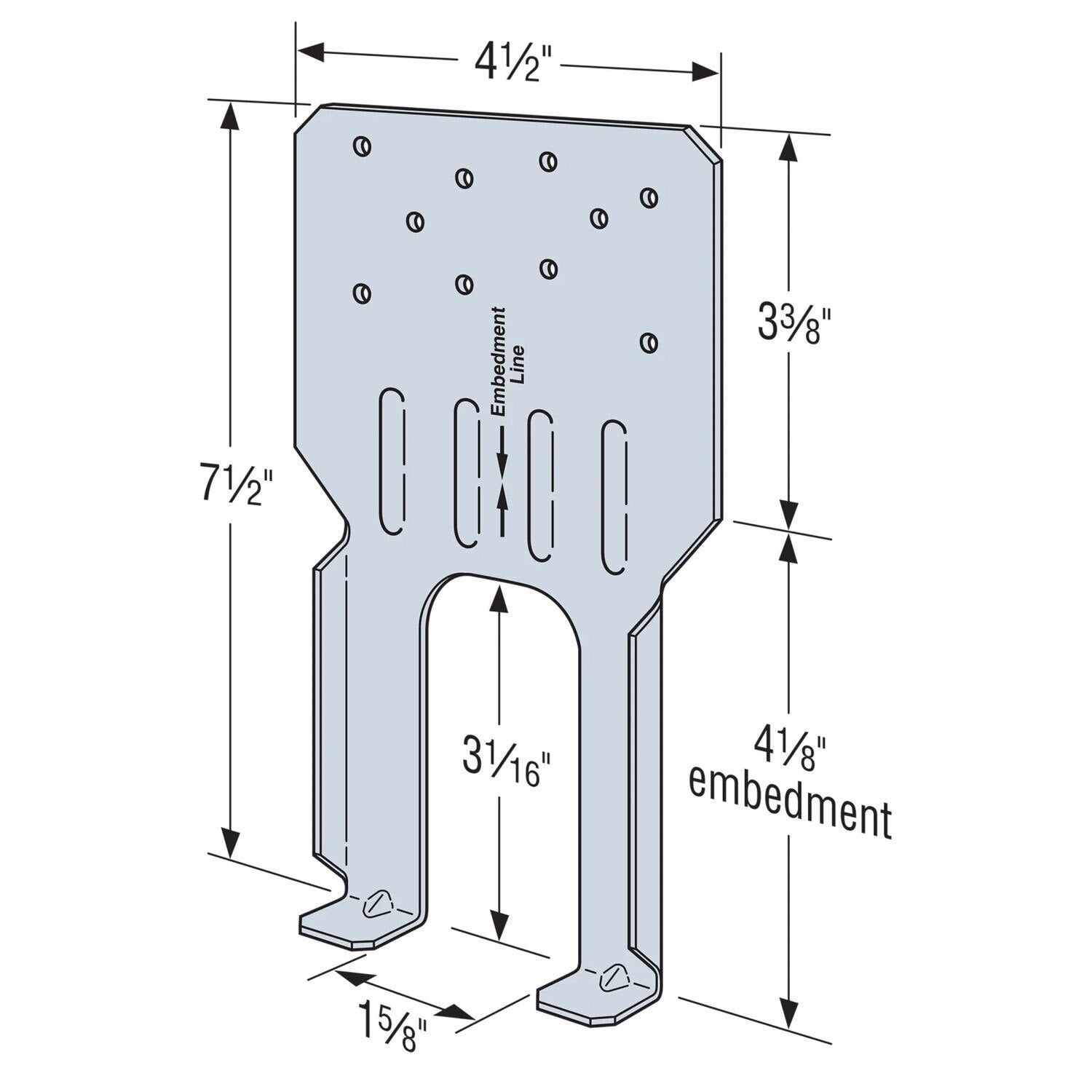

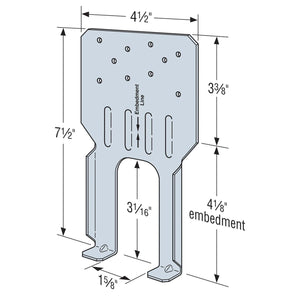

Simpson Strong-Tie LTA2 Specifications
| Finish | G90 Galvanized |
| Fasteners required | (10) 0.148 x 1 1/2 |
| For Treated Lumber | No |
| Height | 7 1/2" |
