Simpson Strong-Tie MBHU3.56/11.25KT (3-9/16" x 11-1/4") 10ga Galvanized Masonry Beam Face-Mount Hanger
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie MBHU3.56/11.25KT (3-9/16" x 11-1/4") 1...
Key Specifications
Description
Description

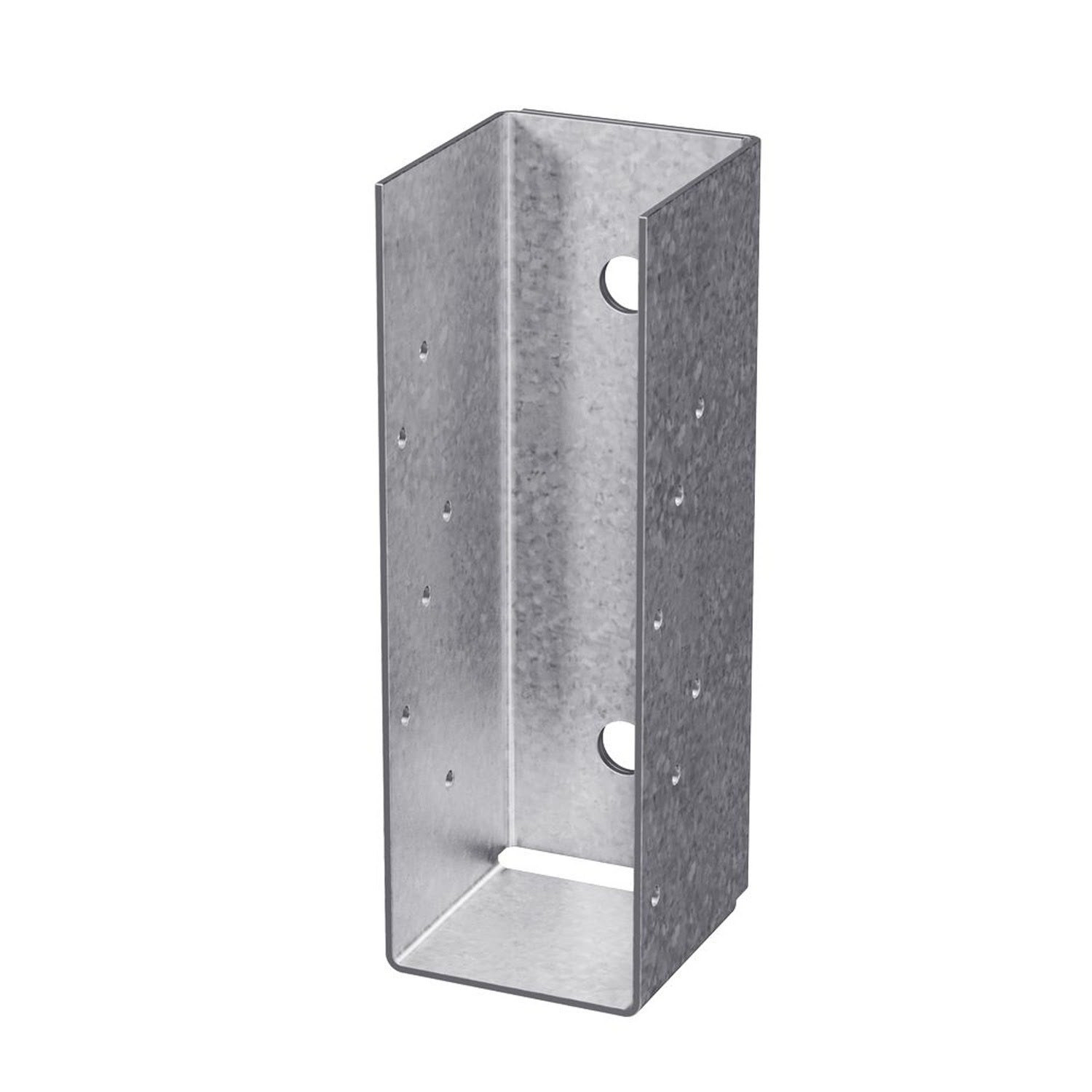

Simpson Strong-Tie MBHU3.56/11.25KT Description
The MBHU beam hanger provides a face-mounted solution for connecting beams to masonry or concrete walls. It is suitable for solid sawn and engineered wood beams as well as trusses.
Simpson Strong-Tie MBHU3.56/11.25KT Includes
- (1) MBHU3.56/11.25KT Masonry Beam Hanger
- (2) 3/4" x 5" Titen HD Anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector Screws
Simpson Strong-Tie MBHU3.56/11.25KT Features
- Face-mounted design for secure connections
- Includes all necessary fasteners for installation
- Compatible with solid sawn and engineered wood beams
- Galvanized finish for corrosion resistance
Simpson Strong-Tie MBHU3.56/11.25KT Applications
- Connecting beams to masonry or concrete walls
- Use in solid sawn and engineered wood beams
- Suitable for trusses
Simpson Strong-Tie MBHU3.56/11.25KT Installation Overview
- Use all specified fasteners (included).
- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
- Holes shall be drilled 1/2" deeper than the specified Titen HD length.
- Provide moisture barrier between beam and wall per jurisdictional requirements.
Simpson Strong-Tie MBHU3.56/11.25KT Specifications
| Material | 10 gauge |
| Finish | G90 Galvanized |
| Height | 11-1/4" |
| Width | 3-9/16" |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
