Simpson Strong-Tie MBHU5.50/14SSKT (5-1/2" x 14") 10ga Stainless Steel Masonry Beam Face-Mount Hanger
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie MBHU5.50/14SSKT (5-1/2" x 14") 10ga St...
Key Specifications
Description
Description
Simpson Strong-Tie MBHU5.50/14SSKT Description

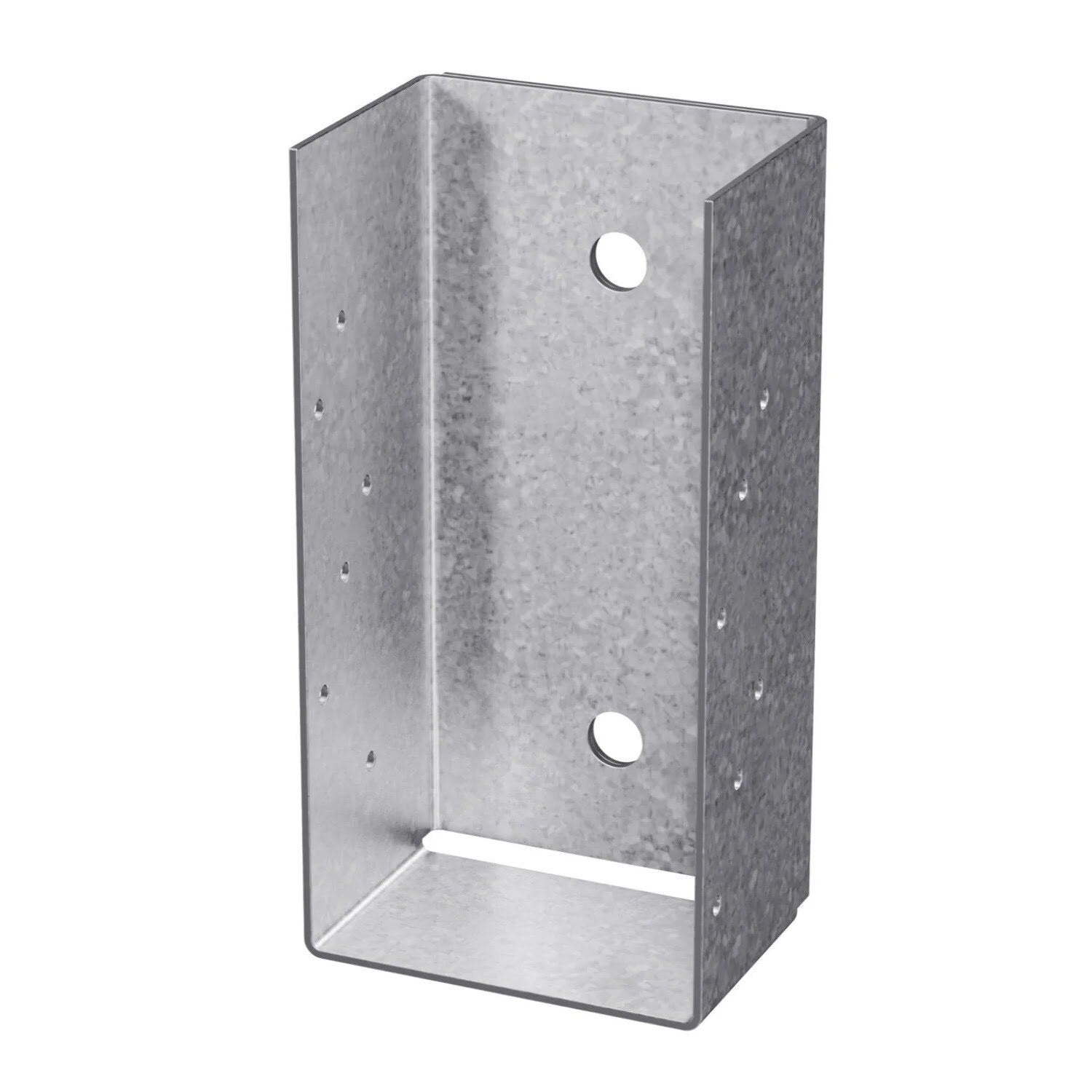

The MBHU Masonry Beam Face-Mount Hanger is a stainless steel, one-piece connector designed for secure wood-to-masonry connections. It includes all necessary fasteners for easy installation.
Simpson Strong-Tie MBHU5.50/14SSKT Includes
- (1) MBHU Masonry Beam Face-Mount Hanger
- (2) 3/4" x 5" Titen HD anchors
- (12) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie MBHU5.50/14SSKT Features
- Stainless steel construction for high corrosion resistance
- Includes all necessary fasteners for installation
- Designed for wood-to-masonry connections
- One-piece, non-welded design for durability
Simpson Strong-Tie MBHU5.50/14SSKT Applications
- Wood-to-masonry connections in construction
- Use with trusses and solid engineered wood beams
- Suitable for high-corrosion environments
Simpson Strong-Tie MBHU5.50/14SSKT Installation Overview
- Use all specified fasteners included in the package.

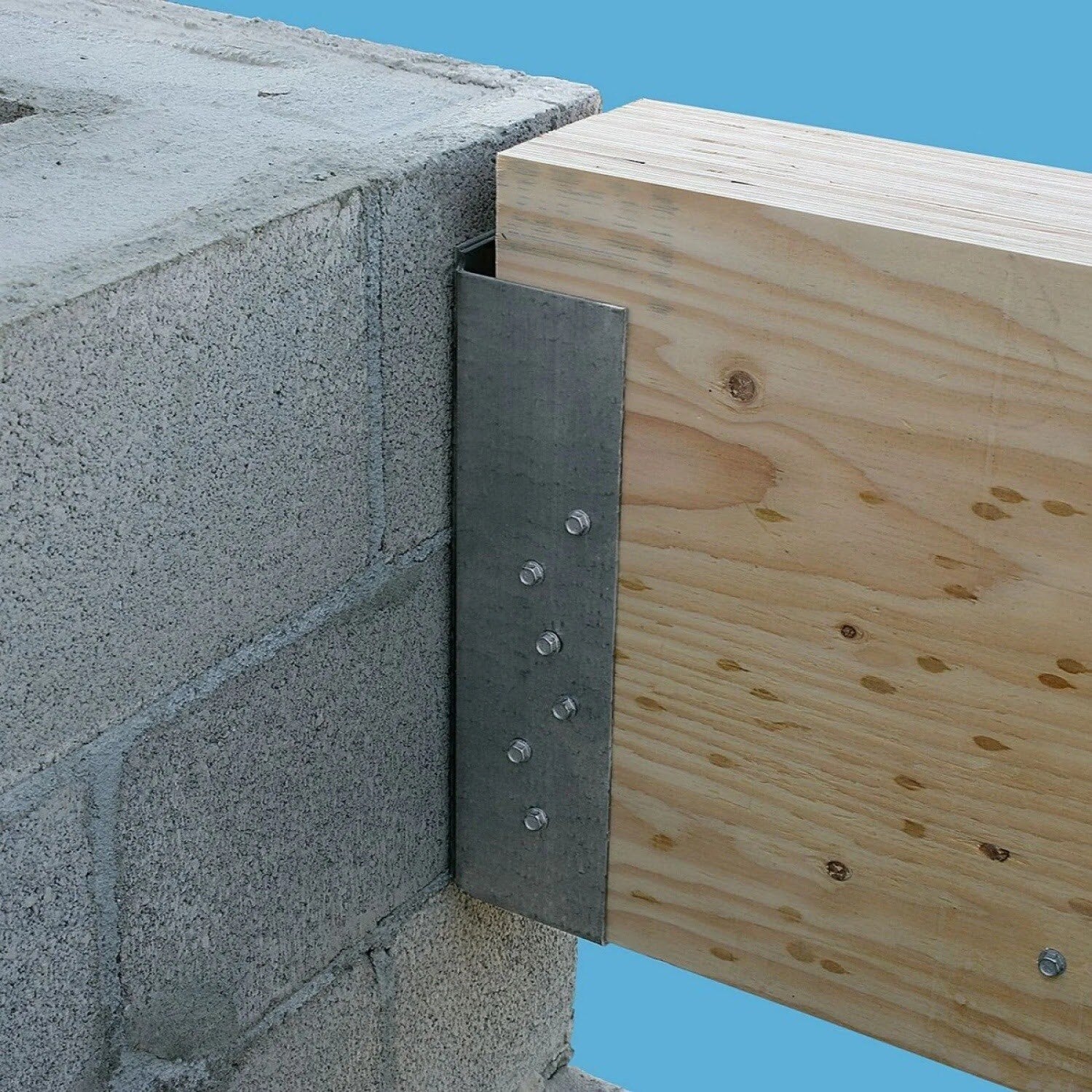

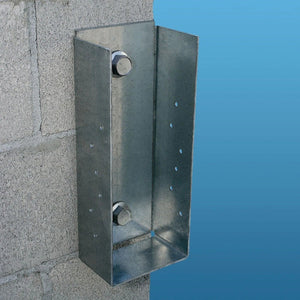

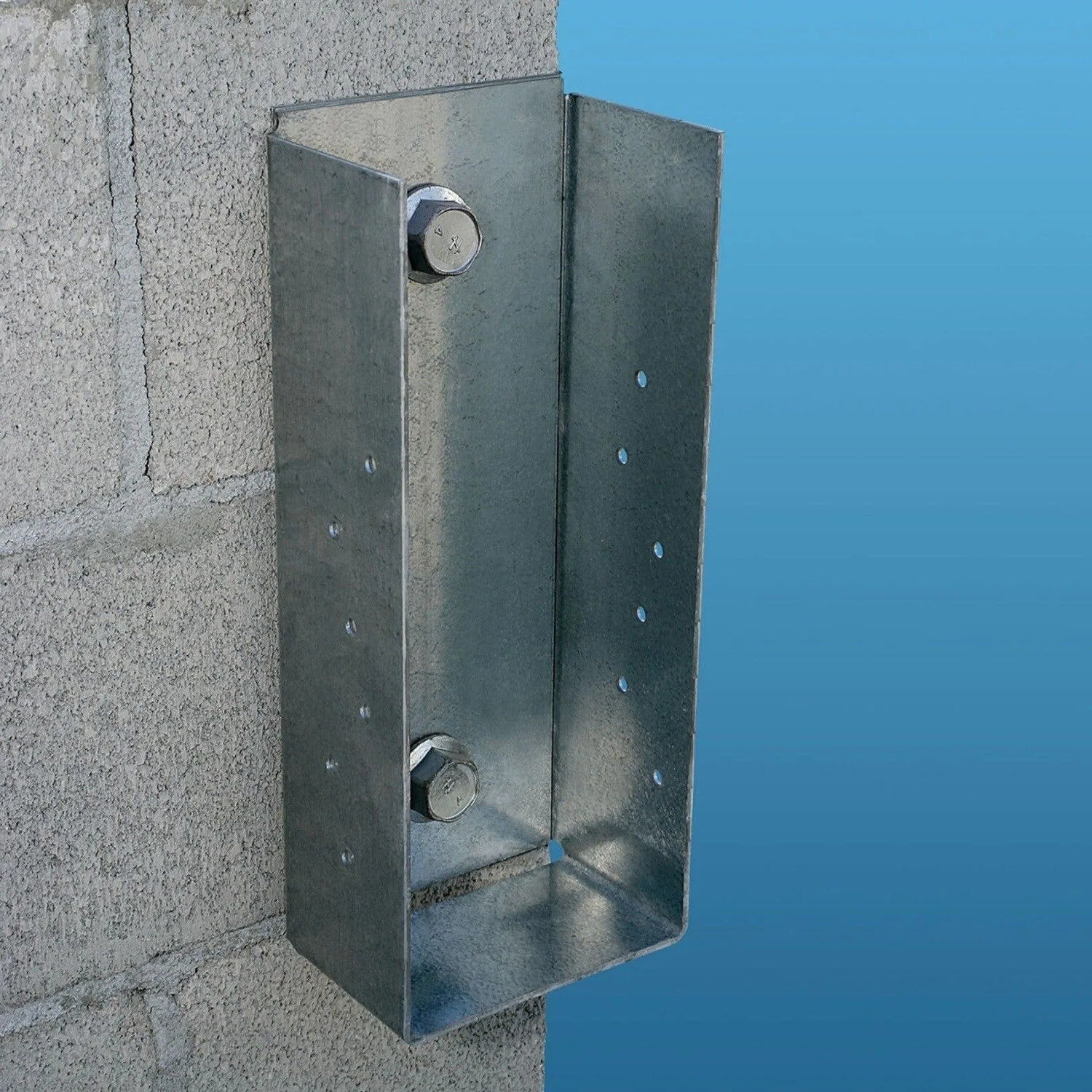

- Attach hanger to a concrete or grout-filled CMU wall using Titen HD anchors.
- Drill holes 1/2" deeper than the specified Titen HD anchor length.
- Ensure a moisture barrier is provided between the beam and wall as per jurisdictional requirements.

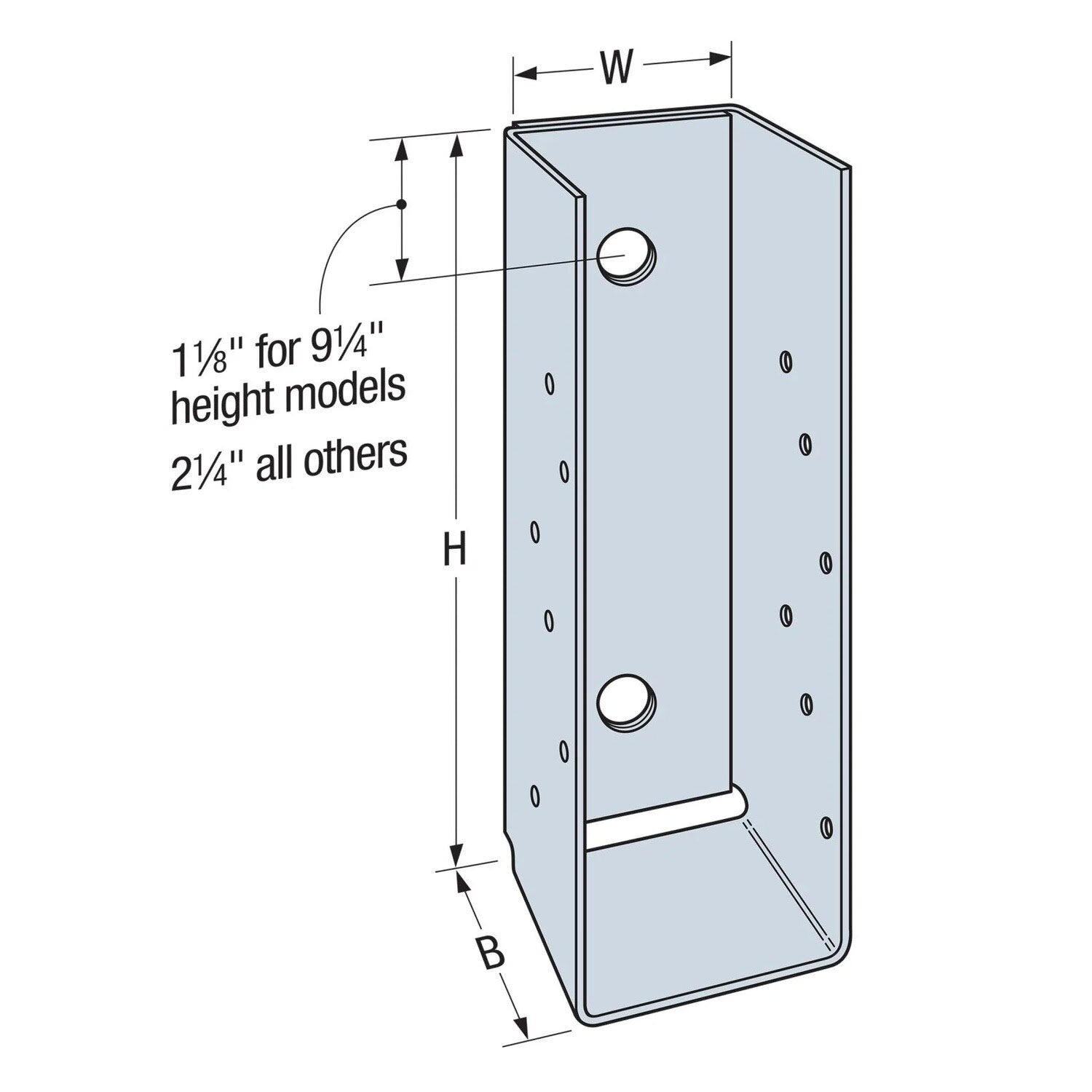

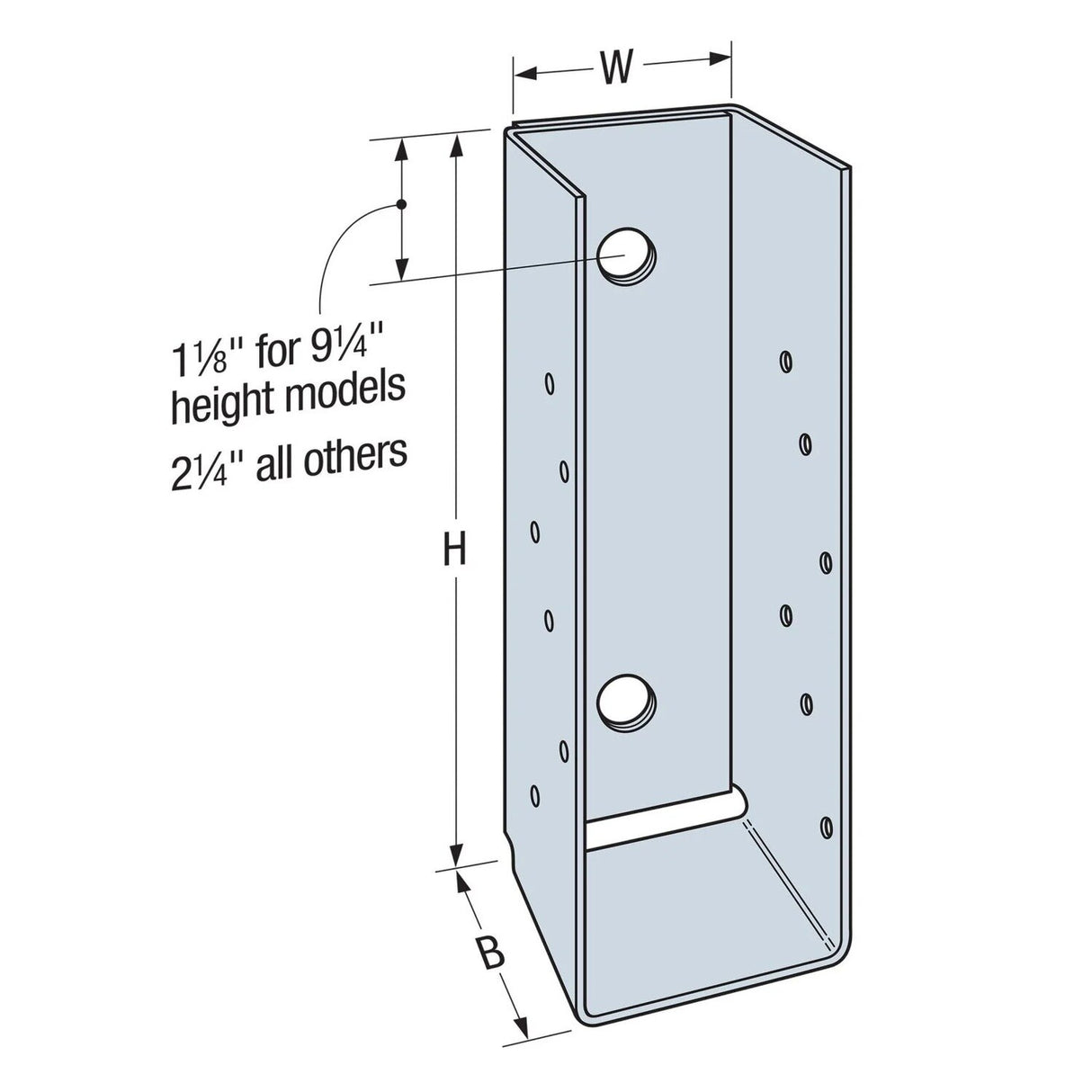

Simpson Strong-Tie MBHU5.50/14SSKT Specifications
| Material | Stainless Steel |
| Finish | Stainless Steel |
| Thickness | 10 Gauge |
| Width | 5-1/2" |
| Height | 14" |
| Quantity | 1 |
NOTE: Ensure all specified fasteners are used and verify the header can accommodate the fasteners specified in the table.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
