Simpson Strong-Tie MTW45-8-R10 Description

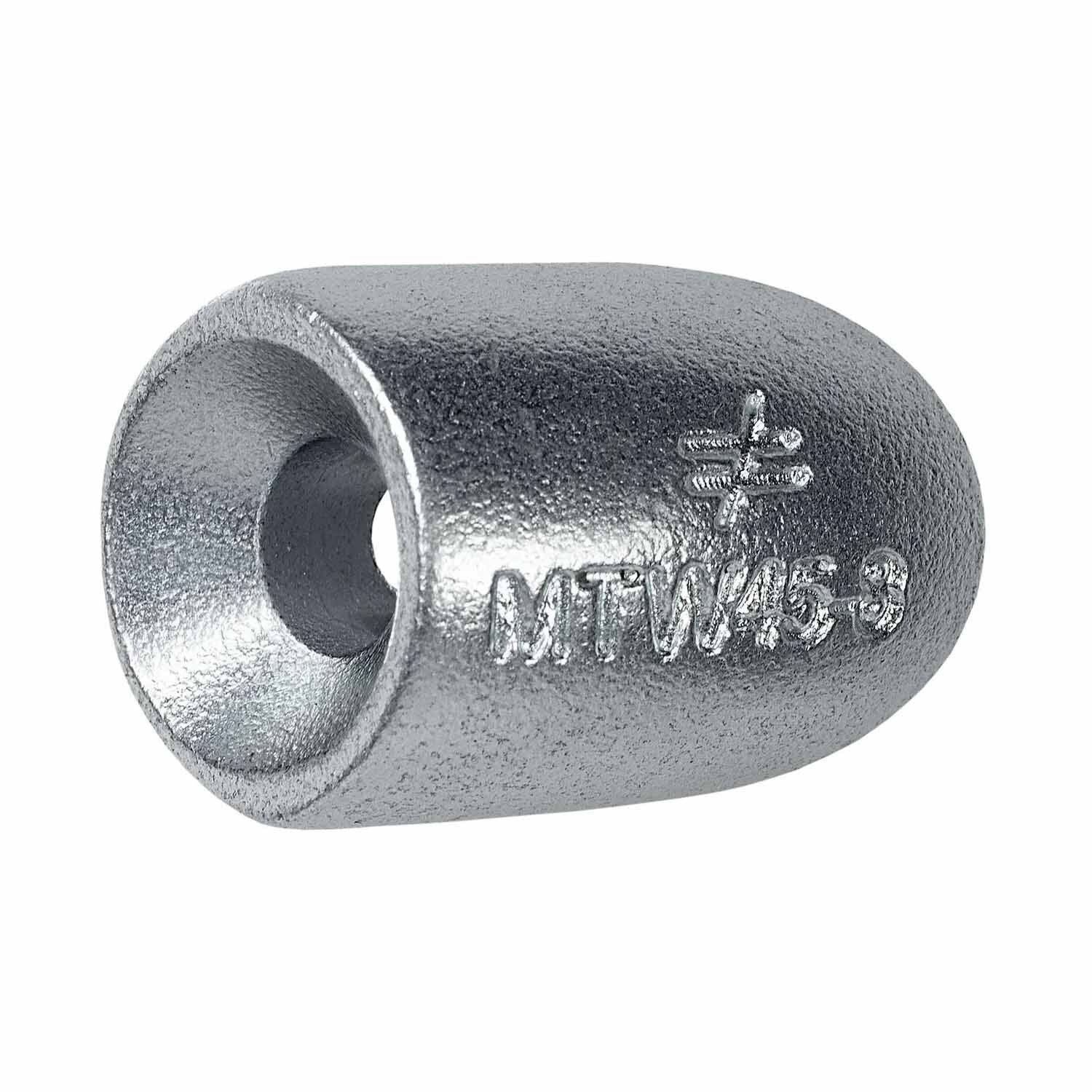

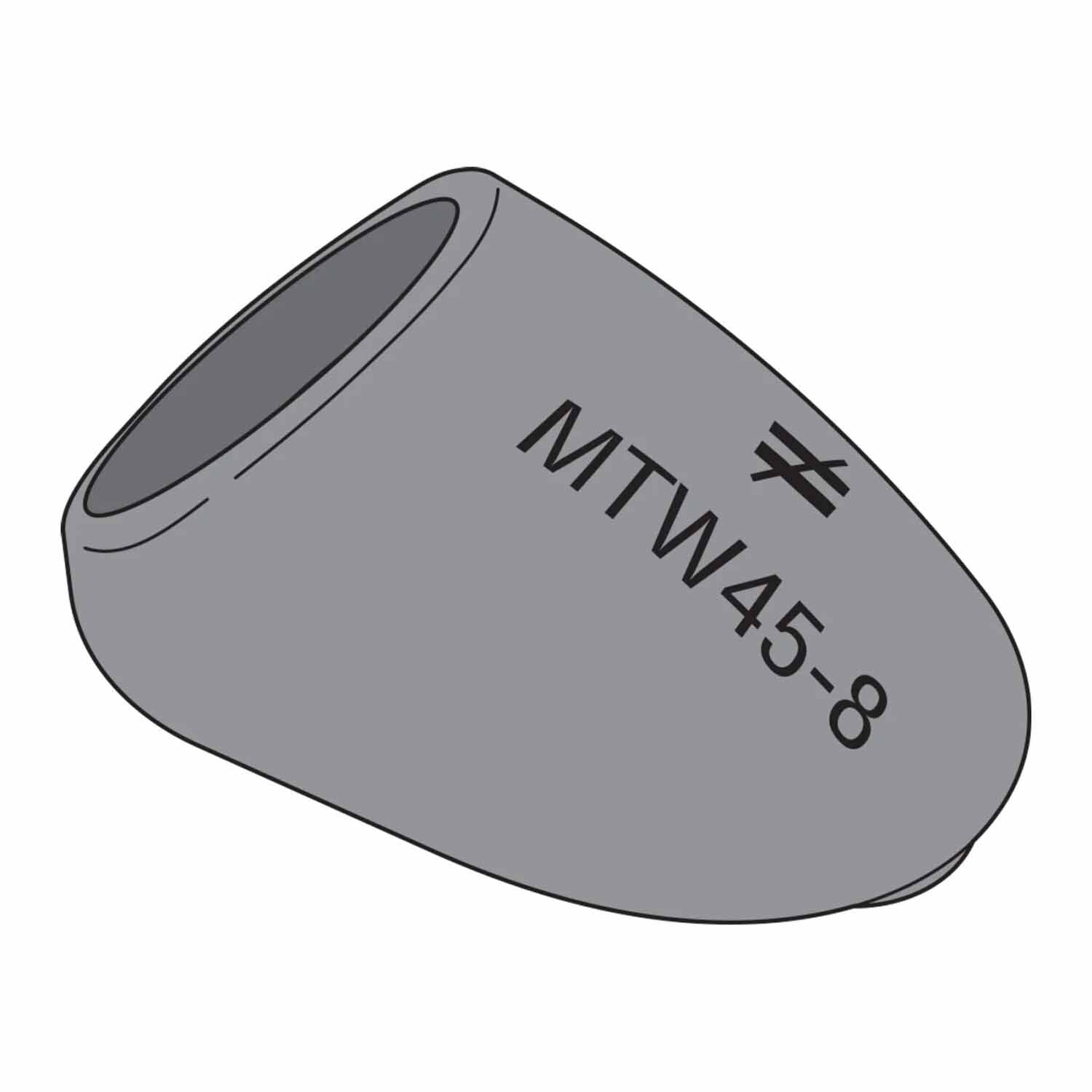

The MTW45-8-R10 Mass Timber Angled Washer is designed for use with 10 gauge connection plates and 8 mm-diameter screws, providing increased strength and stiffness for mass timber connections.
Simpson Strong-Tie MTW45-8-R10 Includes
- (10) MTW45-8 Mass Timber Angled Washer
Simpson Strong-Tie MTW45-8-R10 Features
- Recessed hole provides a clean finish with the SDCF countersunk head
- Guides screw to an accurate 45° angle
- High capacity reduces number of screws required in a connection
- Material: ASTM A27, Grade 70–40
- Finish: Zinc electroplated
Simpson Strong-Tie MTW45-8-R10 Applications
- Engineered wood connections
- Mass timber construction
- Cross-laminated timber projects

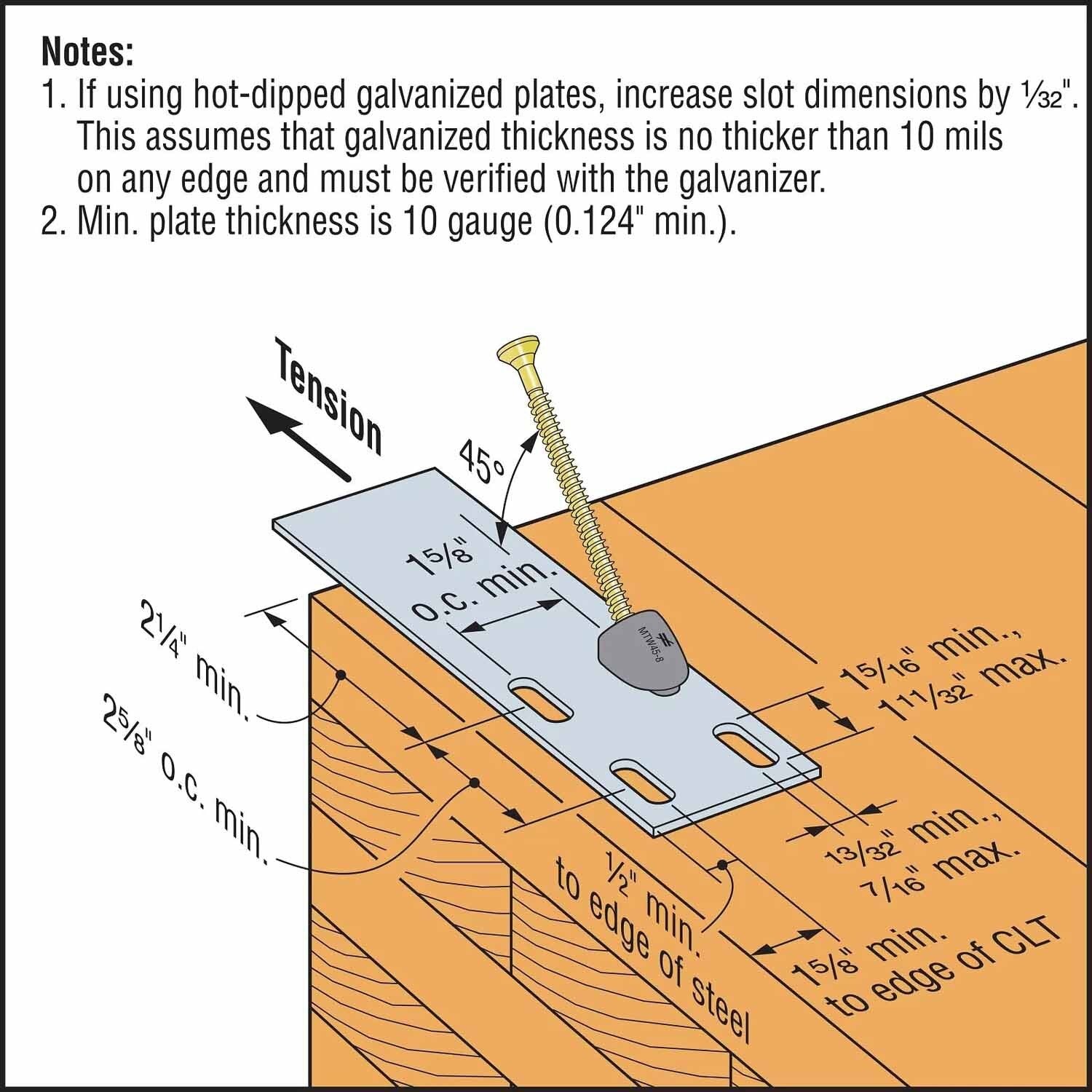

Simpson Strong-Tie MTW45-8-R10 Installation Overview
- Use all specified MTW45-8 washers and Strong-Drive SDCF Timber-CF screws.
- Allowable connector plate thickness is 10 gauge minimum and 1/2" maximum.
- Fabricate plates with obround holes as specified.
- Insert MTW45-8 into obround holes and drive screws at a 45° angle.
- Ensure countersunk screw heads are fully seated into the washer hole.
Simpson Strong-Tie MTW45-8-R10 Specifications
| Material | Carbon Steel |
| Finish | Zinc Galvanized |
| Quantity | 10 |
| Weight | 1.2 lb |
NOTE: Tabulated loads are for MTW45-8 with SDCF22 screws installed with minimum edge distance of 1 5/8" and side plate thicknesses shown. Maximum side plate thickness is 1/2".
