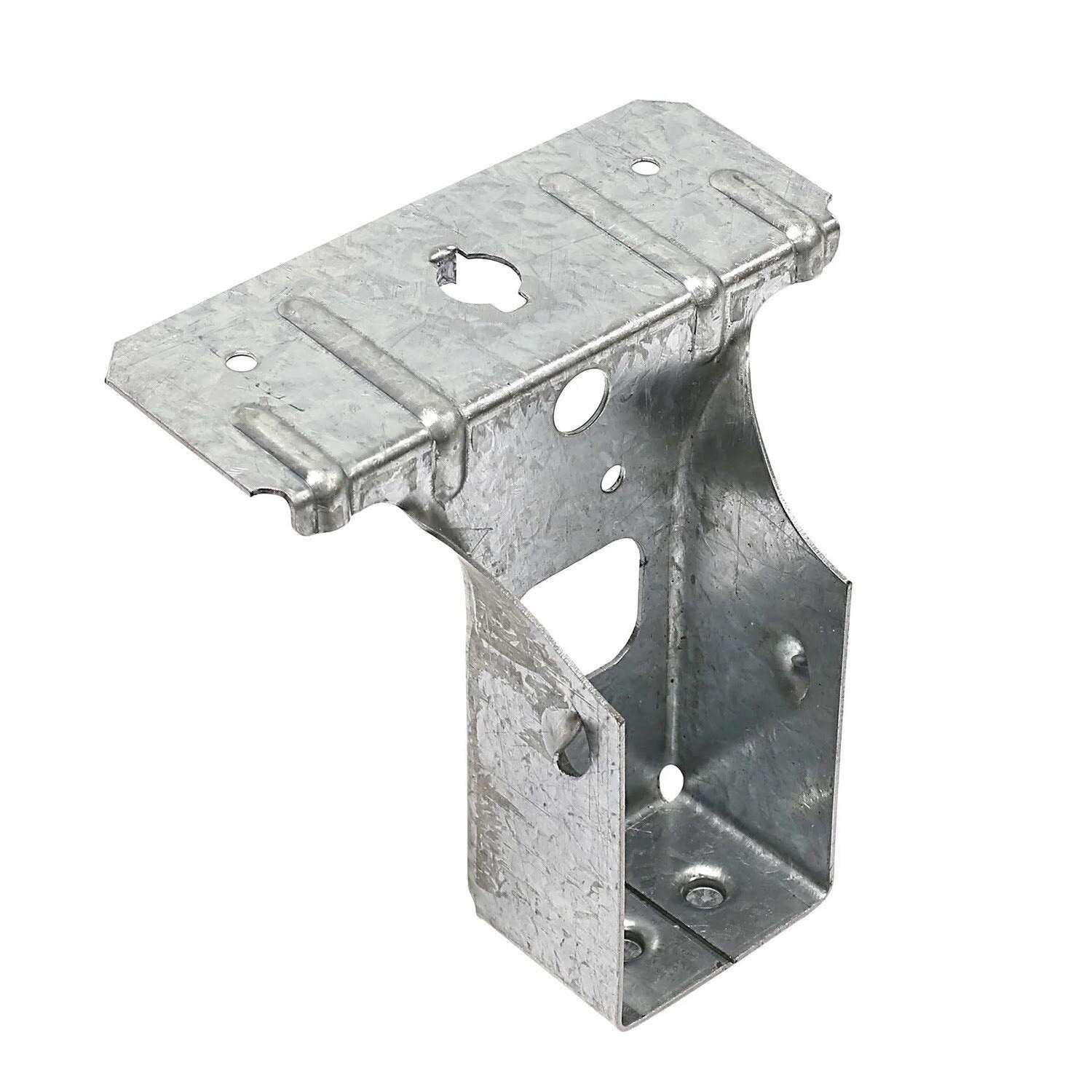

Simpson Strong-Tie PF24B Description
The Simpson Strong-Tie PF24B Post-Frame Hanger is designed for secure and efficient connections in post-frame construction, featuring a durable, one-piece design for superior strength and load distribution.
Simpson Strong-Tie PF24B Includes
- (1) PF24B Post-Frame Hanger
Simpson Strong-Tie PF24B Features
- One-piece top flange for precise and secure fit
- Installation prongs for quick and accurate positioning
- Double-shear nailing design for enhanced load distribution
- Dome-shaped joist nail holes for maximum holding power
- Folded seat for strong and stable connections
Simpson Strong-Tie PF24B Applications
- Post-frame buildings: Secures roof purlins and floor joists in pole barns and agricultural structures.
- Decks and porches: Provides strong connections between joists and beams for increased structural integrity.
- Commercial and industrial structures: Supports framing elements in warehouses and factories.
- Residential construction: Suitable for floor and roof framing in homes and garages.

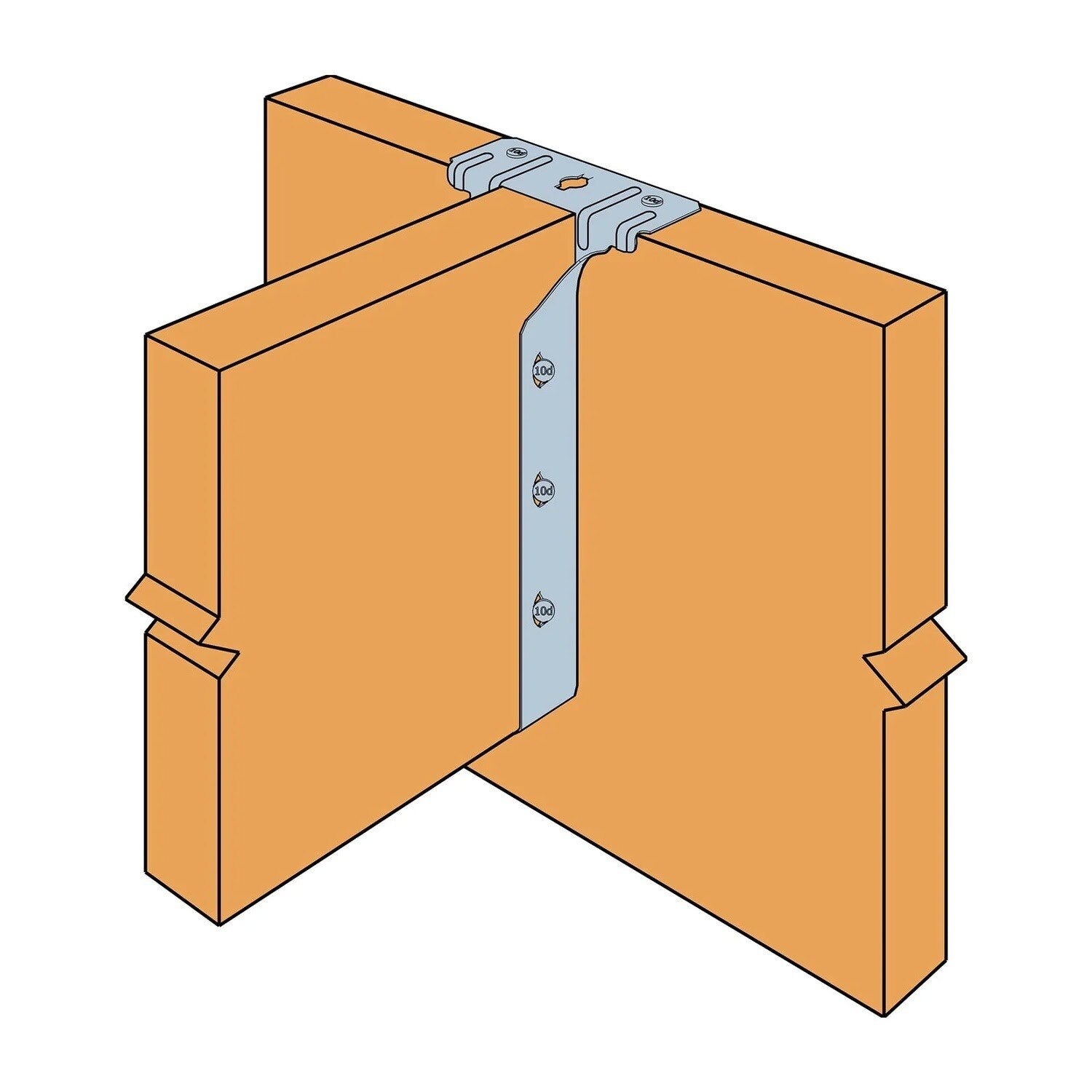

Simpson Strong-Tie PF24B Installation Overview
- Designed for use with solid-sawn lumber in post-frame construction.
- Installs with a combination of joist and header fasteners.
- Use 10d or 16d common nails for maximum load capacity.
- Ensure fasteners are driven at the proper angle for optimal performance.
- Follow manufacturer guidelines for compliance with structural requirements.
Simpson Strong-Tie PF24B Specifications
Finish | G90 Galvanized |
Material | Carbon Steel |
Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
For Treated Lumber | No |
Height | 3-3/8" |
Joist size | 2" X 4" |
Manufacturer name | Simpson Strong-Tie |
Thickness | 18 Gauge |
Width | 1-9/16" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
