Simpson Strong-Tie PHC12 (10-3/8 in.) Panel Hoist Clip for Wall Panels (50 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie PHC12 (10-3/8 in.) Panel Hoist Clip for Wall Pan...
Key Specifications
Description
Description

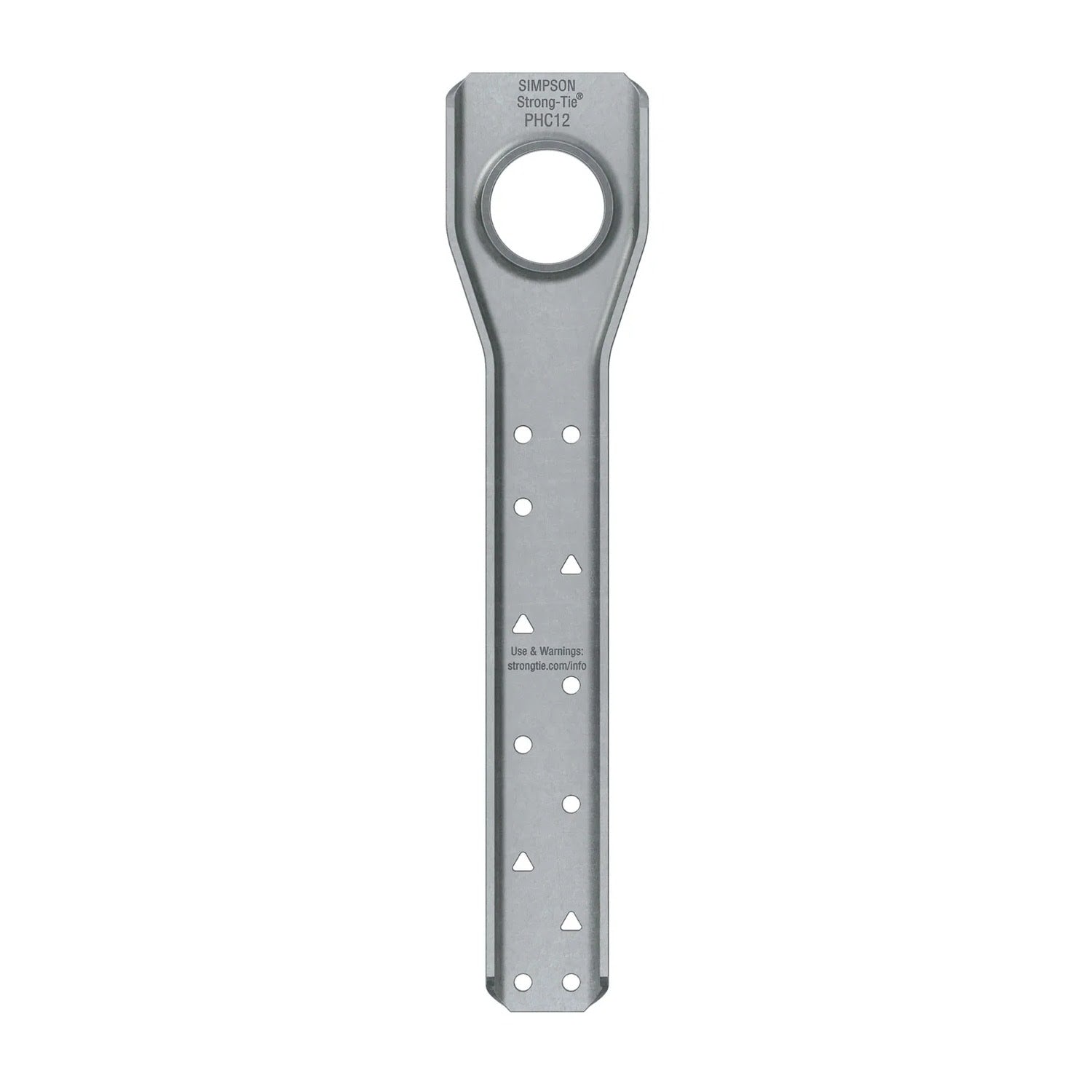

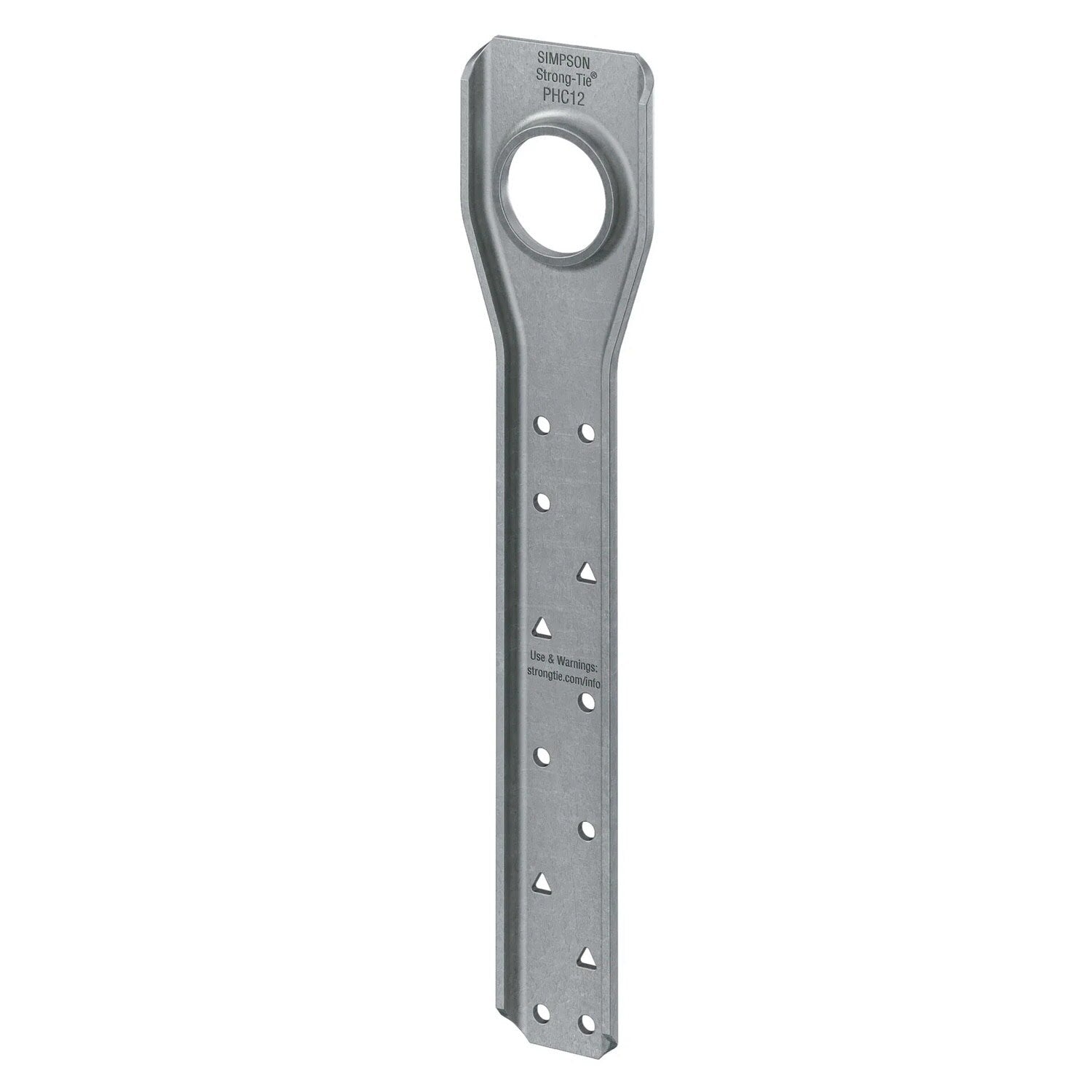

Simpson PHC12 Description
The Simpson PHC12 Panel Hoist Clip is designed for easy installation and lifting of wall panels, featuring rolled edges for enhanced strength and safety.
Simpson PHC12 Includes
- (50) Panel Hoist Clip
Simpson PHC12 Features

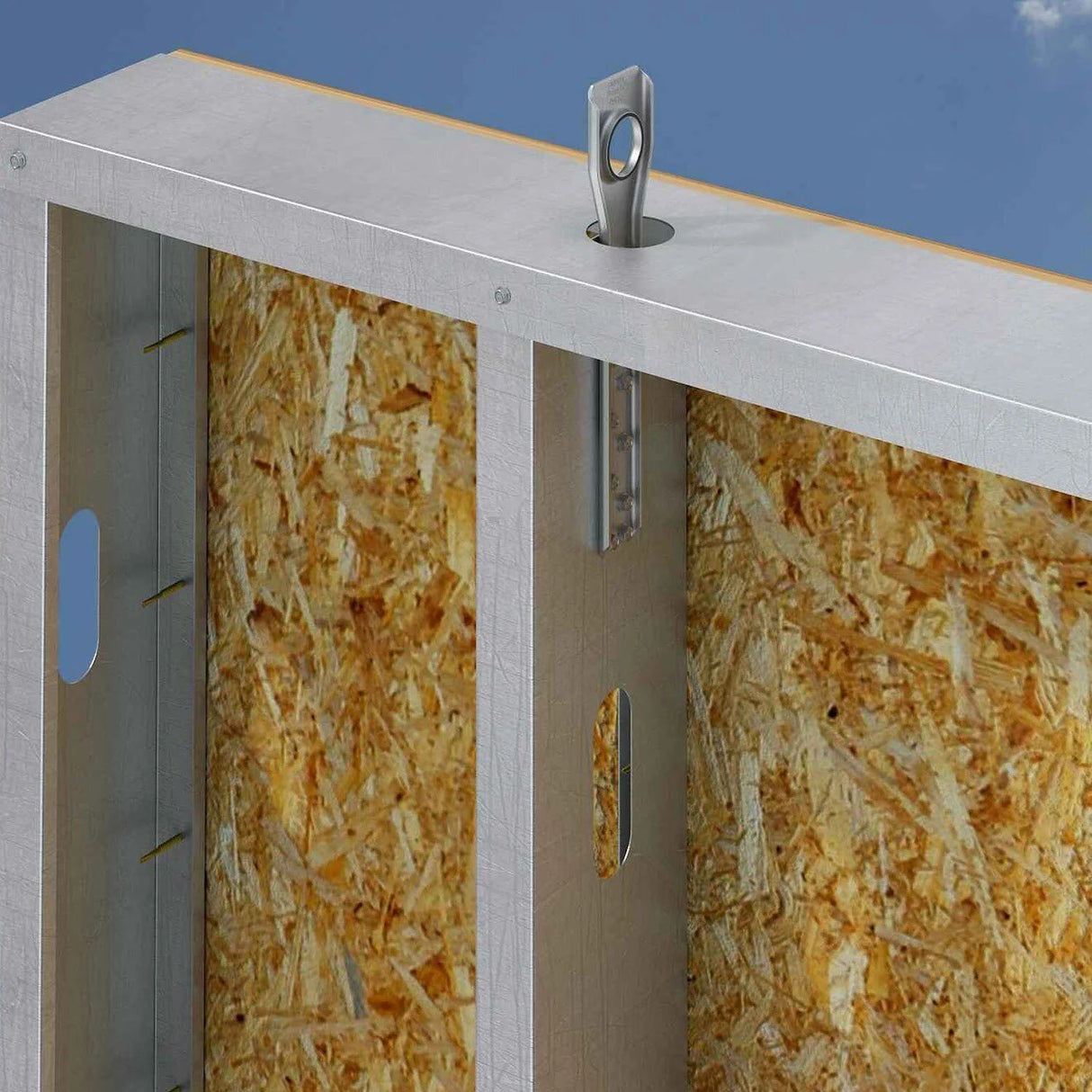

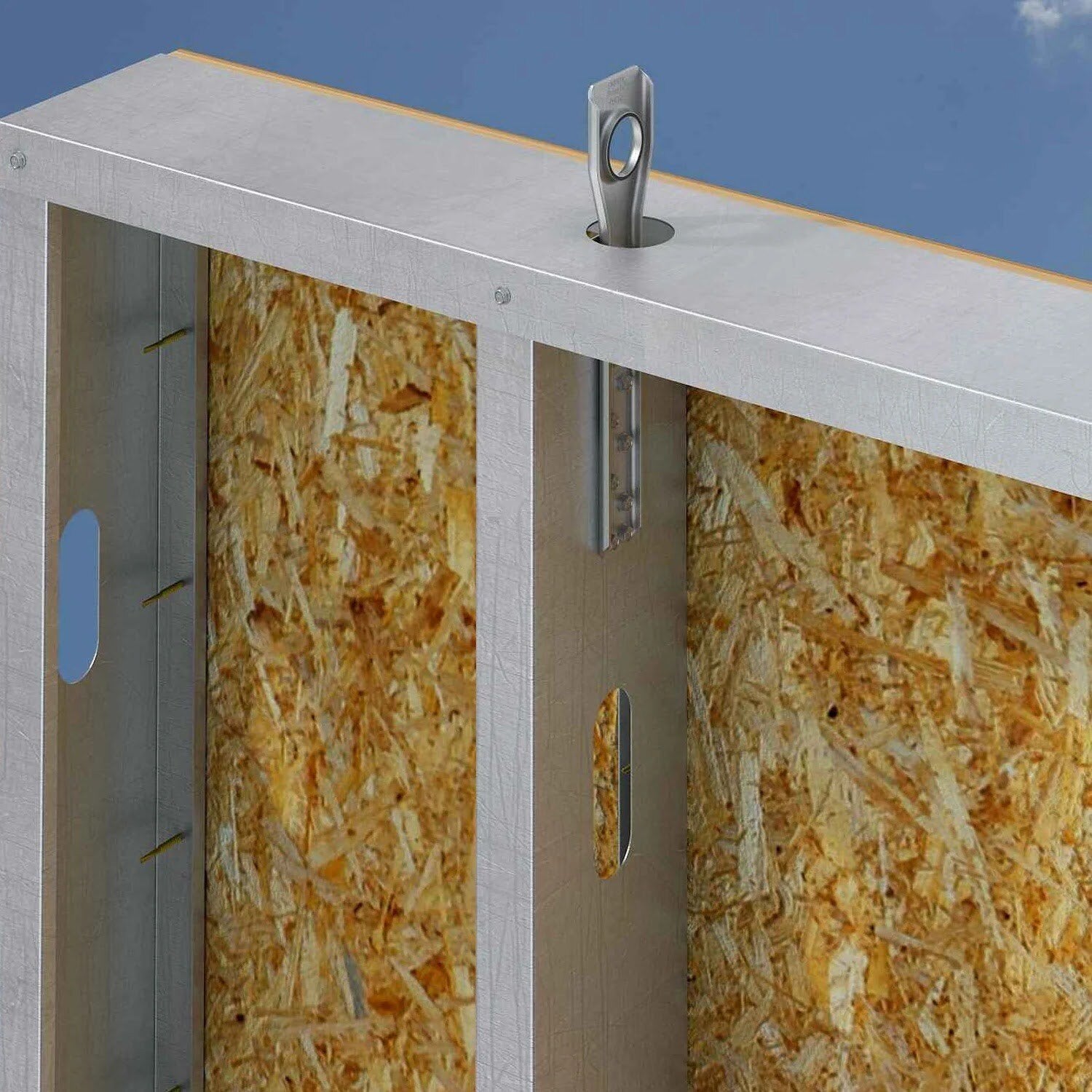

- Small profile for easy installation through the top track
- Rolled stiffener for increased strength
- Rolled hoist-edge-hole for smooth mounting edge
- Screw pattern options for varying load needs
- Chamfered top corners for smooth lifting device operation
- Assembly tested for tension and panel pick up at different angles
- Optional panel hoist clip cover available for tight connector fit
Simpson PHC12 Applications

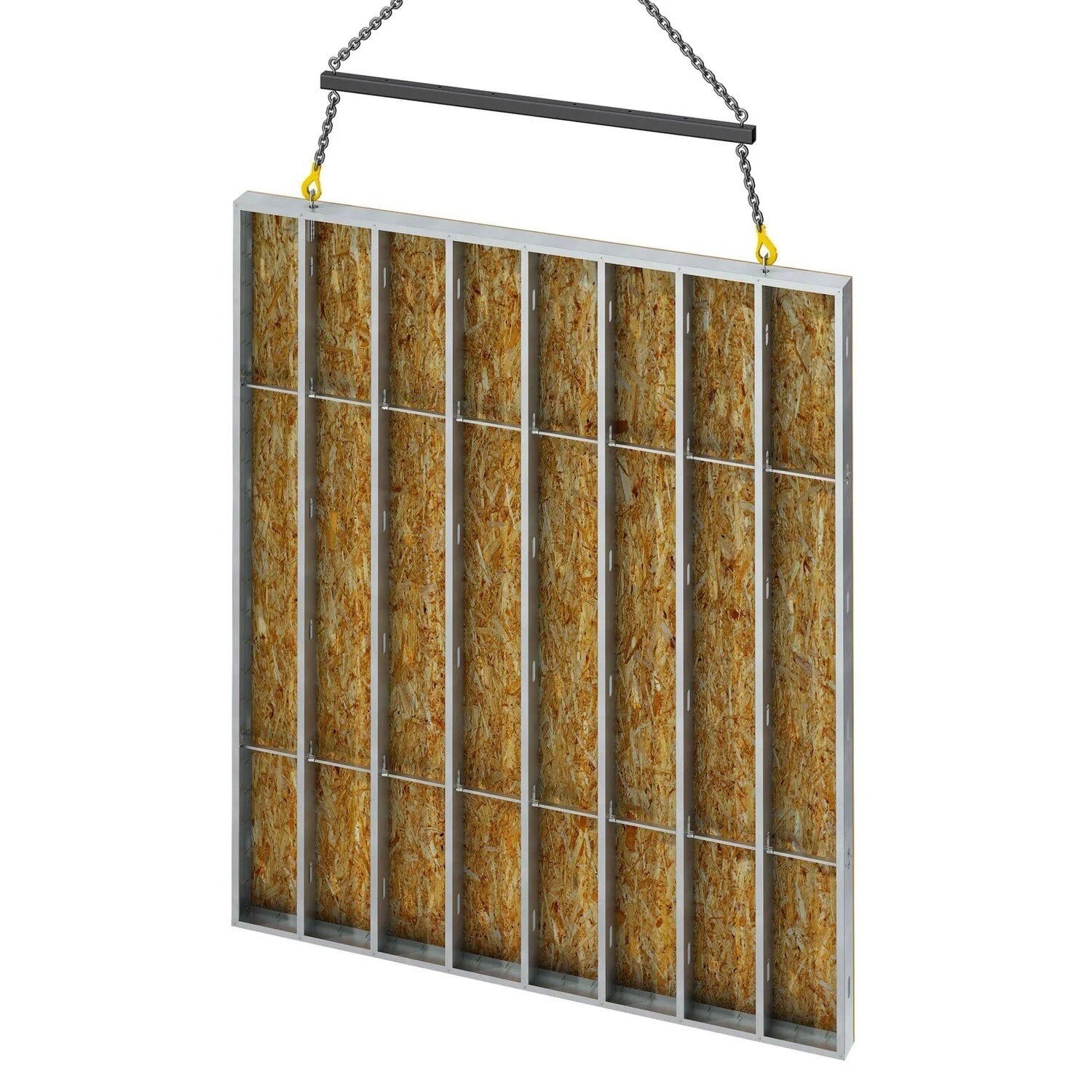

- Wall panel lifting and installation
- By-pass framing applications
- Concrete embedding with optional cover
- Heavy panel projects requiring enhanced strength
Simpson PHC12 Installation Overview
- Use all specified fasteners
Simpson PHC12 Specifications
| Material | 97 mil (12 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Application | By-Pass |
| Thickness | 12 Gauge |
| Width | 1 3/8 in. |
| Height | 10 3/8 in. |
| Packaging Quantity | 50 |
NOTE: Ensure all specified fasteners are used during installation to achieve optimal performance.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
