Simpson Strong-Tie PPHDQ134B1214-4K Strong-Drive (#12 x 1-3/4" T25) Strong-Drive PPHD Sheathing-to-CFS Screw, Quik Guard (4000 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie PPHDQ134B1214-4K Strong-Drive (#12 x 1-3/4"...
Key Specifications
Description
Description
Simpson Strong-Tie PPHDQ134B1214-4K Description

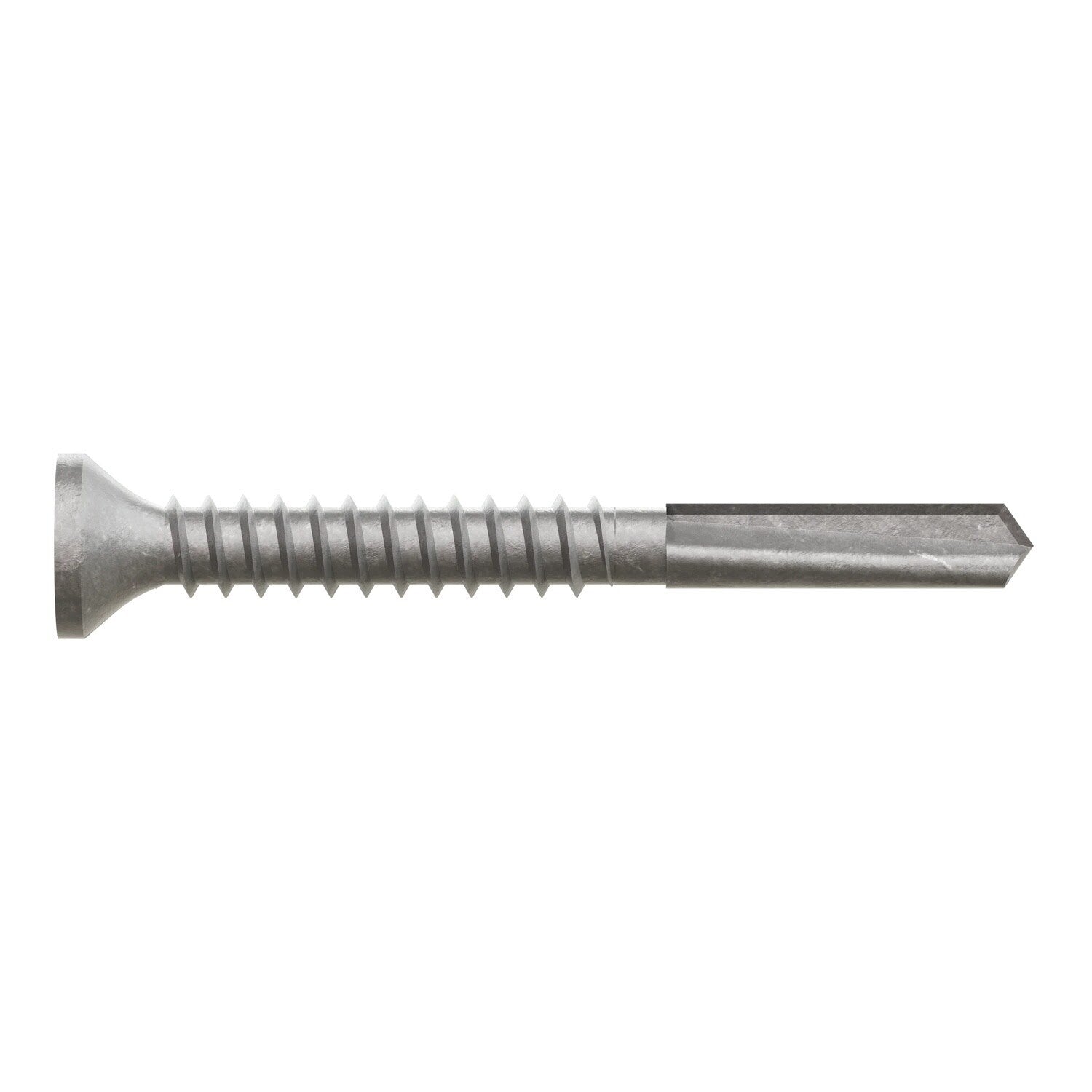

The Strong-Drive PPHD Sheathing-to-CFS Screw is designed for fastening wood structural panels and other materials to cold-formed steel framing, featuring a Quik Guard coating for durability.
Simpson Strong-Tie PPHDQ134B1214-4K Includes
- (4000) #12 x 1-3/4 in. T25 Sheathing-to-CFS Screws
Simpson Strong-Tie PPHDQ134B1214-4K Features
- 6-lobe drive for secure fastening
- Fine threads for precise application
- Pilot point for easy starting
- Quik Guard coating for corrosion resistance
- Designed for use in dry service, low-corrosion environments
Simpson Strong-Tie PPHDQ134B1214-4K Applications
- Fastening wood structural panels to cold-formed steel framing
- Securing building materials in low-corrosion environments
Simpson Strong-Tie PPHDQ134B1214-4K Installation Overview
- Ensure the maximum thickness of steel layers does not exceed two layers of 12 ga.
- Use the recommended maximum wood panel sheathing thickness of 19/32" for #12 screws.
- Install screws with a minimum of three exposed threads for optimal performance.
Simpson Strong-Tie PPHDQ134B1214-4K Specifications
| Fastener Type | Hand-Drive Screw |
| Coating/Material | Quik Guard Coating |
| Screw Size | #12 |
| Length (in.) | 1 3/4 |
| Head Diameter (in.) | 0.46 |
| Drive Type | T25 6-Lobe |
| Head Type | Flat Head with Nibs |
| Thread Type | Fine Threads |
| TPI | 14 |
| Max. Grip Length (in.) | 0.766 |
| Point Type | Pilot Point |
| Packaging Qty. | 4000 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
