Simpson Strong-Tie S/HD15S (17") 10Ga High-Load Steel Holdown - Gray Paint
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie S/HD15S (17") 10Ga High-Load Steel Holdown ...
Key Specifications
Description
Description
Simpson S/HD15S Description

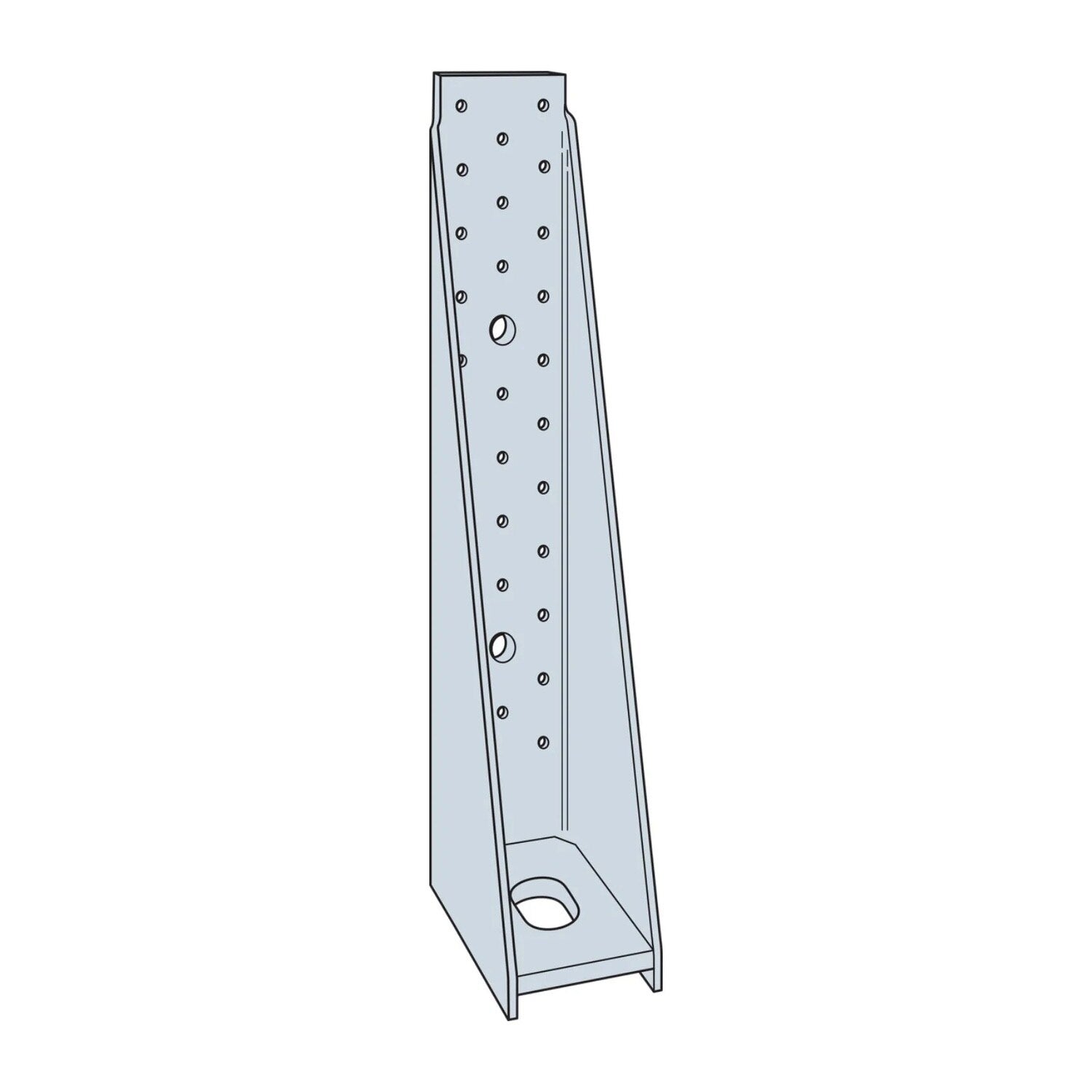

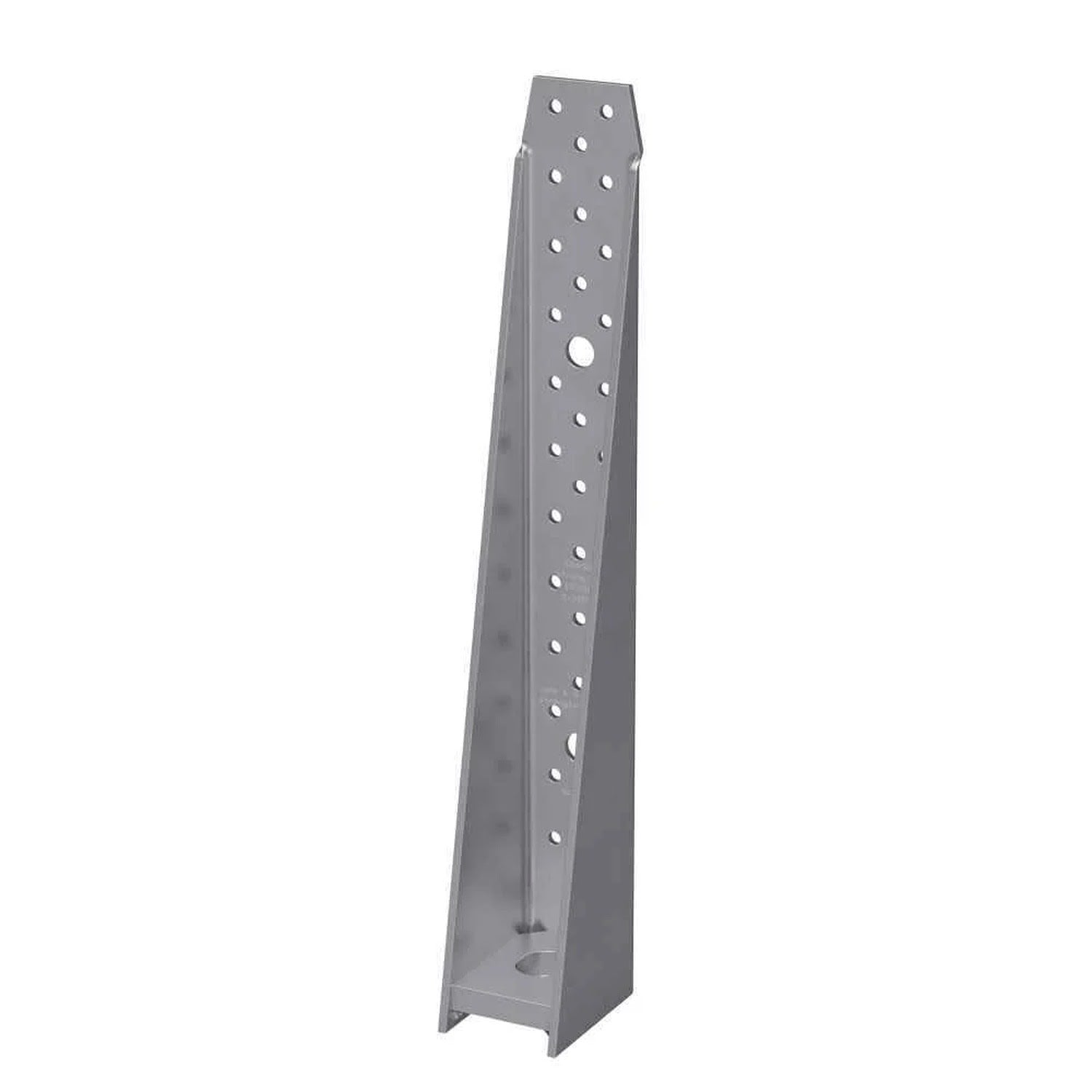

The Simpson S/HD15S Light Gauge Steel Holdown is designed for cold-formed steel framing applications, featuring a unique seat to minimize deflection and compatibility with screws for secure installation.
Simpson S/HD15S Includes
- (1) Light Gauge Steel Holdown
Simpson S/HD15S Features

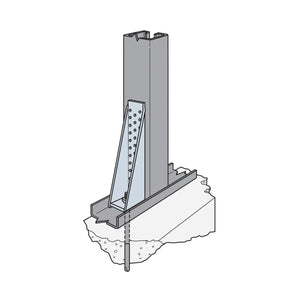

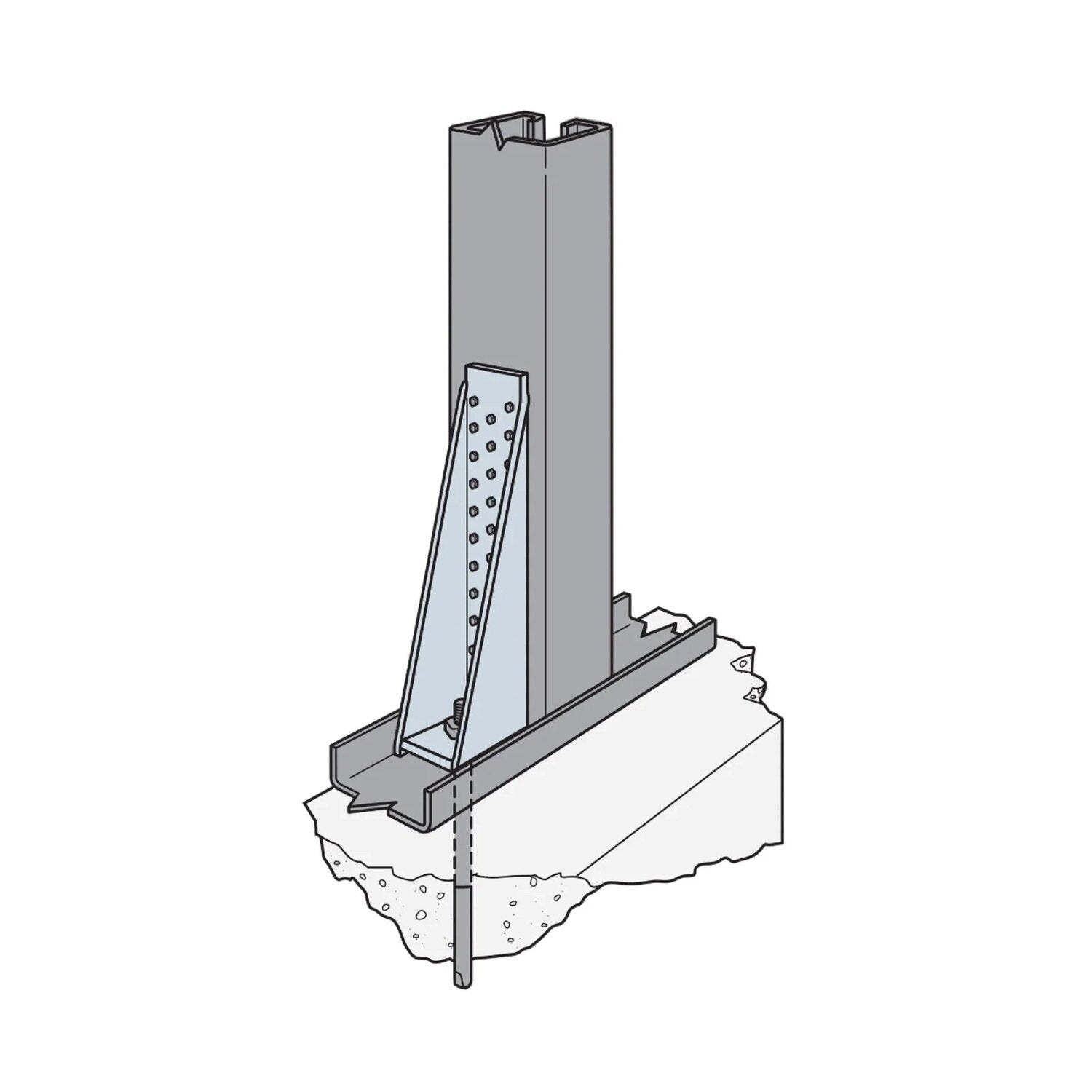

- Can be installed directly on the base track or raised above it
- Suitable for back-to-back applications where eccentricity is a concern
- Features a unique seat that greatly minimizes deflection under load
- Designed for installation with screws
Simpson S/HD15S Applications
- Cold-formed steel framing
- High-wind construction
- Structural reinforcement
Simpson S/HD15S Installation Overview
- Use all specified fasteners
- Anchor bolt washer is not required
- Thin wall socket required for tightening anchor bolt
- Boundary members design by designer
- Holdowns can be welded per designer's recommendation
- See adhesive products for anchor bolt retrofit options
Simpson S/HD15S Specifications
| Height | 17" |
| Finish | G90 Galvanized |
| Weight | 5.0 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
