Simpson Strong-Tie S/LBV2.12/10 Description

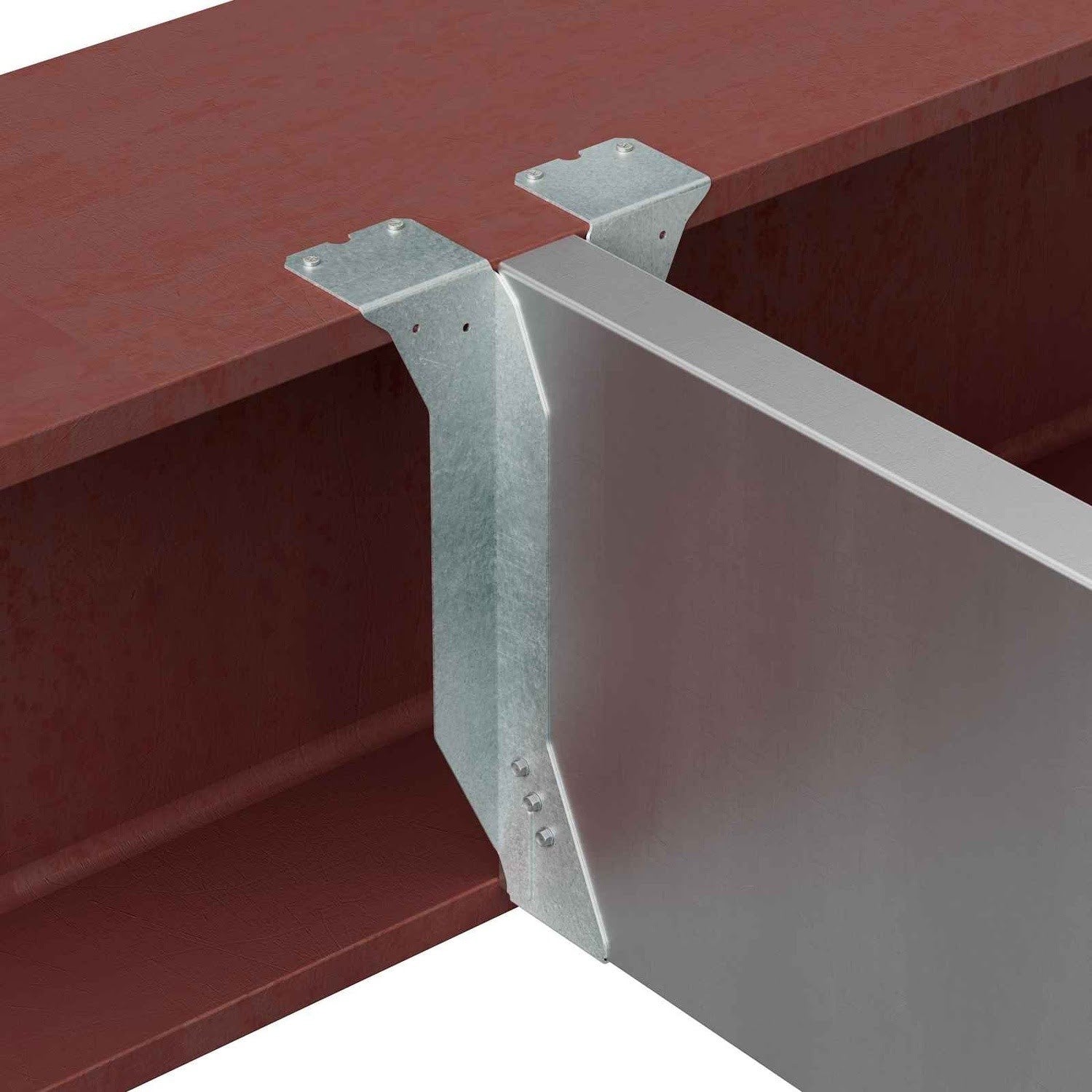

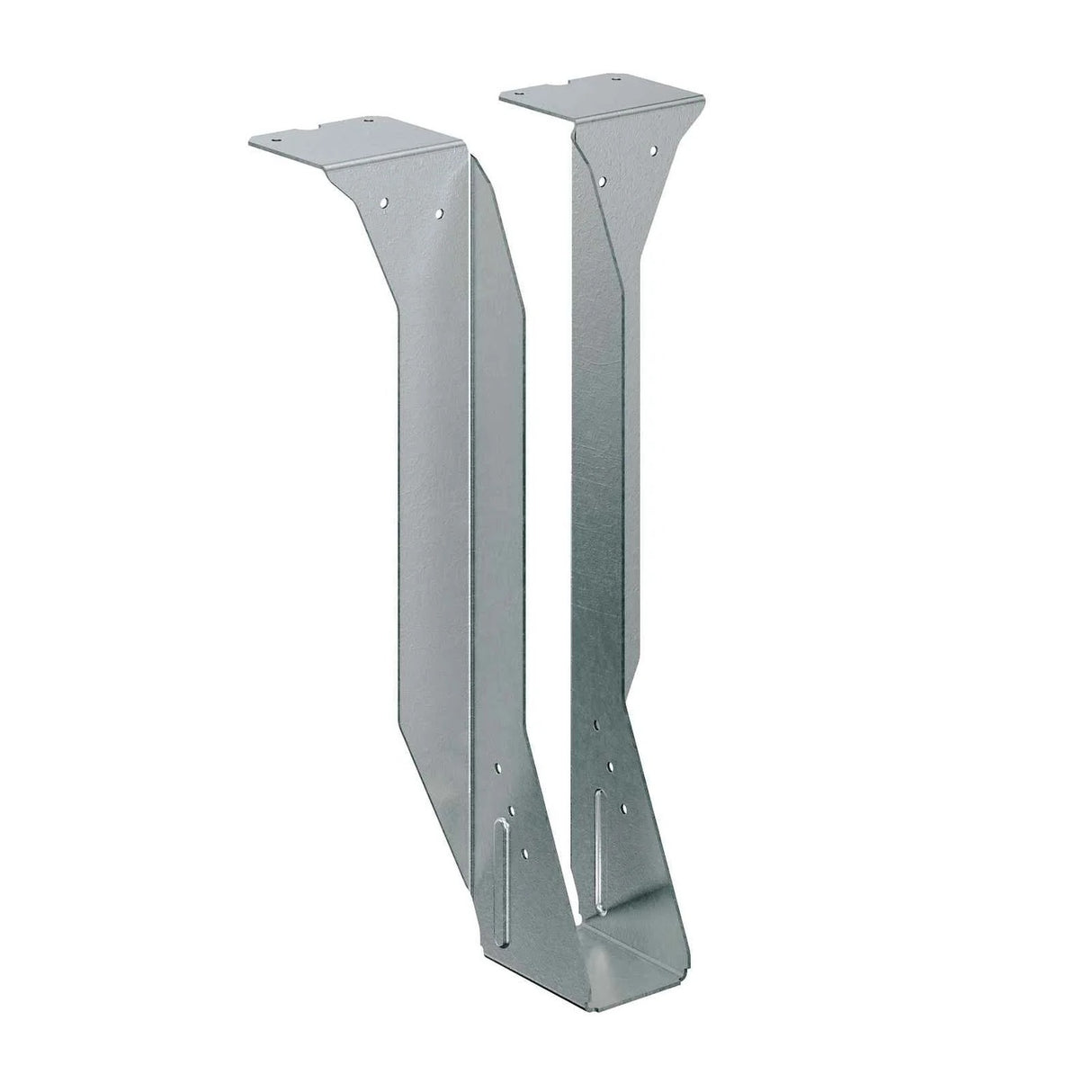

The Simpson Strong-Tie S/LBV2.12/10 Light Gauge Hanger is designed for high-capacity joist support in structural steel or cold-formed steel members, featuring a G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie S/LBV2.12/10 Includes
- (1) Light Gauge Hanger - G90 Galvanized
Simpson Strong-Tie S/LBV2.12/10 Features
- High-capacity joist hanger for structural steel or cold-formed steel members
- Modifiable top-flange design allows skewing up to 45 degrees
- G90 Galvanized finish for enhanced corrosion resistance
- Dimensional accuracy ensures proper bearing area and connection
Simpson Strong-Tie S/LBV2.12/10 Applications
- Cold-formed steel joist support
- Structural steel joist installations
- Applications requiring corrosion-resistant connectors
Simpson Strong-Tie S/LBV2.12/10 Installation Overview
- Align the hanger with the structural steel or cold-formed steel member
- Secure the hanger using appropriate fasteners
- Ensure proper alignment and bearing area for the joist
Simpson Strong-Tie S/LBV2.12/10 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Height | 10" |
| Joist size | 2" X 10" |
| Thickness | 14 Gauge |
| Width | 2-1/8" |
