Simpson Strong-Tie SCHA10.75-KT15 (10-3/4") 10ga Galvanized Right-Facing Slide-Clip Connector (15 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SCHA10.75-KT15 (10-3/4") 10ga Galvanized Ri...
Key Specifications
Description
Description
Simpson Strong-Tie SCHA10.75-KT15 Description
The Simpson Strong-Tie SCHA connector is designed for panelized or stick-frame construction, providing a reliable anchoring solution for CFS framing to concrete slabs or steel beams.
Simpson Strong-Tie SCHA10.75-KT15 Includes

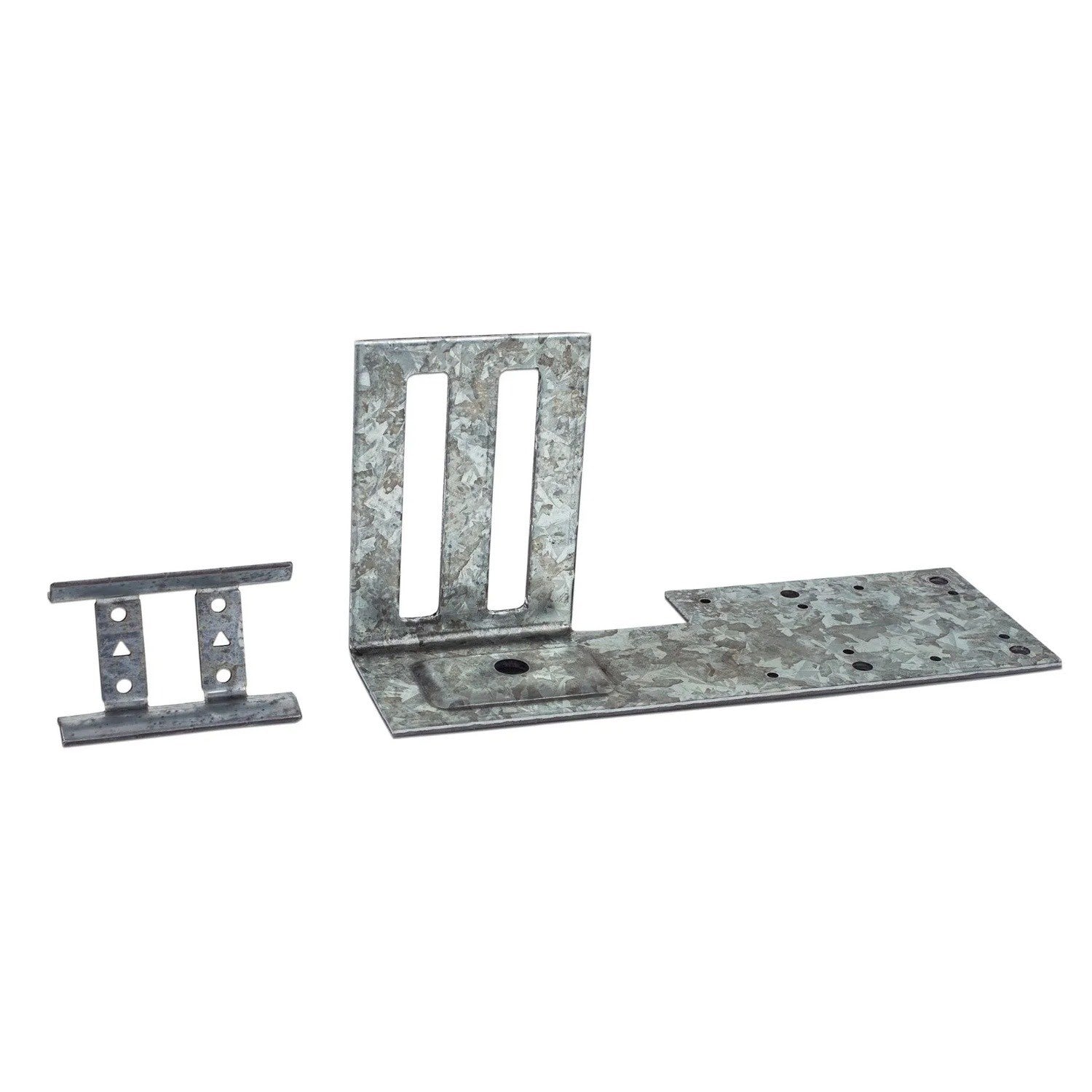

- (15) SCHA 10.75 connectors
- (15) SCVS/97 sliders
Simpson Strong-Tie SCHA10.75-KT15 Features
- Provides a full 1" of both upward and downward movement
- Tabulated design values for anchorage help mitigate risk and provide ease of specification
- Either face of anchorage leg can be used against the support
- Accommodates standoff distances up to 4 3/4"
- Can be used with 3 5/8", 4", 6" and 8" studs
- Prepunched anchor holes accommodate 1/4"-diameter Titen HD or other 1/4"-diameter concrete screw anchors, and 0.157"-diameter powder-actuated fasteners
- Prepunched anchor holes also eliminate the need for predrilling and help ensure accurate anchor placement
Simpson Strong-Tie SCHA10.75-KT15 Applications
- Panelized or stick-frame construction anchoring CFS framing to concrete slabs or steel beams
- Suitable for various sized studs and standoff distances up to 4-3/4"
Simpson Strong-Tie SCHA10.75-KT15 Installation Overview
- Use all specified fasteners and anchors.

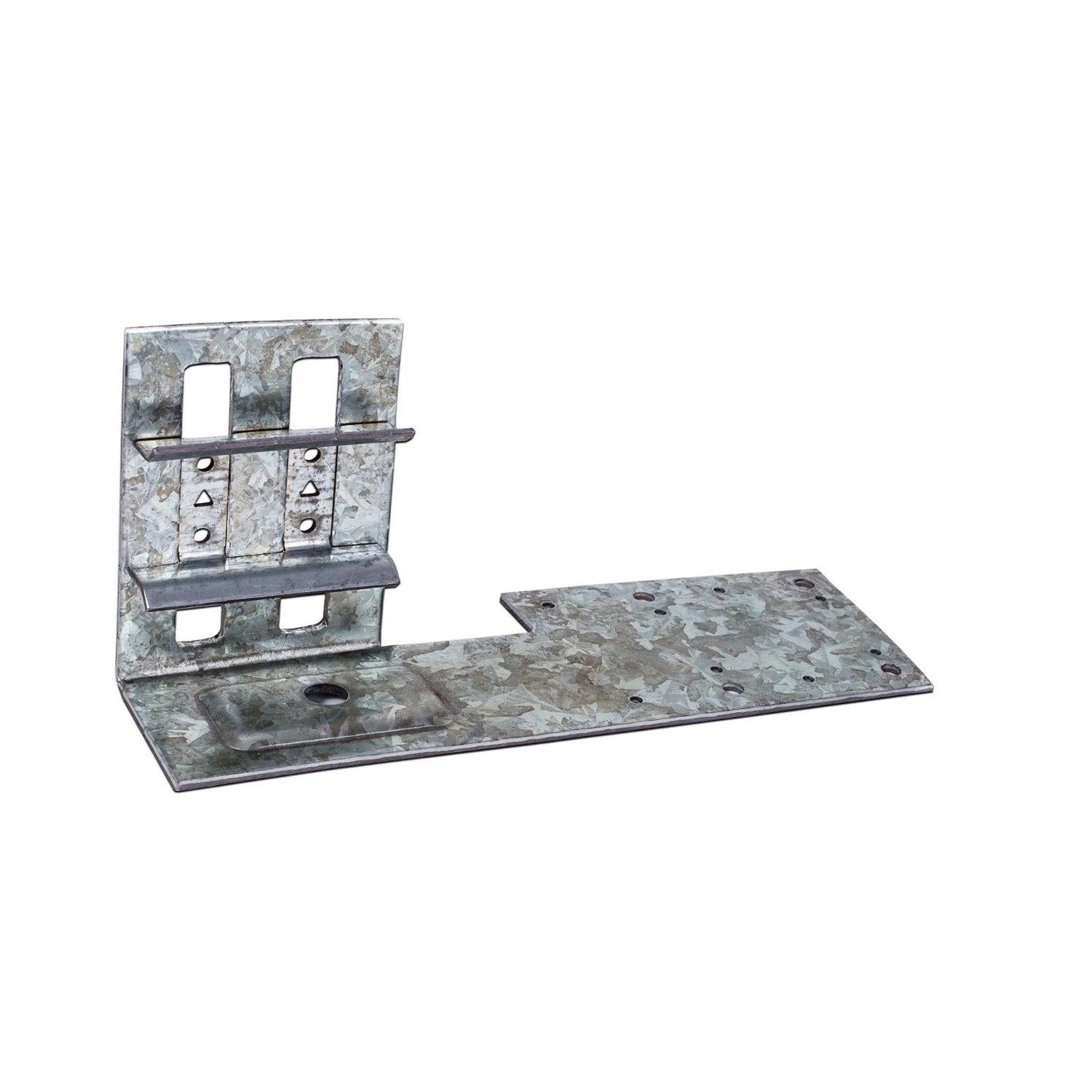

- Ensure that the SCVS vertical slider is centered in the SCHA vertical slots by aligning the tic-marks adjacent to the triangle holes on the slider with the ? stamp on the SCHA clip.
Simpson Strong-Tie SCHA10.75-KT15 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Weight | 27.8 lb |
| Thickness | 118 mil (10 ga., 33 ksi) |
| Packaging Quantity | 15 |
NOTE: Ensure that the SCVS vertical slider is centered in the SCHA vertical slots by aligning the tic-marks adjacent to the triangle holes on the slider with the ? stamp on the SCHA clip.
