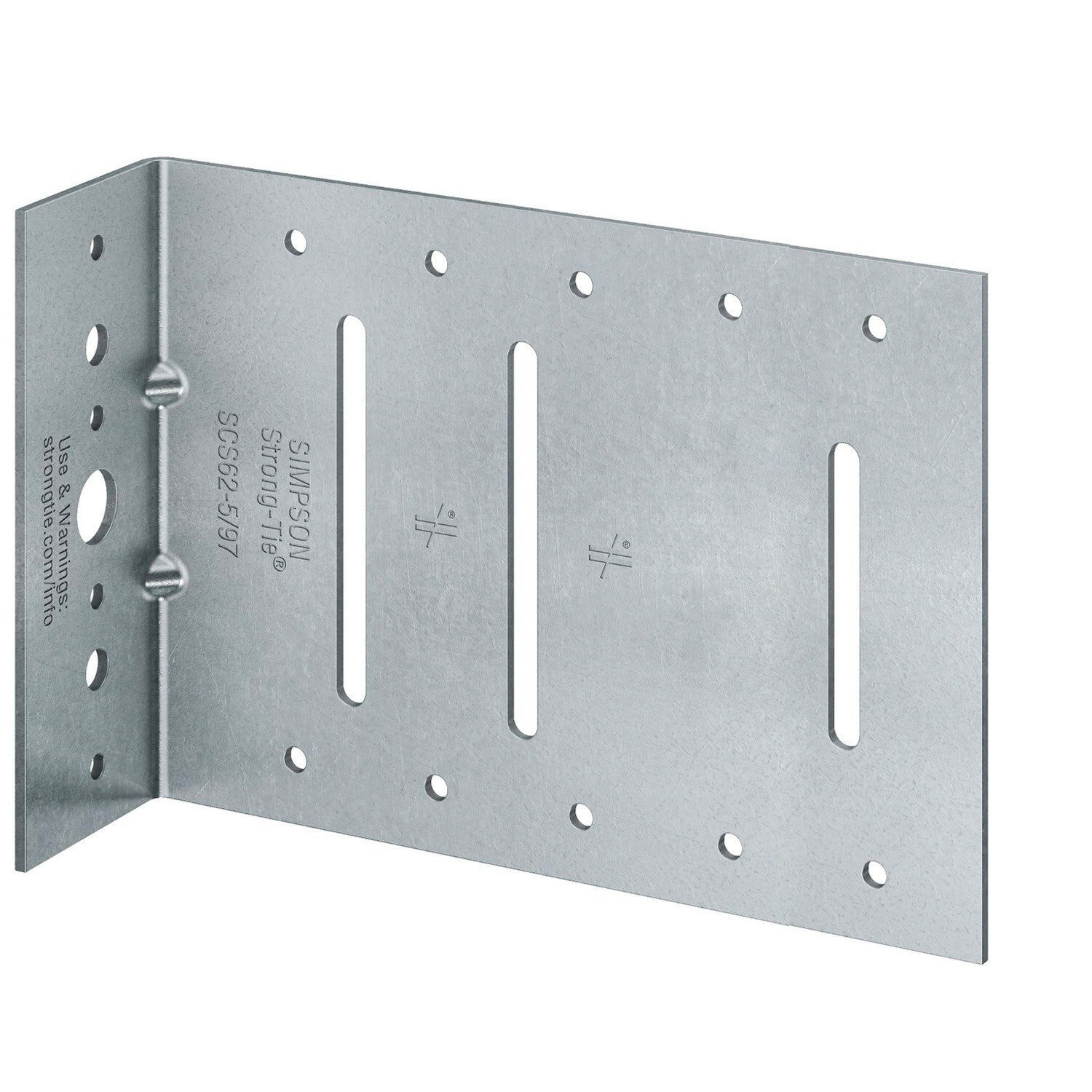

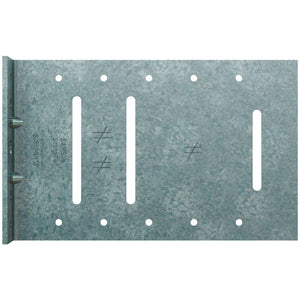

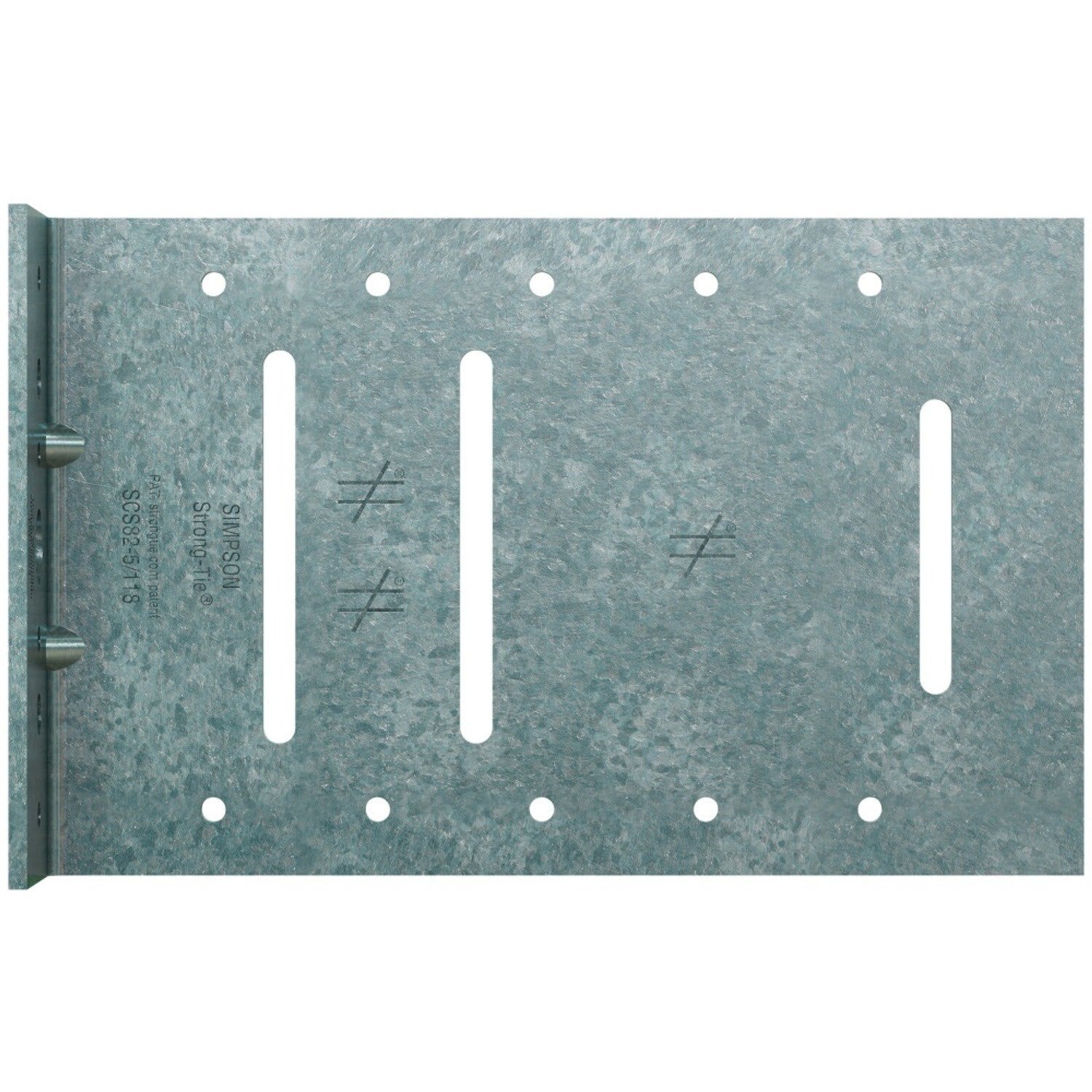

Simpson Strong-Tie SCS62-5/118-KT25 (8" x 118 mil) 10 Gauge SCS Seismic Bypass Framing Connector Kit with Screws, G90 Galvanized (25 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SCS62-5/118-KT25 (8" x 118 mil) 10 Gauge SC...
Key Specifications
Description
Description
Simpson Strong-Tie SCS62-5/118-KT25 Description
The SCS Seismic Bypass Framing Slide Clip Kit is engineered for high seismic activity areas, offering exceptional resistance to in-plane seismic loads and versatile application options.
Simpson Strong-Tie SCS62-5/118-KT25 Includes
- (25) connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SCS62-5/118-KT25 Features
- Heavy-duty 10- and 12-gauge steel manufacturing
- Strategically placed darts for enhanced strength
- Pre-punched oblong slots for slide applications
- Pattern of round holes for fixed-clip applications
- Anchor holes for concrete supports
- Powder-actuated fastener compatibility
Simpson Strong-Tie SCS62-5/118-KT25 Applications
- Seismic and non-seismic areas requiring slide-clip or fixed-clip applications
- Cold-formed steel construction
- Structural framing in high seismic activity zones
Simpson Strong-Tie SCS62-5/118-KT25 Installation Overview
- Use the specified type and number of anchors.
- Install XLSH78B1414 #14 shoulder screws in the slots adjacent to the No-Equal stamps for slide applications.
- Use #10 screws in the designated screw holes for fixed applications.
- Ensure proper alignment and secure fastening of the clip to the support structure.
Simpson Strong-Tie SCS62-5/118-KT25 Specifications
| Material | 10 Gauge, 12 Gauge Steel |
| Finish | G90 Galvanized |
| Length | 6" |
| Fasteners Included | (83) XLSH78B1414 #14 shouldered screws |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
