Simpson Strong-Tie SCS62-5/97-KT25 (6" x 97 mil) 12 Gauge SCS Seismic Bypass Framing Connector Kit with Screws, G90 Galvanized (25 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SCS62-5/97-KT25 (6" x 97 mil) 12 Gauge SCS ...
Key Specifications
Description
Description
Simpson Strong-Tie SCS62-5/97-KT25 Description

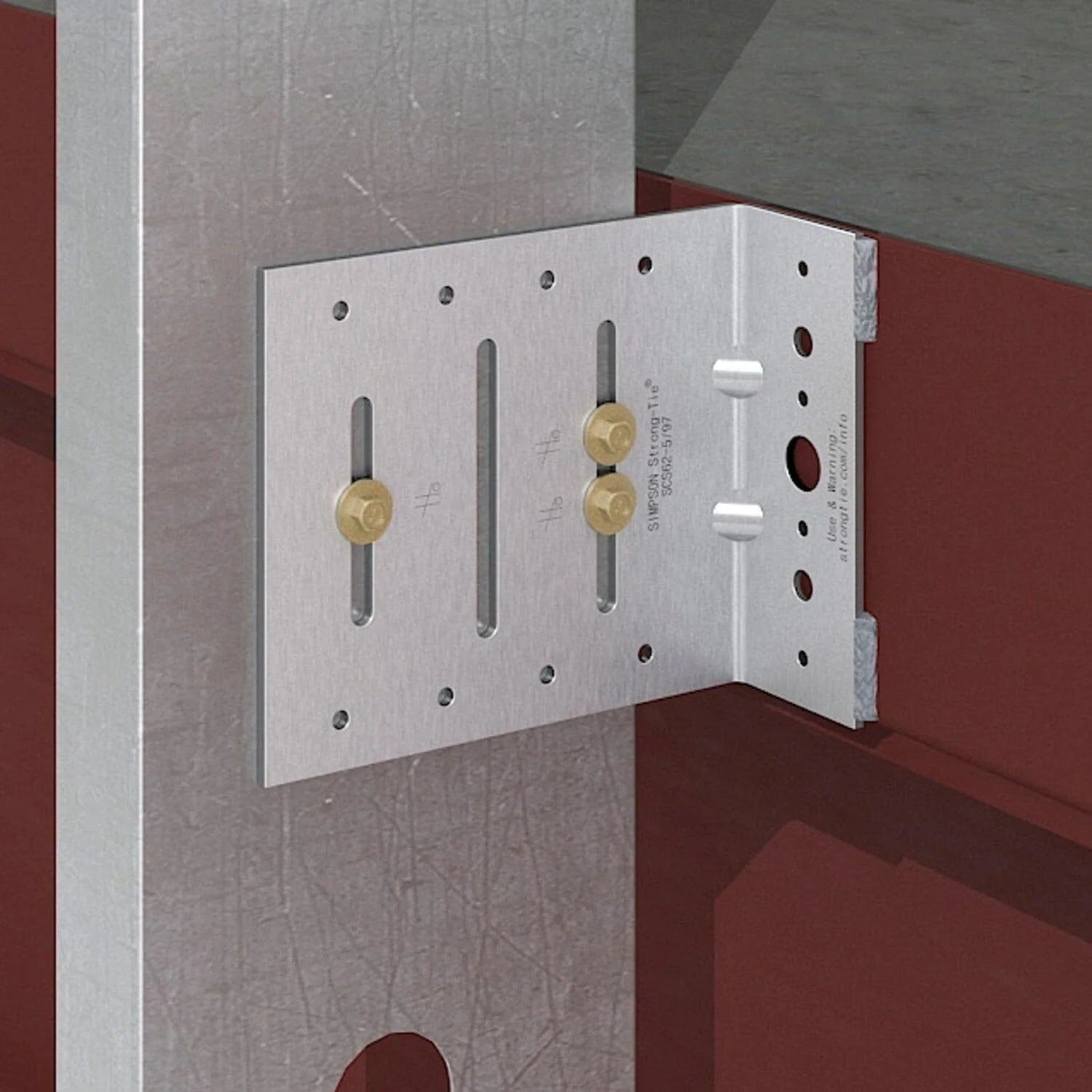

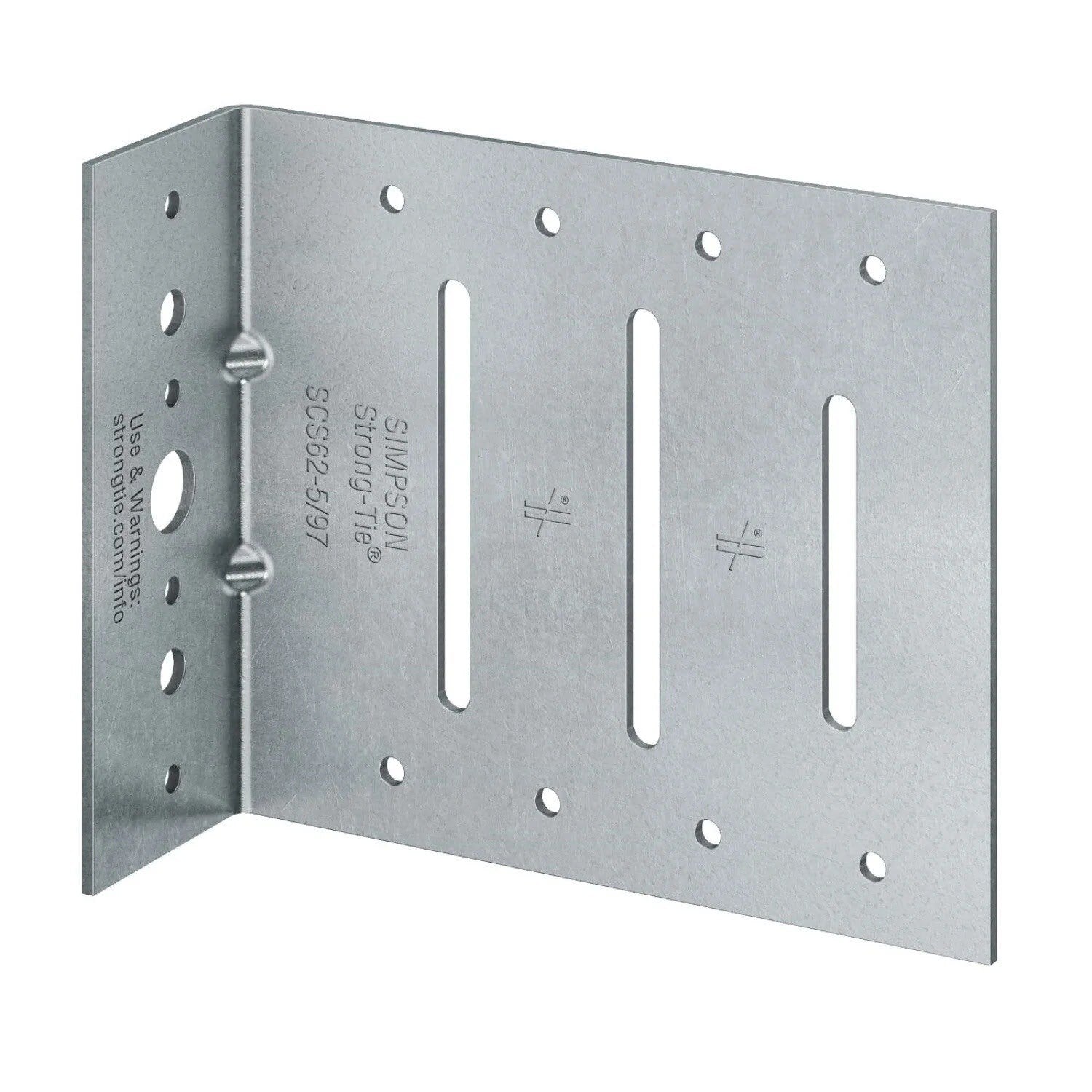

The SCS62-5/97-KT25 is a hybrid clip designed for slide-clip or fixed-clip applications, engineered for exceptional resistance to seismic loads.
Simpson Strong-Tie SCS62-5/97-KT25 Includes
- (25) connectors
- (83) XLSH78B1414 #14 shouldered screws
Simpson Strong-Tie SCS62-5/97-KT25 Features
- 3 1/2", 6" and 8" lengths
- Slide slots used with shouldered washer screws allow a full 1" of vertical deflection
- Precision-located stiffeners enhance strength while allowing ductility
- Simpson Strong-Tie No-Equal stamps alongside slide slots indicate proper screw placement
- Dual-function clip with prepunched slots for slide application and small round holes for fixed application
Simpson Strong-Tie SCS62-5/97-KT25 Applications
- Cold-Formed Steel Construction
- Seismic and non-seismic areas
- Slide-clip or fixed-clip applications
Simpson Strong-Tie SCS62-5/97-KT25 Installation Overview
- Use the specified type and number of anchors.
- Slide applications: Use the specified number of XLSH78B1414 #14 shoulder screws (included). Install the screws in the slots adjacent to the No-Equal stamps.
- Fixed applications: Use the specified number of #10 screws (not included) in the designated screw holes.
Simpson Strong-Tie SCS62-5/97-KT25 Specifications
| Material | 12 Gauge and 10 Gauge |
| Finish | G90 Galvanized |
| Length | 6" |
| Fasteners required | Includes (83) XLSH78B1414 #14 shouldered screws for slide-clip applications |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
