Simpson Strong-Tie SDPW19600MB Strong-Drive (0.140" x 6") T25 SDPW E-coat Deflector Screw, Washer Head, Gray (400 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDPW19600MB Strong-Drive (0.140" x 6")...
Key Specifications
Description
Description
Simpson SDPW19600MB Description

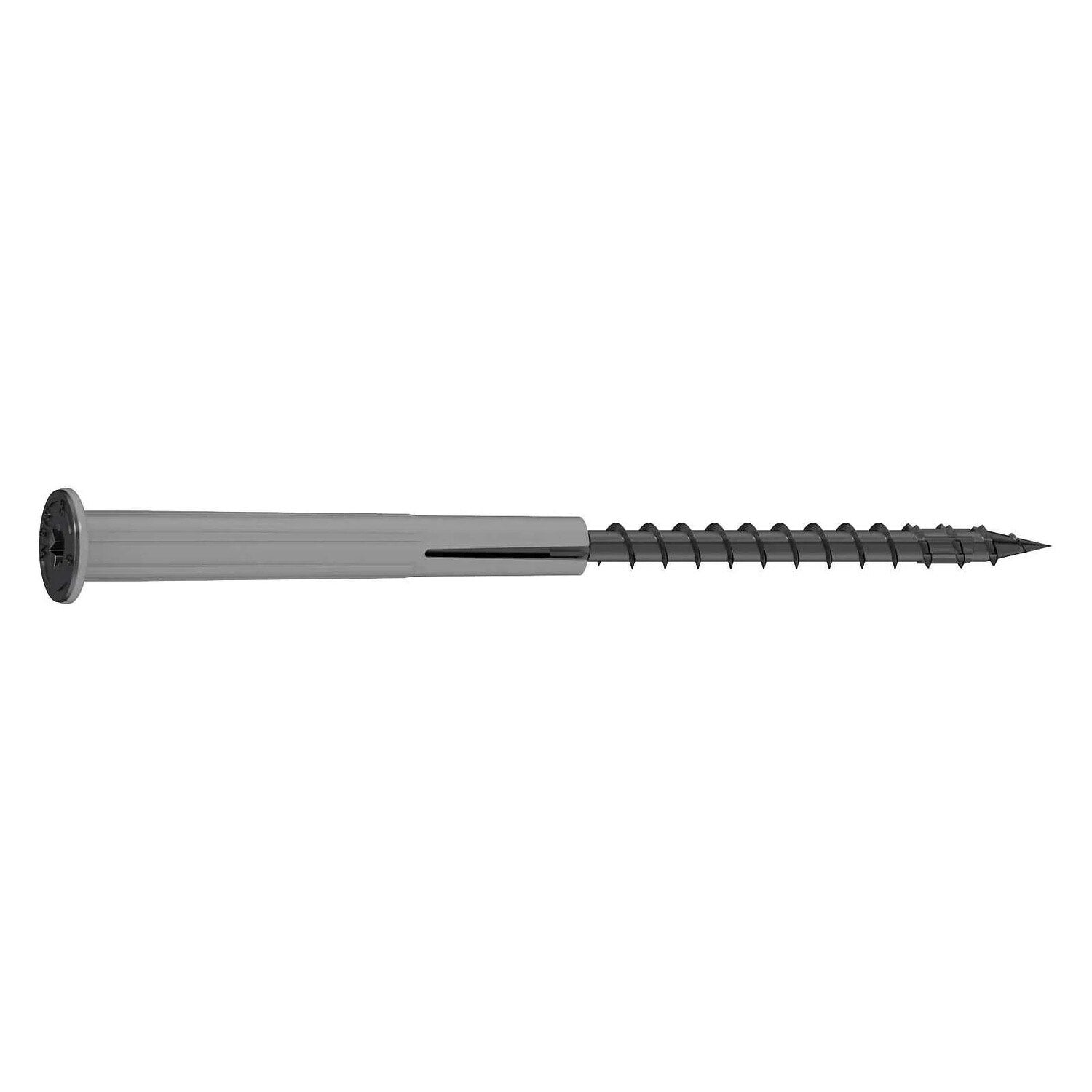

The SDPW Deflector Screw by Simpson Strong-Tie is designed for strong connections from non-load-bearing walls to trusses and joists, featuring an E-Coating for dry service applications.
Simpson SDPW19600MB Includes
- (400) 0.195" x 6" Deflector Screw
- (2) Offset Driver Bits
- (2) 3/8" Predrill Bits
Simpson SDPW19600MB Features

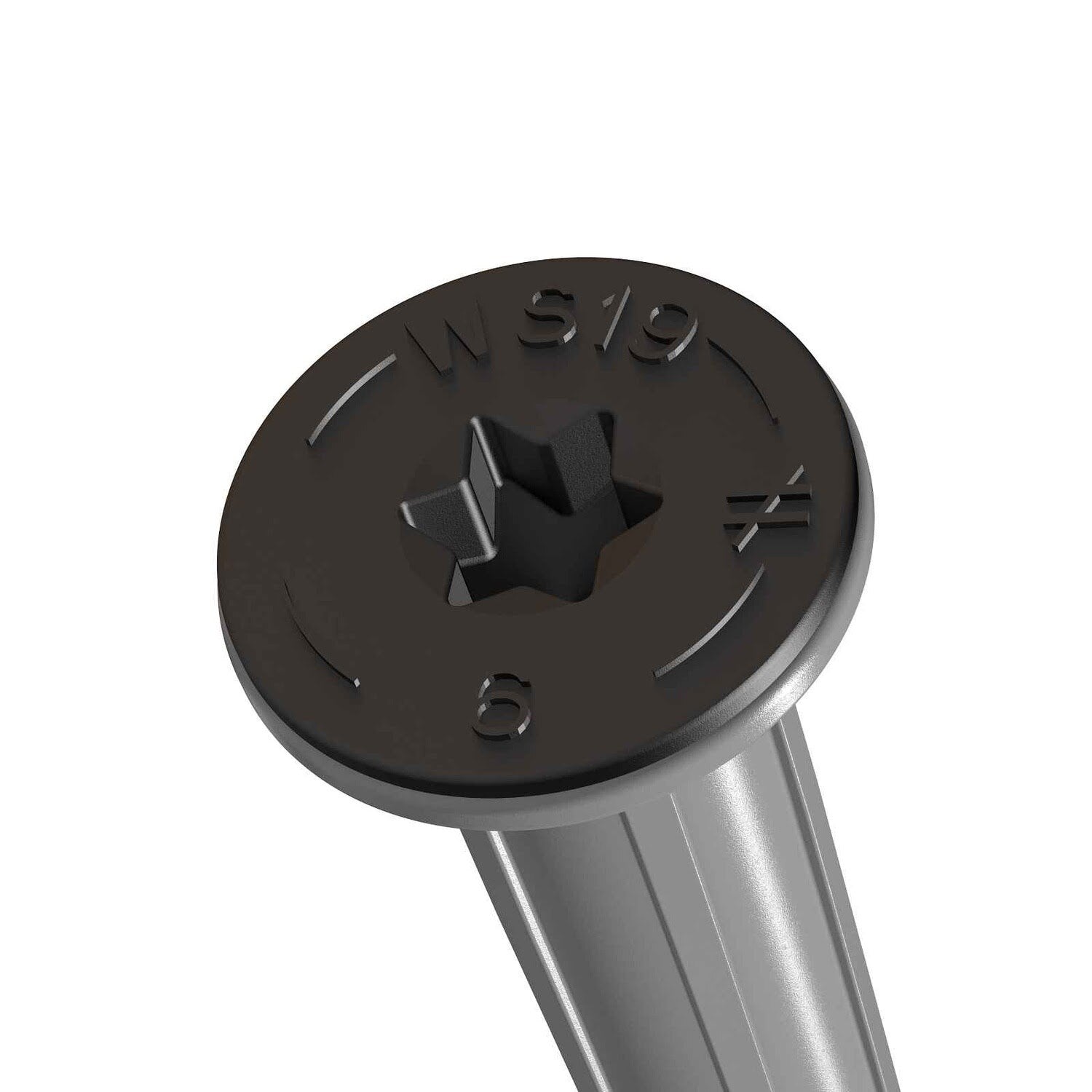

- Deep 6-lobe recess for secure driving
- Polymer sleeve allows for deflection without squeaks
- Interior-grade E-coat for dry service applications
- Offset driver bit drives SDPW Deflector screw to predetermined screw depth
- Available in 3 1/2", 5" and 6" lengths
Simpson SDPW19600MB Applications

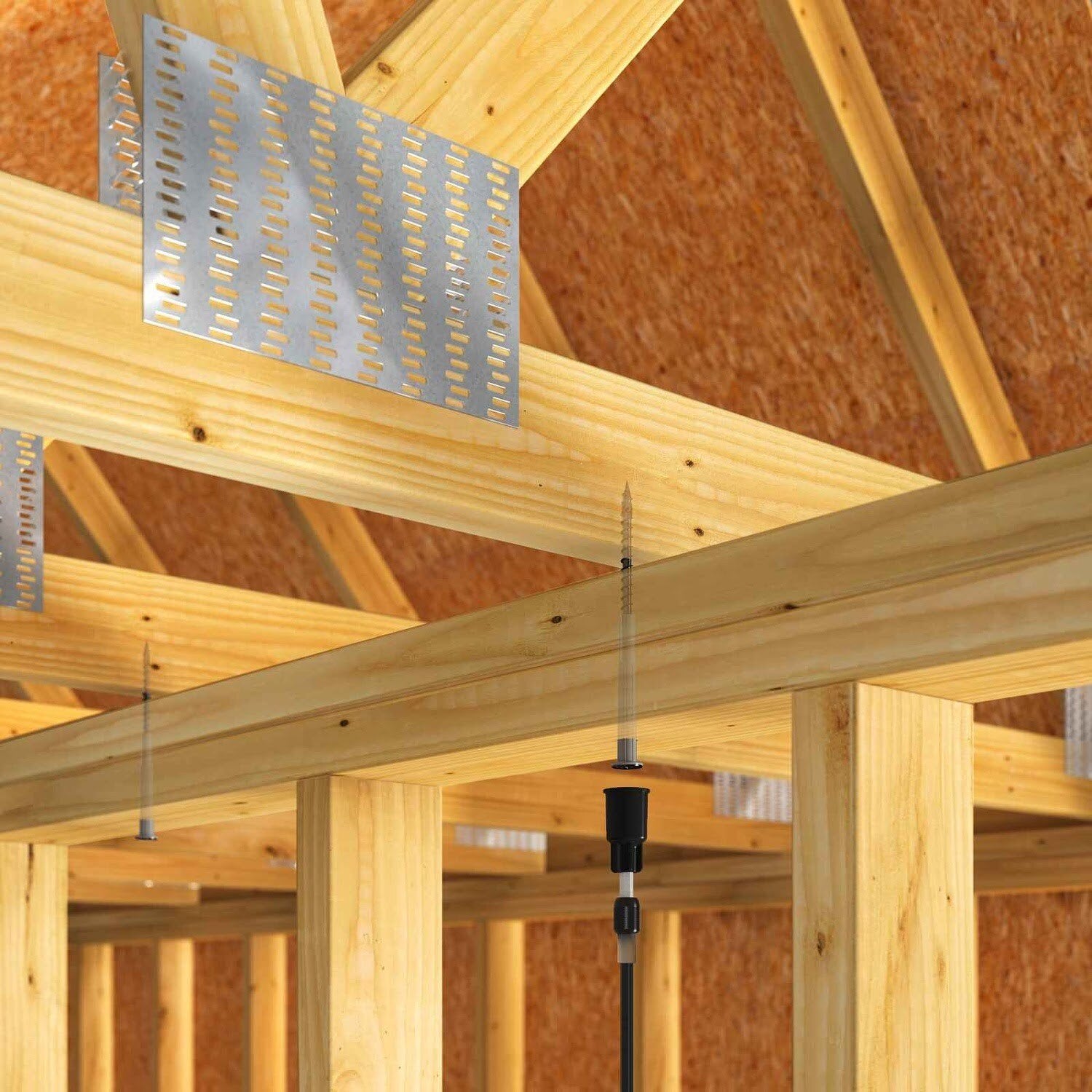

- Non-load-bearing partition walls to trusses and joists
Simpson SDPW19600MB Installation Overview
- Use the offset driver bit to drive the screw to the predetermined depth.
- Ensure the screw is securely fastened to the truss or joist.
- Follow the installation guide for detailed instructions.
Simpson SDPW19600MB Specifications
| Diameter | 0.195" |
| Length | 6" |
| Color | Gray |
| Drive Type | T40 Star Drive |
| Point Type | Sawtooth |
| Thread Type | Serrated |
| Quantity | 400 |
NOTE: Ensure all fasteners are installed correctly to achieve published load values
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
