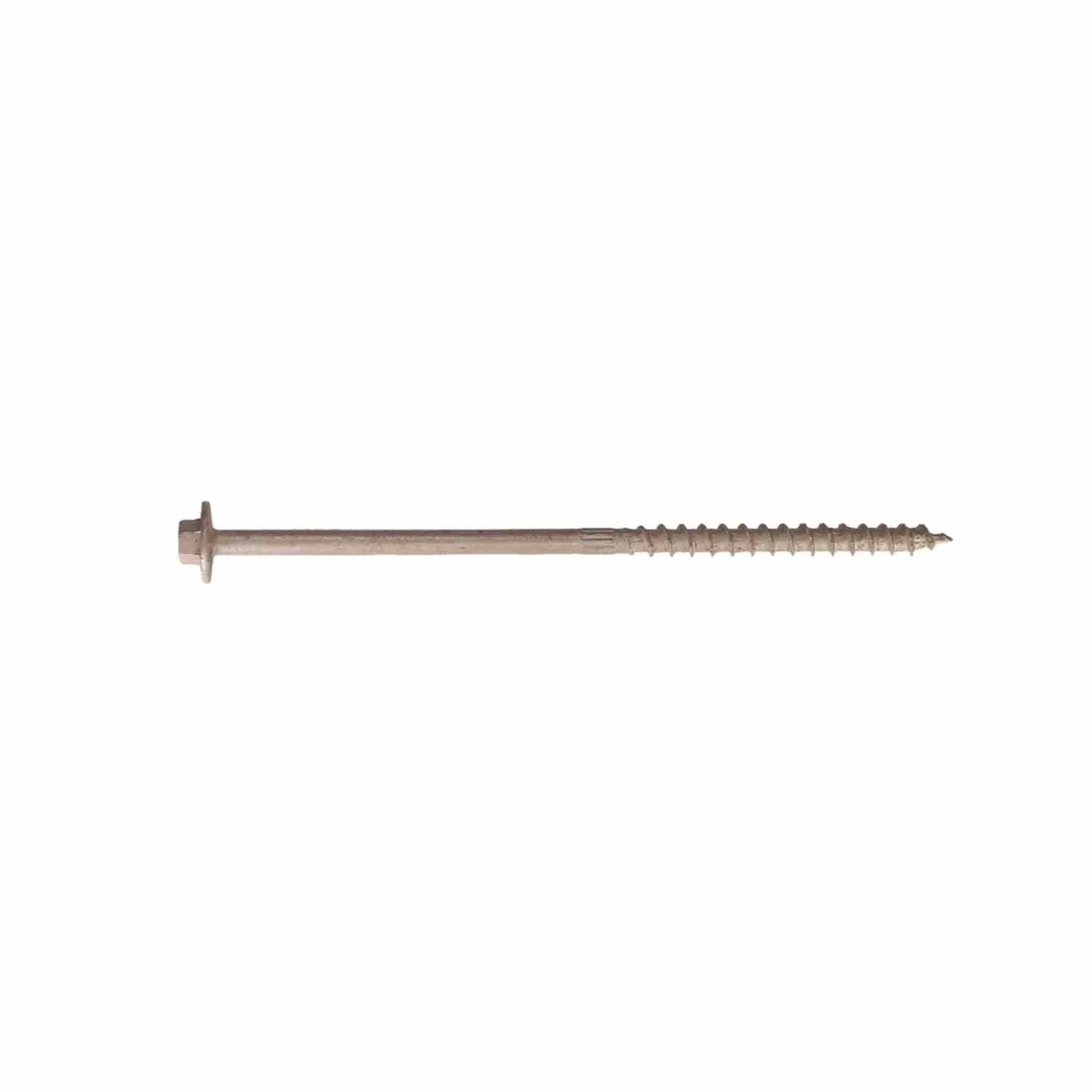

Simpson Strong-Tie SDWH19600DB-R50 Strong-Drive (0.195" x 6" x 5/16" Hex) SDWH Timber-Hex Screw, Double-Barrier Coating (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SDWH19600DB-R50 Strong-Drive (0.195" x 6&qu...
Key Specifications
Description
Description
Simpson SDWH19600DB-R50 Description
The Strong-Drive SDWH Timber-Hex Screw is designed for wood-to-wood connections, featuring a double-barrier coating for corrosion resistance and a SawTooth point for fast starts.
Simpson SDWH19600DB-R50 Includes
- (50) 0.195 in. x 6 in. Timber-Hex Screw
Simpson SDWH19600DB-R50 Features
- Bold thread design for superior holding power
- SawTooth point for fast starts and reduced installation torque
- Underhead nibs for countersinking into wood
- Large washer head for maximum bearing area
- Size identification on screw heads
- 5/16 in. hex drive
Simpson SDWH19600DB-R50 Applications
- Structural wood-to-wood connections
- Engineered wood connections
- Ledger fastening
Simpson SDWH19600DB-R50 Installation Overview
- Position the screw at the desired location.
- Drive the screw using a 5/16 in. hex driver.
- Ensure full penetration into the main member.
Simpson SDWH19600DB-R50 Specifications
| Diameter | 0.195 in. |
| Length | 6 in. |
| Material | Carbon Steel |
| Drive Type | 5/16 in. Hex |
| Point Type | SawTooth Point |
| Thread Length | 2.75 in. |
| Coating | Double-Barrier Coating |
| Packaging Quantity | 50 |
NOTE: Ensure the screws are installed fully into the main member for optimal performance.
