Simpson Strong-Tie SL37178HP1 (3/8" x 1-7/8") Sleeve-All Hex-Head Sleeve Anchor - Zinc-Plated (1 Piece)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SL37178HP1 (3/8" x 1-7/8") Sleeve-All ...
Key Specifications
Description
Description
Simpson Strong-Tie SL37178HP1 Description

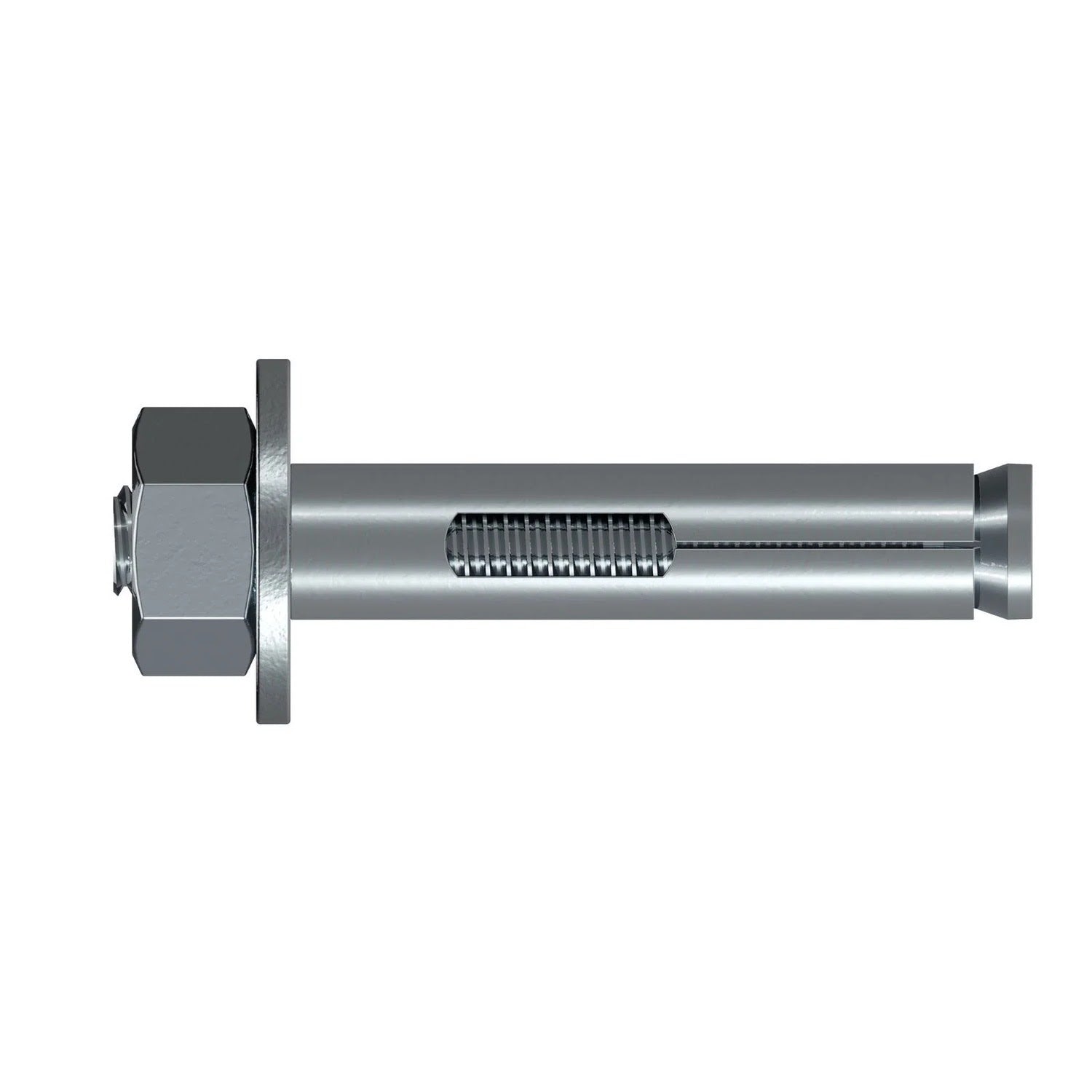

The Sleeve-All Hex-Head Sleeve Anchor is a zinc-plated carbon steel anchor designed for secure fastening in solid base materials such as concrete and brick.
Simpson Strong-Tie SL37178HP1 Includes
- (1) Sleeve-All Hex-Head Sleeve Anchor
Simpson Strong-Tie SL37178HP1 Features
- Zinc-plated carbon steel for durability
- Hex-head design for easy installation
- Pre-assembled expanding anchor for solid base materials
Simpson Strong-Tie SL37178HP1 Applications
- Securing into concrete and brick
- Hollow and grouted CMU applications
- Structural fastening in demanding environments
Simpson Strong-Tie SL37178HP1 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Drill to the specified embedment depth and clean the hole using compressed air.
- Place the anchor in the fixture and drive it into the hole until the washer and nut are tight against the fixture.
- Tighten to the required installation torque.
Simpson Strong-Tie SL37178HP1 Specifications
| Diameter | 3/8" |
| Finish | Zinc Plated |
| Length | 1-7/8" |
| Material | Carbon Steel |
| Drill bit size | 3/8" |
| Head type | Hex head |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
NOTE: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
