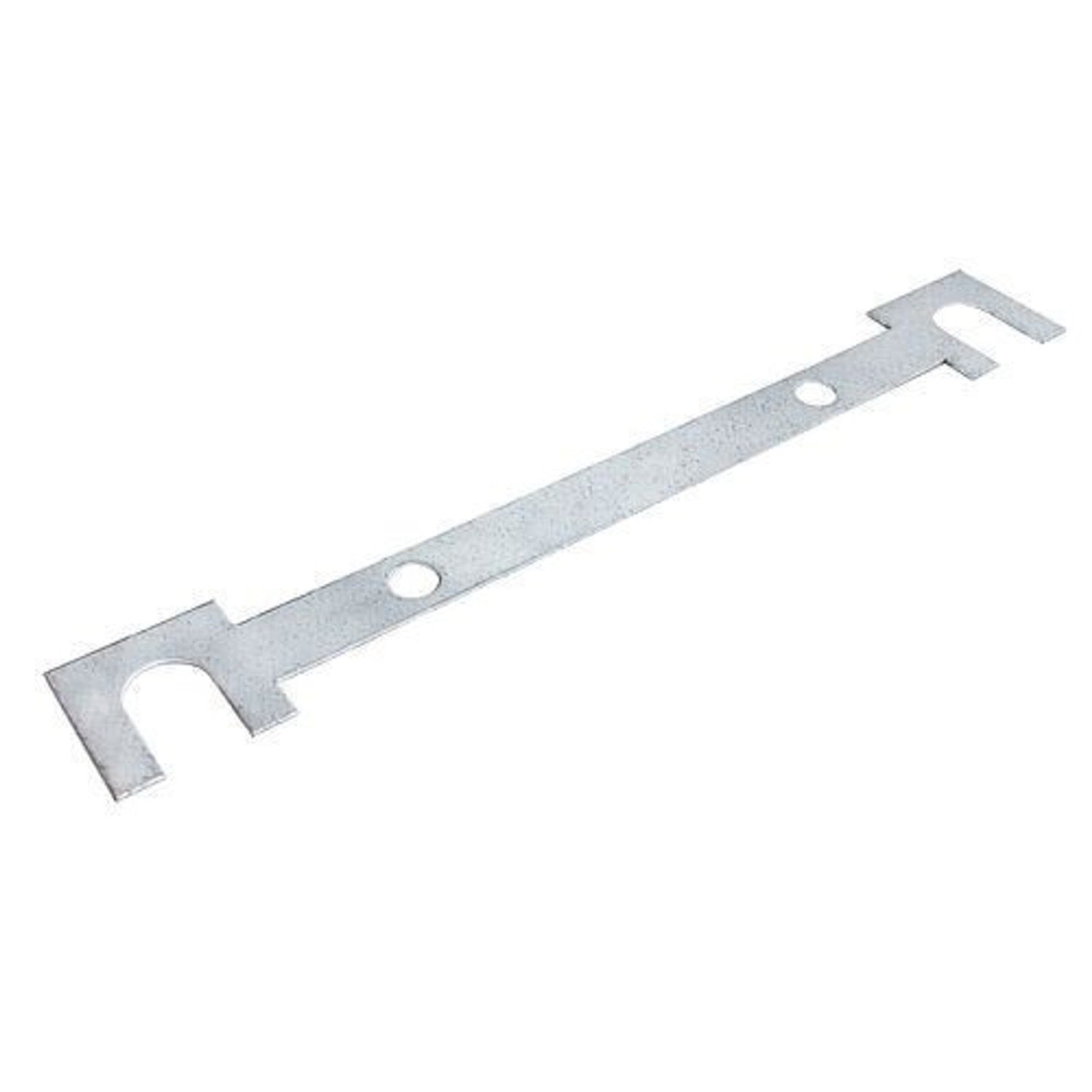

Simpson Strong-Tie SSWBS24 (24") 14Ga Strong-Wall Anchor Bolt Stabilizer for SSW24
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SSWBS24 (24") 14Ga Strong-Wall Anchor Bolt ...
Key Specifications
Description
Description
Simpson Strong-Tie SSWBS24 Description
The Strong-Wall Anchor Bolt Stabilizer ensures precise concrete placement and stability for steel shear walls in seismic and residential construction.
Simpson Strong-Tie SSWBS24 Includes
- (1) Strong-Wall Anchor Bolt Stabilizer
Simpson Strong-Tie SSWBS24 Features
- Used with SSWTEL extended leg template, allows for placement of the SSW flush to the inside face of 2x6 framed exterior walls
- Different widths match SSWT anchor bolt templates
- Holes to accommodate 1/2"-diameter dowels (not supplied) for stabilization
Simpson Strong-Tie SSWBS24 Applications
- Seismic (new construction)
- Seismic retrofit
- Anchorage solutions
- Shearwalls
- Wood/residential construction
Simpson Strong-Tie SSWBS24 Installation Overview
- Use two bolt stabilizers for each SSW anchor assembly; one at the embedded plate washer and the other above the template
- Drive 1/2"-diameter dowels (not supplied) down through the bolt stabilizers and into the ground to ensure plumb installation of the anchors and prevent movement during concrete placement
- Immediately following concrete placement, remove the dowels for reuse in other locations
Simpson Strong-Tie SSWBS24 Specifications
| Material | 14 gauge |
| Finish | Galvanized (G90) |
| Application | Seismic (New Construction) |
| API Approval | Approved - Full |
NOTE: The height of the garage curb above the garage slab is critical for rough header opening at garage return walls. Templates are recommended and are required in some jurisdictions. Foundation design by designer.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
