Simpson Strong-Tie STB2-25214S6F100 Strong-Bolt (1/4" x 2-1/4") Stainless Steel 2 Wedge Anchor - Fully Assembled (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-25214S6F100 Strong-Bolt (1/4" x 2-1/4&...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-25214S6F100 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors – 316 Stainless Steel are engineered to deliver maximum performance in corrosive environments. These high-strength wedge anchors come fully assembled and ready to install, making them ideal for heavy-duty fastening into cracked or uncracked concrete.
Simpson Strong-Tie STB2-25214S6F100 Includes

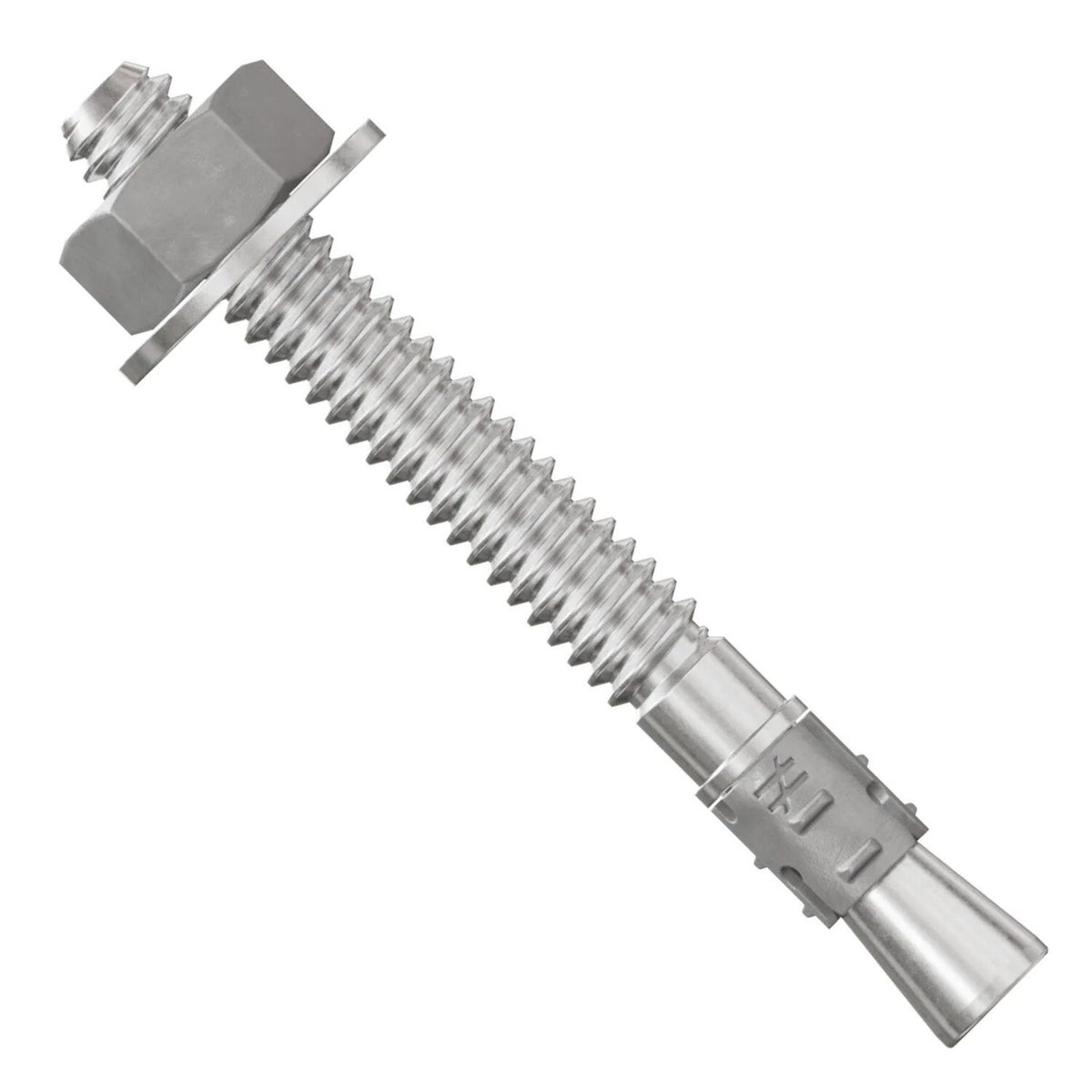

- (100) 1/4 in. x 2-1/4 in. Type 316 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-25214S6F100 Features
- 316 Stainless Steel Construction: Exceptional corrosion resistance for long-lasting durability in harsh environments.
- Fully Assembled: Includes nut and washer for faster, easier installation out of the box.
- Code-Compliant Performance: ICC-ES ESR-3037 code listed for cracked and uncracked concrete applications.
- Versatile Use: Suitable for anchoring structural supports, machinery, railing systems, and more.
- Variety of Sizes Available: Multiple diameter and length options help you get the right fit for any job.
Simpson Strong-Tie STB2-25214S6F100 Applications

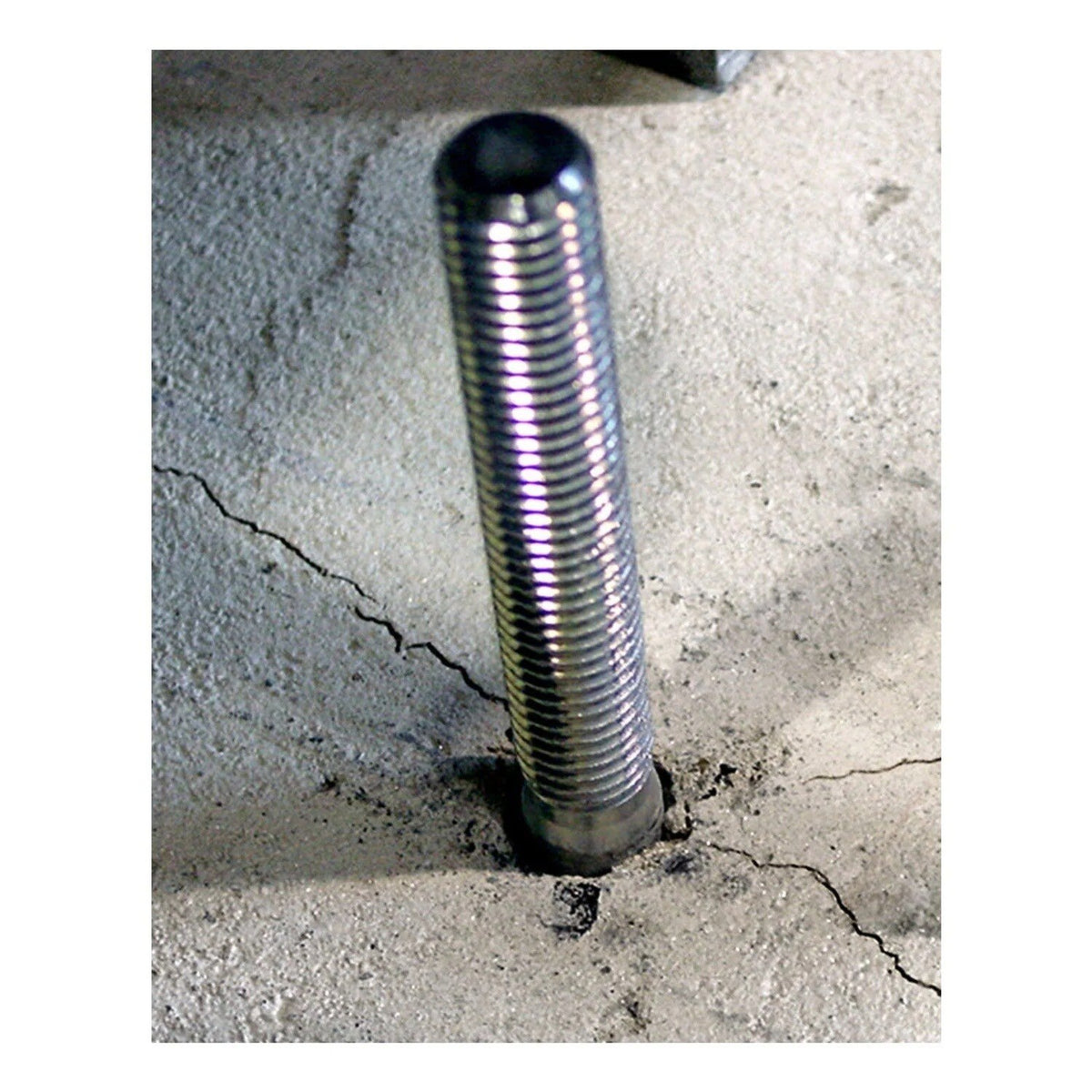

- Heavy-duty fastening into cracked or uncracked concrete.
- Reinforcing structural connections in coastal commercial builds.
- Anchoring handrails in residential garages.
- Marine, wastewater, and chemical exposure environments.
Simpson Strong-Tie STB2-25214S6F100 Installation Overview
- Drill a hole in the base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Assemble the anchor with nut and washer so the top of the nut is flush with the top of the anchor.

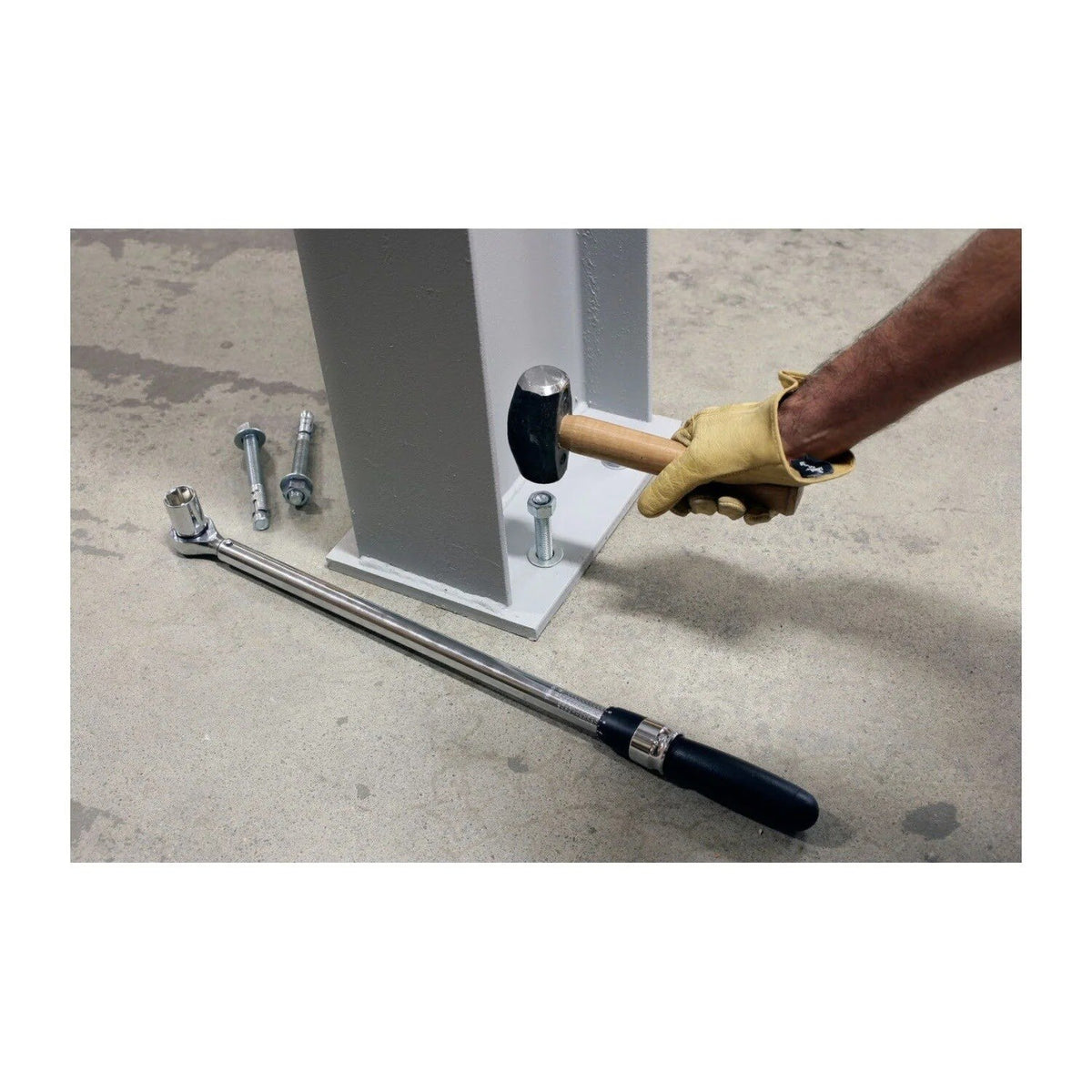

- Place the anchor in the fixture, and drive it into the hole until the washer and nut are tight against the fixture.

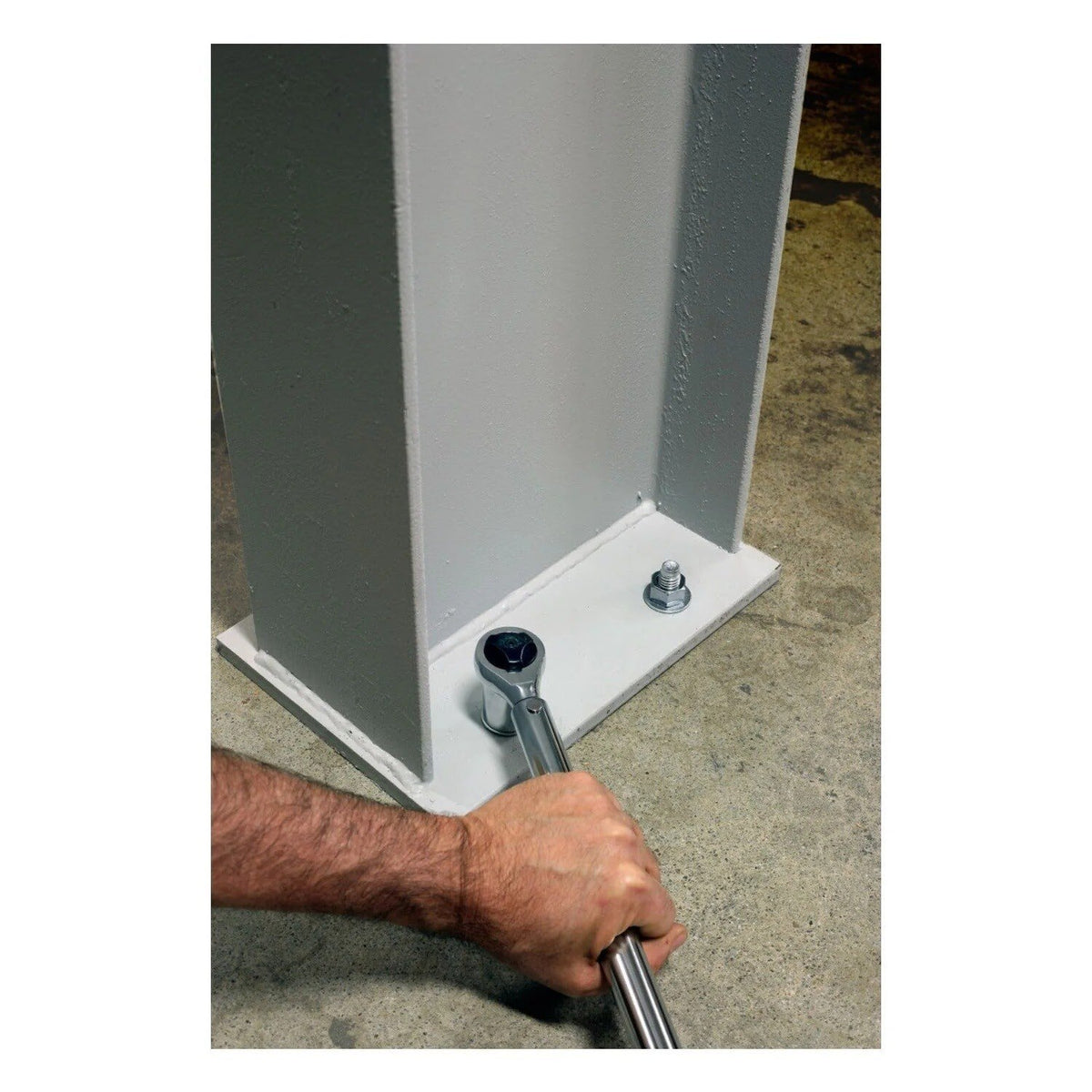

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-25214S6F100 Specifications
| Diameter | 1/4" |
| Length | 2-1/4" |
| Material | 316 Stainless Steel |
| Drill bit size | 1/4" |
| Fixture hole size | 5/16" |
| Installation torque | 4 ft. lbf. |
| Thread length | 1-7/16" |
| Wrench size | 7/16" |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
