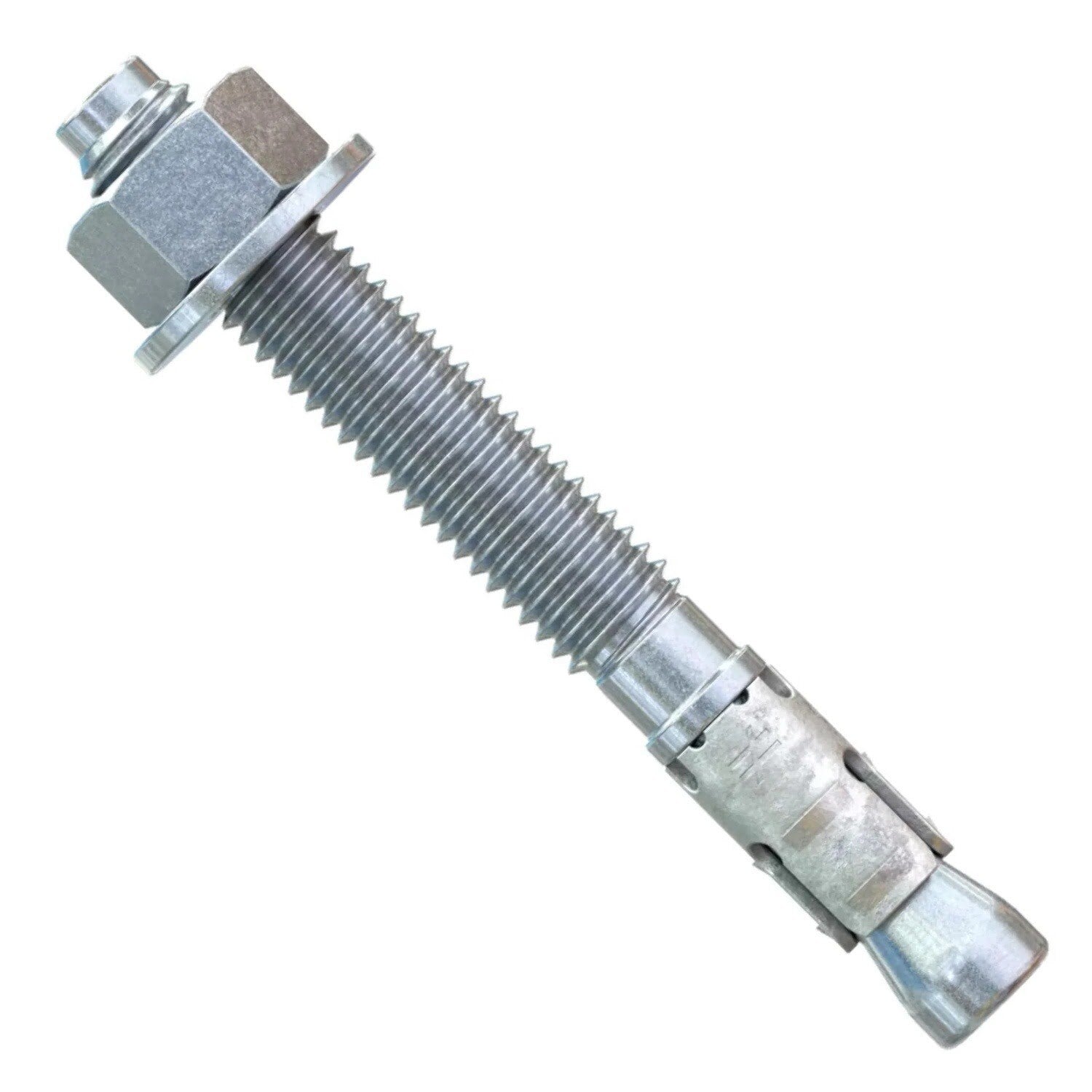

Simpson Strong-Tie STB2-504144SS Strong-Bolt (1/2" x 4-1/4") Stainless-Steel Wedge Anchor - Unassembled (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-504144SS Strong-Bolt (1/2" x 4-1/4&quo...
Key Specifications
Description
Description
Simpson STB2-504144SS Description
The Strong-Bolt 2 Wedge Anchor is a high-performance anchor designed for use in cracked and uncracked concrete. Made from 304 stainless steel, it is suitable for static and seismic loading conditions.
Simpson STB2-504144SS Includes
- (25) Strong-Bolt 2 Wedge Anchor
Simpson STB2-504144SS Features
- Chamfered top prevents mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Fits standard fixtures and installs with common drill bit sizes
- Tested per ACI355.2 and AC193
Simpson STB2-504144SS Applications
- Concrete anchoring for structural support
- Seismic applications requiring reliable anchoring
- Overhead installations in construction projects

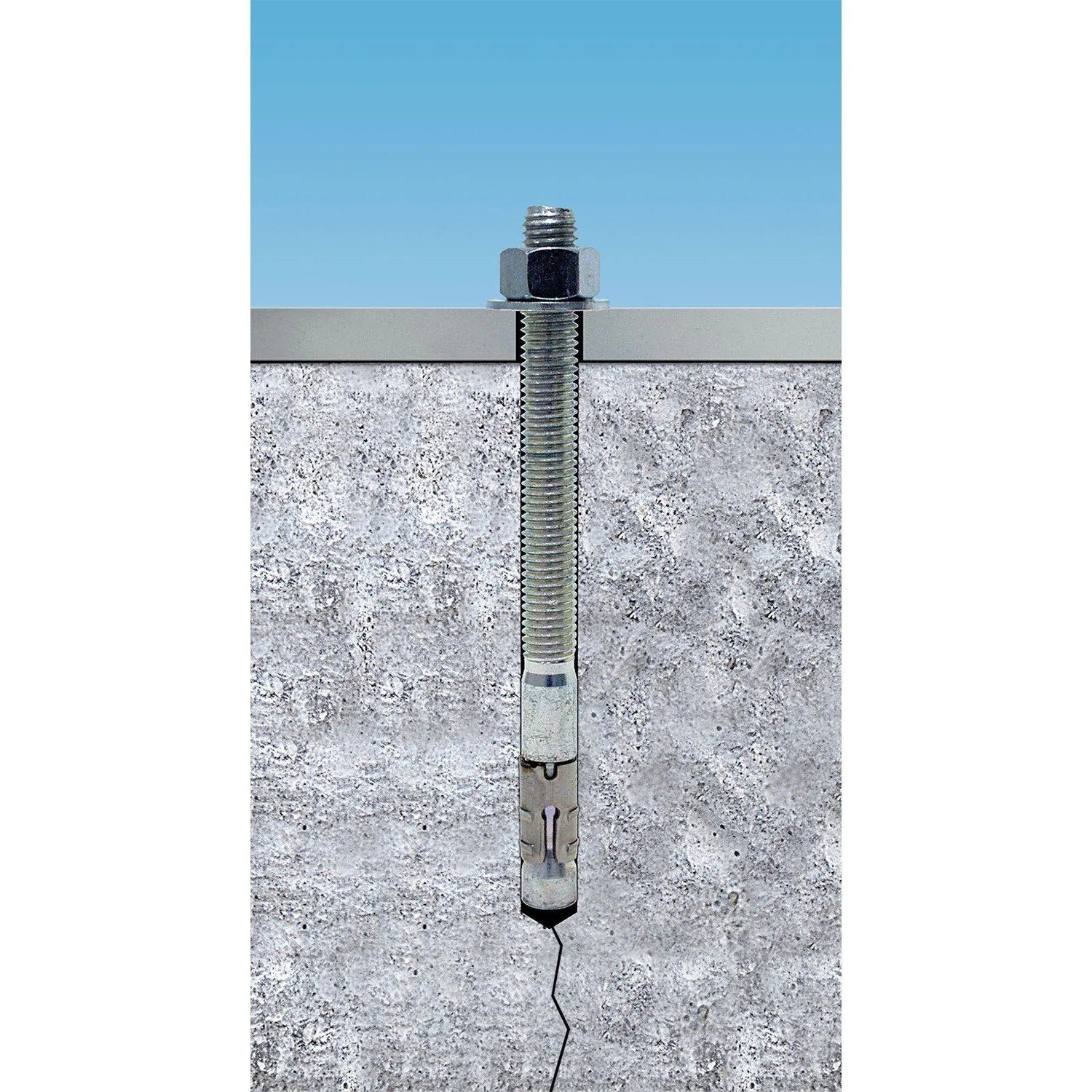

Simpson STB2-504144SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter
- Clean the hole using compressed air
- Assemble the anchor with nut and washer
- Drive the anchor into the hole until tight against the fixture
- Tighten to the specified torque
Simpson STB2-504144SS Specifications
| Diameter | 1/2" |
| Length | 4-1/4" |
| Material | 304 Stainless Steel |
| Drill Bit Size | 1/2" |
| Installation Torque | 65 ft. lbs |
| Thread Length | 2-9/16" |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
