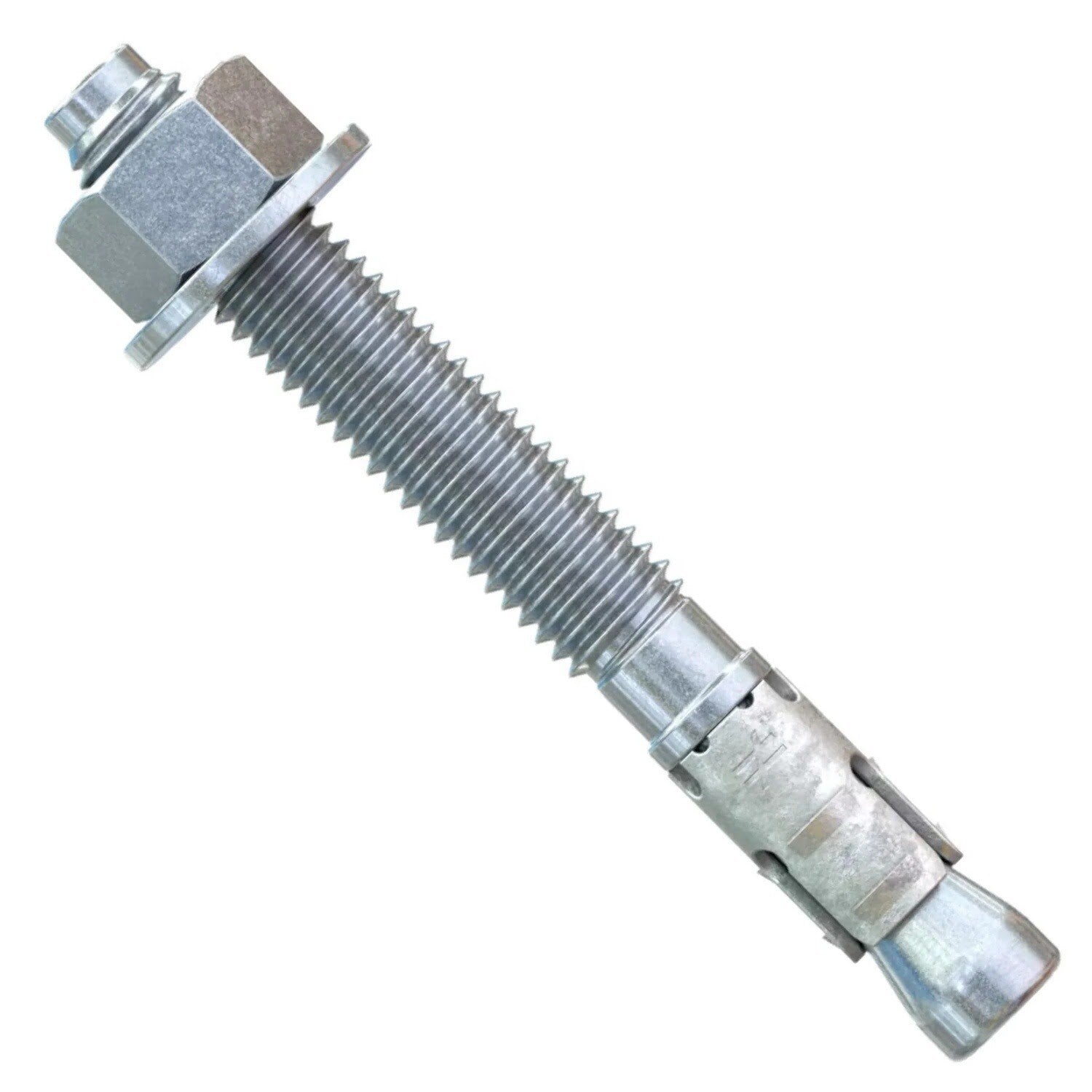

Simpson Strong-Tie STB2-50414C10 Strong Bolt (1/2" x 4-1/4") Zinc-Plated Carbon Steel Wedge Anchor (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-50414C10 Strong Bolt (1/2" x 4-1/4&quo...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-50414C10 Description
The Simpson Strong-Bolt 2 Wedge Anchor is a reliable, ICC-ES code compliant anchor designed for cracked and uncracked concrete. It is suitable for static and seismic loading in horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-50414C10 Includes
- (10) 1/2 in. x 4-1/4 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-50414C10 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Zinc-plated finish for corrosion resistance
Simpson Strong-Tie STB2-50414C10 Applications
- Concrete anchoring in cracked and uncracked concrete
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-50414C10 Installation Overview
- Drill a 1/2 in. hole in the concrete to the specified depth.

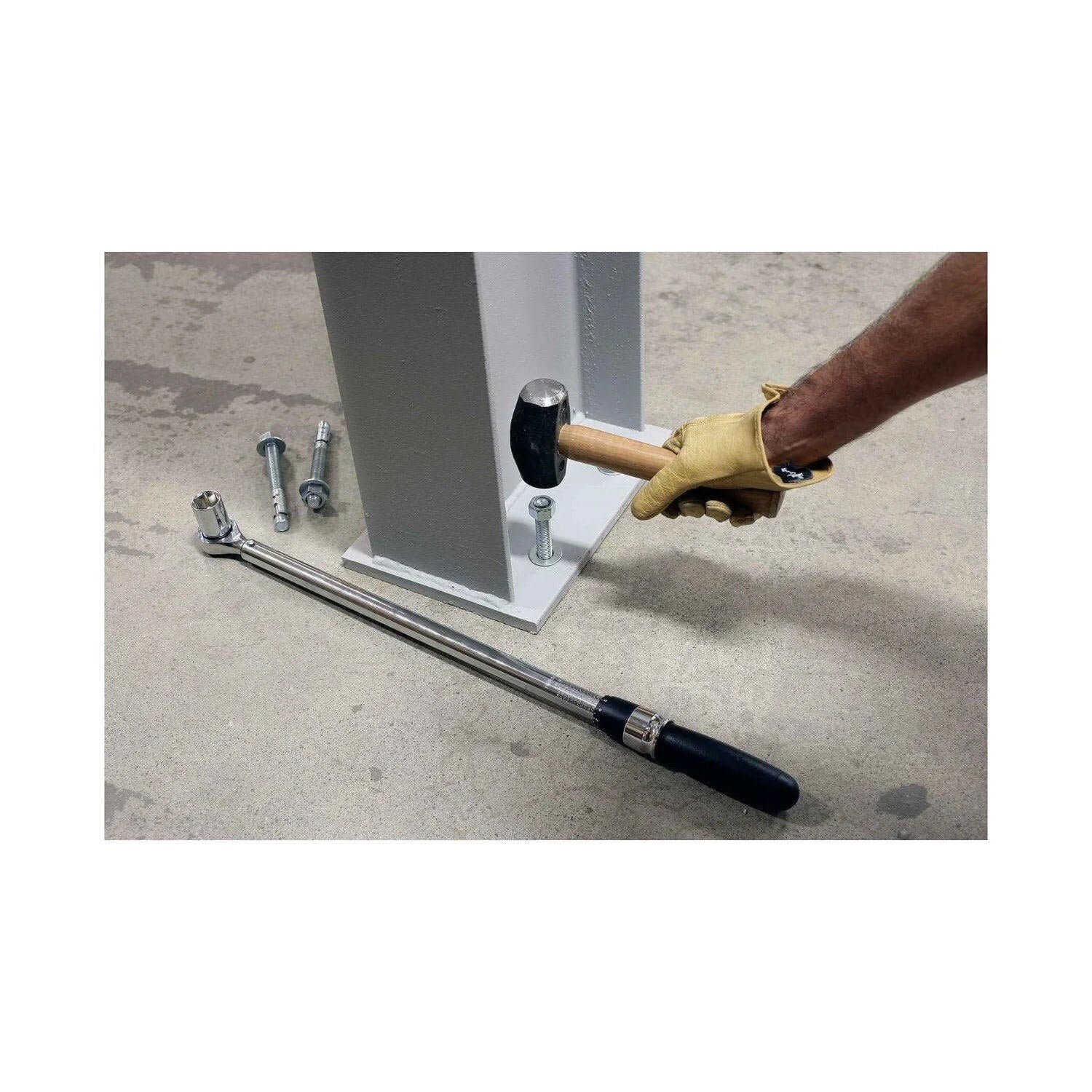

- Insert the anchor into the hole.

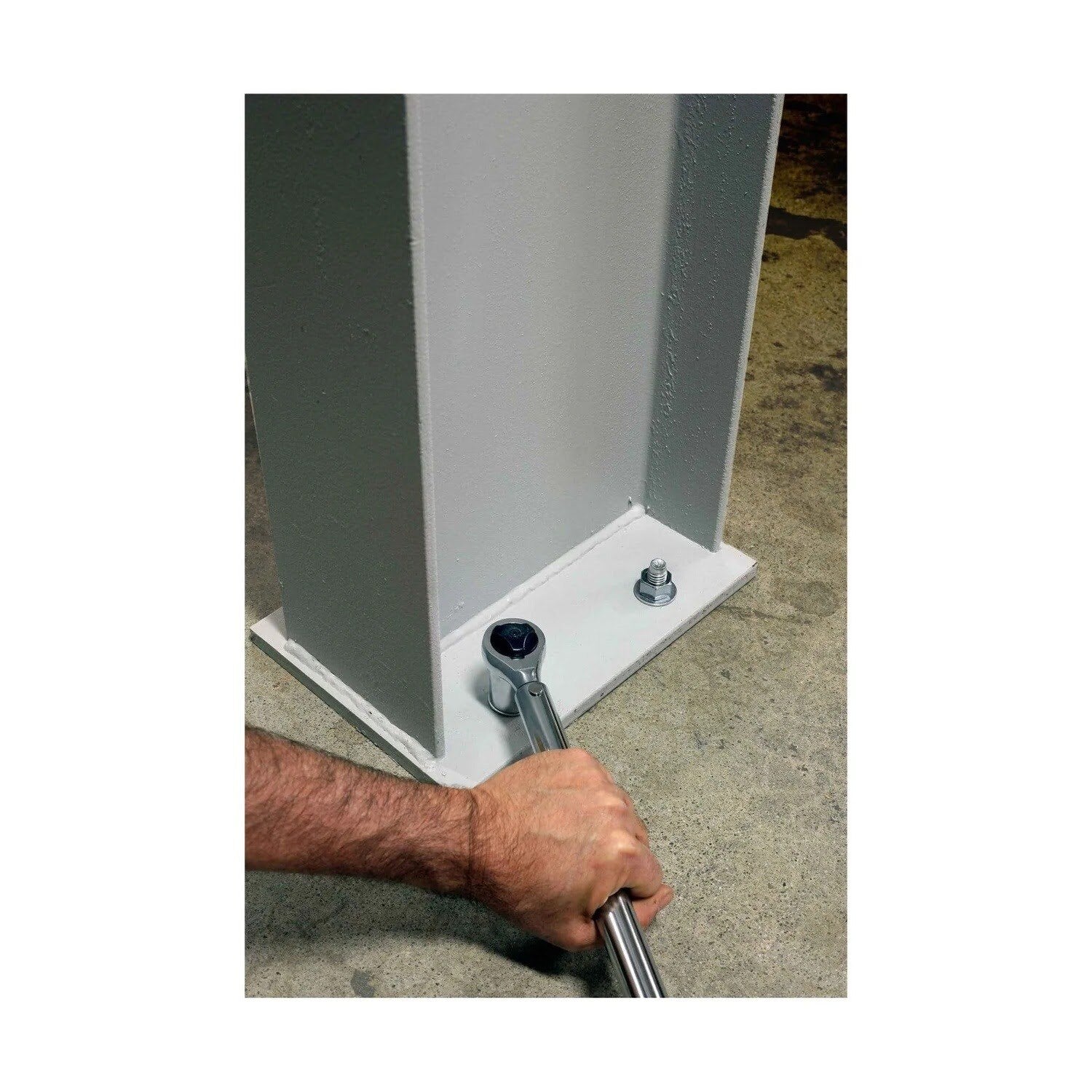

- Tighten the anchor using a wrench to the specified torque of 60 ft. lbs.
- Ensure the anchor is securely set and properly aligned.
Simpson Strong-Tie STB2-50414C10 Specifications
| Diameter | 1/2 in. |
| Finish | Zinc Plated |
| Length | 4-1/4 in. |
| Material | Carbon Steel |
| Drill bit size | 1/2 in. |
| Installation torque | 60 ft. lbs |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
