Simpson Strong-Tie STB2-507004SS Strong Bolt (1/2" x 7") Stainless-Steel Wedge Anchor - Unassembled (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-507004SS Strong Bolt (1/2" x 7") ...
Key Specifications
Description
Description
Simpson STB2-507004SS Description

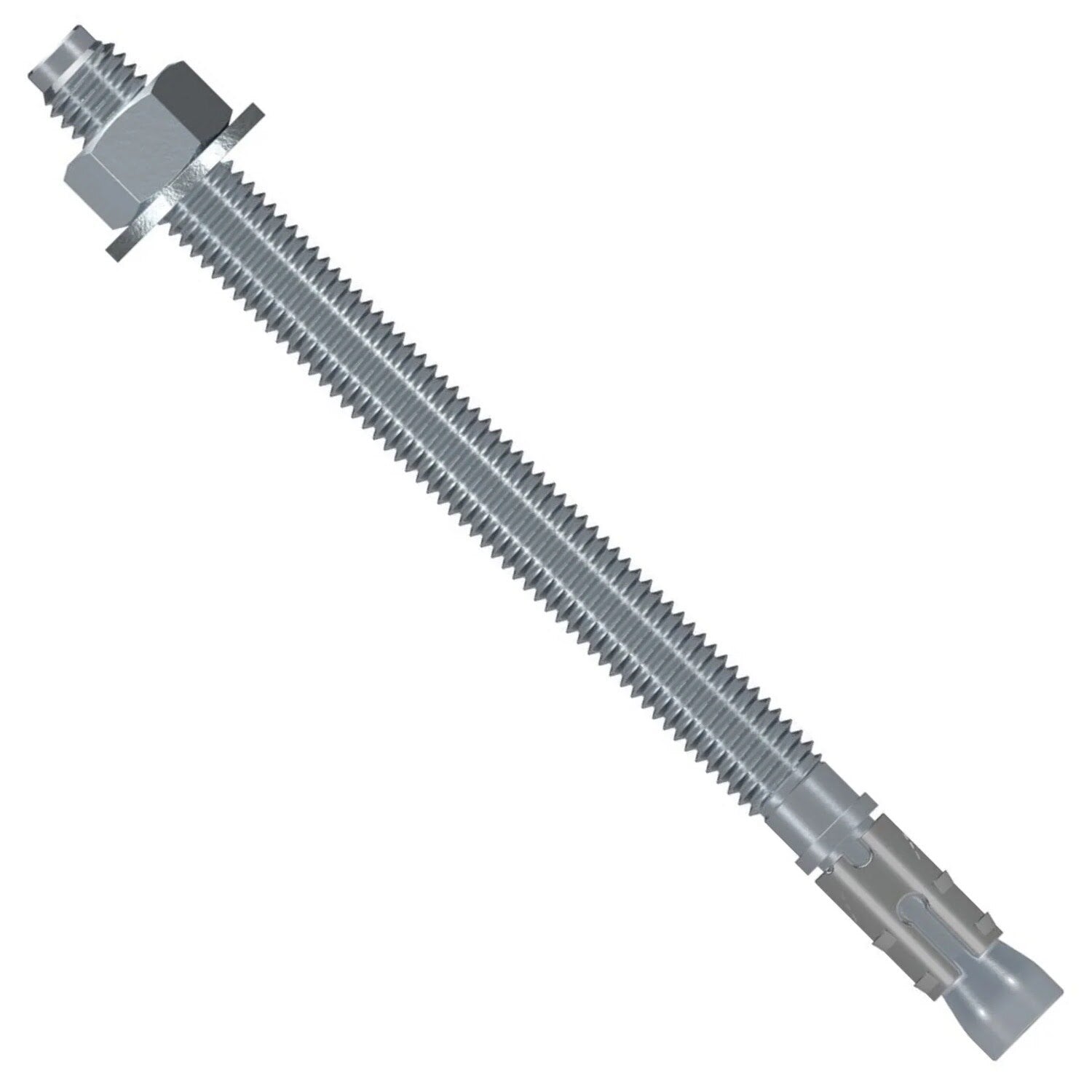

The Strong-Bolt 2 Wedge Anchor is a reliable solution for anchoring in cracked or uncracked concrete, made from durable 304 stainless steel and suitable for various applications.
Simpson STB2-507004SS Includes
- (25) Strong-Bolt 2 Wedge Anchor 304 Stainless Steel
Simpson STB2-507004SS Features
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Qualified for minimum concrete thickness of 3 1/4"
- Standard fractional sizes for compatibility with common tools
- Tested per ACI355.2 and AC193
Simpson STB2-507004SS Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations

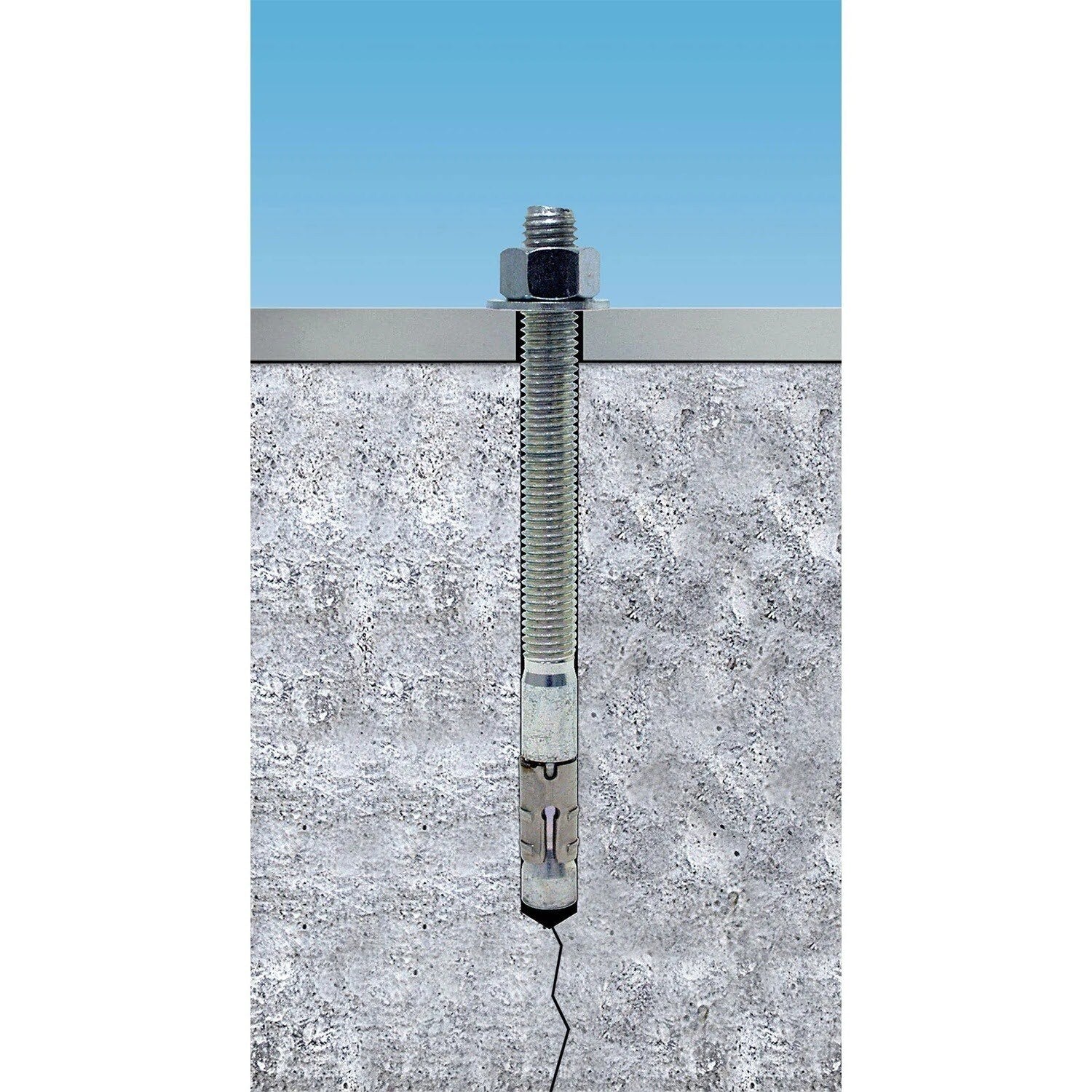

Simpson STB2-507004SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air or ensure it accommodates embedment depth.
- Assemble the anchor with nut and washer, flush with the top.
- Insert the anchor into the fixture and drive it into the hole.
- Tighten the nut to the specified installation torque.
Simpson STB2-507004SS Specifications
| Diameter | 1/2" |
| Length | 7" |
| Material | 304 Stainless Steel |
| Drill bit size | 1/2" |
| Installation torque | 65 ft. lbs |
| Thread length | 5-5/16" |
| Quantity | 25 |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
