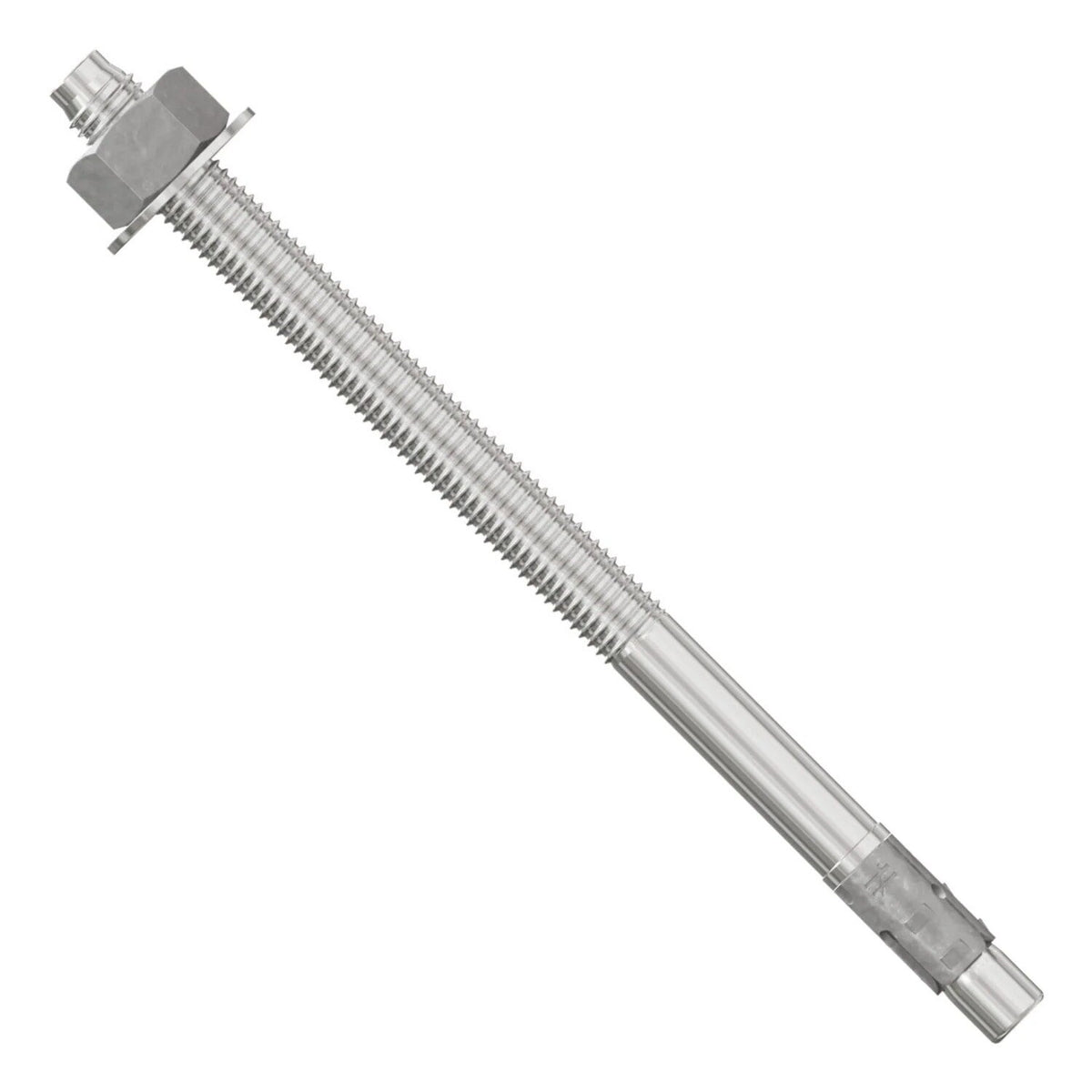

Simpson Strong-Tie STB2-62100S4F10 Strong Bolt (5/8" x 10") Fully Assembled Wedge Anchor - Type 304 (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-62100S4F10 Strong Bolt (5/8" x 10"...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-62100S4F10 Description
The Simpson Strong-Tie Strong-Bolt 2 Wedge Anchors in 304 stainless steel deliver powerful performance and dependable holding strength for concrete anchoring projects.
Simpson Strong-Tie STB2-62100S4F10 Includes

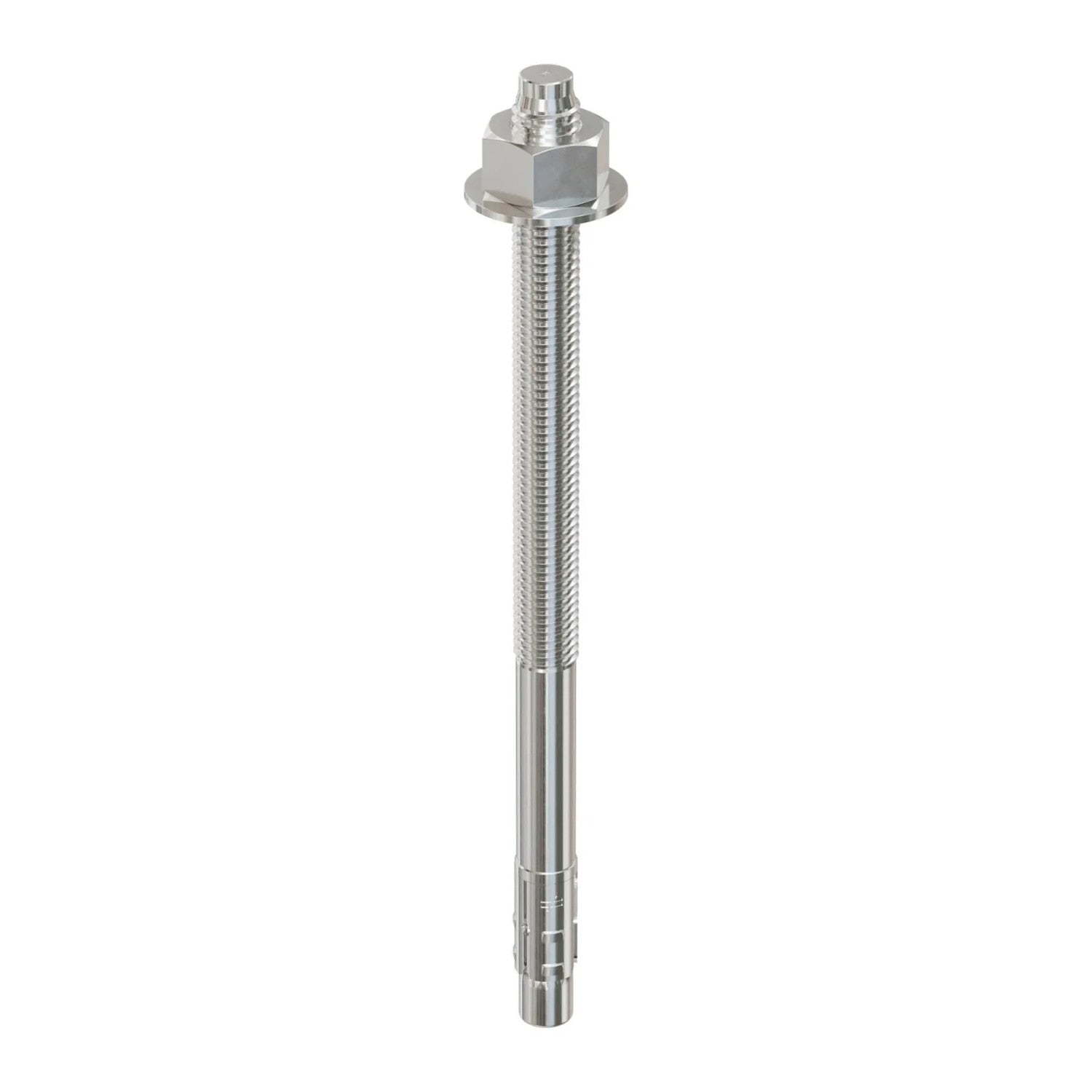

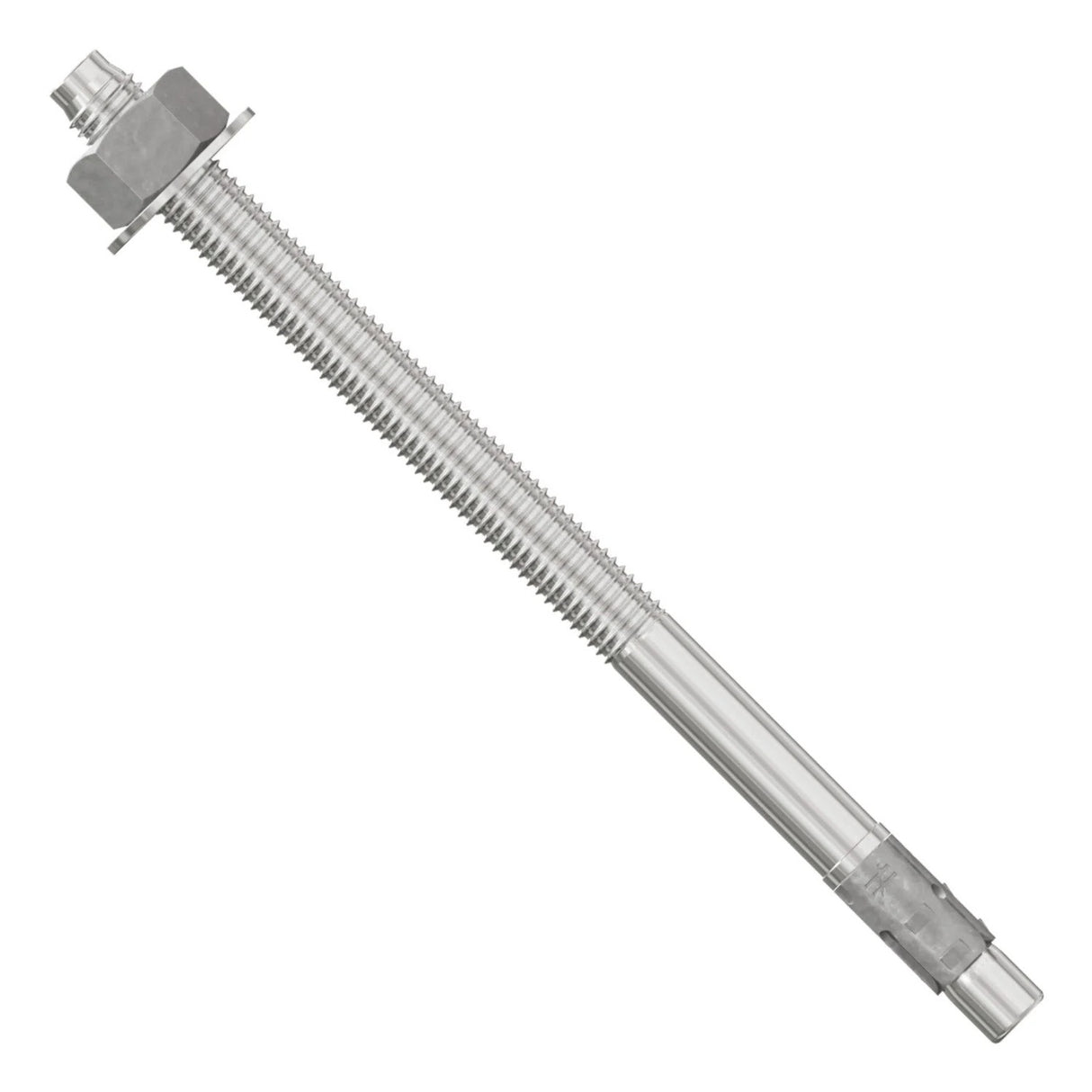

- (10) 5/8 in. x 10 in. Type 304 Stainless-Steel Wedge Anchor
Simpson Strong-Tie STB2-62100S4F10 Features

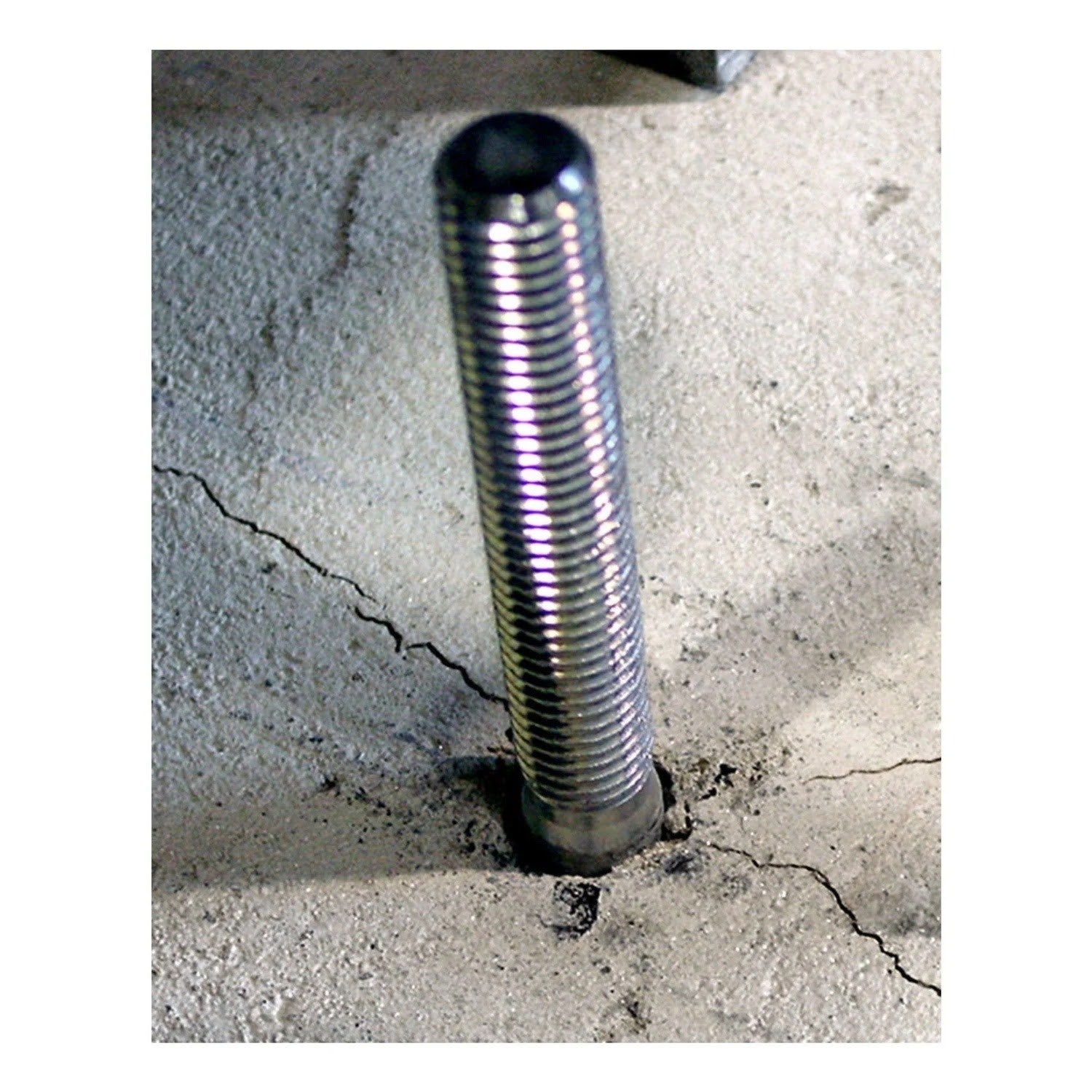

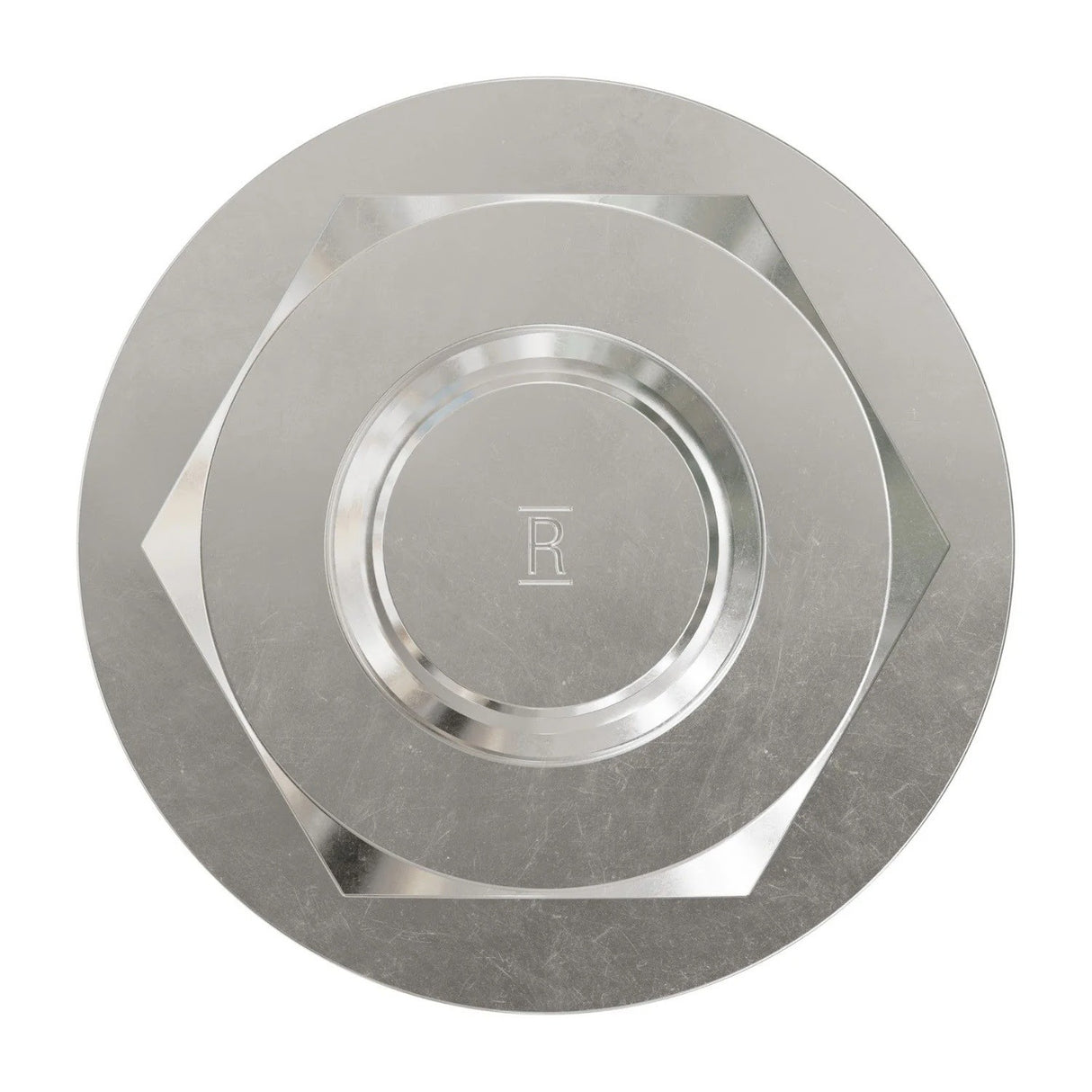

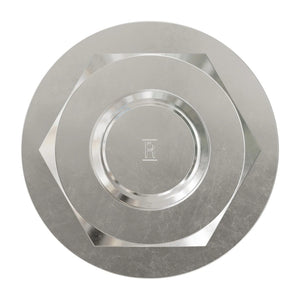

- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4 in.
- Standard ANSI fractional sizes
- Tested per ACI355.2 and AC193
Simpson Strong-Tie STB2-62100S4F10 Applications
- Concrete anchoring for structural steel
- Securing machinery
- Racking systems
- Post bases
- Ledger attachments

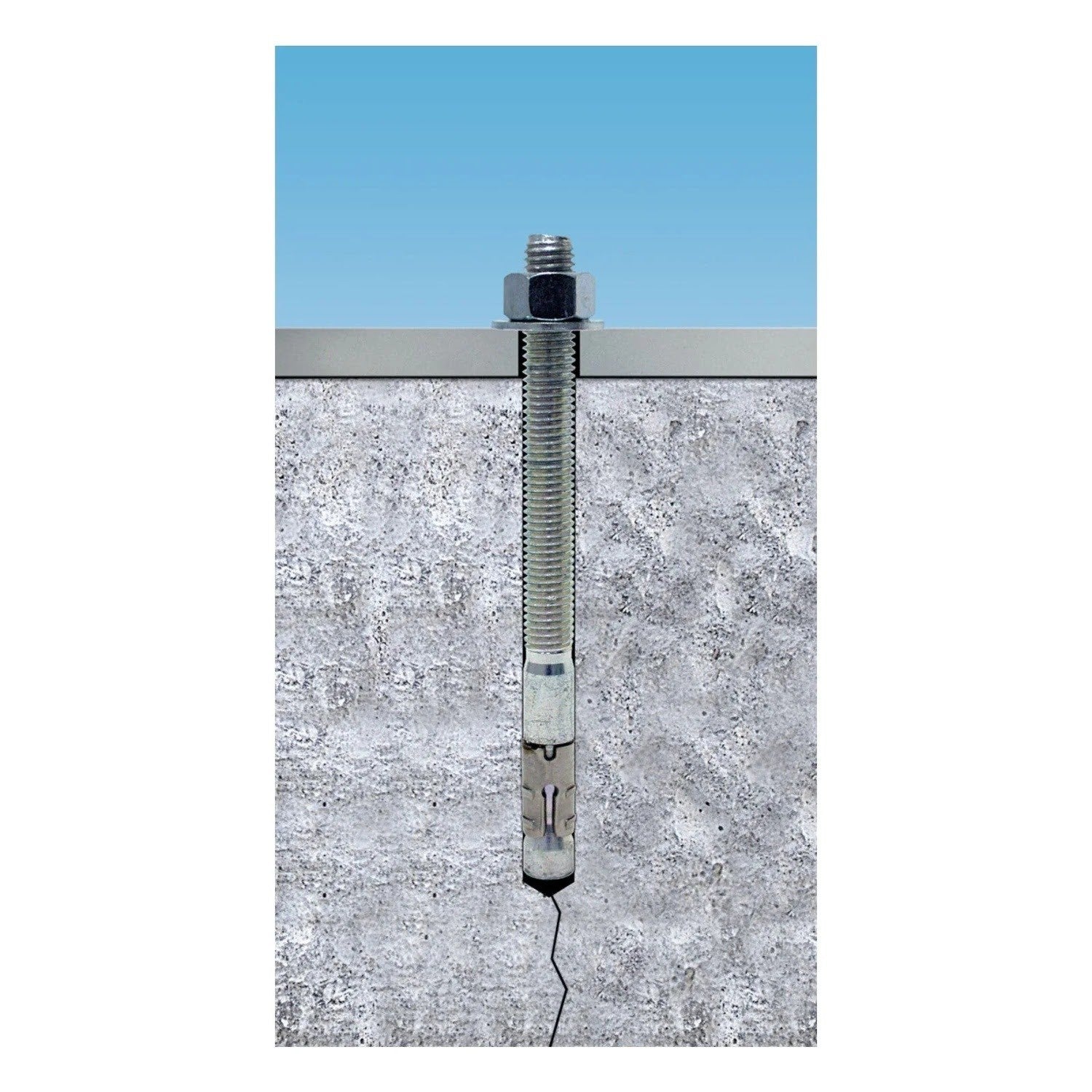

Simpson Strong-Tie STB2-62100S4F10 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Assemble the anchor with nut and washer.

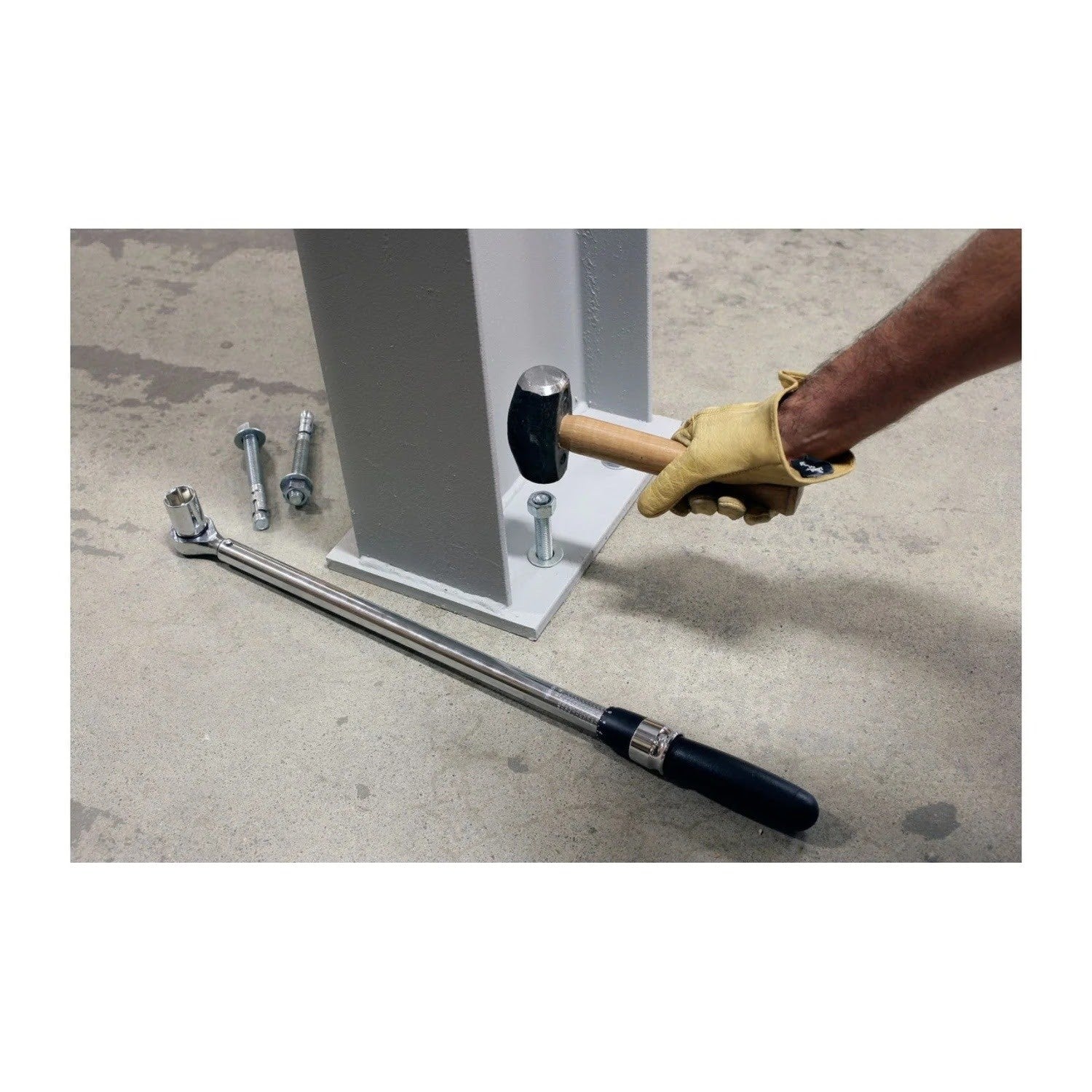

- Place the anchor in the fixture and drive it into the hole.

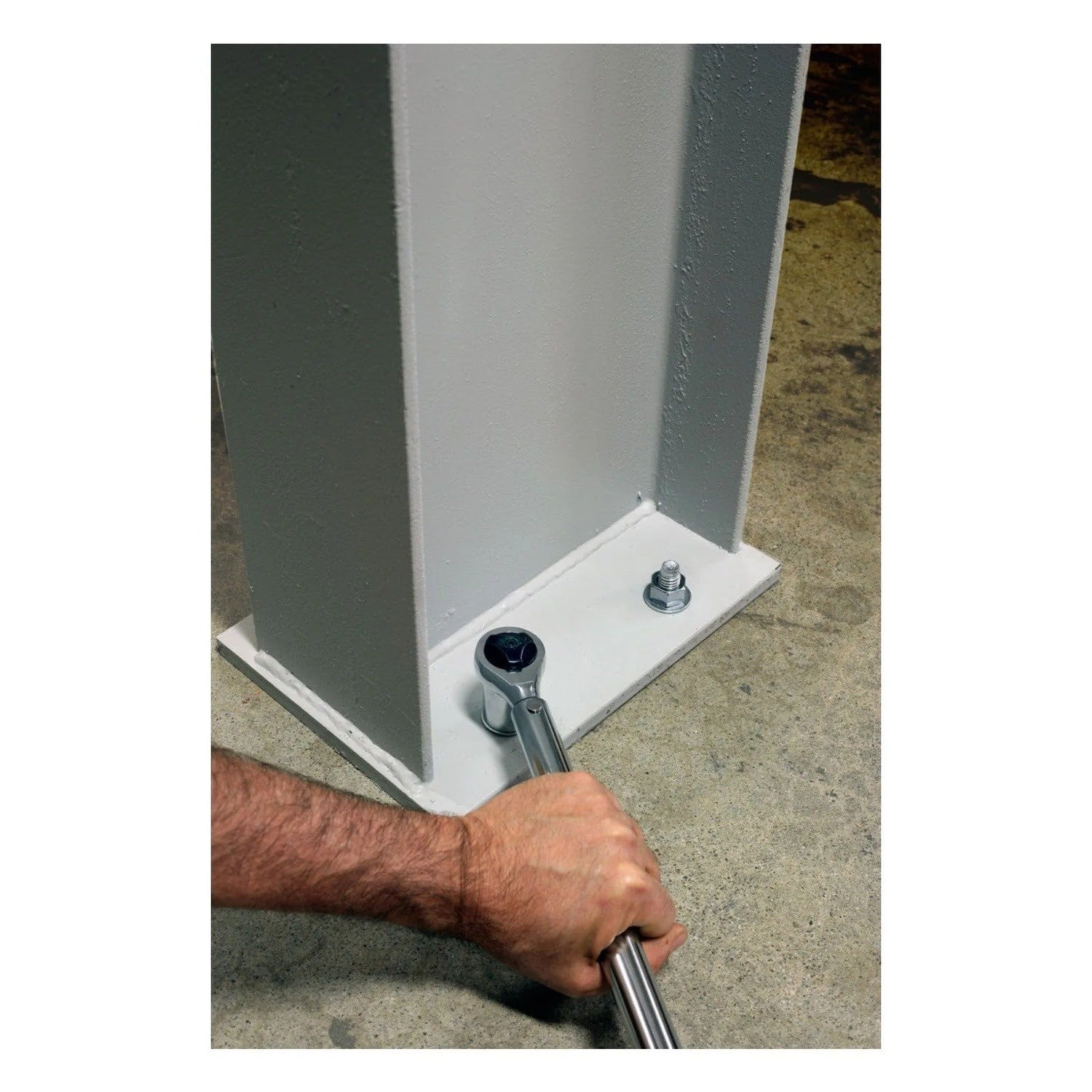

- Tighten to the required installation torque.
Simpson Strong-Tie STB2-62100S4F10 Specifications
| Diameter | 5/8 in. |
| Length | 10 in. |
| Material | 304 Stainless Steel |
| Drill bit size | 5/8 in. |
| Fixture hole size | 11/16 in. |
| Installation torque | 60 ft. lbf. |
| Thread length | 6 in. |
| Wrench size | 15/16 in. |
NOTE: Ensure proper installation torque is applied to achieve optimal performance.
