Simpson Strong-Tie STB2-62312R20 Strong-Bolt (5/8" x 3-1/2") 2 Wedge Anchor -Zinc Plated (20 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-62312R20 Strong-Bolt (5/8" x 3-1/2&quo...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-62312R20 Description

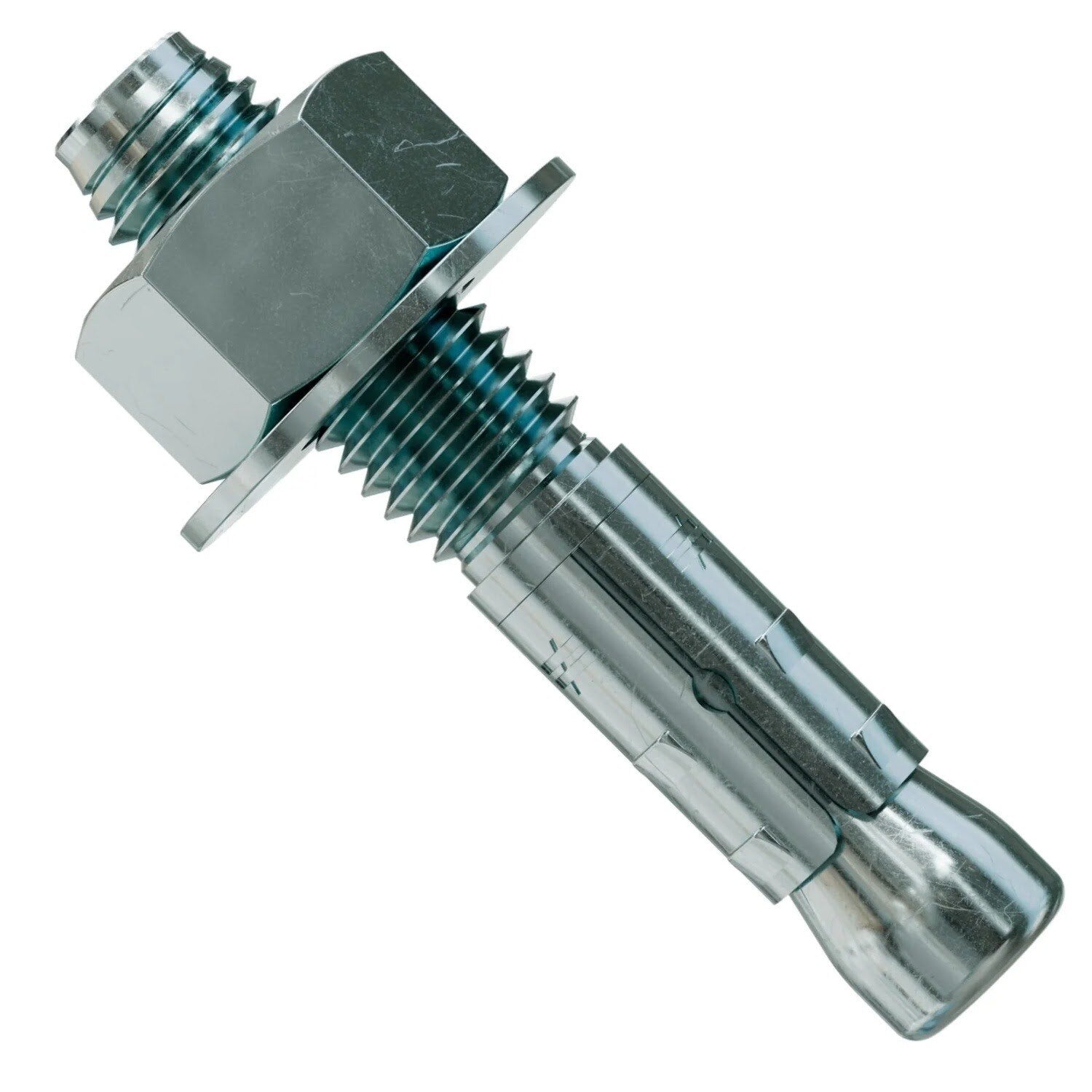

The Strong-Bolt 2 Wedge Anchor is a zinc-plated, high-performance anchor designed for static and seismic loading conditions, suitable for various applications including cracked and uncracked concrete.
Simpson Strong-Tie STB2-62312R20 Includes
- (20) 5/8 in. x 3-1/2 in. Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-62312R20 Features

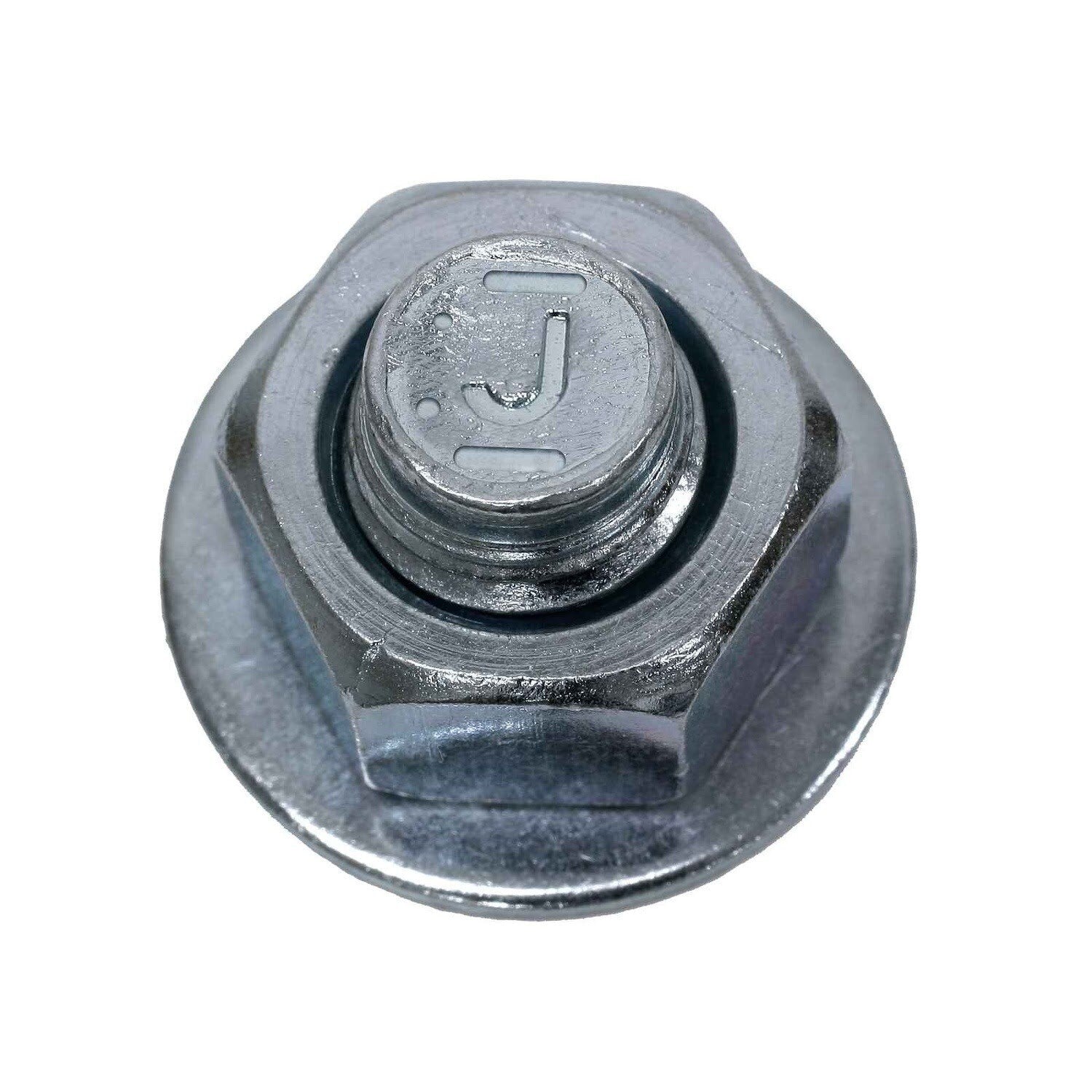

- Chamfered top to prevent mushrooming during installation
- Qualified for static and seismic loading conditions
- Suitable for horizontal, vertical, and overhead applications
- Tested per ACI355.2 and AC193
- Zinc-plated carbon steel for durability

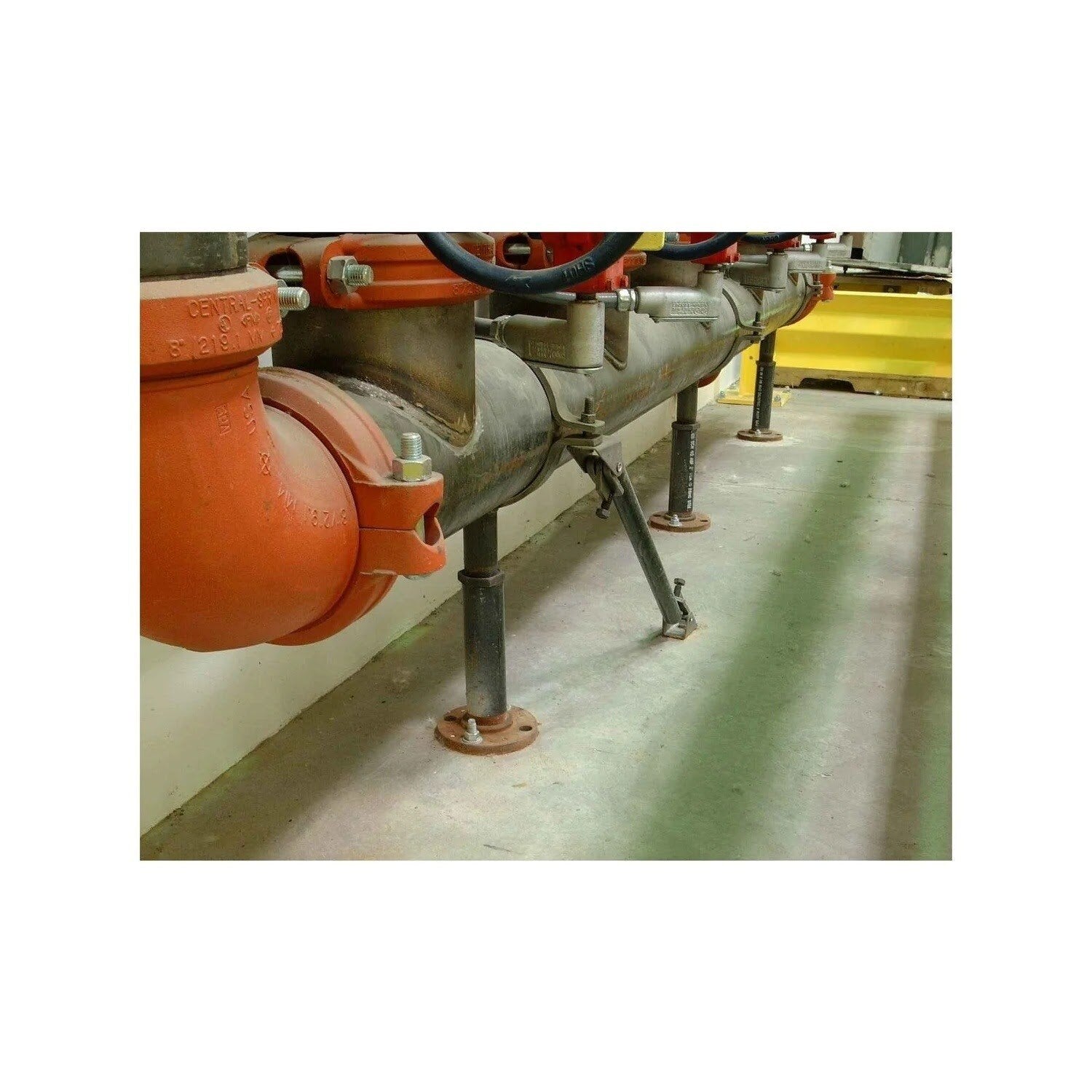

Simpson Strong-Tie STB2-62312R20 Applications

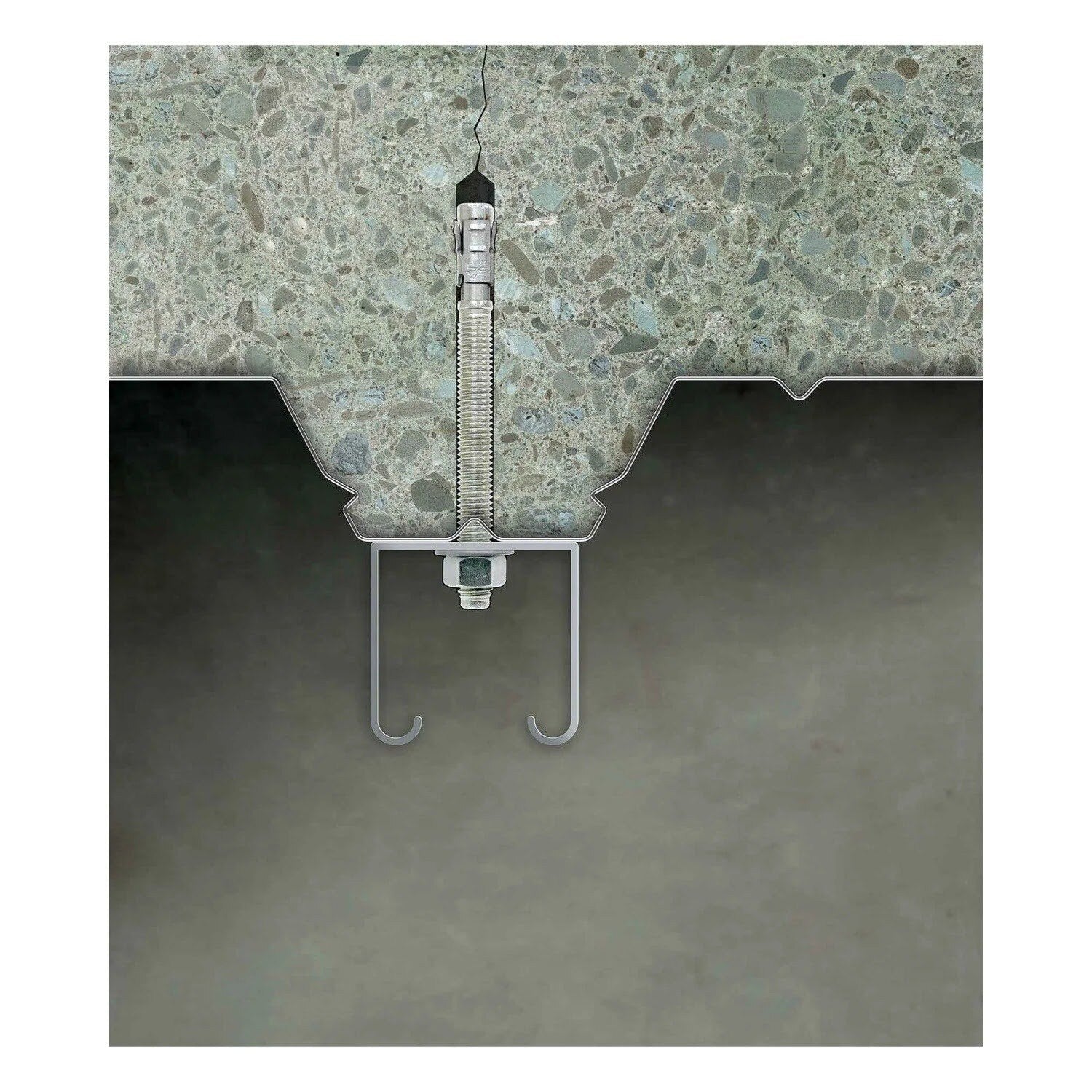

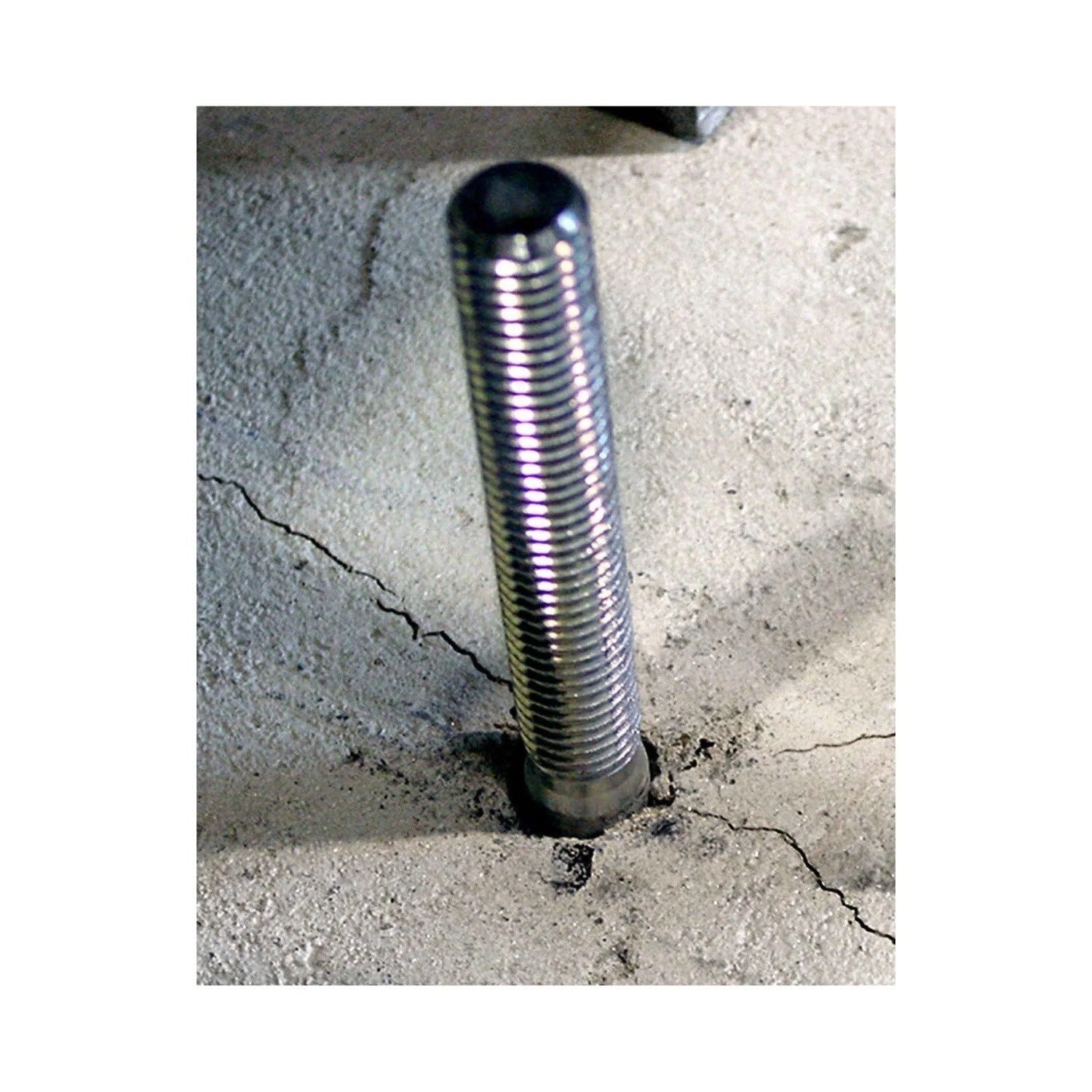

- Cracked and uncracked concrete anchoring
- Horizontal, vertical, and overhead installations
- Seismic and static load applications

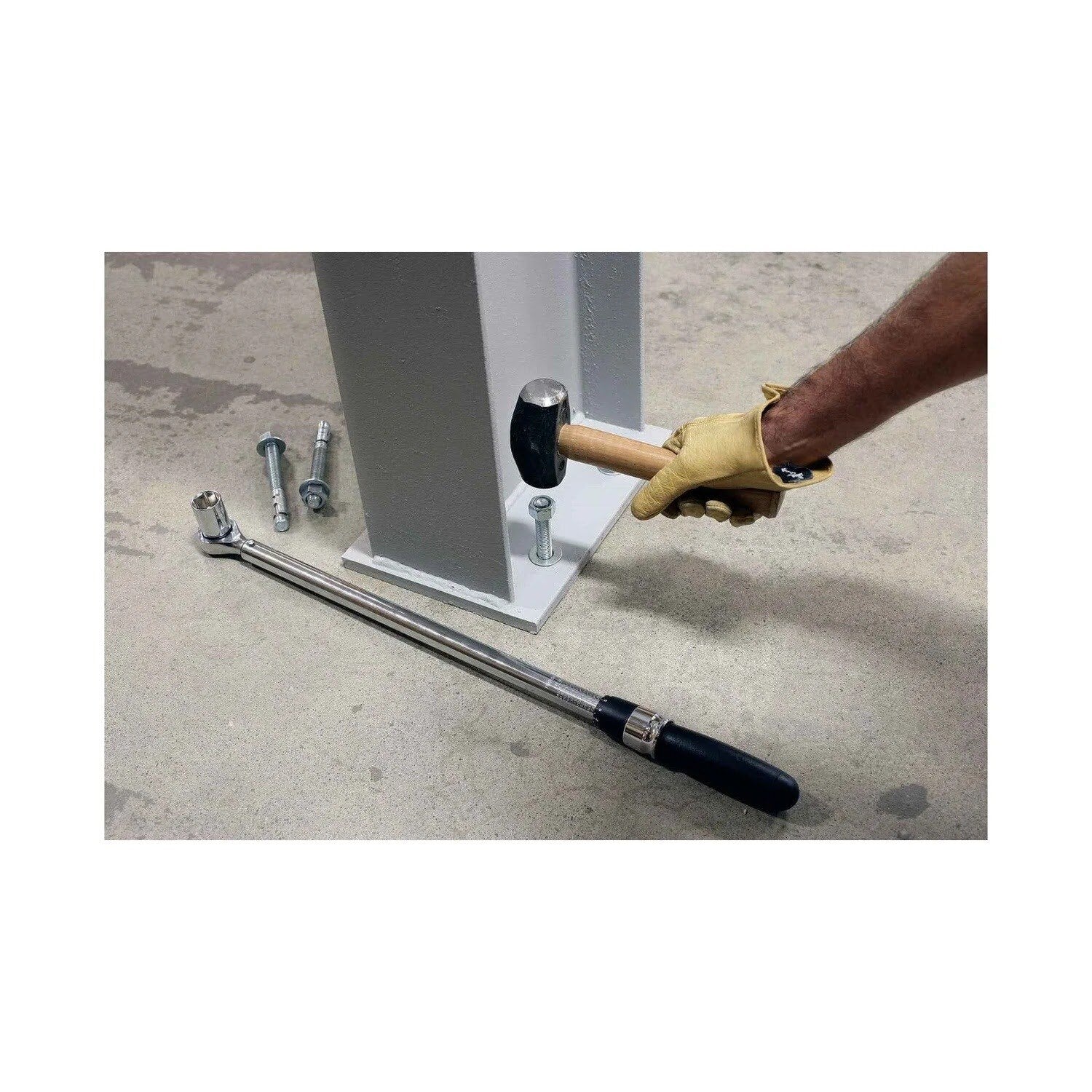

Simpson Strong-Tie STB2-62312R20 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or ensure it is deep enough to accommodate embedment depth.
- Assemble the anchor with nut and washer, place it in the fixture, and drive it into the hole.

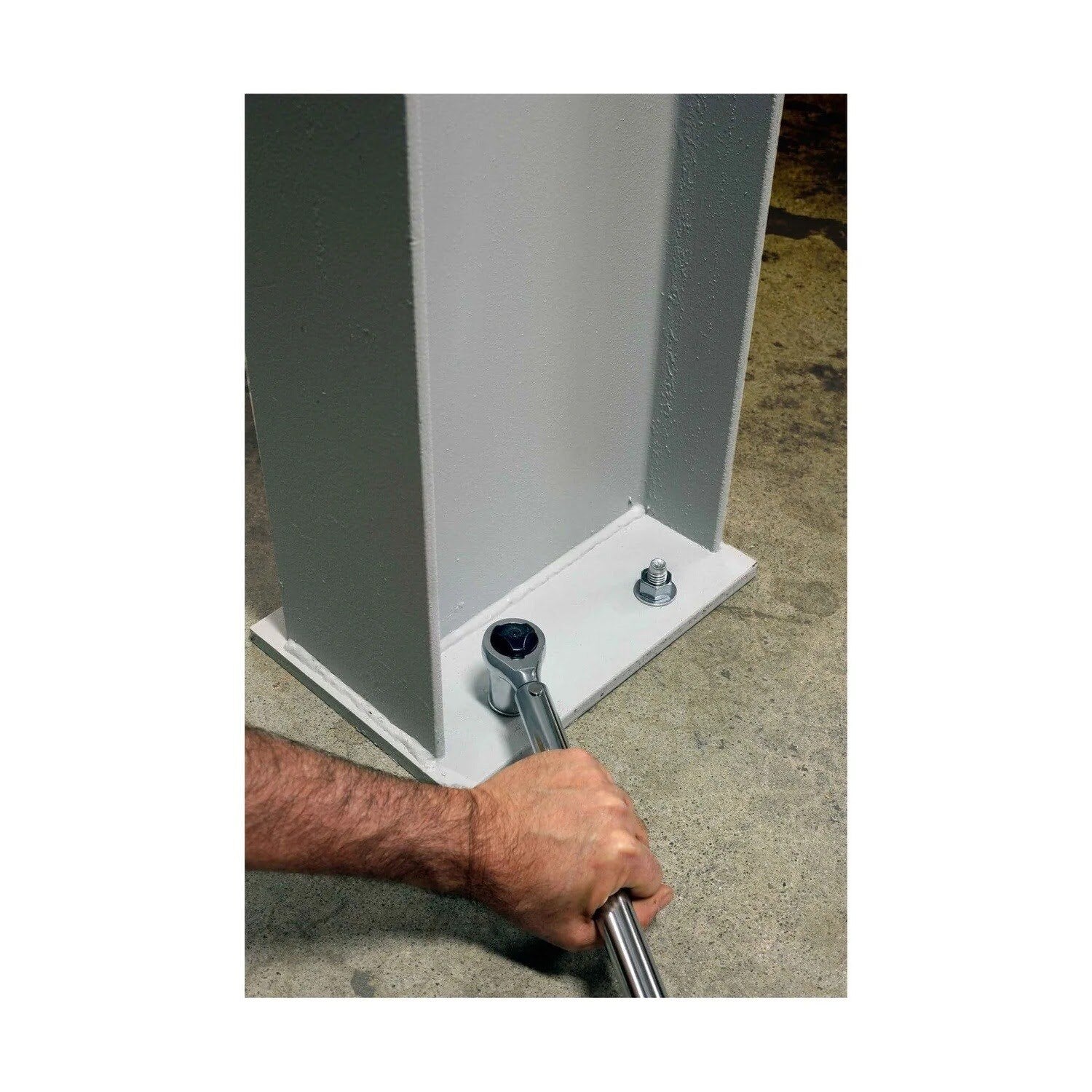

- Tighten the nut to the required installation torque.
Simpson Strong-Tie STB2-62312R20 Specifications
| Diameter | 5/8 in. |
| Length | 3-1/2 in. |
| Material | Carbon Steel |
| Finish | Zinc Plated |
| Drill Bit Size | 5/8 in. |
| Installation Torque | 90 ft. lbs |
| Quantity | 20 |
NOTE: Do not use an impact wrench to set or tighten the Strong-Bolt 2 anchor. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
