Simpson Strong-Tie THD37400CS6SS Titen HD (3/8" x 4") Countersunk SS Anchor - Type 316 (25 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THD37400CS6SS Titen HD (3/8" x 4") Cou...
Key Specifications
Description
Description
Simpson THD37400CS6SS Description

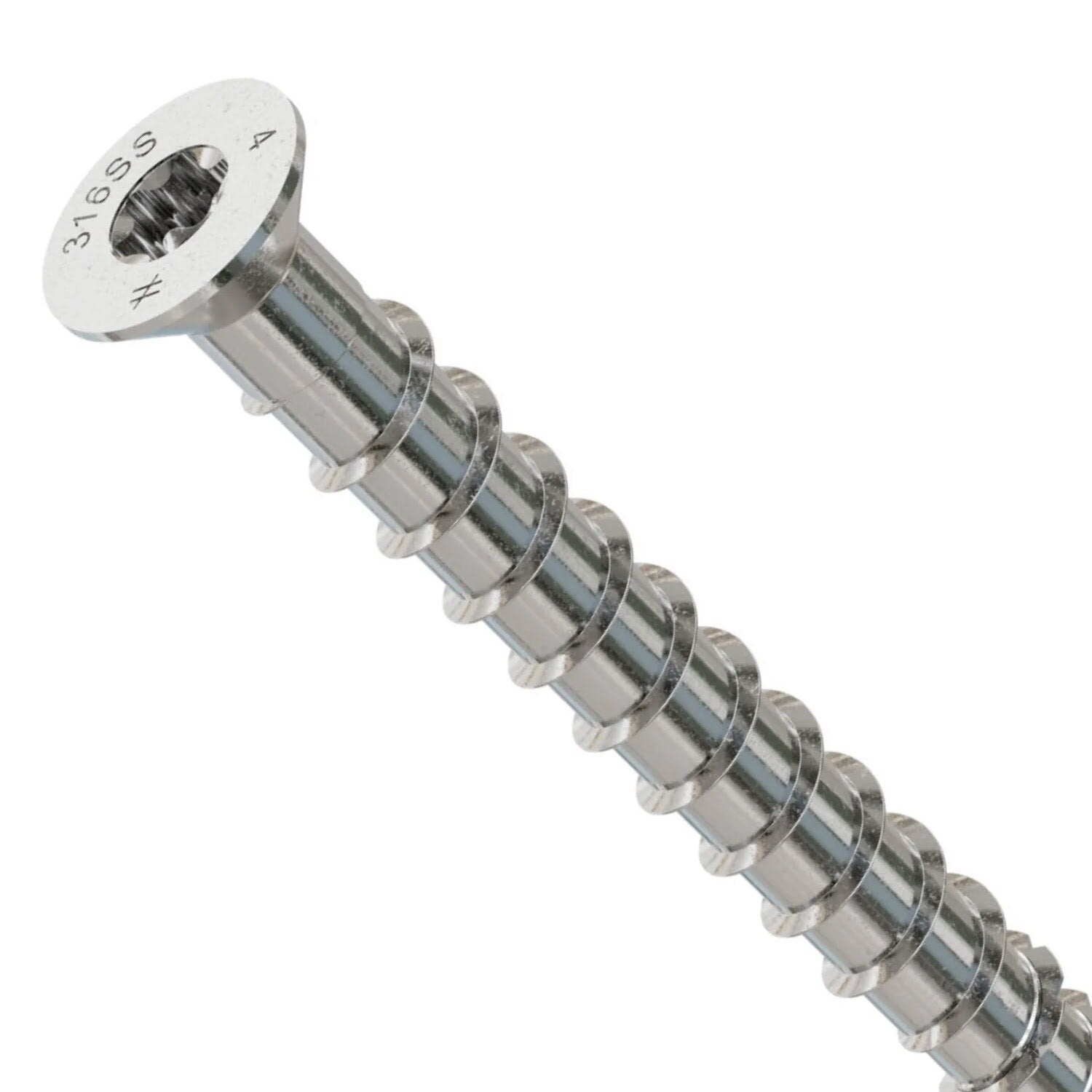

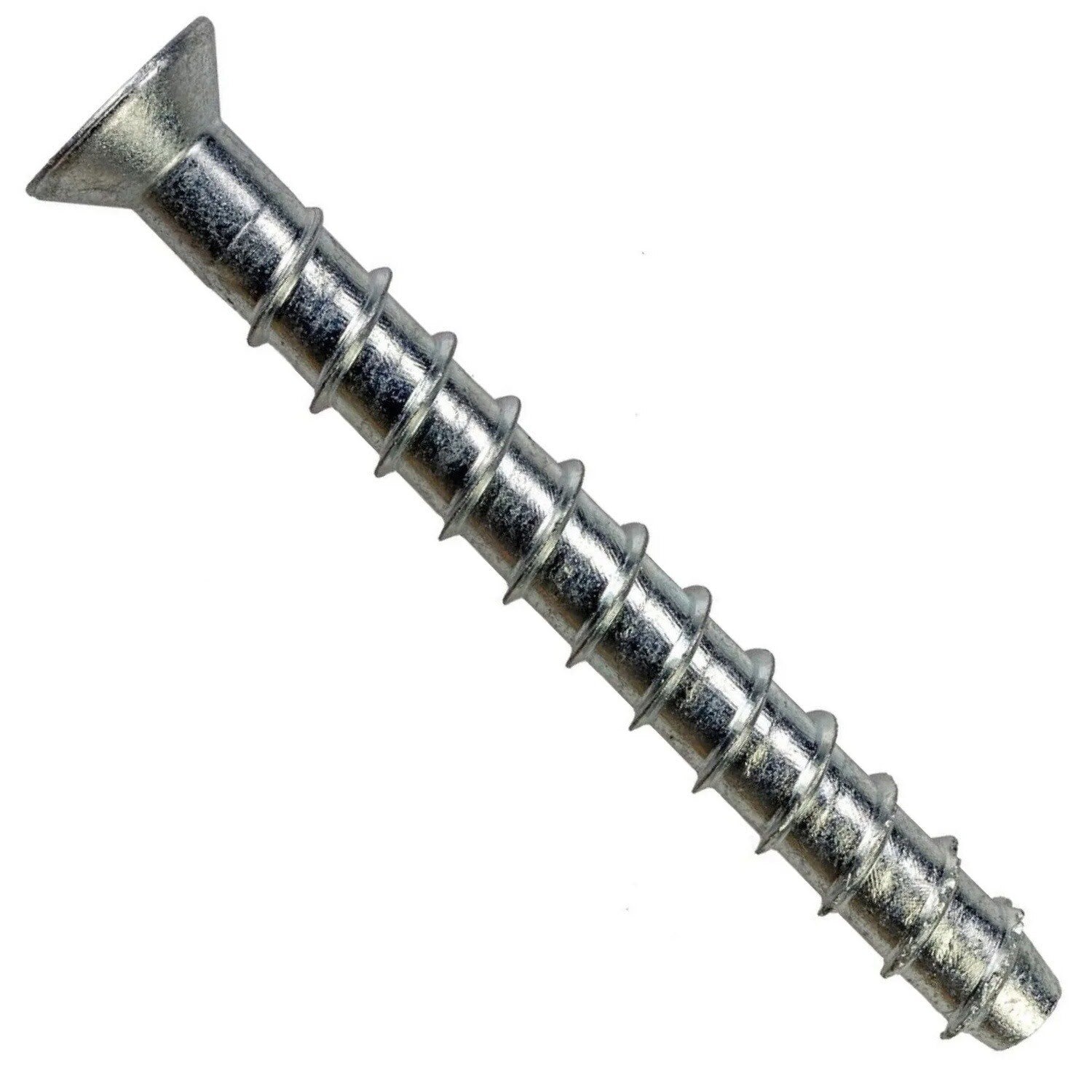

Simpson Titen HD anchors are high-performance screw anchors with a countersunk head for flush installation, ideal for corrosive environments.
Simpson THD37400CS6SS Includes
- (25) Countersunk Titen HD Anchor 316 Stainless Steel 3/8" x 4"
- (1) Driver Bit
Simpson THD37400CS6SS Features
- Tested in accordance with ACI 355.2, AC193, and AC106
- Qualified for static, wind, and seismic loading conditions
- Standard fractional sizes with hole size same as anchor size
- No special drill bit required
- Removable for temporary anchoring
- Countersunk head for flush applications
- 316 stainless steel for high corrosion resistance
Simpson THD37400CS6SS Applications
- Temporary anchoring in construction projects
- Fixtures requiring frequent movement
- Corrosive environments
- Wind-governed and seismic loading conditions

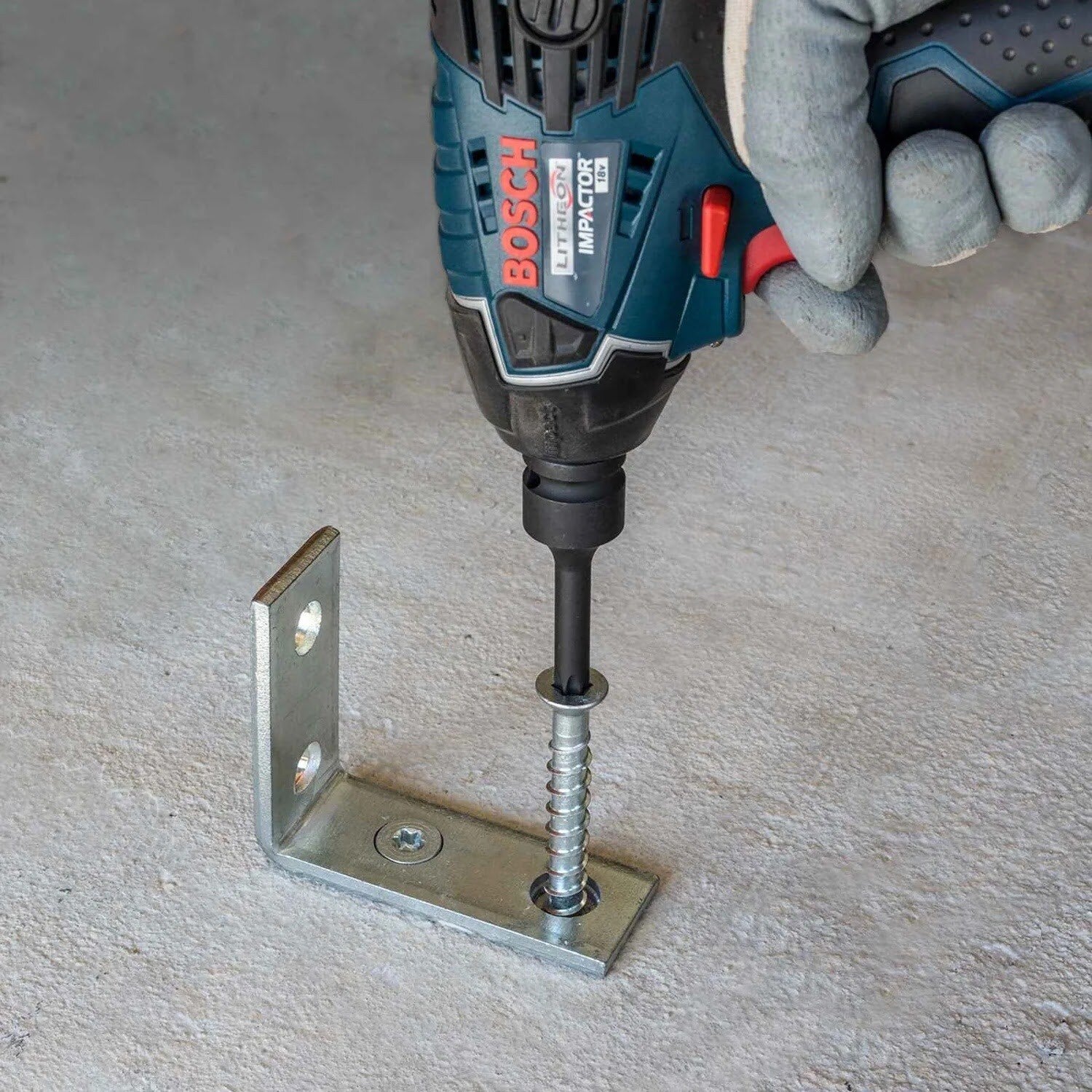

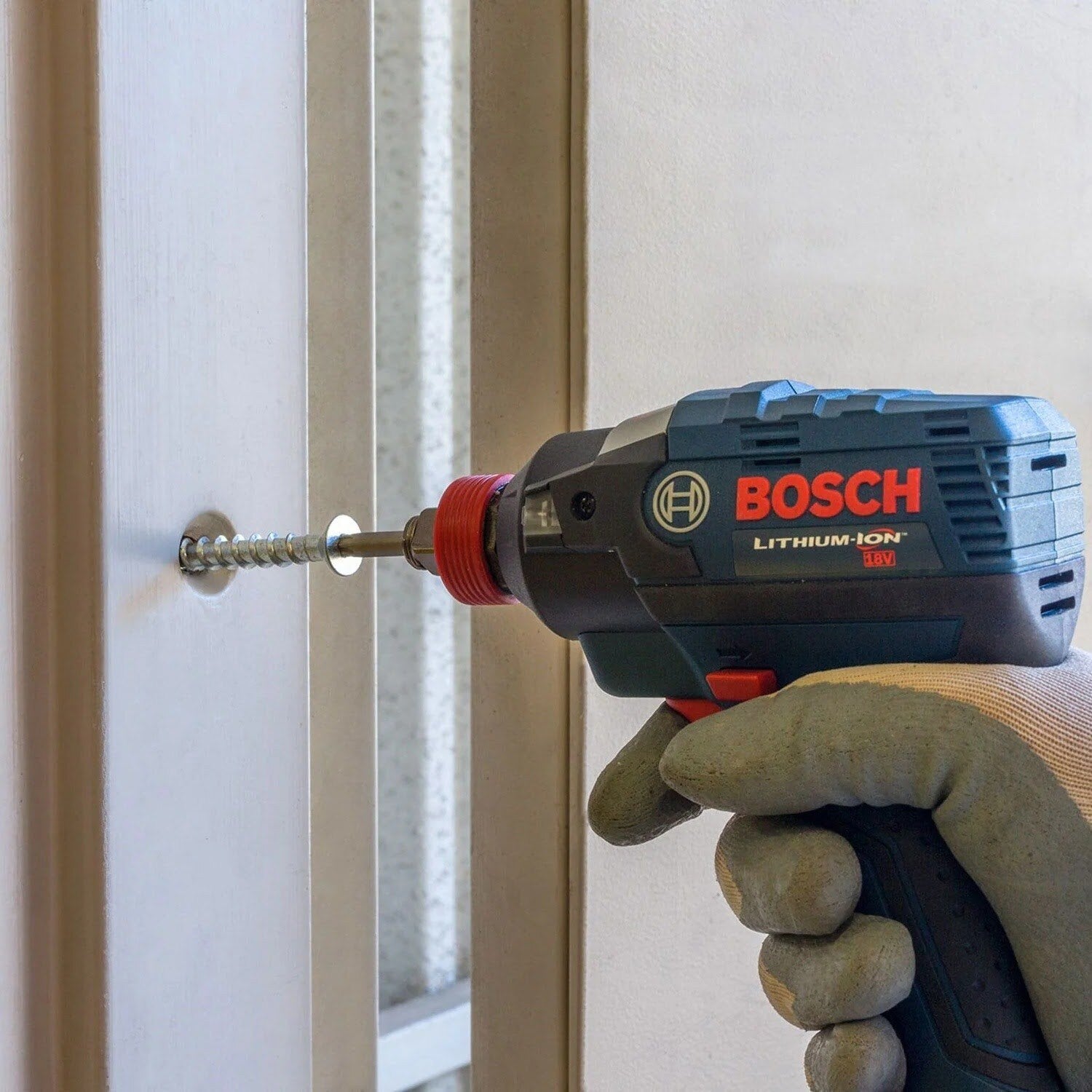

Simpson THD37400CS6SS Installation Overview
- Drill a hole using a carbide drill bit matching the anchor diameter.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the countersunk head contacts the fixture.
Simpson THD37400CS6SS Specifications
| Diameter | 3/8" |
| Length | 4" |
| Material | 316 Stainless Steel |
| Drill Bit Size | 3/8" |

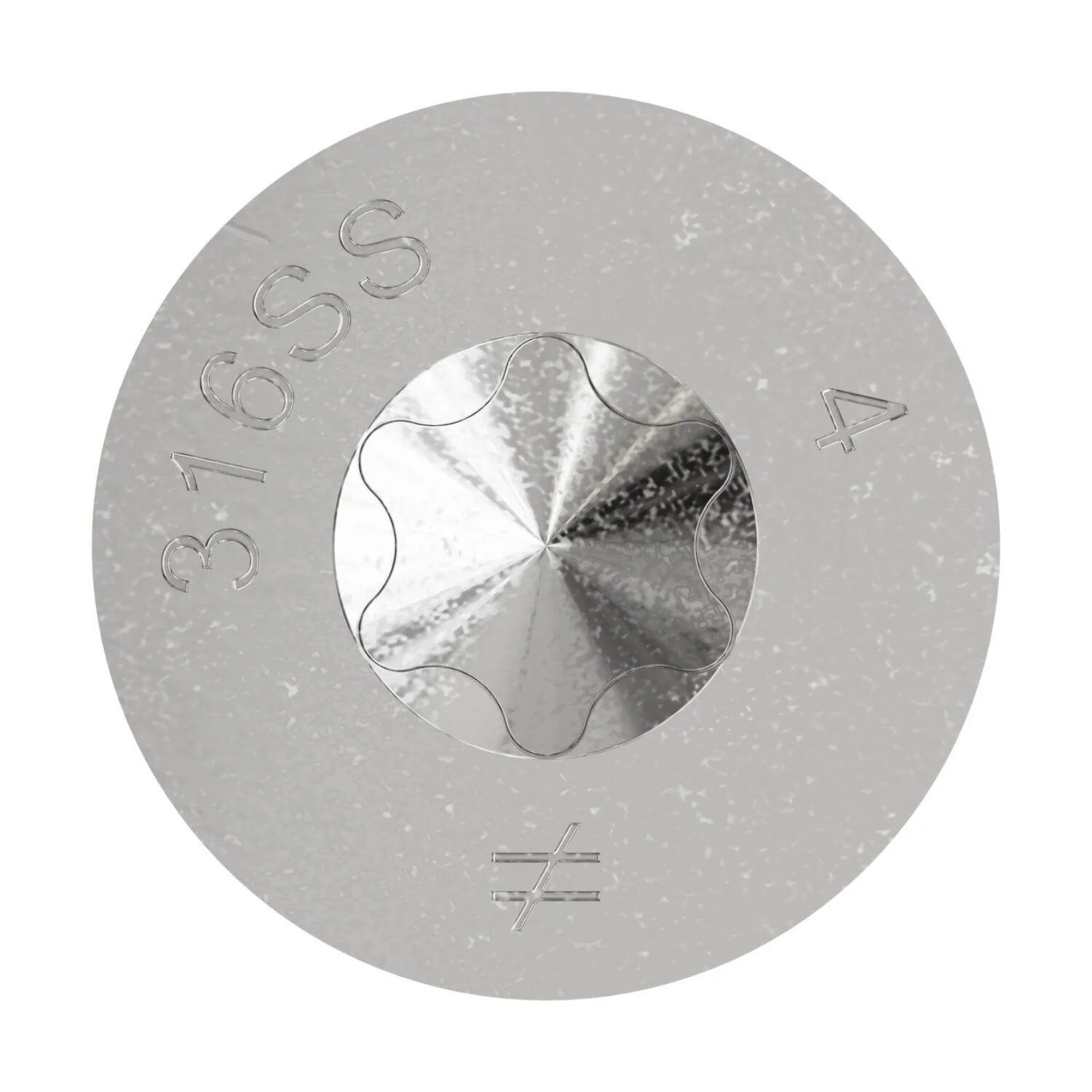

| Drive Type | T50 6-Lobe |
| Fixture Hole Size | 1/2"-9/16" |
| Head Type | Flat Head |
| Quantity | 25 |
NOTE: Ensure holes in metal fixtures match the specified diameter to maintain load capacity.
