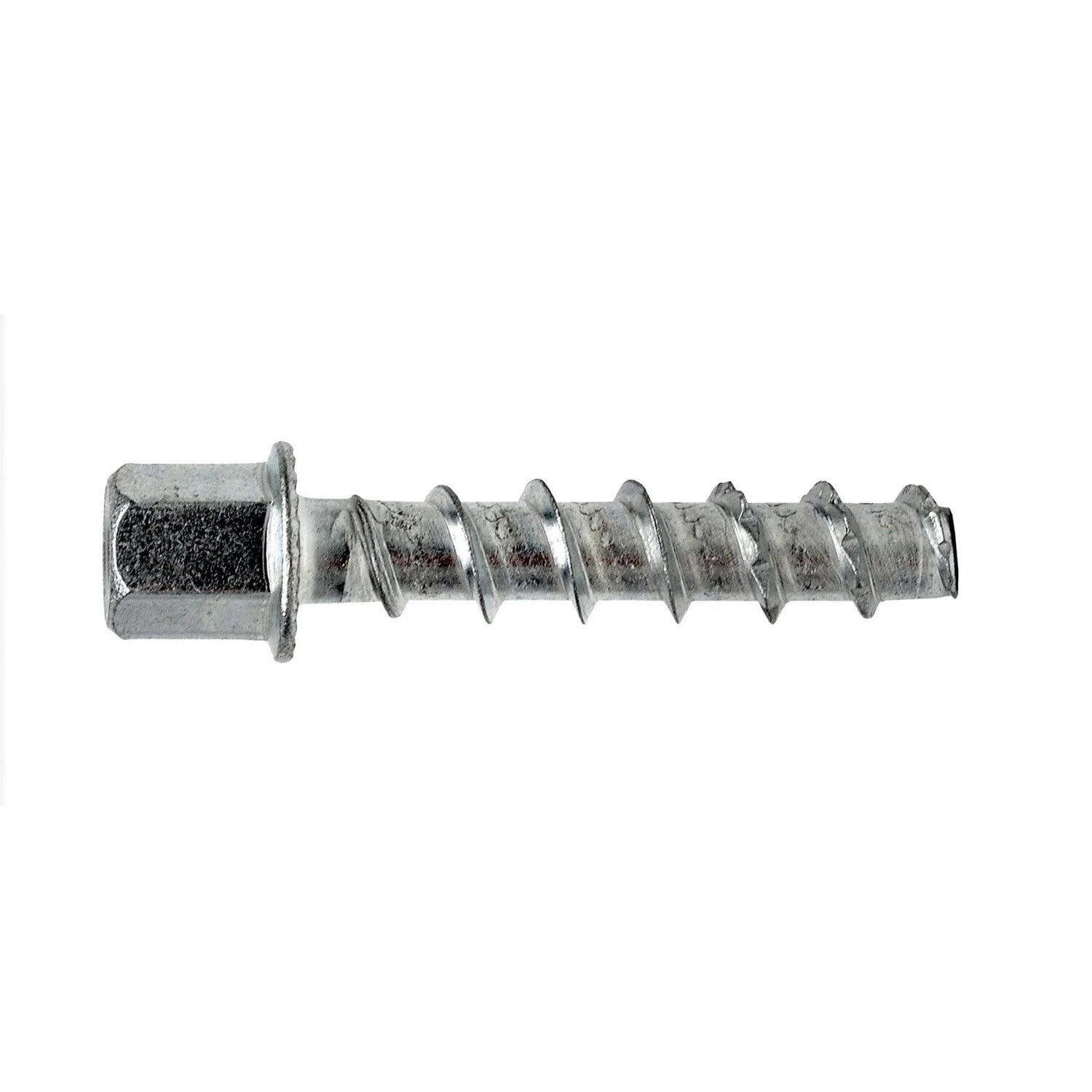

Simpson Strong-Tie THDB25158RH Titen HD (1/4" x 1-5/8") Threaded Rod Hanger for 1/4-in. Rod (100 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB25158RH Titen HD (1/4" x 1-5/8") T...
Key Specifications
Description
Description
Simpson THDB25158RH Description
The Titen HD Threaded Rod Hanger is a high-performance anchor designed for hanging threaded rods from concrete ceilings, ideal for HVAC, pipes, and false ceilings.
Simpson THDB25158RH Includes
- (100) Titen HD Threaded Rod Hanger for 1/4-in. Rod
Simpson THDB25158RH Features
- Thread design undercuts to efficiently transfer the load to the base material
- Serrated cutting teeth and thread design enable quick and easy installation
- Specialized heat-treating process creates tip hardness to facilitate cutting while the anchor body remains ductile
- Designed to install using a rotary hammer or hammer drill with standard ANSI drill bits
- Installs with standard-sized sockets
- Use in dry interior environments only
- Code listed for cracked and uncracked concrete applications under the 2015, 2012 and 2009 IBC/IRC, per ICC-ES ESR-2713
- FM listed
Simpson THDB25158RH Applications
- Hanging threaded rods from concrete ceilings
- Supporting false ceilings
- HVAC installations
- Pipe hanging

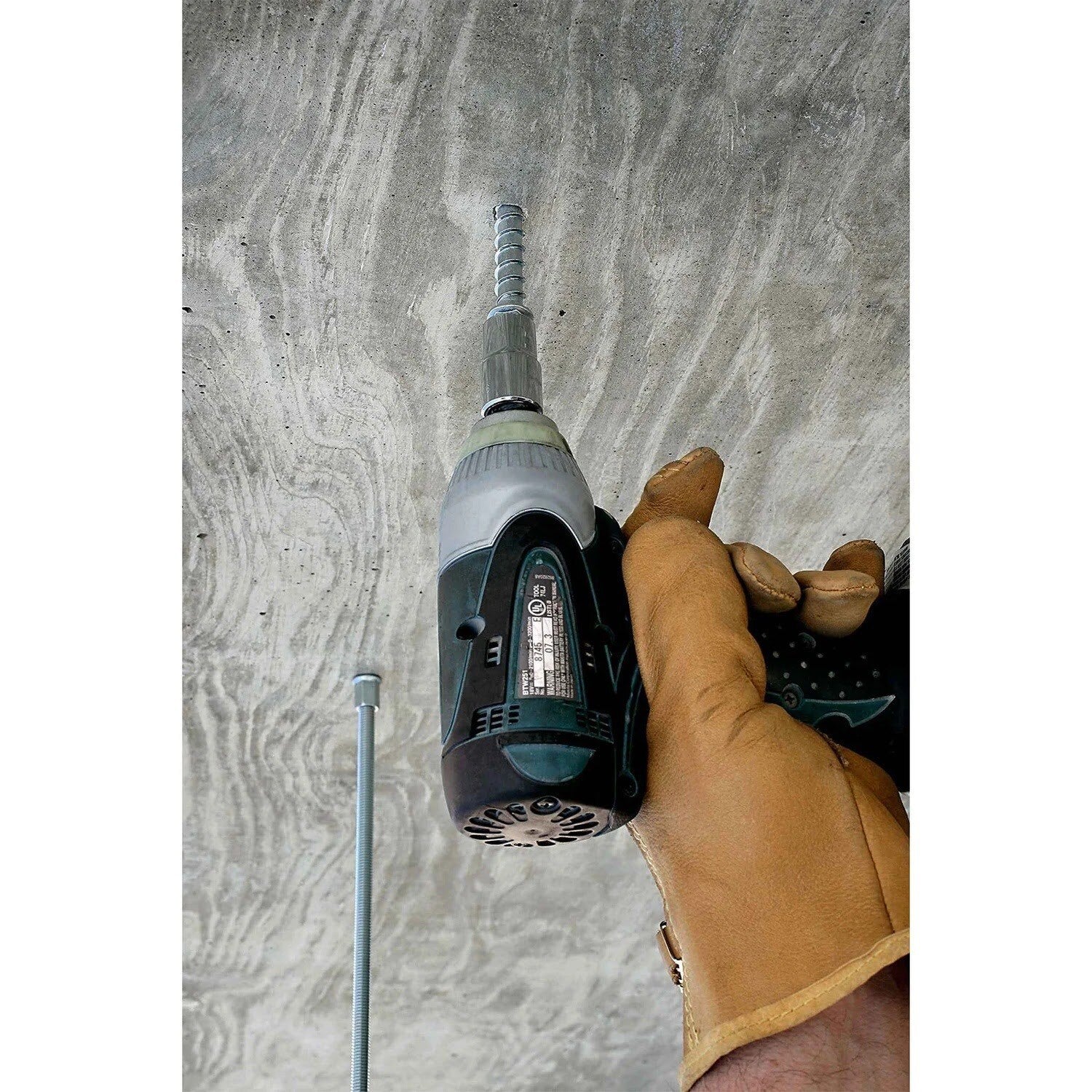

Simpson THDB25158RH Installation Overview
- Drill a hole using the specified diameter carbide bit into the base material to the specified embedment depth plus minimum hole depth overdrill.
- Blow the hole clean of dust and debris using compressed air.
- Install with a torque wrench, driver drill, hammer drill or cordless impact wrench.
- Fully insert threaded rod.
Simpson THDB25158RH Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Rod Diameter | 1/4" |
| Drill Bit Diameter | 1/4" |
| Wrench Size | 3/8" |
| Min. Embedment | 1 5/8" |
| Box Quantity | 100 |
NOTE: Use a Titen HD rod hanger one time only. Installing the anchor multiple times may result in excessive thread wear and reduce load capacity.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
