Simpson Strong-Tie THDB25178H Titen HD (1/4" x 1-7/8") Heavy-Duty Screw Anchor - Zinc Plated (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB25178H Titen HD (1/4" x 1-7/8") He...
Key Specifications
Description
Description
Simpson THDB25178H Description

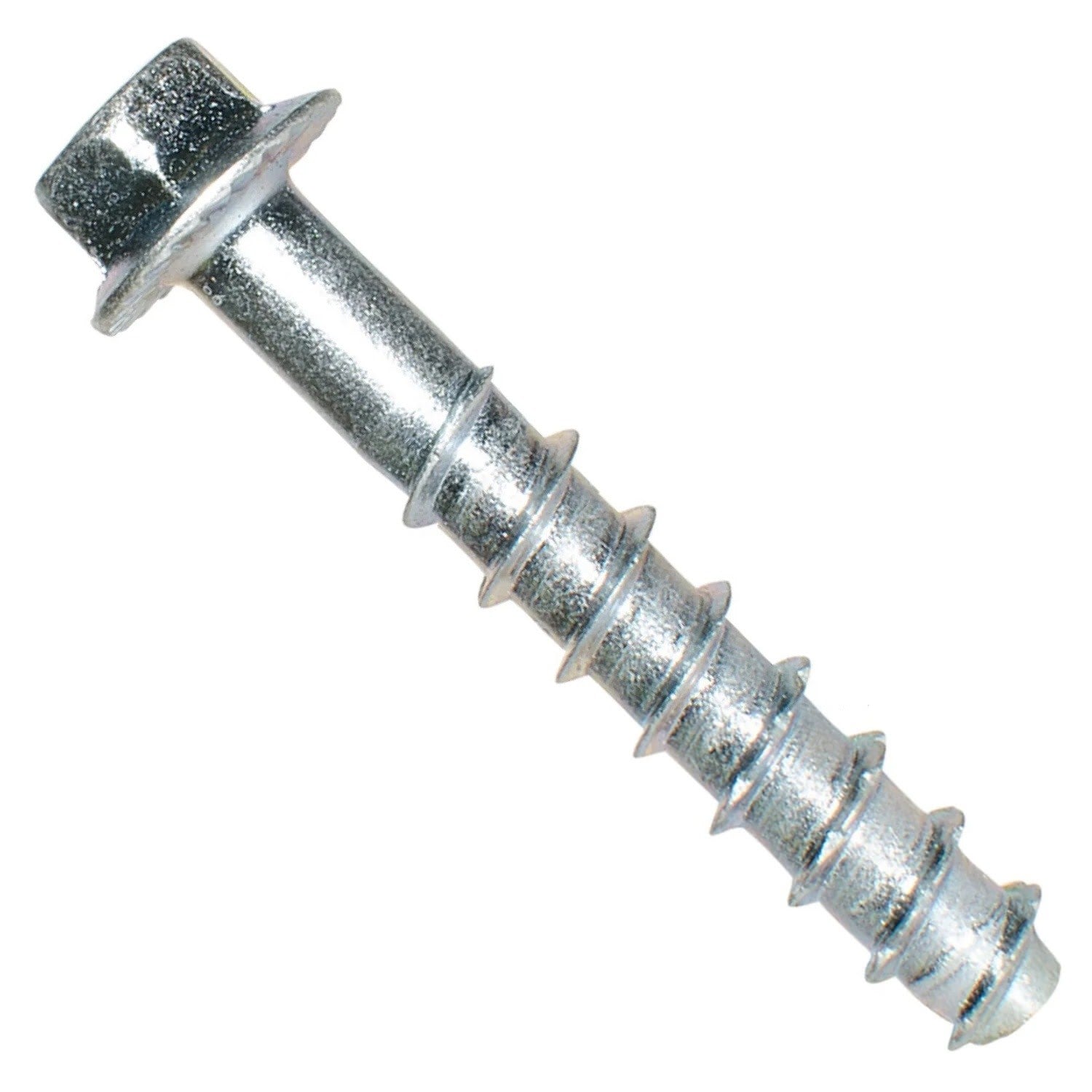

The Titen HD Screw Anchor Zinc Plated is a high-strength anchor designed for quick and easy installation in cracked and uncracked concrete applications. Ideal for dry, interior environments.
Simpson THDB25178H Includes

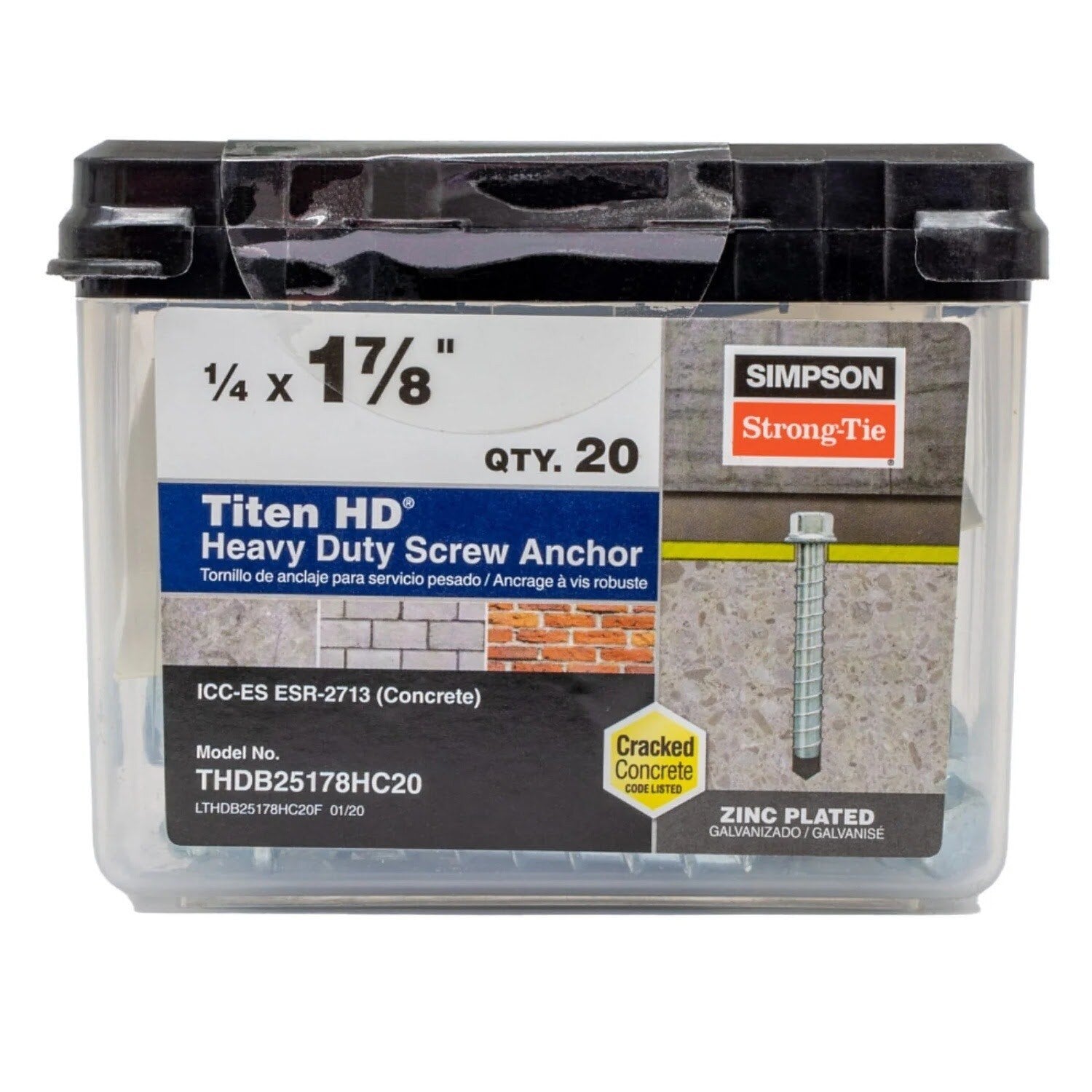

- (100) 1/4 x 1-7/8 Titen HD Screw Anchor Zinc Plated
Simpson THDB25178H Features
- Tested in accordance with ACI 355.2, AC193 and AC106
- Qualified for static, wind and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
- No special drill bit required
- Hex-washer head requires no separate washer
- Removable, ideal for temporary anchoring
- Use in dry interior environments only
Simpson THDB25178H Applications
- Concrete anchoring in dry, interior environments
- Temporary anchoring for formwork and bracing
- Mechanical, electrical, and plumbing applications

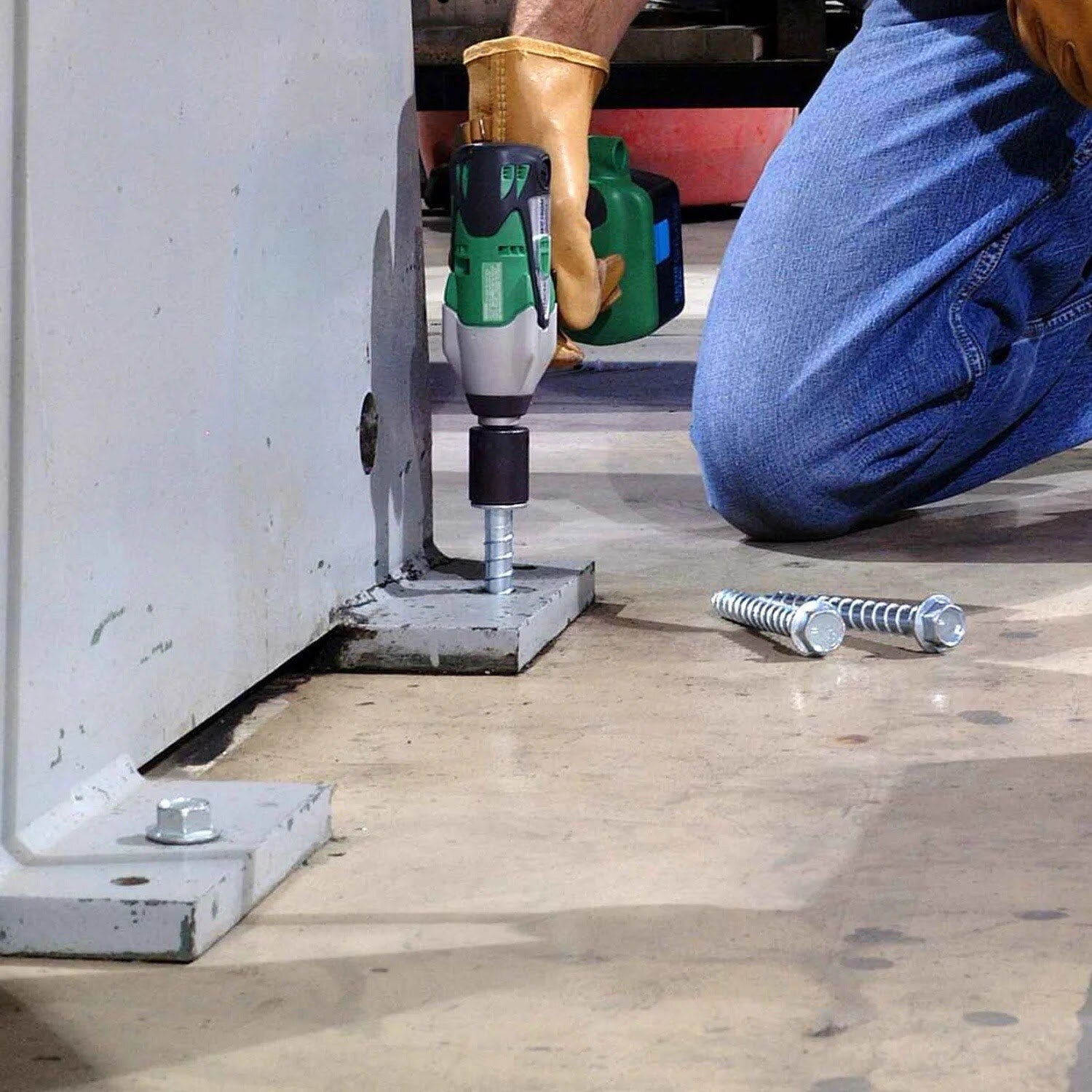

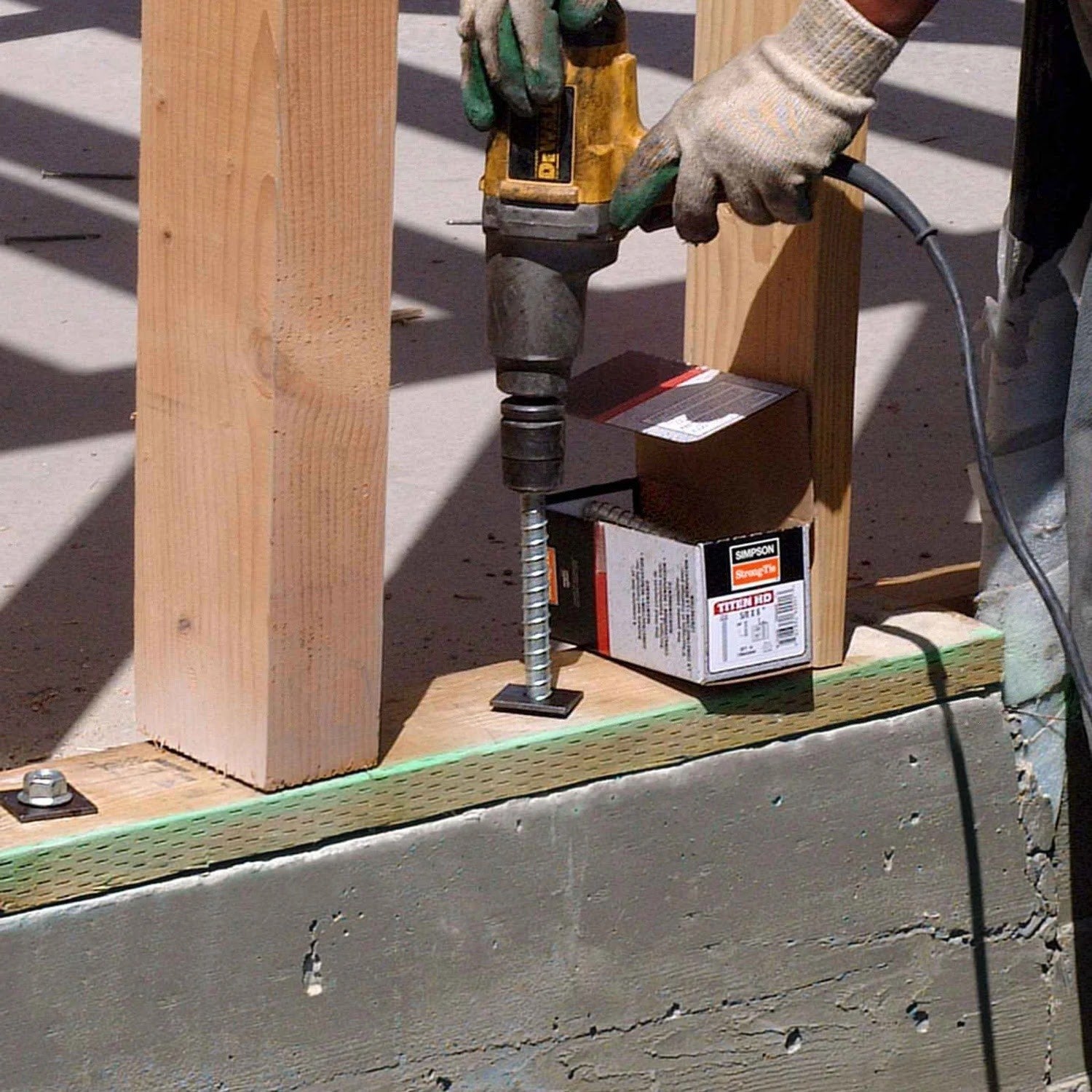

Simpson THDB25178H Installation Overview
- Drill a hole in the base material using a carbide drill bit matching the anchor diameter.
- Clean the hole using compressed air.
- Insert the anchor through the fixture and into the hole.
- Tighten the anchor until the hex-washer head contacts the fixture.
Simpson THDB25178H Specifications
| Diameter | 1/4" |
| Length | 1-7/8" |
| Finish | Zinc |
| Material | Carbon Steel |
| Drill Bit Size | 1/4" |
| Drive Type | 3/8" Hex |
| Fixture Hole Size | 3/8"-7/16" |
| Head Type | Hex Head |
| Quantity | 100 |
NOTE: Use the correct drill bit size and follow installation guidelines to ensure optimal performance
