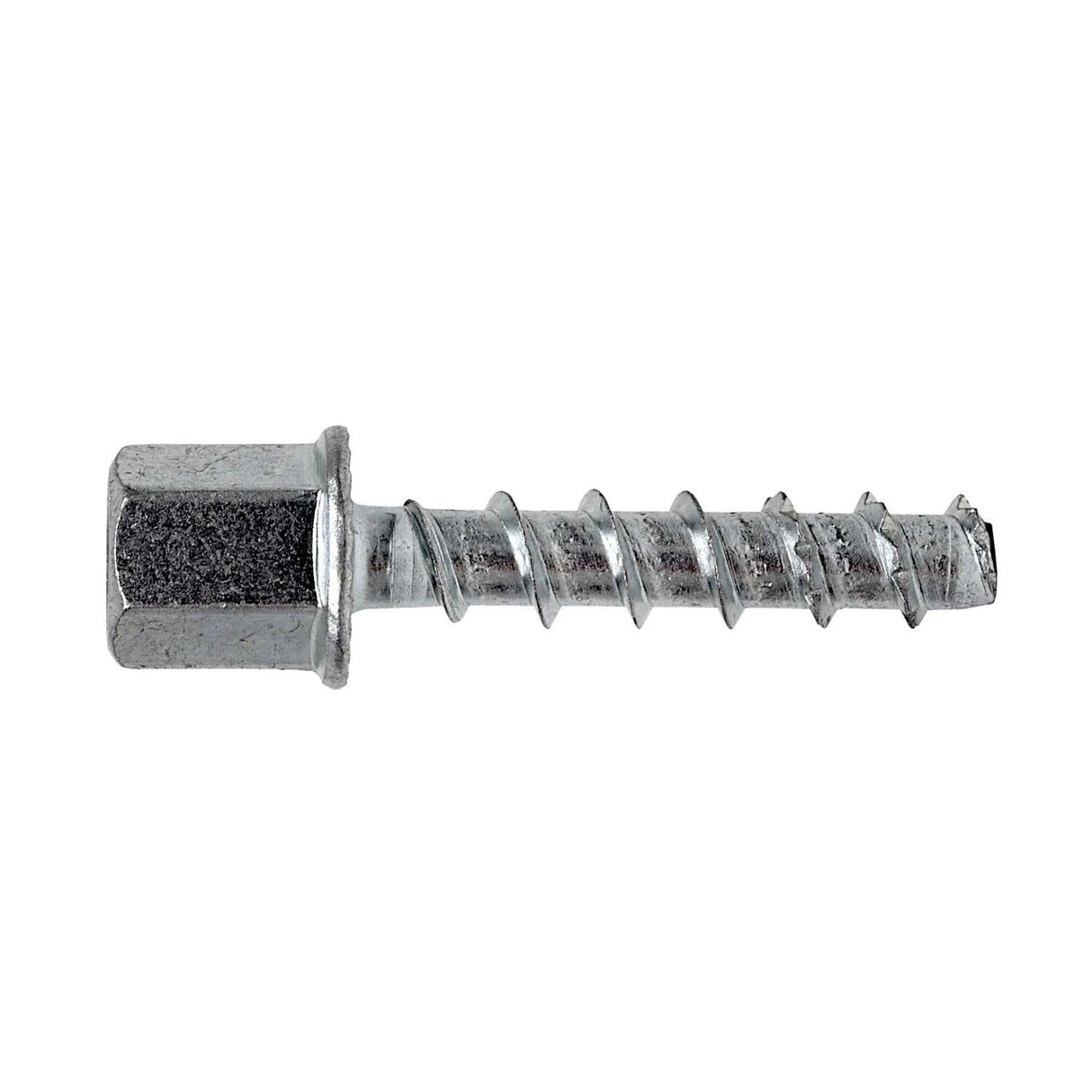

Simpson Strong-Tie THDB37158RH Titen HD (1/4" x 1-5/8") Threaded Rod Hanger for 3/8-in. Rod (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie THDB37158RH Titen HD (1/4" x 1-5/8") T...
Key Specifications
Description
Description
Simpson Anchors THDB37158RH Description
The Titen Hd Threaded Rod Hanger Is A High-Strength Screw Anchor Designed To Suspend Threaded Rod From Concrete Slabs, Beams Or Concrete Over Metal In Order To Hang Pipes, Cable Trays And Hvac Equipment. The Anchor Offers Low Installation Torque With No Secondary Setting, And Has Been Tested To Offer Industry-Leading Performance In Cracked And Uncracked Concrete Even In Seismic Loading Conditions.
Simpson Anchors THDB37158RH Includes
- (20) Anchors
Simpson Anchors THDB37158RH Features
- Thread Design Undercuts To Efficiently Transfer The Load To The Base Material
- Serrated Cutting Teeth And Patented Thread Design Enable Quick And Easy Installation
- Specialized Heat-Treating Process Creates Tip Hardness To Facilitate Cutting While The Anchor Body Remains Ductile

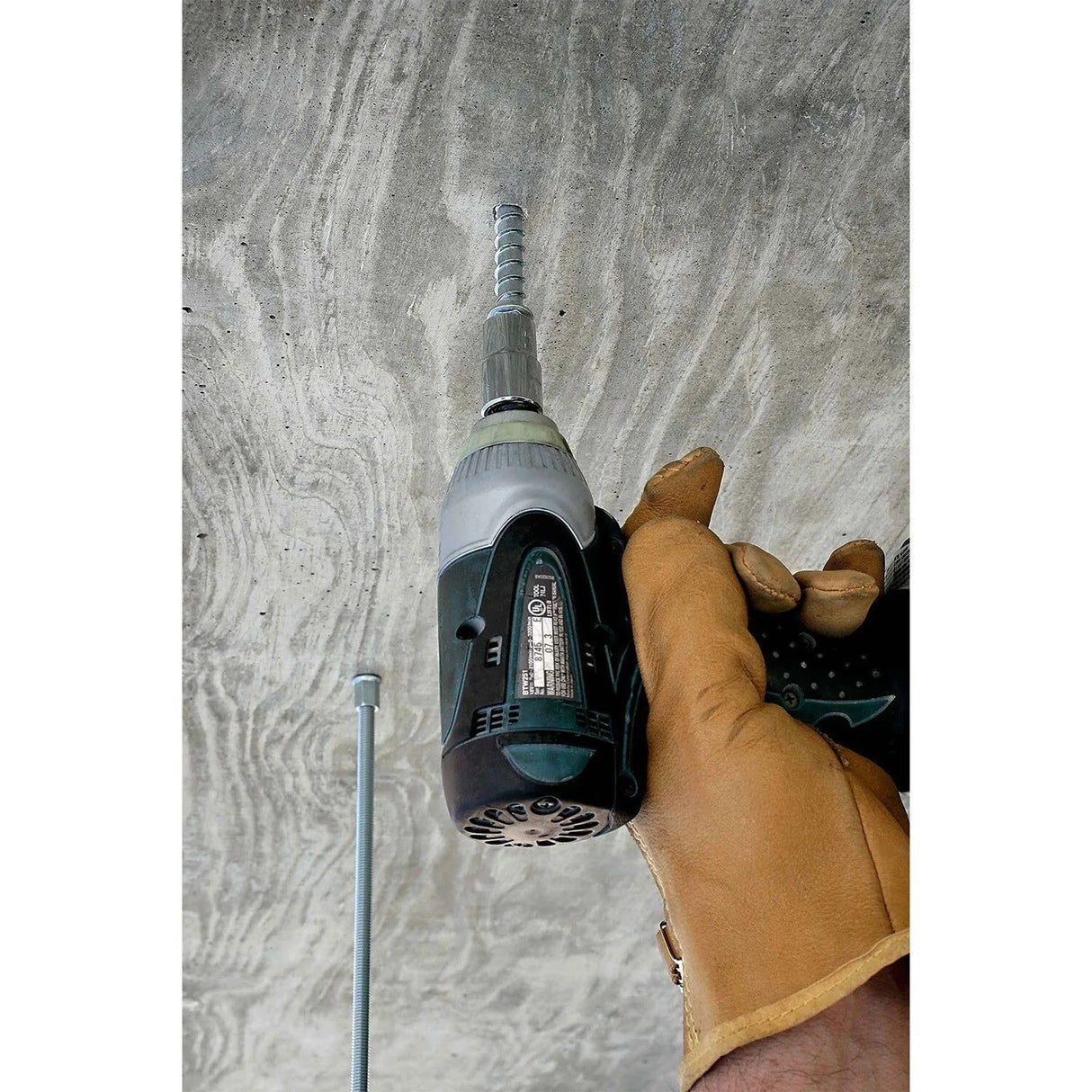

- Designed To Install Using A Rotary Hammer Or Hammer Drill With Standard Ansi Drill Bits No Special Tools Required
- Installs With Standard-Sized Sockets
- Code Listed For Cracked And Uncracked Concrete Applications Under The 2015, 2012 And 2009 Ibc/Irc, Per Icc-Es Esr-2713
- Ul/Fm Listed
Simpson Anchors THDB37158RH Specifications
| Material | Carbon steel |
| Finish | Zinc plated |
| Anchor Diameter | 3/8" |
| Anchor Length | 1-5/8" |
| Anchor Material | Zinc |
| Anchor Head Type | Hex |
| Drill Bit Diameter | 1/4" |
| Wrench Size | 1/2 |
| Minimum Embedment (in.) | 1-5/8 inch |
| Rod Diameter | 3/8 inch |
