Simpson Strong-Tie TSP Stud-Plate Tie for Wood Construction
Key Specifications
Description
Description

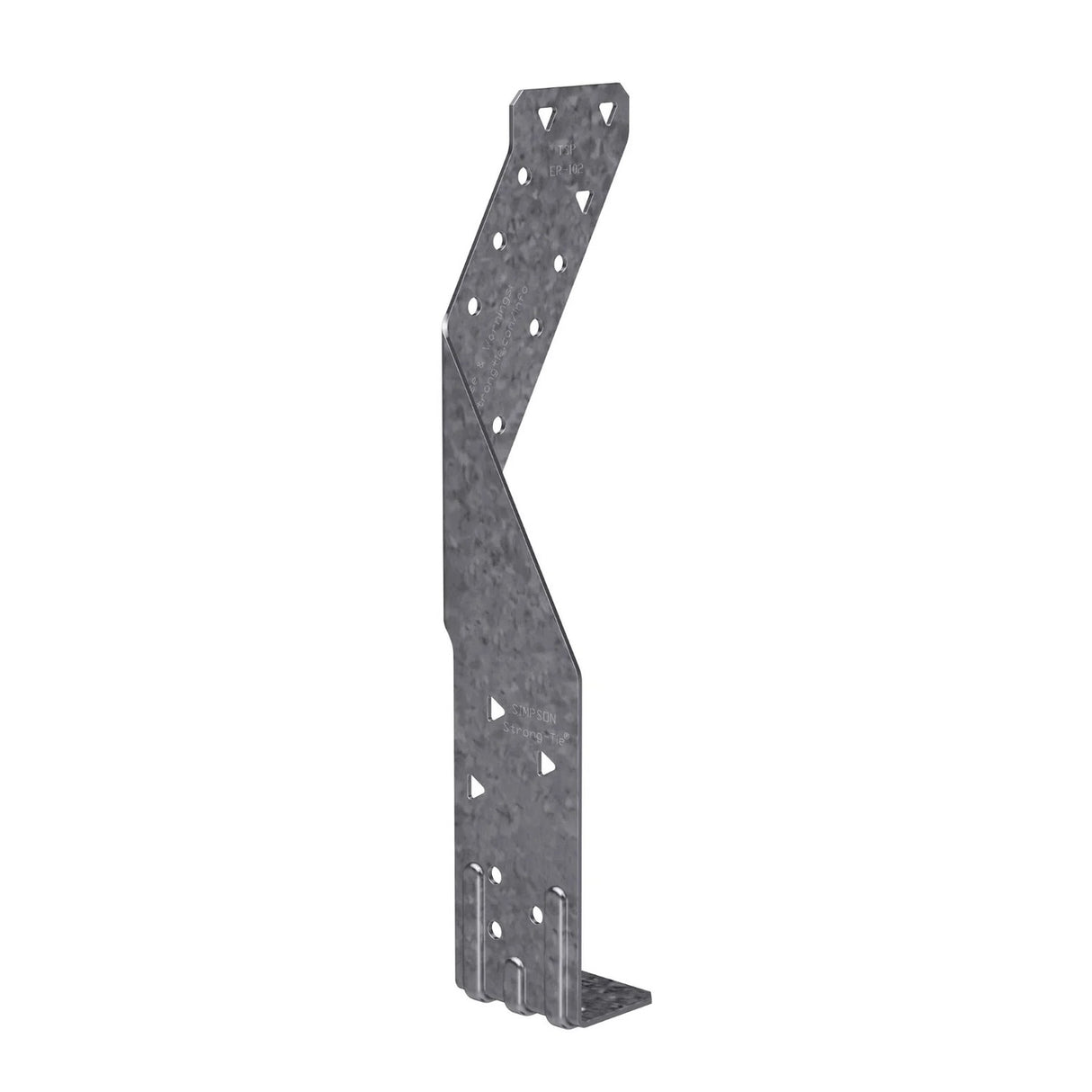

Simpson Strong-Tie TSP Description
The Simpson Strong-Tie TSP Stud-Plate Tie provides a secure connection between truss/rafter and wall structures, designed to resist wind and seismic forces.
Simpson Strong-Tie TSP Includes
- (1) TSP Stud-Plate Tie
Simpson Strong-Tie TSP Features
- Embossment feature provides strength at the bend
- Can be installed before or after placement of wall
- G90 Galvanized finish for corrosion resistance
- Designed for wood-to-wood fastening
Simpson Strong-Tie TSP Applications
- Wood-to-wood fastening in construction

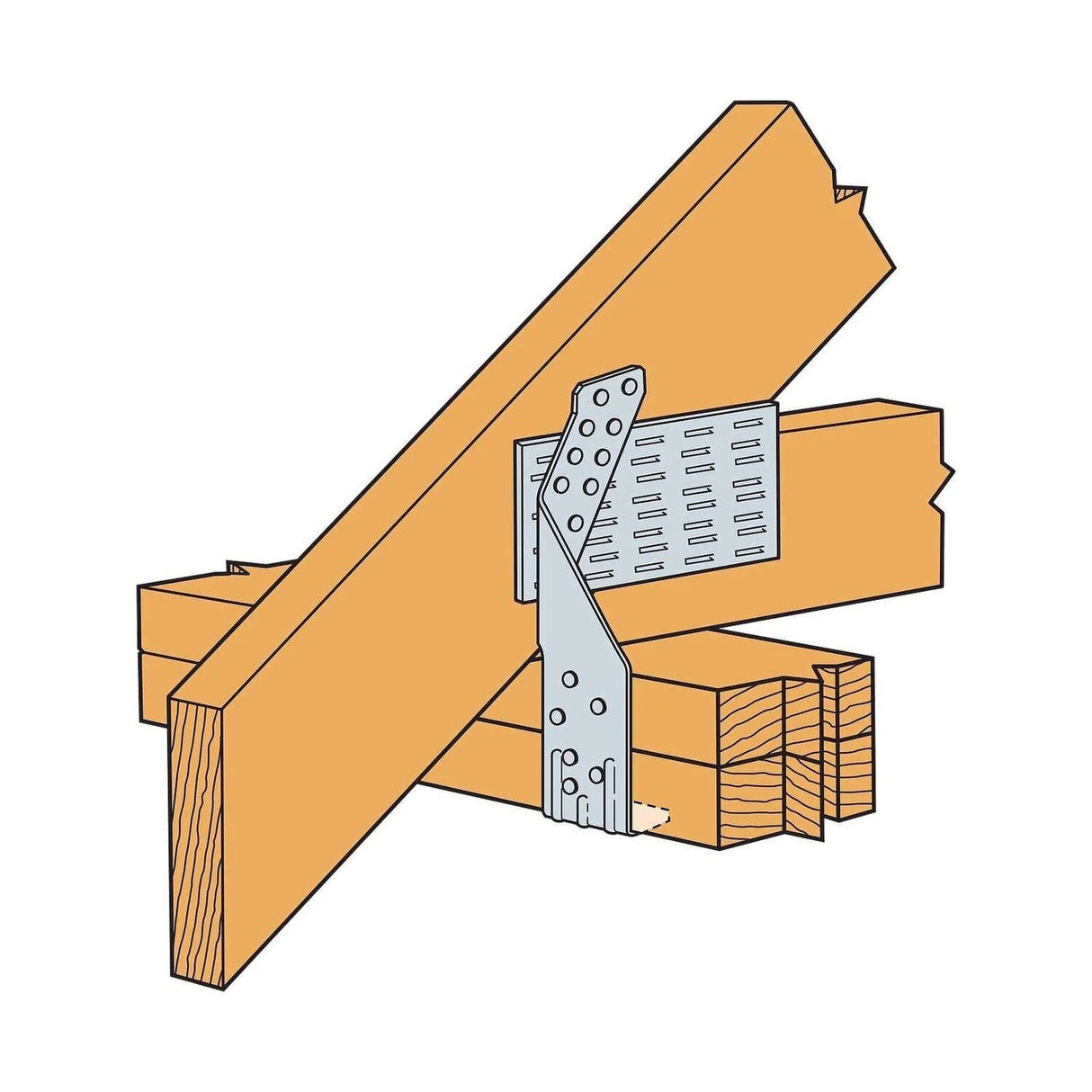

- Securing truss/rafter to wall structures
- Resisting wind and seismic forces

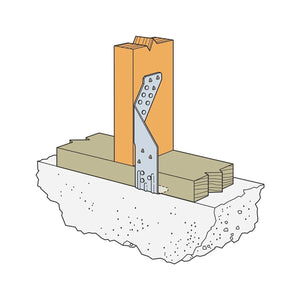

Simpson Strong-Tie TSP Installation Overview
- Use all specified fasteners

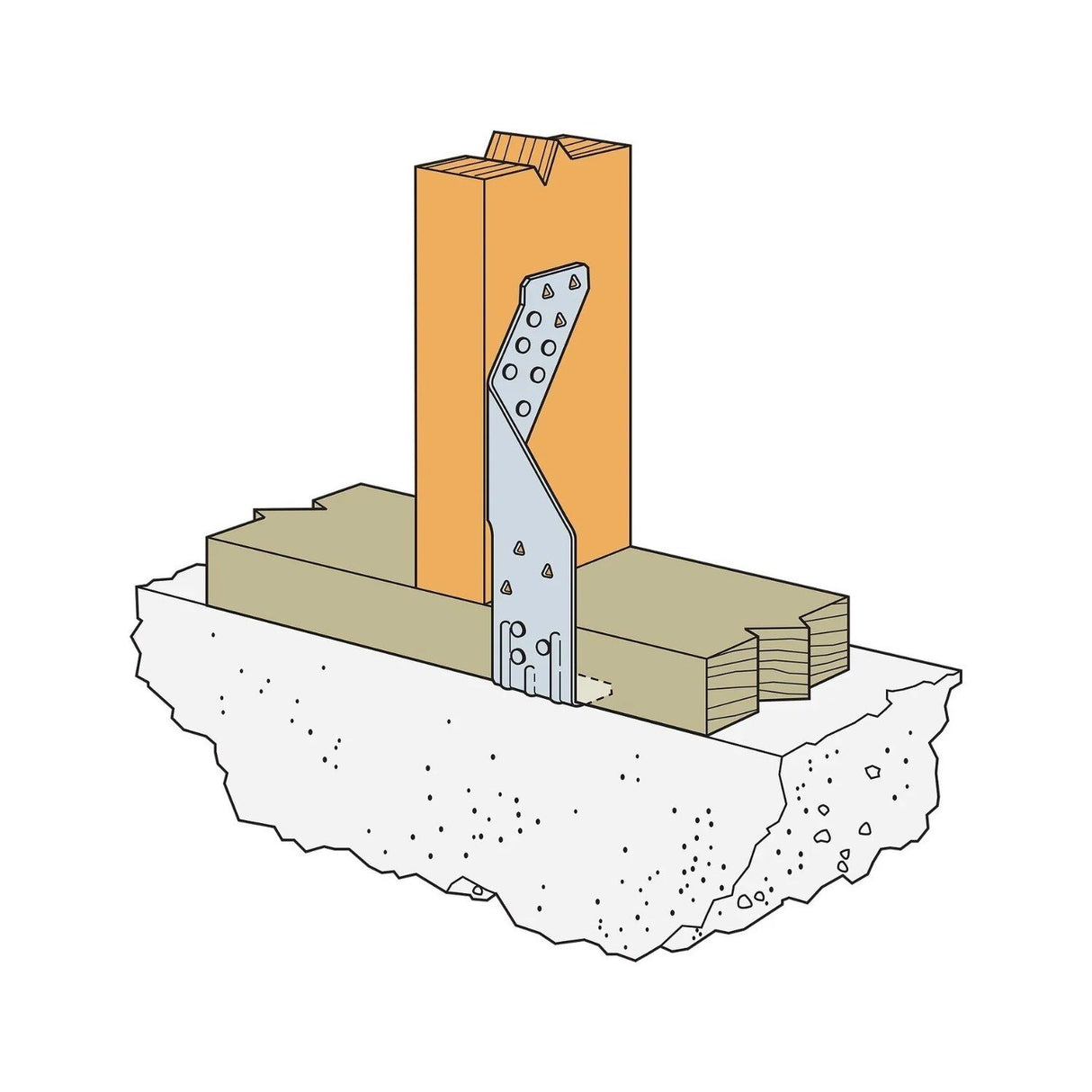

- Fill all round holes for sill-plate installation

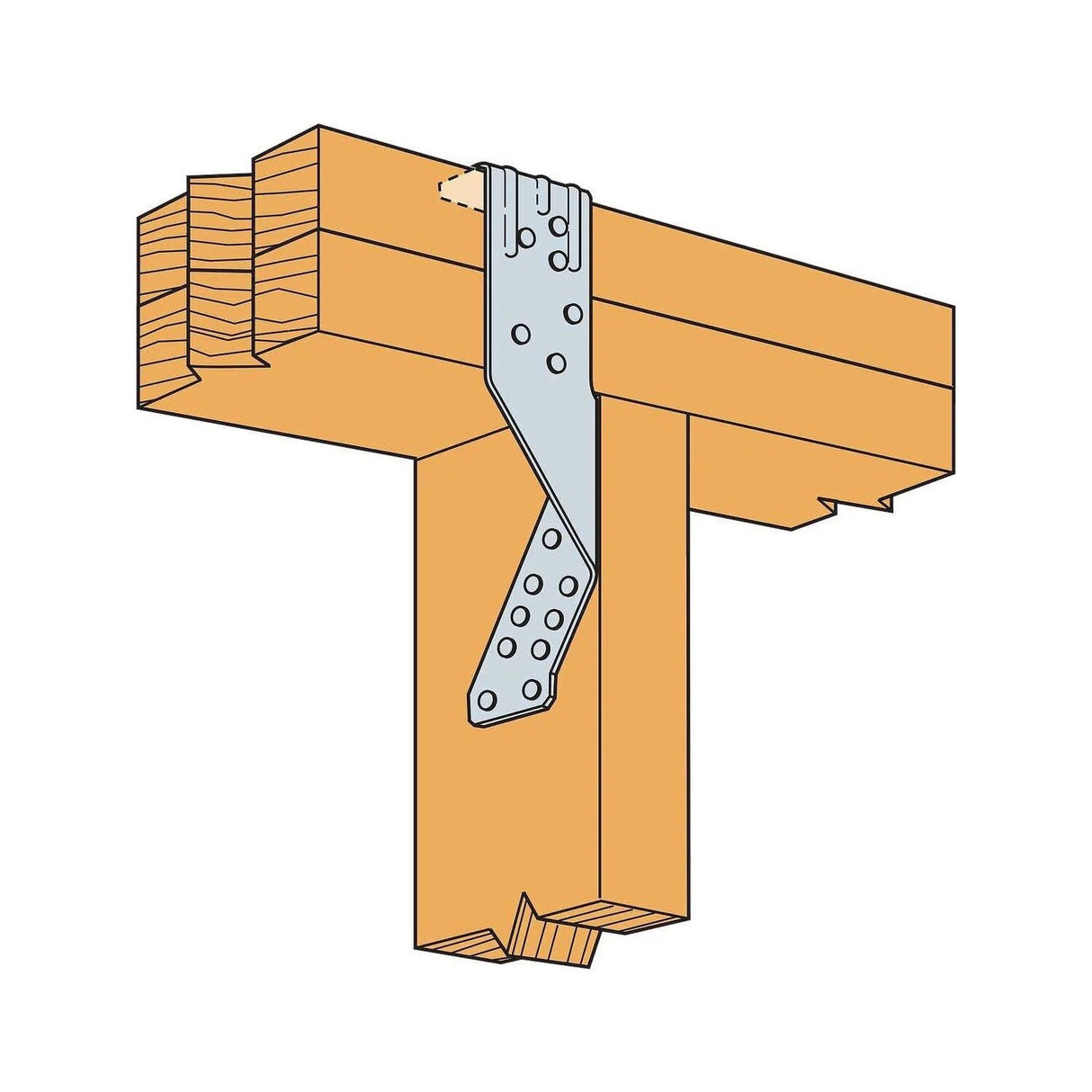

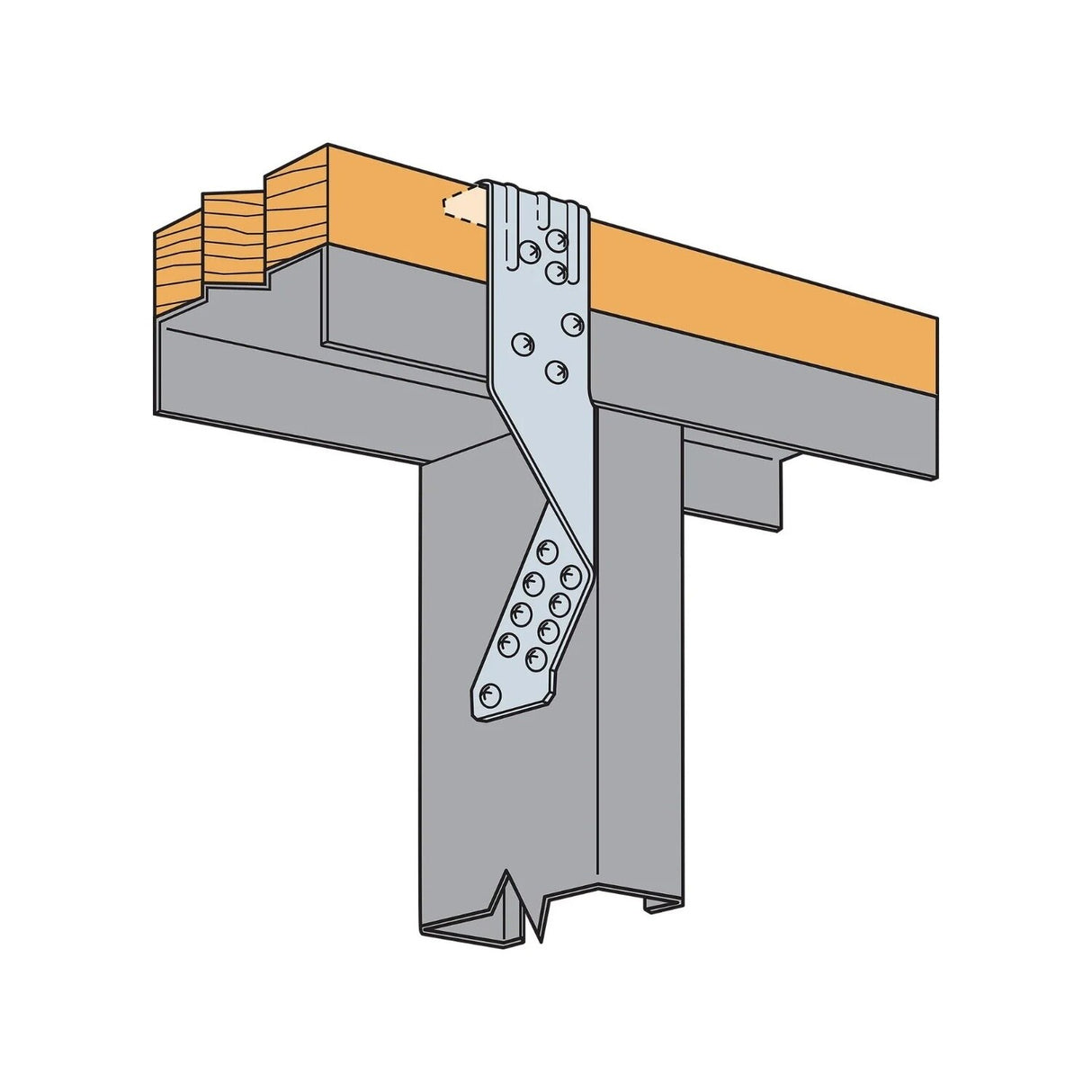

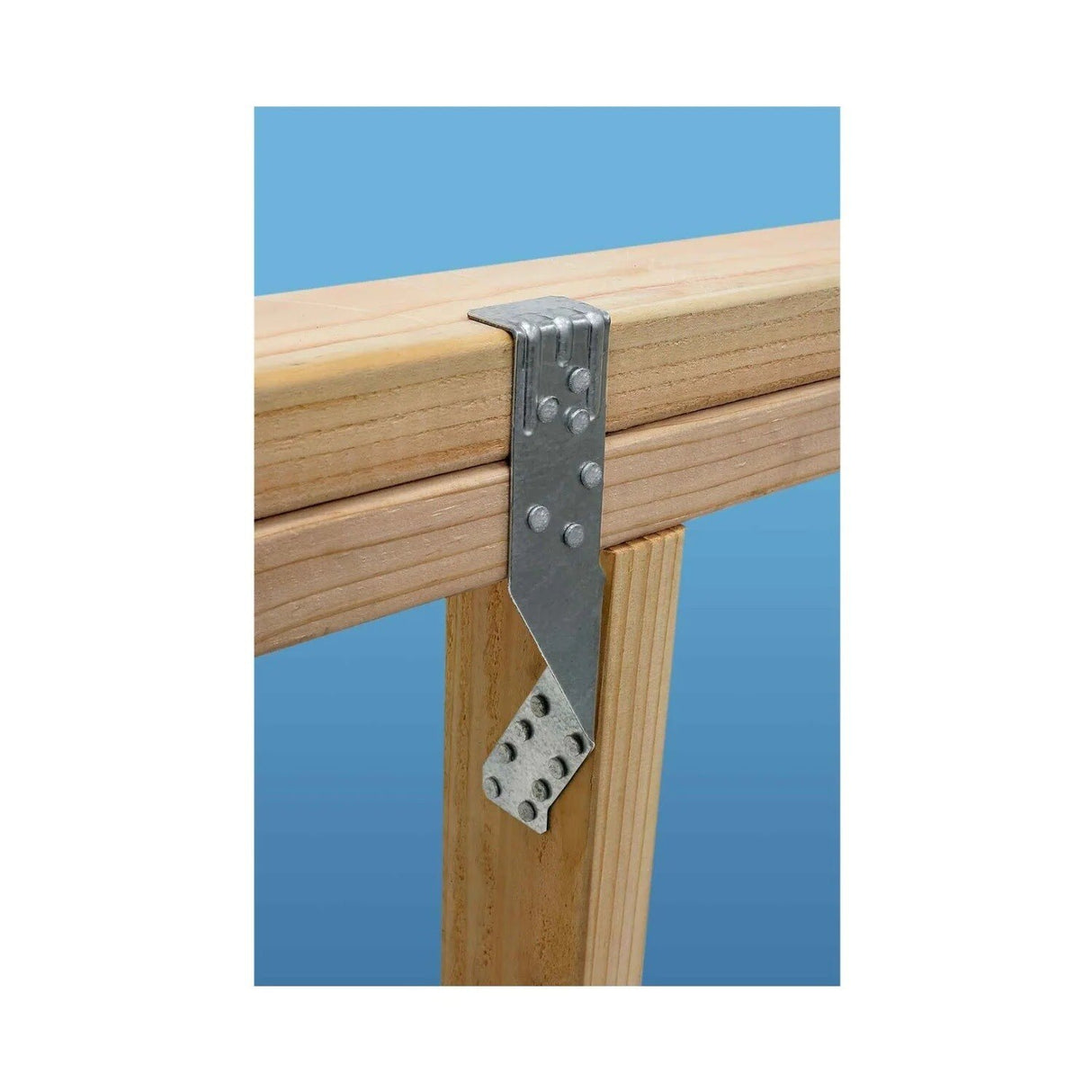

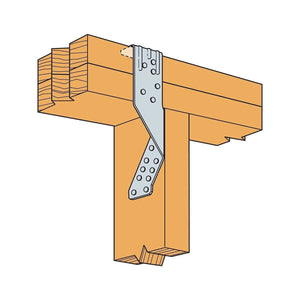

- Fill all round and triangle holes for top-plate installation
- Use hot-dip galvanized nails with ZMAX and HDG connector products

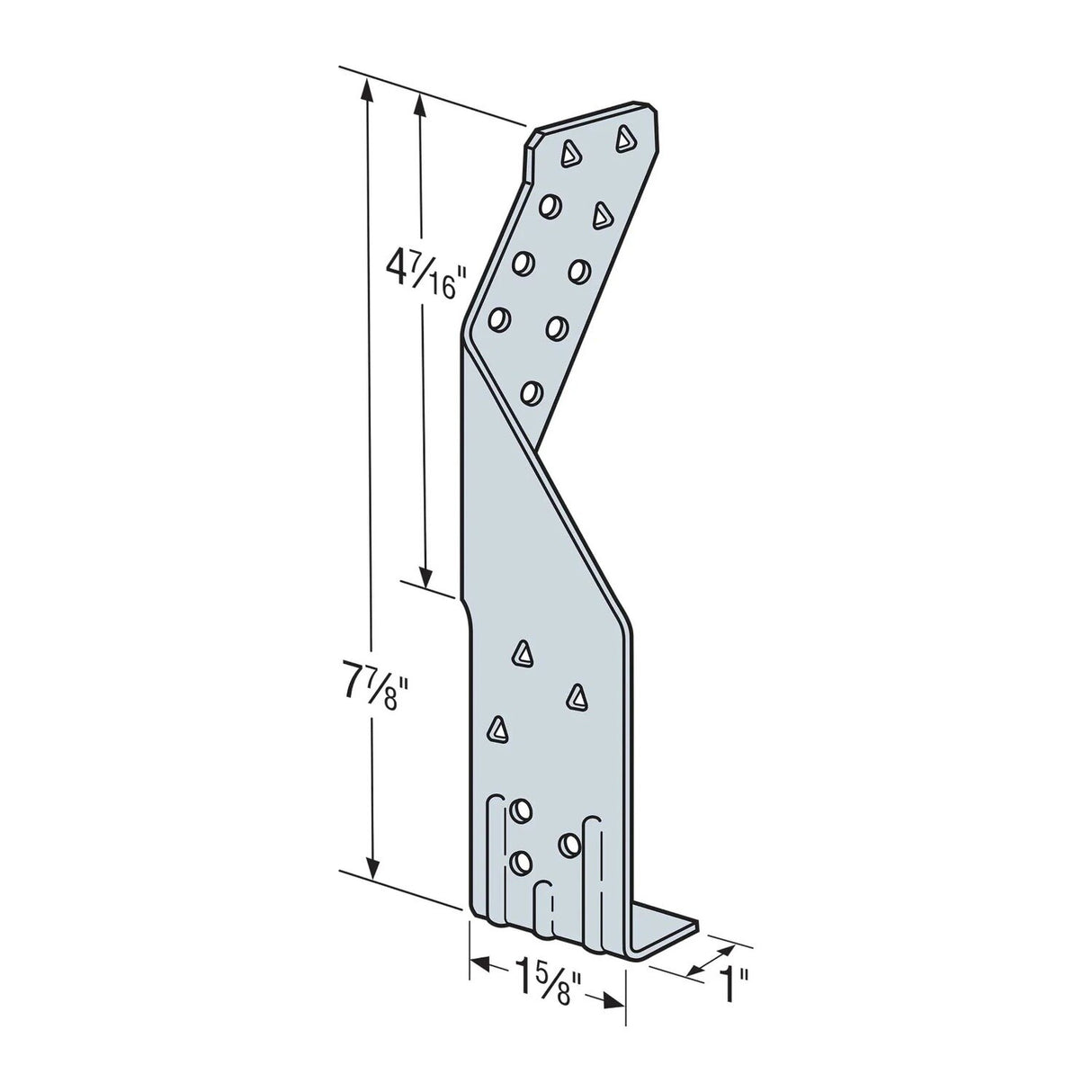

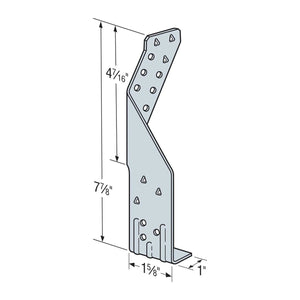

Simpson Strong-Tie TSP Specifications
| Material | 16 gauge |
| Finish | G90 Galvanized |
| Width | 1 1/2 in. |
| Length | 7 7/8 in. |
| Weight | 0.2 lb |
| Fasteners required | To Rafters/Truss - (9) 0.148" x 1-1/2" Nails, Top Plates - (6) 0.148" x 1-1/2" Nails OR (6) 0.148" x 3" Nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
