Simpson Strong-Tie U210Z (7-13/16") 16Ga U Face-Mount Joist Hanger - G90 Galvanized for 2x10
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie U210Z (7-13/16") 16Ga U Face-Mount Joist Ha...
Key Specifications
Description
Description

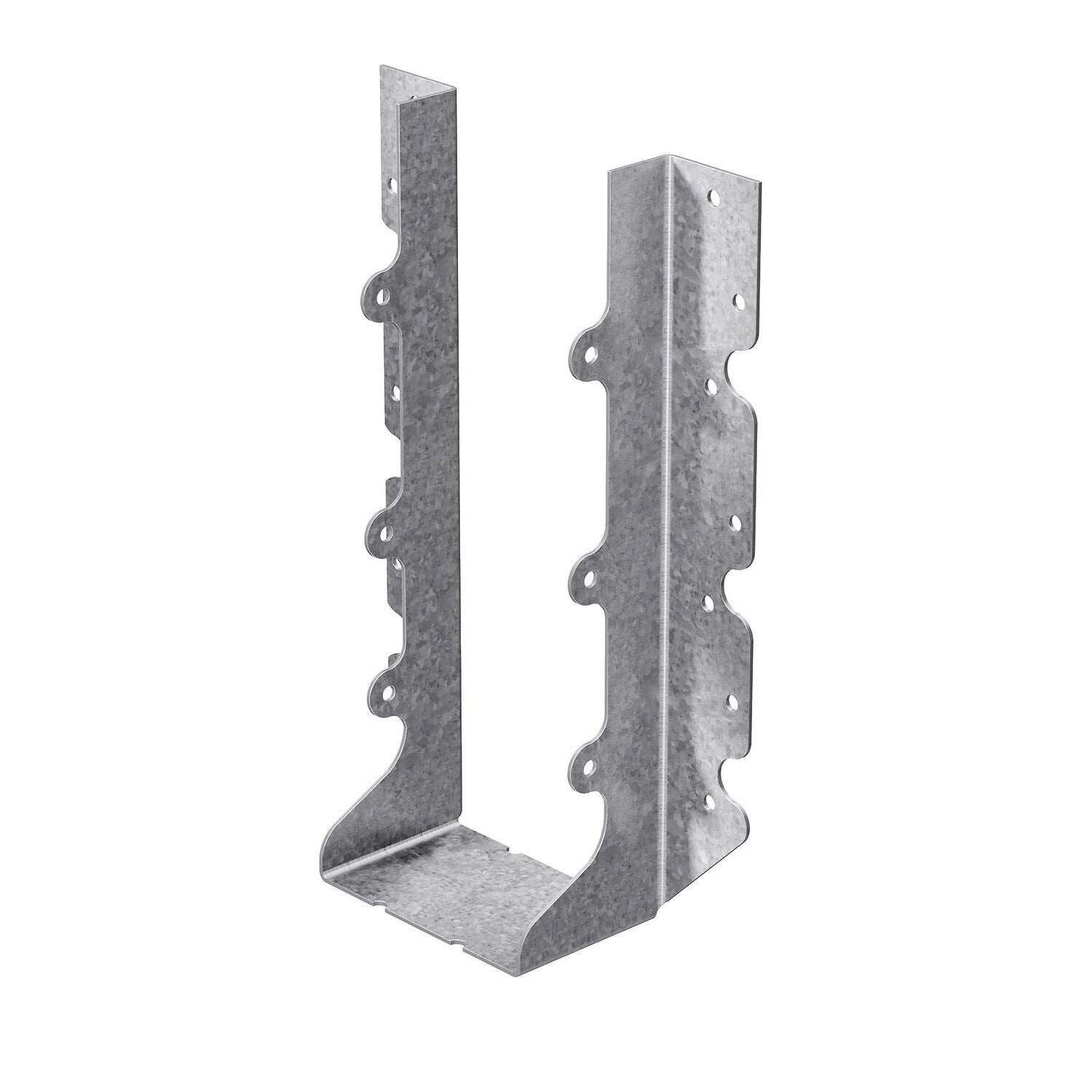

Simpson Strong-Tie U210Z Description
The Simpson Strong-Tie U210Z Face-Mount Joist Hanger is designed for secure and stable wood framing connections, offering corrosion resistance and optimized load distribution.
Simpson Strong-Tie U210Z Includes
- (1) 2x10 Face-Mount Joist Hanger
Simpson Strong-Tie U210Z Features
- Versatile Compatibility: Designed for both solid sawn lumber and engineered wood joists.
- Face-Mount Design: Offers easy installation with a flush, secure connection.
- Optimized Load Distribution: Provides full bearing support, preventing twisting or shifting.
- ZMAX Galvanized Steel Construction: Enhances corrosion resistance for durability.
- Precision Engineering: Manufactured for tight tolerances and a snug fit.
Simpson Strong-Tie U210Z Applications

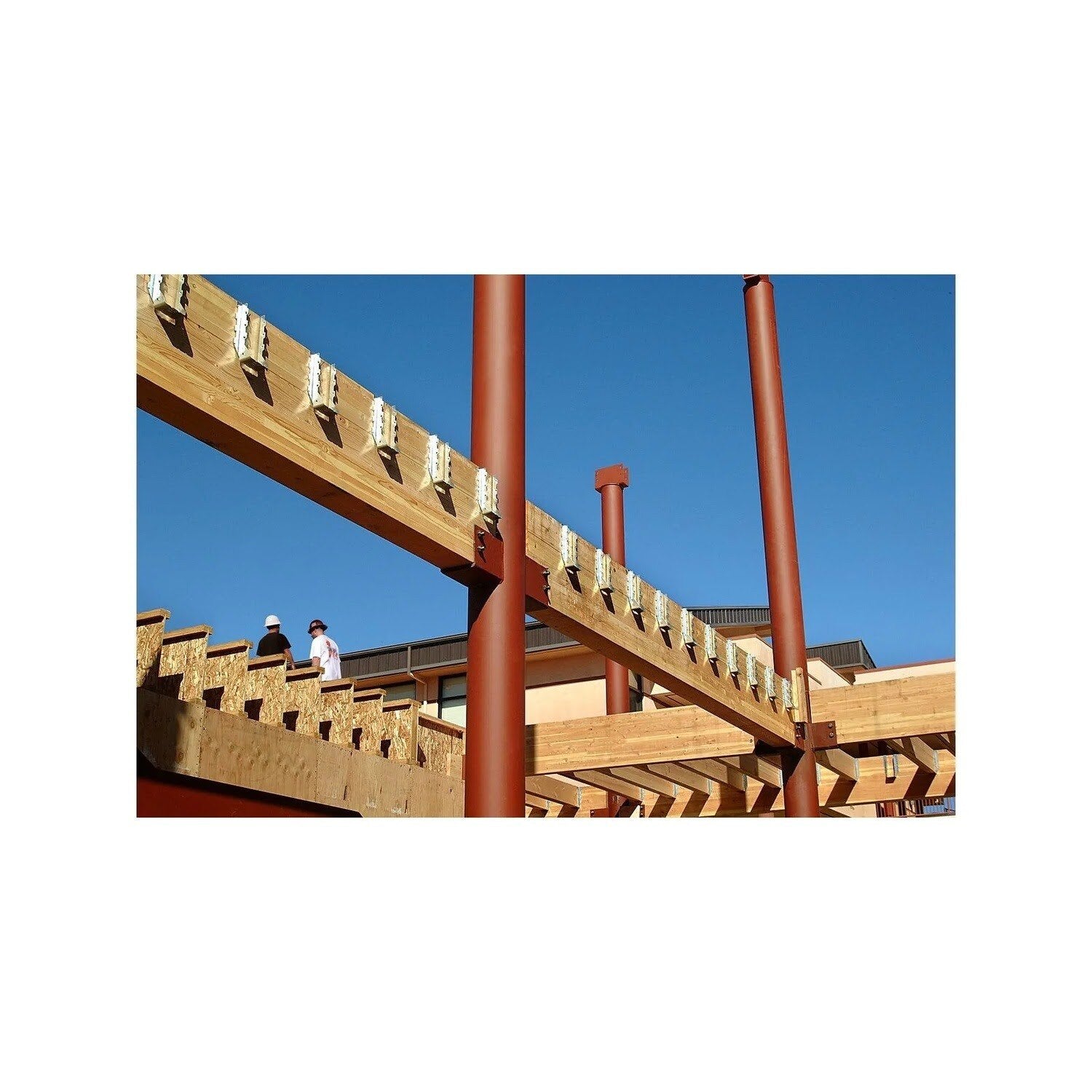

- Deck Framing: Secures joists to beams for stable deck structures.
- Floor Joists: Supports floor framing systems in buildings.
- Roof Framing: Provides strong connections for rafters.

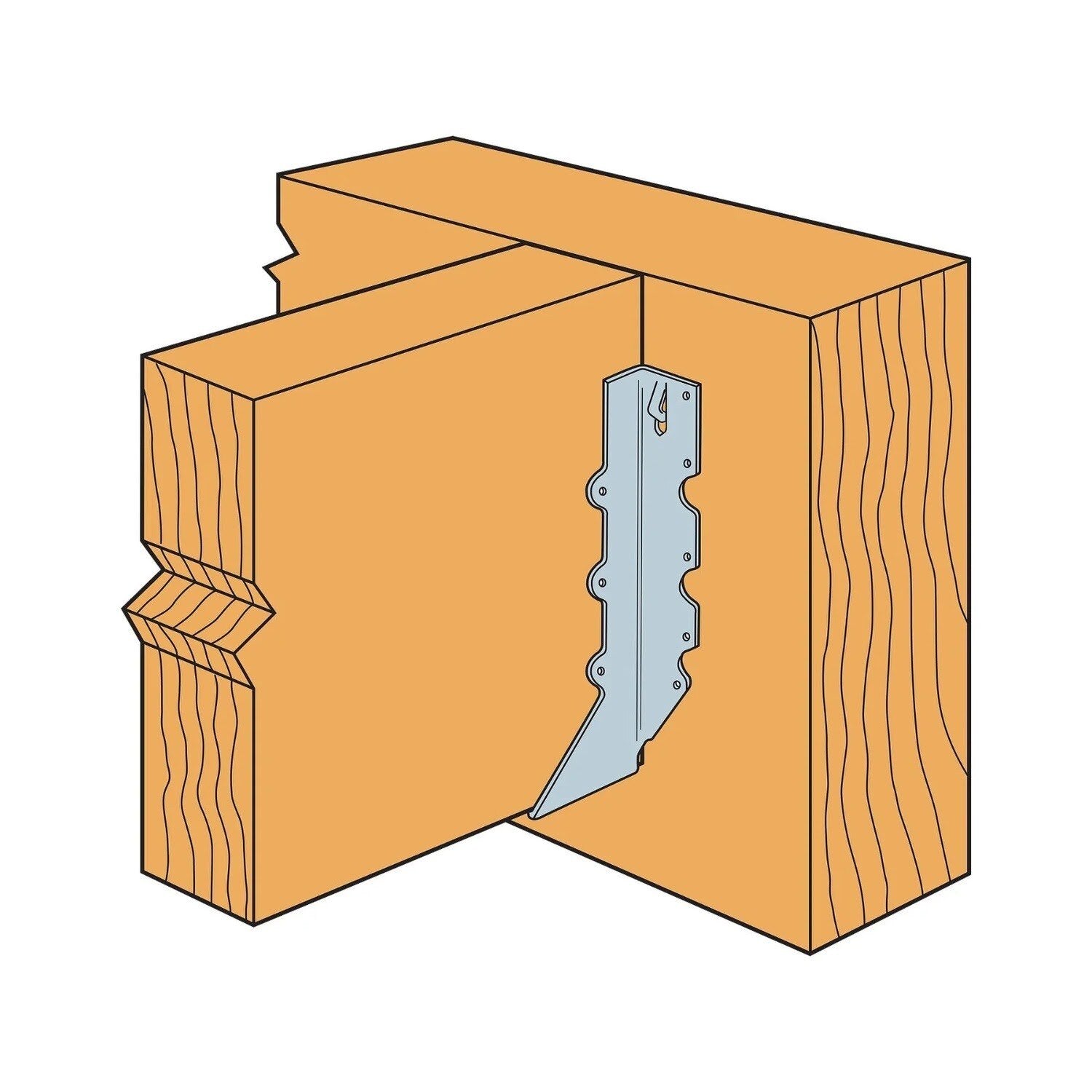

Simpson Strong-Tie U210Z Installation Overview
- Use nails, screws, or SDS Heavy-Duty Connector screws as specified.
- Ensure the joist is fully seated in the hanger for maximum support.
- Install fasteners into all nail holes for optimal strength.
- Verify the hanger meets the required load capacity.
Simpson Strong-Tie U210Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | See Spec Sheet |
| For Treated Lumber | Yes |
| Height | 7-13/16" |
| Joist size | 2" X 10" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 16 Gauge |
| Width | 1-9/16" |
