Simpson Strong-Tie WP210 Welded Top Flange I-Joist Purlin Hanger
Key Specifications
Description
Description
Simpson Strong-Tie WP210 Description
The Simpson WP Welded Purlin Hangers are designed to provide robust support for joists connecting to purlins or beams in a variety of construction applications.
Simpson Strong-Tie WP210 Includes

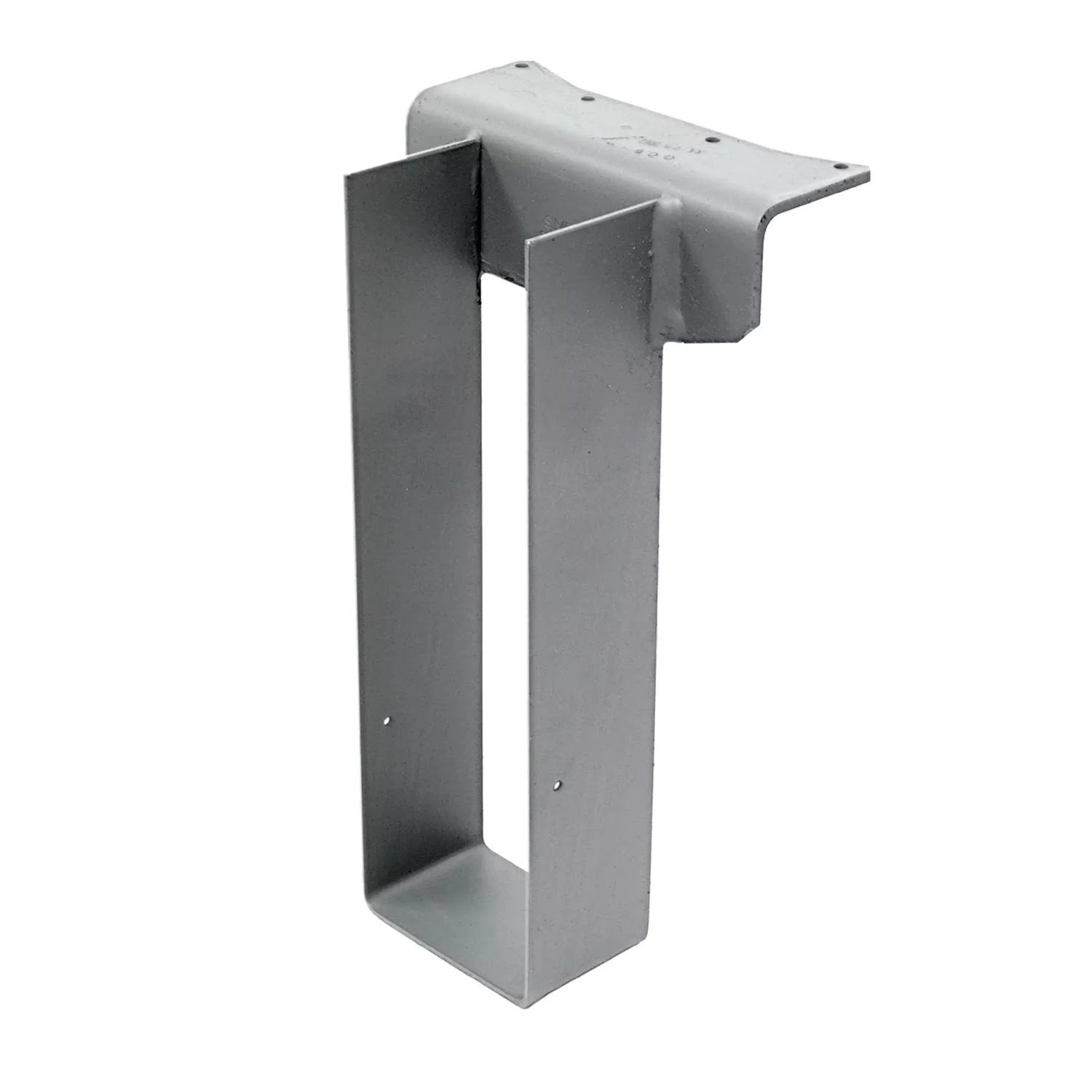

- (1) Welded Purlin Hanger
Simpson Strong-Tie WP210 Features
- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35 Degree to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Design Flexibility: Can be skewed up to 84 Degree and sloped up to 45 Degree for versatile installation in complex framing applications
- Heavy-Duty Construction: Manufactured from 12-gauge steel for enhanced strength and durability
- Corrosion-Resistant Finish: Simpson Strong-Tie gray paint provides protection against environmental factors
- Customizable Styles: Available in Type A (bevel-cut) or Type B (square-cut) to accommodate solid sawn and engineered wood applications
Simpson Strong-Tie WP210 Applications
- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications
- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers
Simpson Strong-Tie WP210 Installation Overview
- Use all specified fasteners.

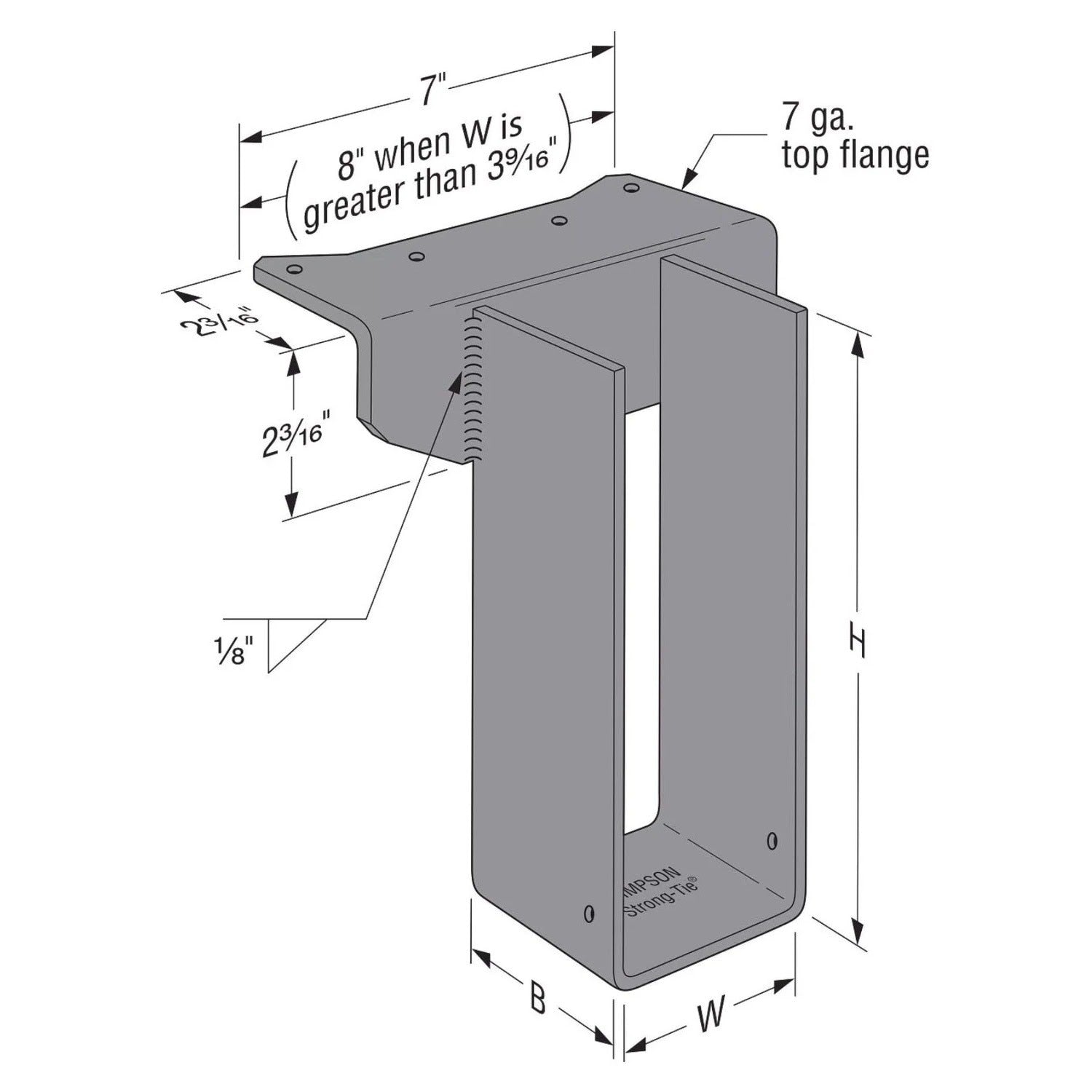

- H dimensions are sized to account for normal joist shrinkage.
- W dimensions are for dressed timber widths.
- The WP may be used for weld-on applications.

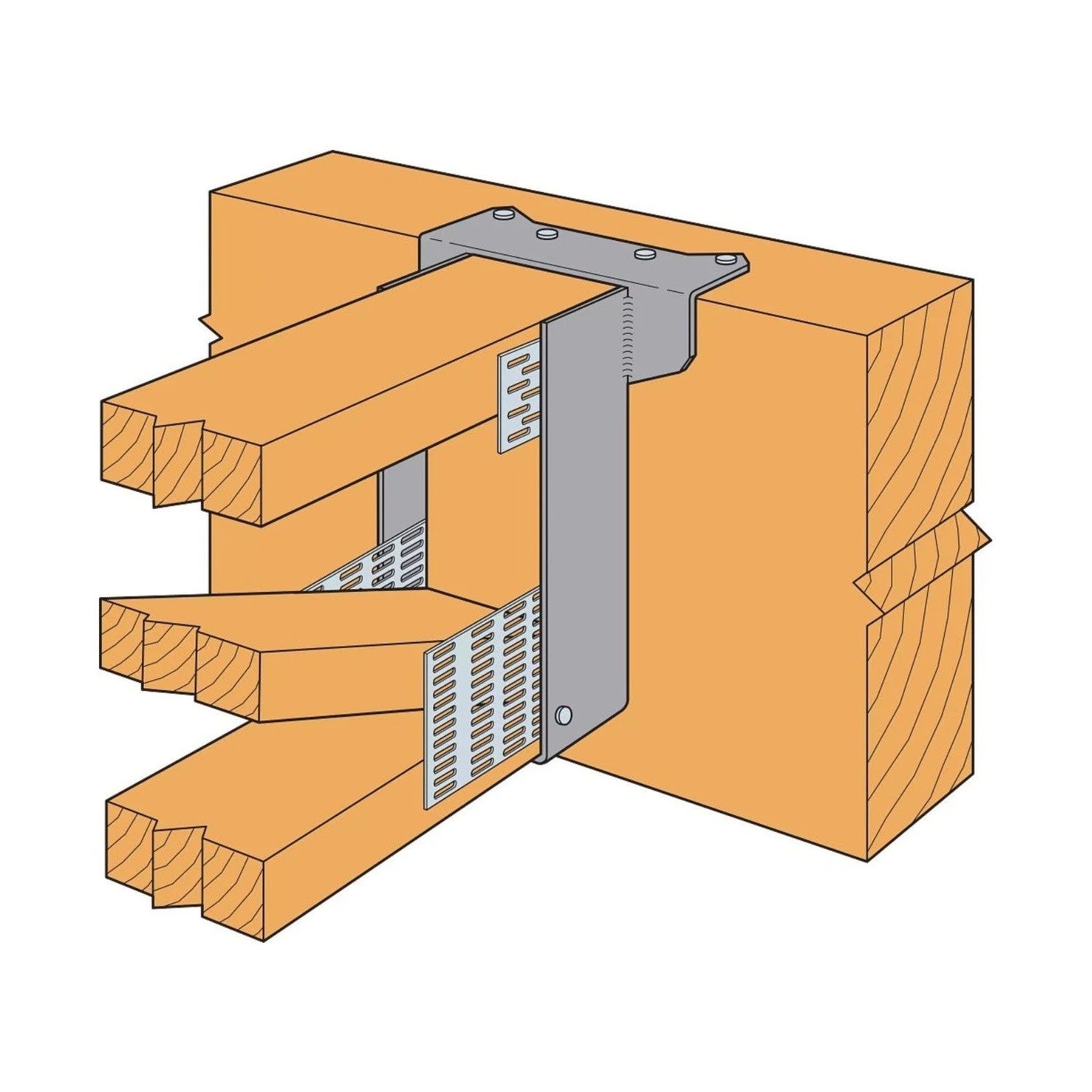

- Hangers can support multi-ply carried members; the individual members must be secured together to work as a single unit before installation into the hanger.
- Non-modified hangers can support joists sloped up to 1/4:12 using table loads.

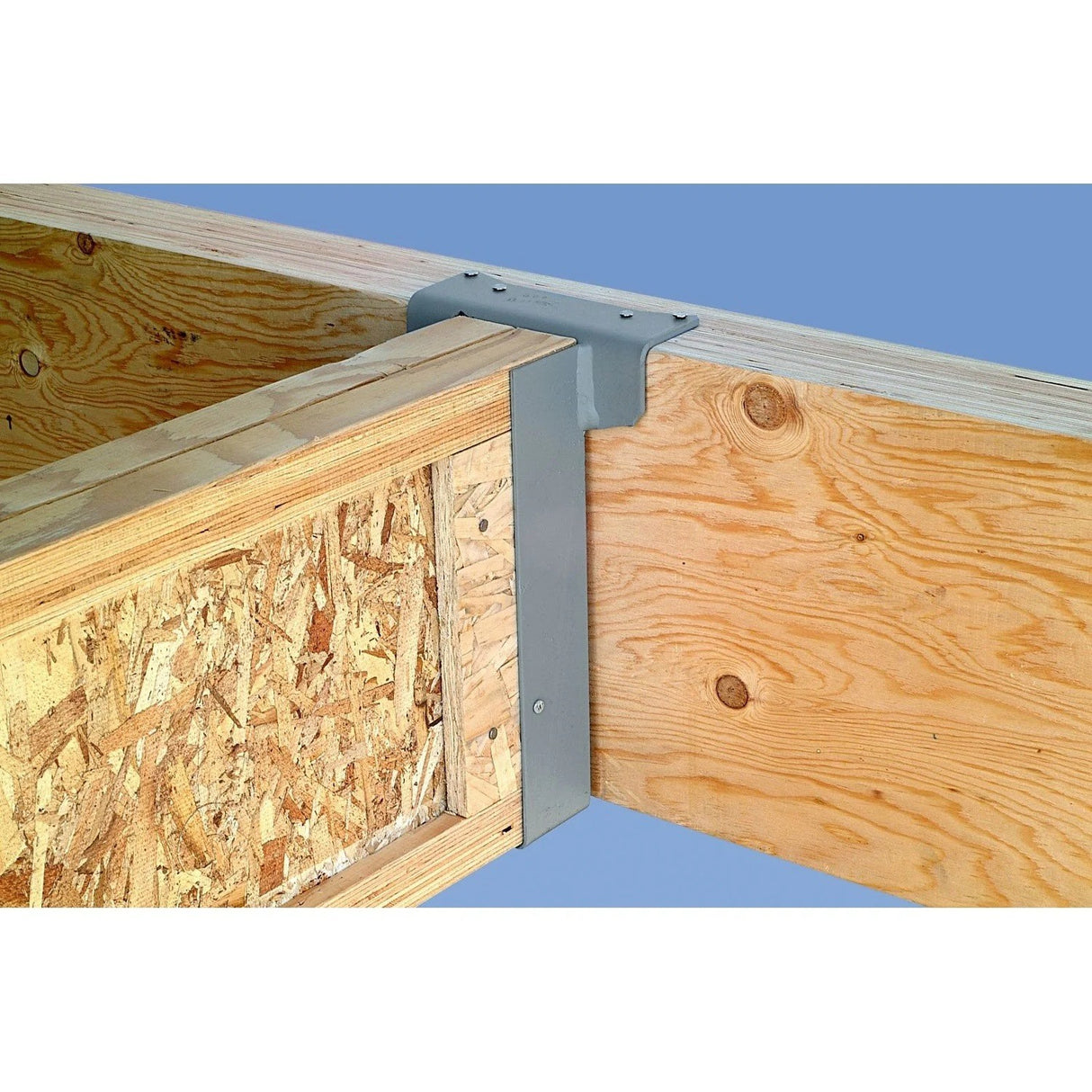

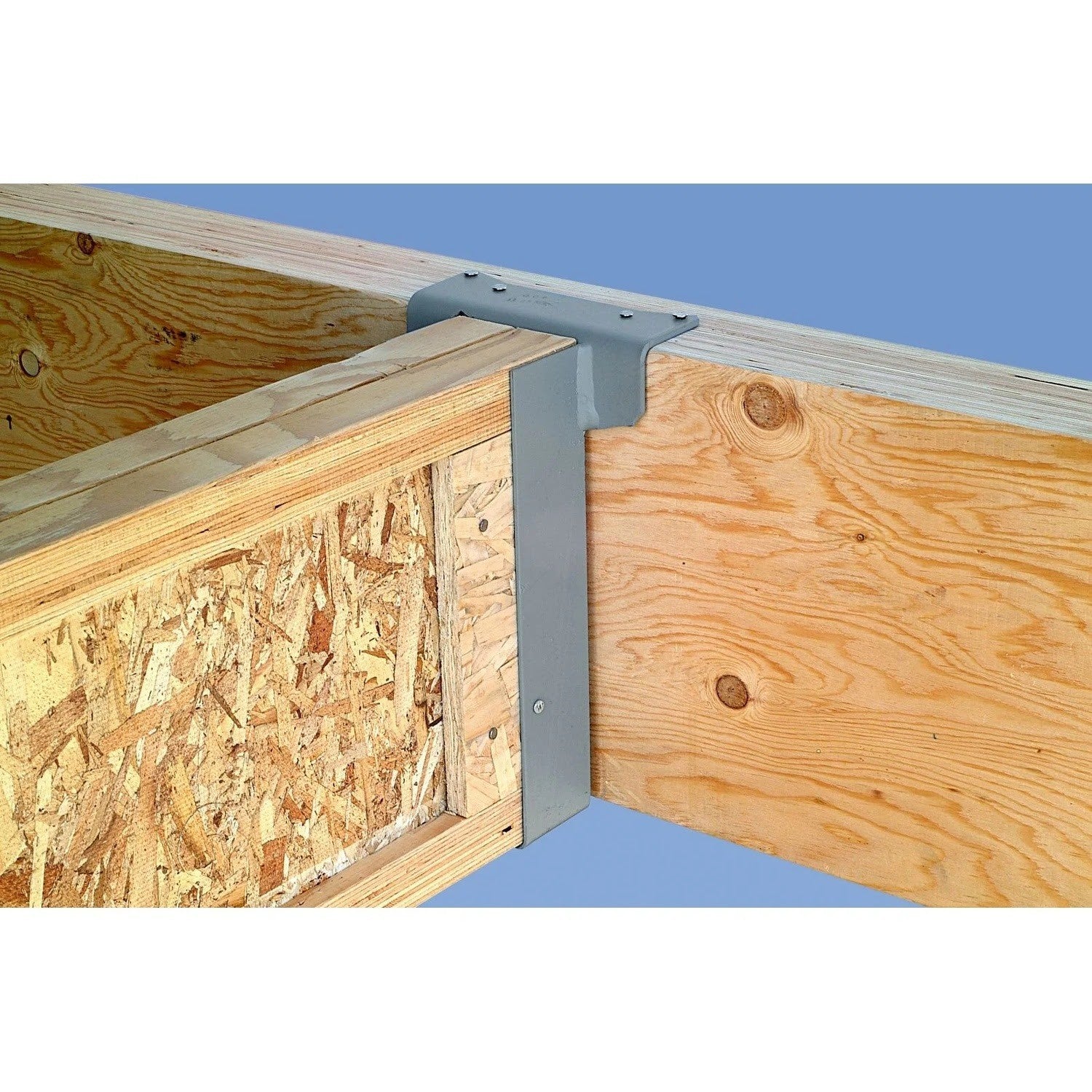

- Web stiffeners are required for these hangers when using engineered wood.
- For attaching to multi-ply headers in engineered wood applications, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers.
Simpson Strong-Tie WP210 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| For Treated Lumber | No |
| Joist size | 2" X 10" |
| Thickness | 12 Gauge |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
