Simpson Strong-Tie WP28-2 Welded Purlin Hanger for Double 2x8 Joists, Top-Flange, 12 Gauge Steel
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie WP28-2 Welded Purlin Hanger for Double 2x8 Joist...
Key Specifications
Description
Description
Simpson Strong-Tie WP28-2 Description

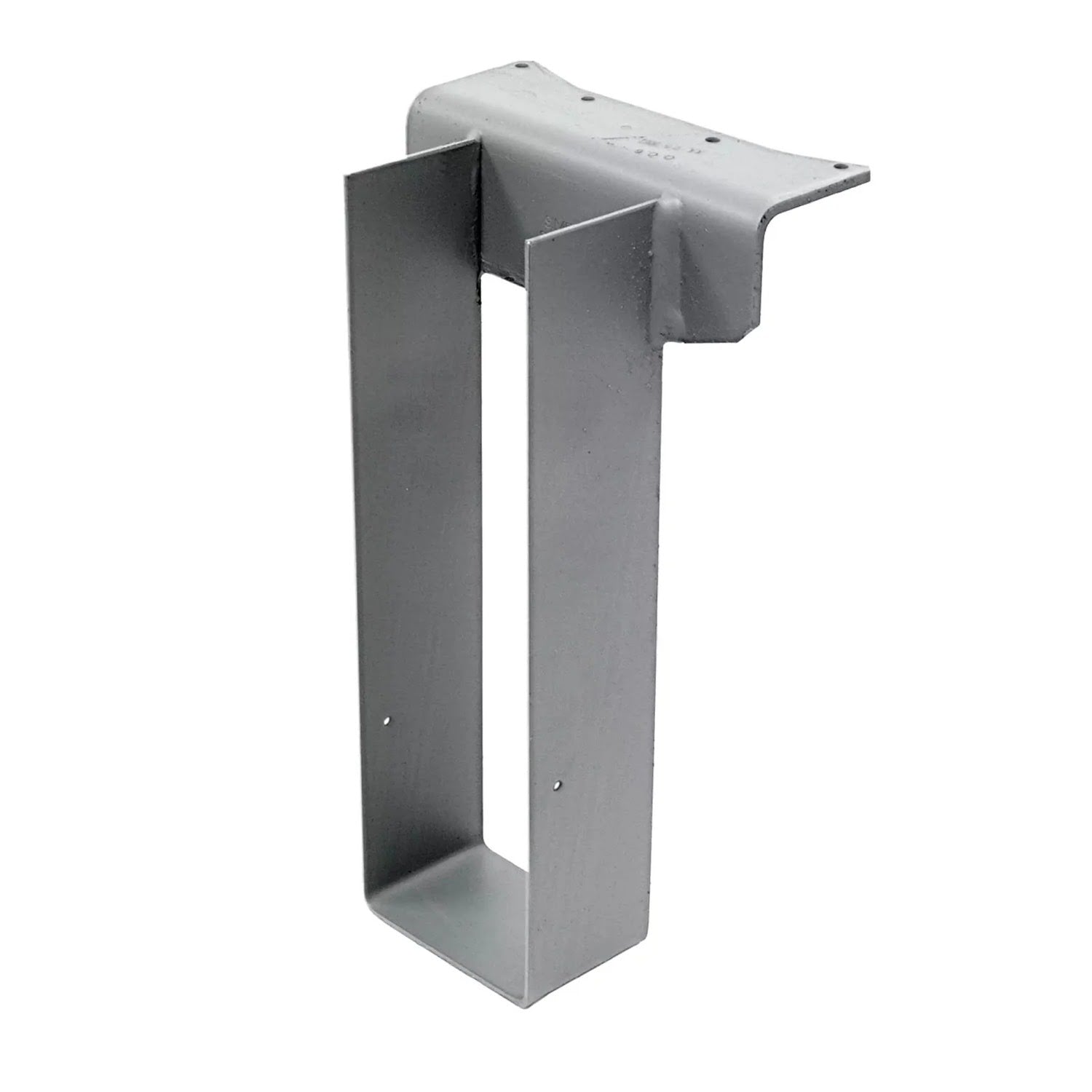

The Simpson WP28-2 Welded Purlin Hanger is a robust top-flange hanger designed for double 2x8 joists, offering superior load capacity and structural integrity.
Simpson Strong-Tie WP28-2 Includes
- (1) Welded Purlin Hanger
Simpson Strong-Tie WP28-2 Features
- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Manufactured from 12-gauge steel for enhanced strength and durability
- Simpson Strong-Tie gray paint provides protection against environmental factors
Simpson Strong-Tie WP28-2 Applications
- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

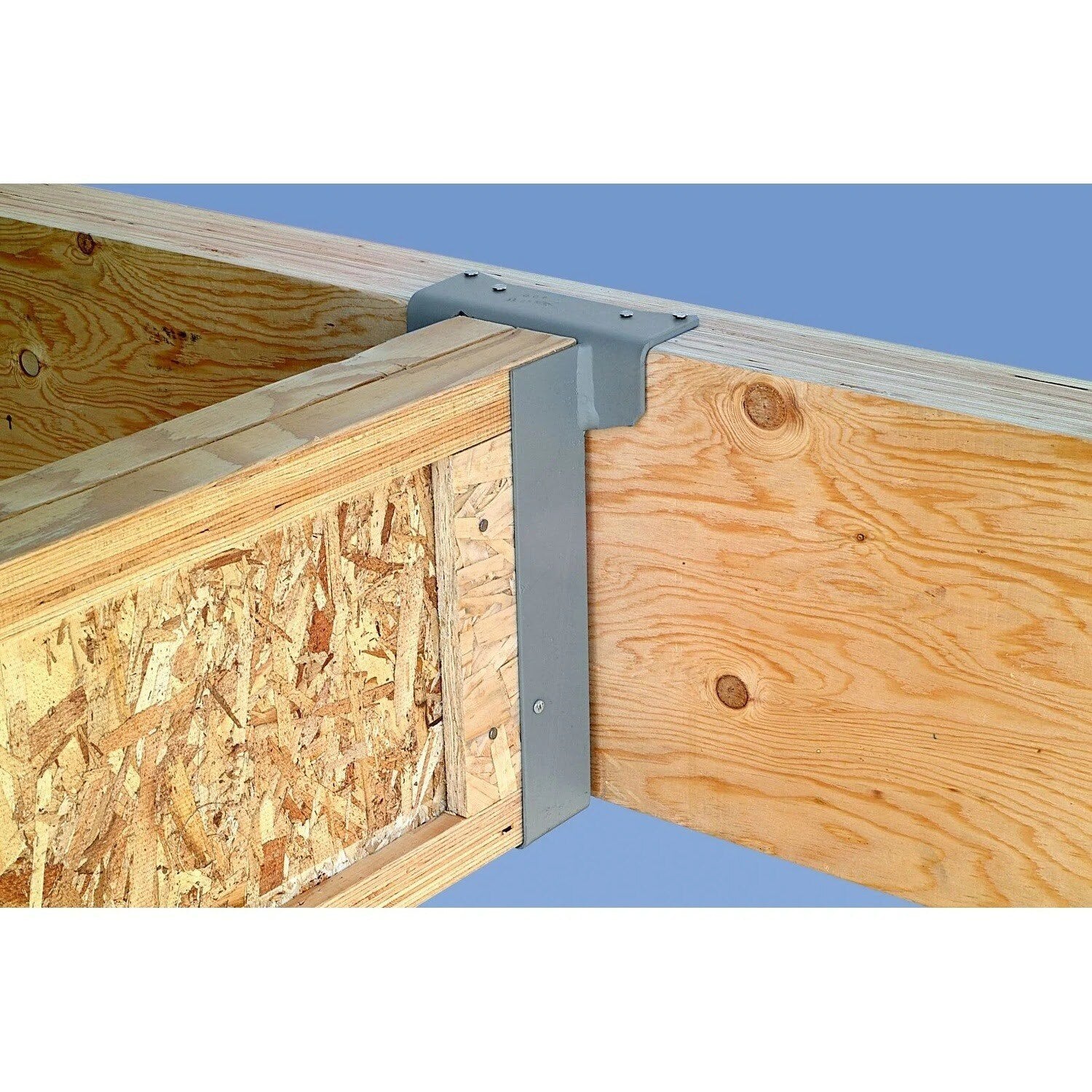

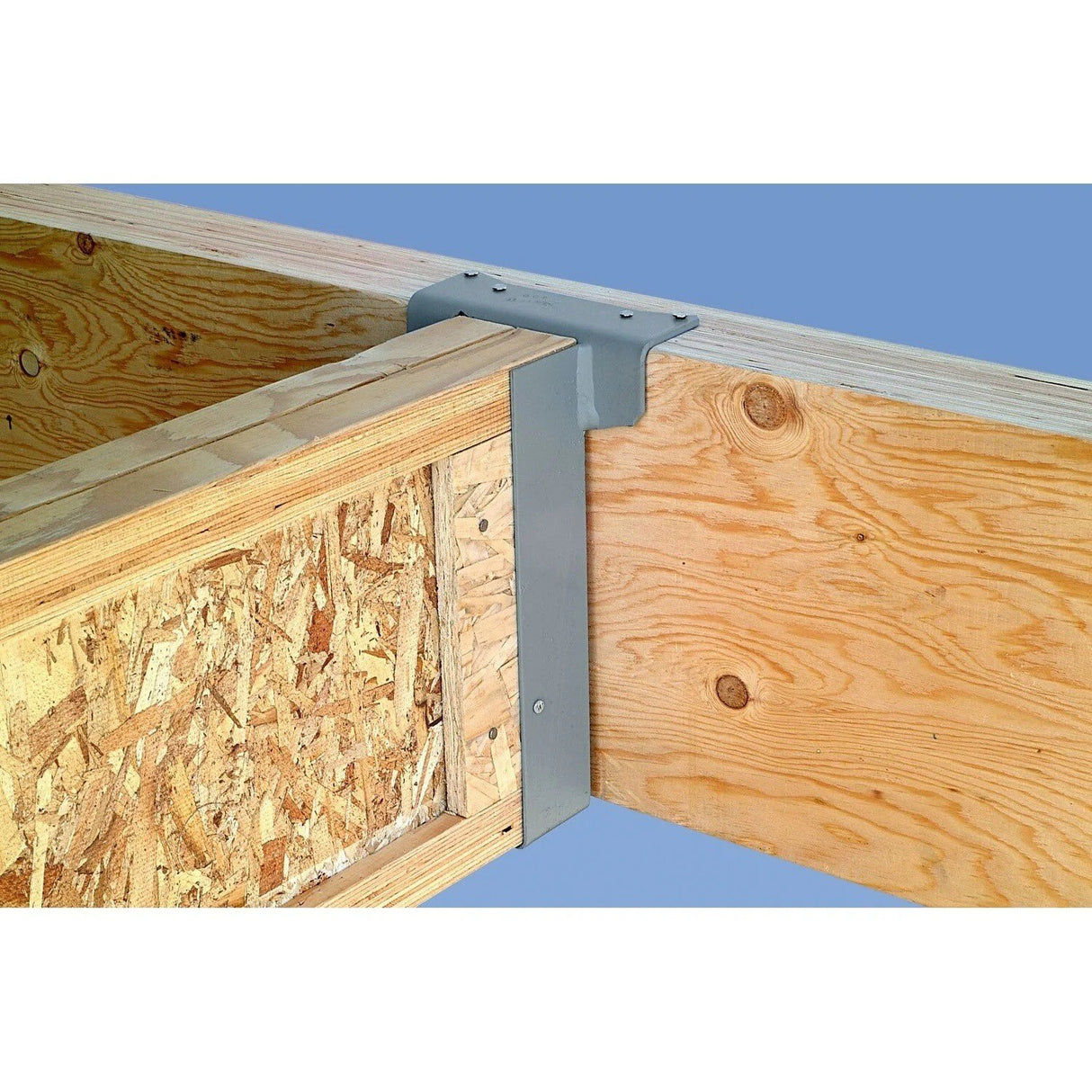

- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Simpson Strong-Tie WP28-2 Installation Overview
- Use all specified fasteners.
- H dimensions are sized to account for normal joist shrinkage.
- The WP may be used for weld-on applications. The minimum-size weld is a 1 1/2"-long fillet weld to each side of the top flange; weld size to match hanger material thickness.

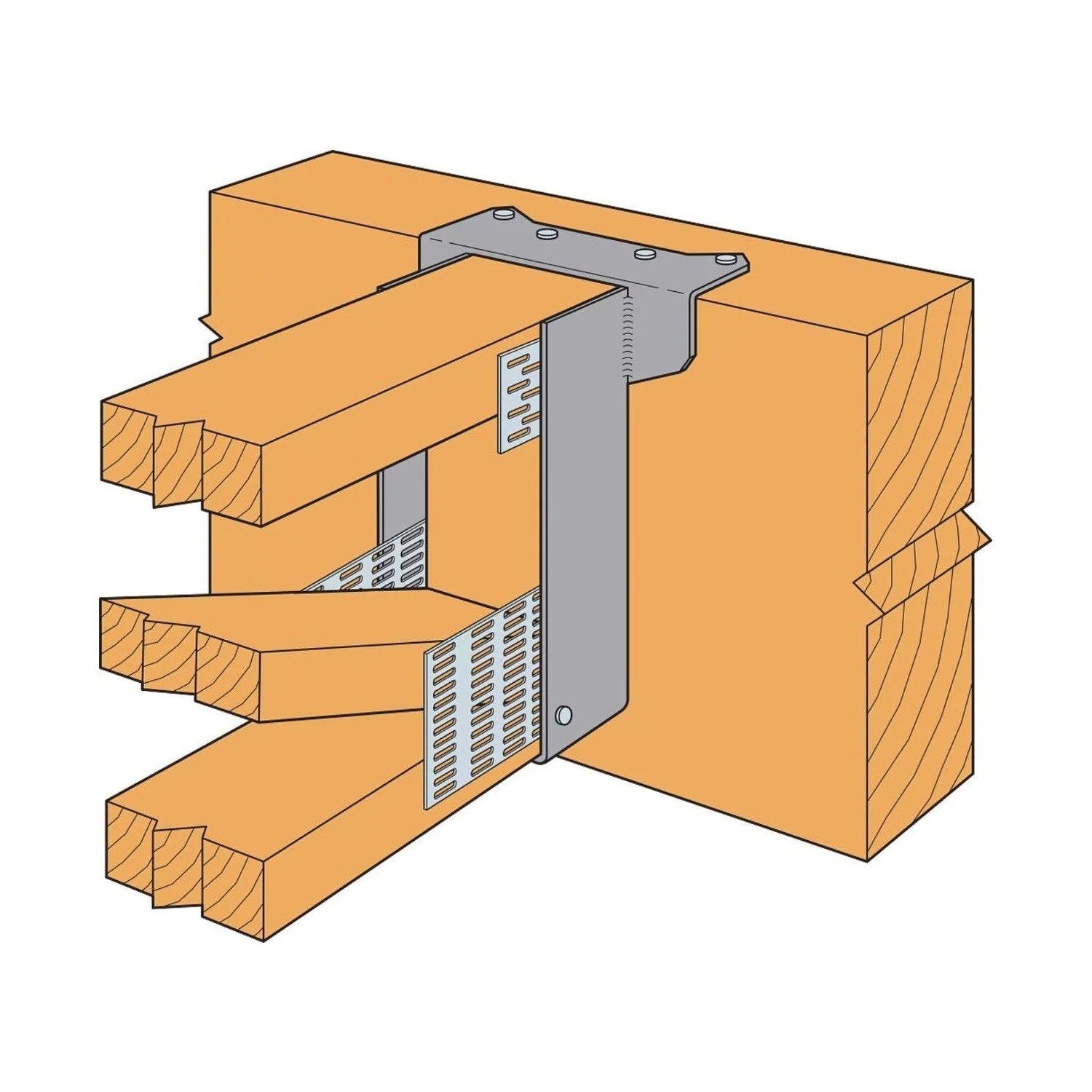

- Hangers can support multi-ply carried members; the individual members must be secured together to work as a single unit before installation into the hanger.
- Web stiffeners are required for these hangers when using engineered wood.

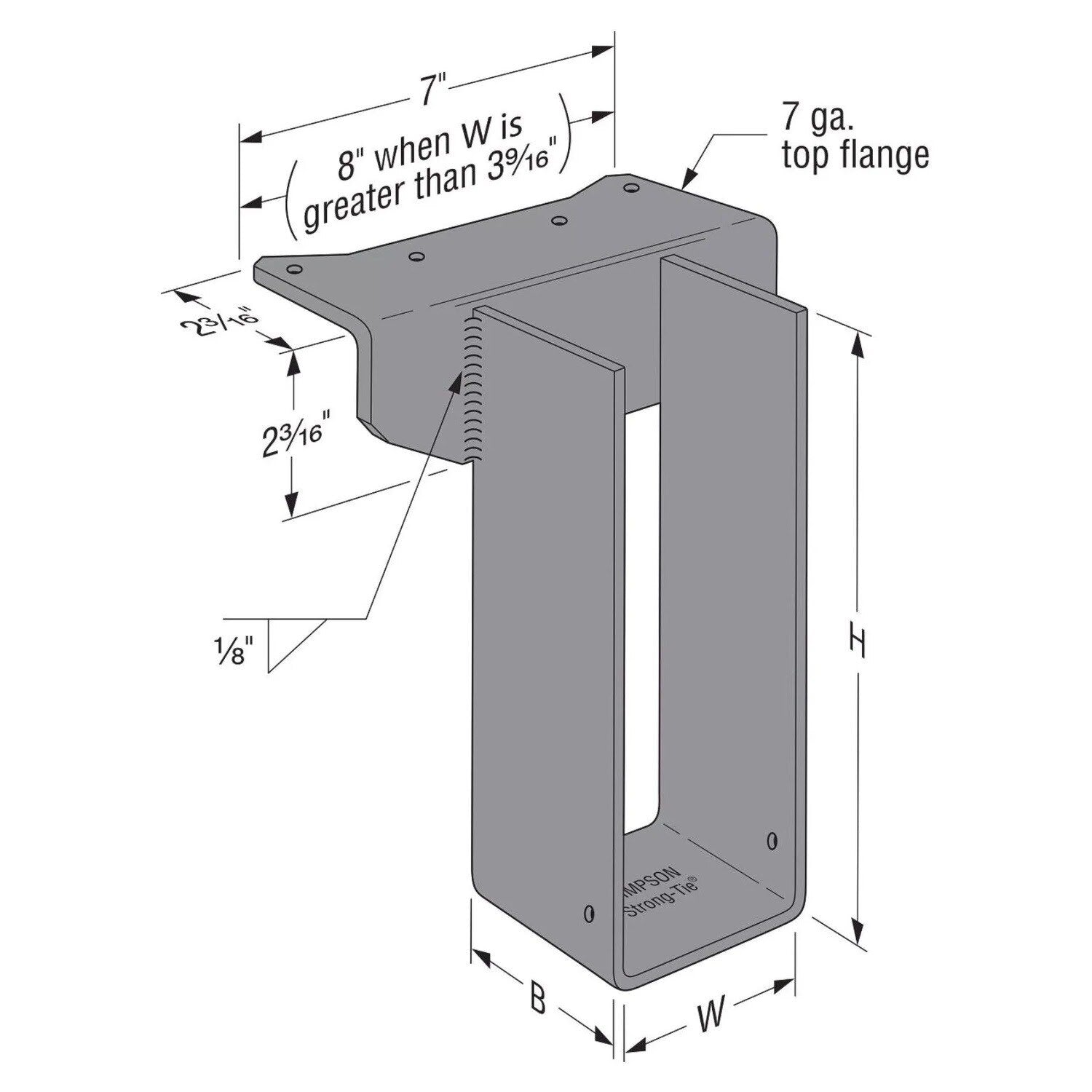

Simpson Strong-Tie WP28-2 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Thickness | 12 Gauge |
| Joist size | Double 2" X 8" |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
