Simpson Strong-Tie WSWH-RTBL24 Description

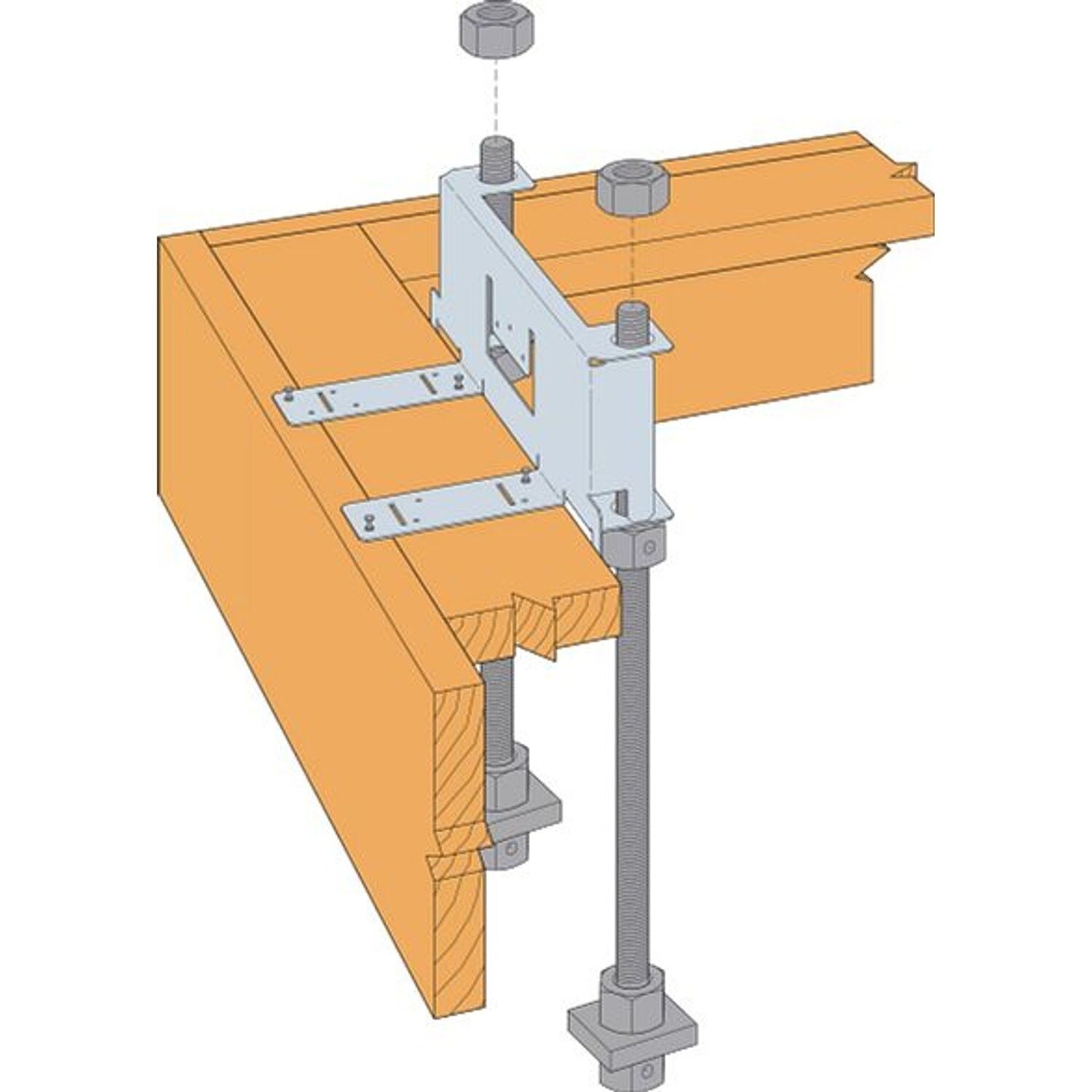

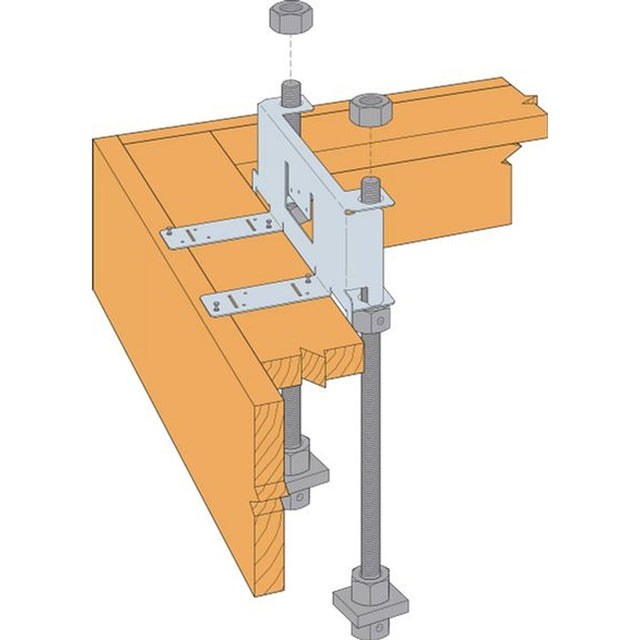

The Strong-Wall Brick-Ledge Anchor Bolt Template is designed for precise placement of anchor bolts in 24" high-strength wood shearwalls, ensuring reliable performance in both interior and exterior applications.
Simpson Strong-Tie WSWH-RTBL24 Includes
- (1) Strong-Wall Brick-Ledge Anchor Bolt Template
Simpson Strong-Tie WSWH-RTBL24 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTBL24 Applications
- RTBL: Brick ledge model used for brick ledge foundations
- RT: Standard model used for exterior and interior (reversed) installations at the top of the form
- RTPF: Panel form model used for installations in panel forms, typically below the top of the form
- RTEL: Extended leg model used for installations where WSWH is flush with the inside face of a 2x6 sill plate
- RTELPF: Extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Simpson Strong-Tie WSWH-RTBL24 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTBL24 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Special Order | FALSE |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
