Simpson Strong-Tie WSWH-RTEL12 Strong-Wall (12") Extended-Leg Anchor Bolt Template for High-Strength Wood Shearwall
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie WSWH-RTEL12 Strong-Wall (12") Extended-Leg ...
Key Specifications
Description
Description
Simpson Strong-Tie WSWH-RTEL12 Description

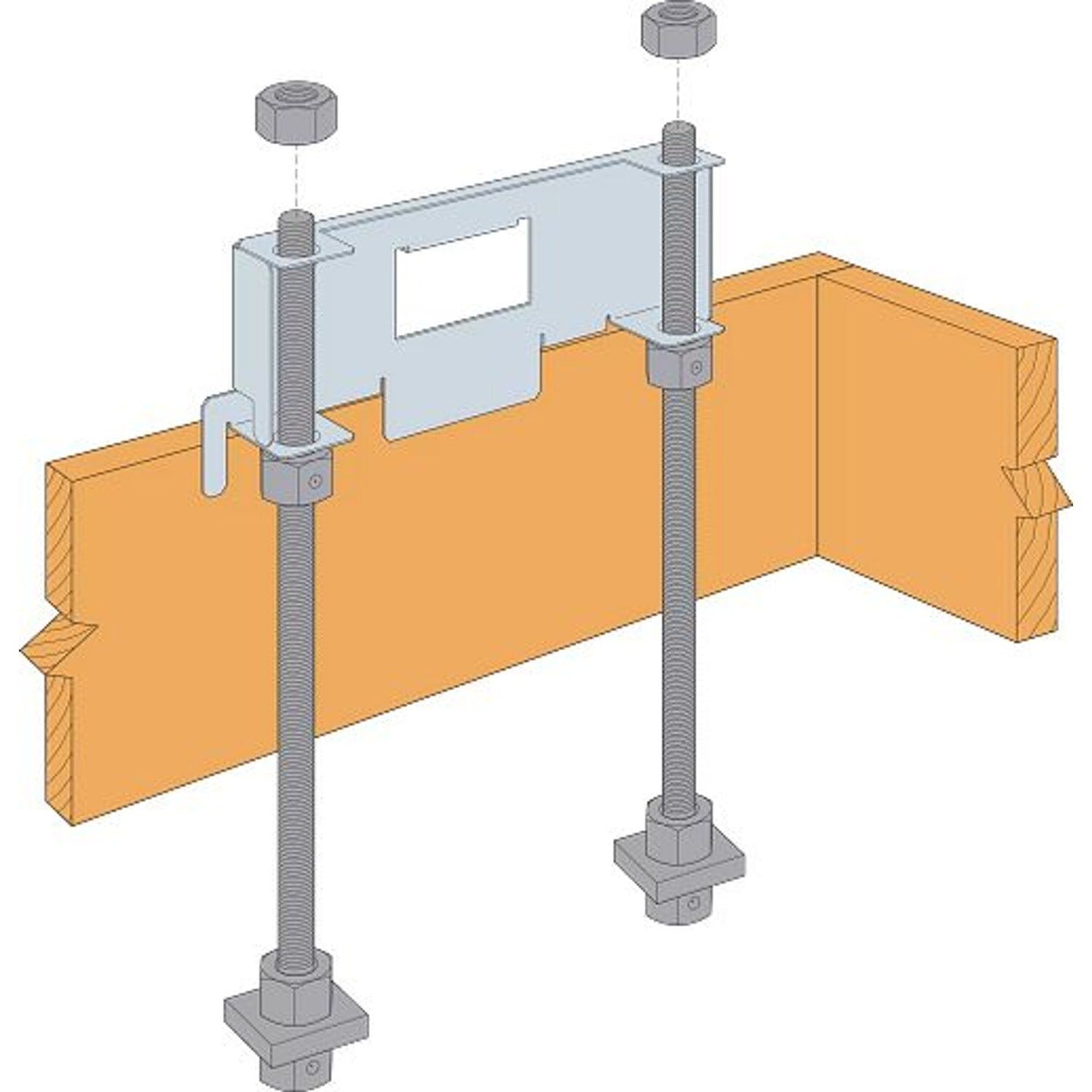

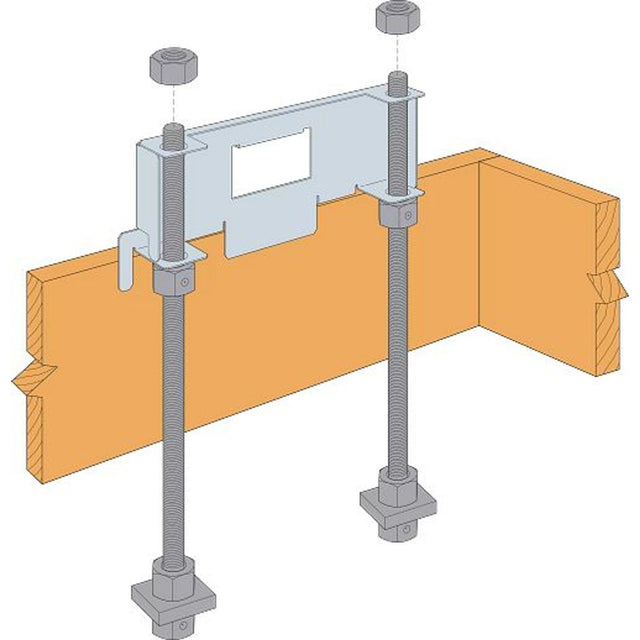

The Strong-Wall Extended-Leg Anchor Bolt Template is designed for precise placement of anchor bolts in 12" high-strength wood shearwalls, ensuring reliable performance in structural applications.
Simpson Strong-Tie WSWH-RTEL12 Includes
- (1) WSWH-RTEL12 Template
Simpson Strong-Tie WSWH-RTEL12 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTEL12 Applications
- RTEL: Extended leg model used for installations where WSWH is flush with the inside face of a 2x6 sill plate
- RTELPF: Extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Simpson Strong-Tie WSWH-RTEL12 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTEL12 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Packaging Quantity | 1 |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
