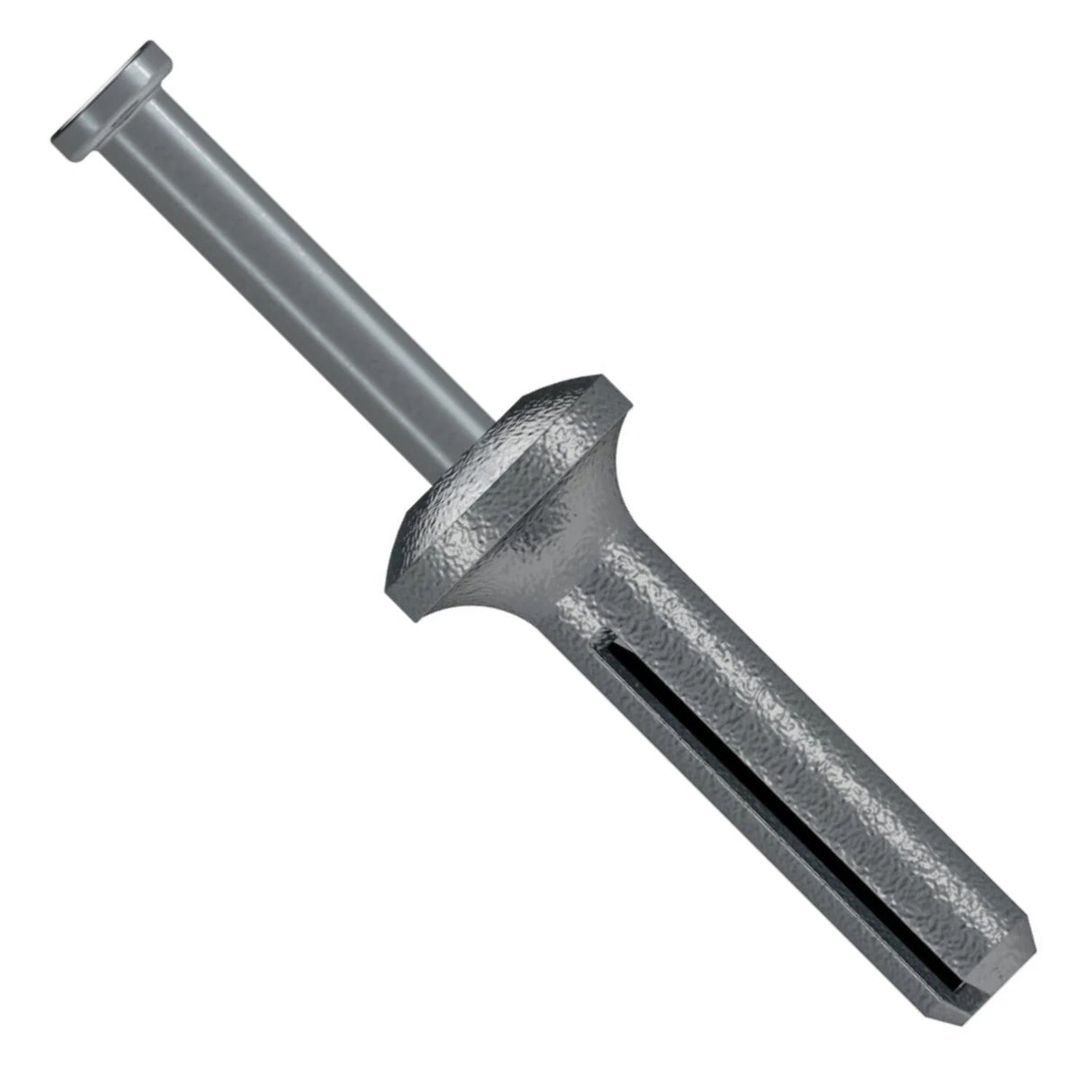

Simpson ZN18078 Zinc Nailon Pin-Drive Anchor - Light-Duty Applications (100 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson ZN18078 Zinc Nailon Pin-Drive Anchor - Light-Duty Applicati...
Key Specifications
Description
Description
Simpson Strong-Tie ZN18078 Description
Zinc Nailon anchors are low-cost, mushroom head anchors designed for static load applications. Easily installed by driving the pin through the anchor, expanding its body to hold it securely in place.
Simpson Strong-Tie ZN18078 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN18078 Features
- Available with carbon and stainless-steel pins
- Pin and head configuration designed to make anchor tamper-resistant
- Low-cost solution for static load applications
Simpson Strong-Tie ZN18078 Applications
- Concrete: Securely anchors fixtures to concrete surfaces
- CMU: Ideal for use in concrete masonry units
- Brick: Effective for anchoring in solid brick materials
Simpson Strong-Tie ZN18078 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture.
- Drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN18078 Specifications
| Diameter | 3/16" |
| Length | 7/8" |
| Material | Carbon Steel |
| Drill Bit Size | 3/16" |
| For Treated Lumber | Yes |
| Manufacturer Name | Simpson Strong-Tie |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
