The Complete Trade Professional's Guide to Bolt Grade Identification

Selecting the correct bolt grade isn't just about making sure you’re up to code; it's about providing a safely built structure without needing to come back to fix mistakes. Whether hanging a 400-pound air handler or securing structural steel, using the wrong grade fastener can mean the difference between a job done correctly and catastrophic failure or even death. A failed connection can shut down an entire project, damage equipment, or worse, injure you or someone on your crew.

That's why every trade professional needs to understand how to identify bolt grades in the field quickly and efficiently. We’re here to help with knowing what to look for and when to ask for a supervisor.

TLDR: Quick Bolt Grade Reference

SAE System (Radial Lines on Head)

1. No markings = Grade 2 (74,000 psi) - Light duty only
2. 3 radial lines = Grade 5 (120,000 psi) - Most HVAC and standard work
3. 6 radial lines = Grade 8 (150,000 psi) - Critical connections and high stress

 Metric System (Numbers Stamped on Head)

1. 8.8 = 116,000 psi (similar to Grade 5)
2. 10.9 = 150,000 psi (similar to Grade 8)
3. 12.9 = 177,000 psi (stronger than Grade 8)

 Important Rules to Remember

1. Never mix grades - Grade 8 bolt + Grade 2 nut = Grade 2 strength
2. Match nut grades to bolt grades - Look for dot and line markings on nuts
3. When in doubt, upgrade - A Higher grade provides a safety margin
4. Document critical connections - Keep records for maintenance

 Red Flags to Look Out For

1. Unmarked bolts from unknown sources
2. Missing manufacturer marks
3. Mixing SAE and metric systems
4. Using standard washers with Grade 8 hardware.

Overall, the correct bolt grade selection prevents callbacks, liability issues, and safety hazards. The cost difference between grades is minimal compared to the consequences of failure.

Before we start on bolt identification methods, it’s important to understand what bolt grades actually mean. The grade system is based on the material properties and manufacturing processes you'll be using, as these determine the maximum load a fastener can withstand before it fails.

A key measurement in knowing how much pulling force a bolt can withstand before it breaks is tensile strength. The higher-grade bolts offered use better steel alloys and heat treatment processes to achieve higher strength ratings than standard bolts. Proof load is equally as important as tensile strength, as it's what shows the maximum load a bolt can withstand without permanently deforming itself. Even if a bolt doesn’t break, if it stretches beyond its proof load, the connection may loosen over time, leading to catastrophic failure.

In North America, SAE bolts use grades 2, 5, and 8, while metric bolts use classes like 5.8, 8.8, 10.9, and 12.9. Higher numbers always mean stronger bolts, regardless of the system you use. For most construction and automotive work, Grade 8 SAE or Class 10.9 metric bolts are able to handle most typical applications.

The key specifications are yield strength (when the bolt permanently bends) and proof load (maximum load without damage). Smaller fasteners often lack grade markings, but larger bolts have grades stamped on their heads.

Metric System

Metric bolts use a two-number system stamped on the head:

8.8 Grade

1. Tensile strength: 116,000 psi
2. Equivalent to SAE Grade 5
3. Common in imported equipment

10.9 Grade

1. Tensile strength: 150,000 psi
2. Similar to SAE Grade 8
3. Often specified in European equipment manuals

12.9 Grade

1. Tensile strength: 177,000 psi
2. Higher than SAE Grade 8
3. Used in aerospace and high-performance applications

The Quick Check Method

1. Clean the bolt head: Remove paint, rust, or debris that might obscure markings.

2. Look for raised or recessed markings: Some are stamped deep, others are barely visible.

3. Check multiple locations: Markings can be on top, sides, or even the hex faces

4. Use proper lighting: A flashlight or headlamp helps in tight spaces

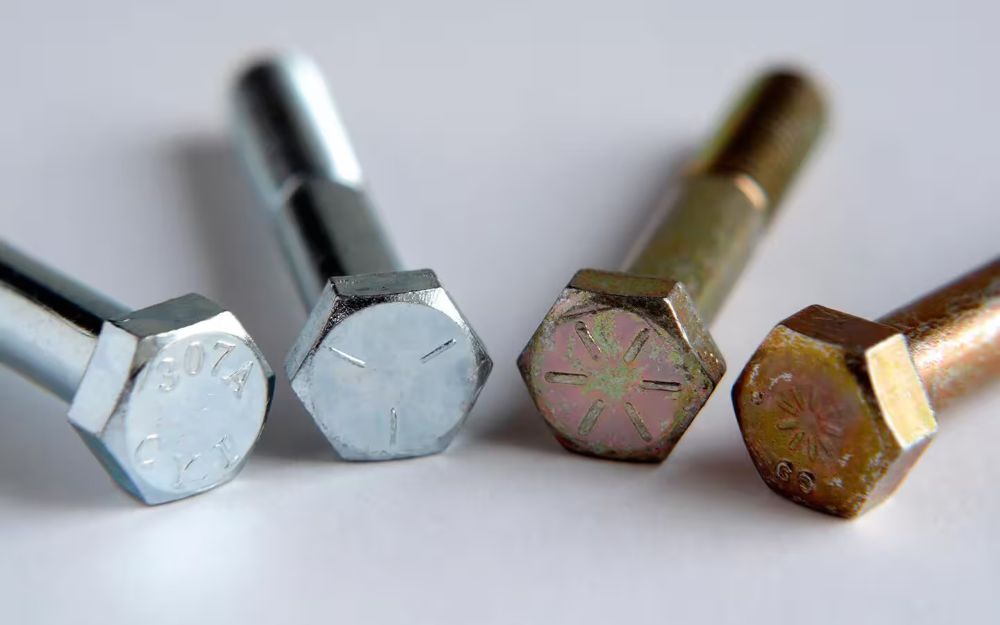

Visual Recognition Systems

The key is understanding that the number of lines doesn't directly correspond to the grade number. SAE designed these markings for quick field identification:

1. No lines = Grade 2
2. Three lines = Grade 5
3. Six lines = Grade 8

The lines are spaced out evenly around the bolt head, making them easy to count even when you can only see part of the head.

Manufacturer Identification

Every legitimate bolt manufacturer stamps their identification on the bolt head. These marks help verify authenticity and can be crucial for warranty claims or failure analysis.

Common Manufacturer Marks:

1. Single letters (B, F, H, etc.)
2. Two-letter combinations (AB, KT, etc.)
3. Three-character codes (ABC, 123, etc.)
4. Geometric symbols (triangles, squares, etc.)

Nuts use a different marking system than bolts, but it's just as important to match grades properly.

A Grade 8 bolt with a Grade 2 nut will fail at the nut's strength level, not the bolt's higher rating.

The critical point when it comes to these bolts is to never mix grades. This is one of the most important things to remember when building structures. A grade 8 bolt with a Grade 2 nut will fail at the nut’s strength level, not the bolt’s higher rating.

Mistake #1: Assuming Unmarked = Grade 2

Not all unmarked bolts are Grade 2.

Some manufacturers don’t mark lower grades, while others might have work markings. When in doubt, always replace with known-grade hardware. It’s better to replace it with bolts that you know the grade of than to guess. Never assume on the jobsite.

Mistake #2: Mixing Metric and SAE

A 10.9 metric bolt can look similar to a Grade 8 SAE bolt, but the thread pitch and dimensions might be different. It’s best to always verify the measurement system before installation to ensure accuracy.

Mistake #3: Ignoring Manufacturer Marks

A random small symbol on bolts is never a mistake or something unimportant. There is never a circumstance where a bolt will have a “random” mark.

Additionally, it’s essential to recognize that bolts without manufacturer marks may be imported hardware that doesn’t meet ASTM or SAE standards. Always inspect bolts for marks and never ignore them.

Mistake #4: Using the Wrong Washers

Even with the correct bolt and nut grades, using the wrong washer can reduce the connection strength. Hardened washers are required with Grade 8 hardware.

Corrosion Protection Options

Zinc Plating

• Most common protective coating
• Good for indoor or mild outdoor environments
• Bright silver appearance when new
• Cost-effective for most applications

Zinc Yellow Chromate

• Enhanced corrosion resistance
• Distinctive yellow color
• Often used on Grade 8 bolts
• Better performance in humid conditions

Hot-Dip Galvanized

• Thicker zinc coating
• Excellent corrosion resistance
• Rough, matte finish
• Required for many outdoor structural applications

Stainless Steel

• Ultimate corrosion resistance
• A2 (304) grade for general use
• A4 (316) grade for marine environments
• Higher cost but longer service life

Coating Selection by Environment

Indoor, Dry Environments:

• Zinc plating is adequate for most applications
• Plain steel is acceptable for temporary installations

Outdoor, General Use:

• Zinc yellow chromate minimum
• Hot-dip galvanized is preferred for structural work

Coastal/Marine Environments:

• Stainless steel A4 (316) grade required
• Hot-dip galvanized with barrier coating as an alternative

To ensure that there is optimal joint strength across different materials and applications, it's best to make sure that there is proper thread engagement.

When it comes to steel-to-steel connections, most require a minimum engagement of 1.5 times the bolt diameter, while steel-to-aluminum connections need 2.0 to 2.5 times due to aluminum's lower thread shear strength. If you've got through-bolt applications, those will need a full nut thickness minimum.

Minimum Thread Engagement:

1. Steel into steel: 1.5 times the bolt diameter

2. Steel into aluminum: 2.0 to 2.5 times the bolt diameter

3. Through-bolt applications: Full nut thickness minimum

Maximum Thread Engagement:

• No more than 2.5 times the bolt diameter
• Excess engagement wastes material and may cause binding

You also need to make sure the nut itself can handle the load, not just the thread engagement. Though these are common minium and maximum thread engagements, it's always best to double check with the standards required for your jobsite and project.

Understanding bolt grade identification isn’t just about following specifications; it’s about protecting your work, crew, and reputation. The few minutes spent identifying and documenting fastener grades can save thousands of dollars in callbacks, liability issues, and project delays. It's better in the long run to have everything set up before you start, and it saves you time.

Another thing to remember is that the cost of upgrading to a higher-grade bolt is minimal compared to the cost of a major structural failure. When specifications or codes permit, selecting the next higher grade provides an additional safety margin and an overall peace of mind for everyone involved.

Whether you’re hanging ductwork, mounting electrical panels, or securing heavy equipment, taking the time to verify bolt grades means that your connections will perform as intended for as long as needed, without the need for repairs.

Key Takeaways:

1. Always verify grade requirements before installation.

2. Keep reference charts accessible on the job site

3. Document bolt specifications for maintenance records

4. When in doubt, upgrade to the next higher grade

5. Never mix SAE and metric systems without proper verification
